Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01

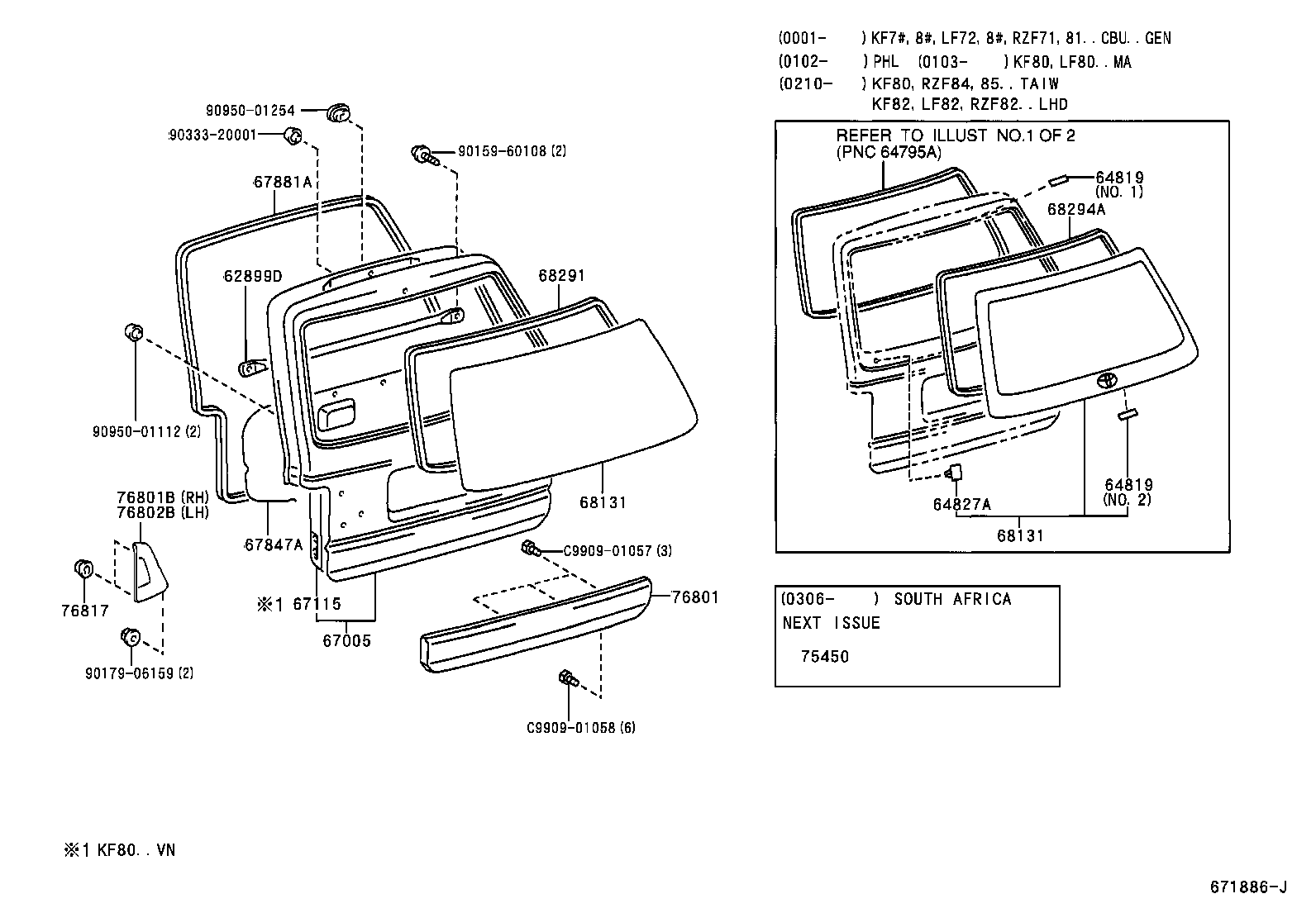

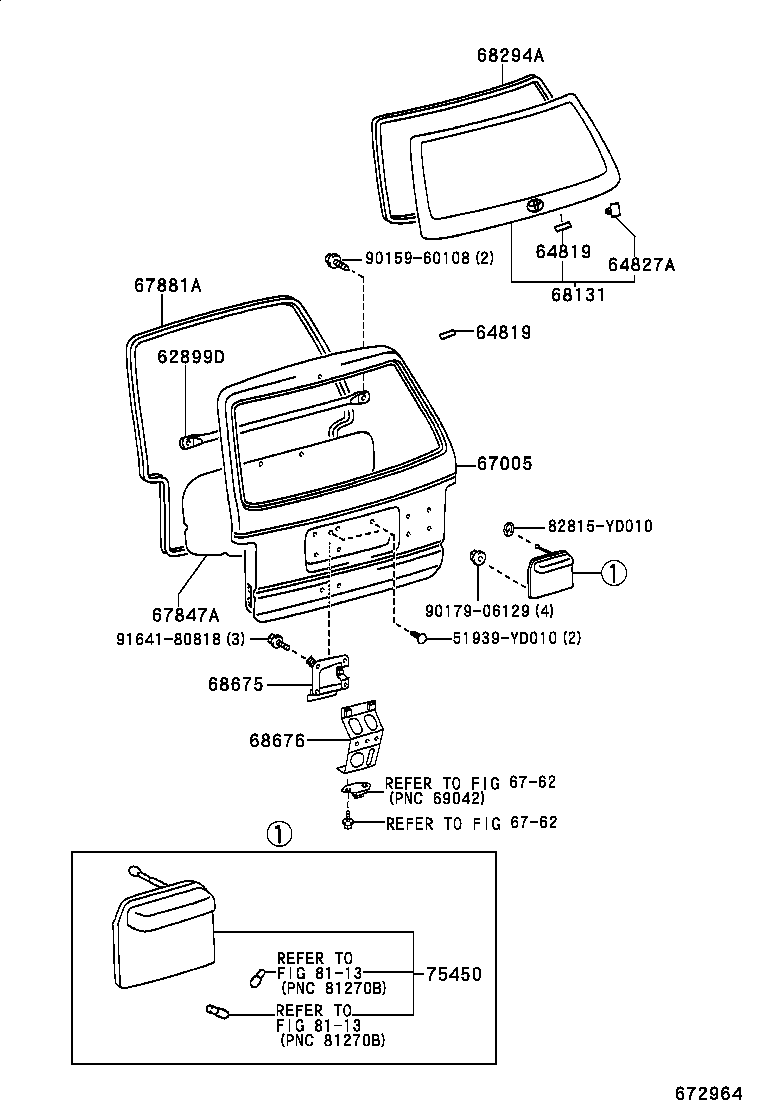

Back Door Panel & Glass
27 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 62899D | Bar, Back Door Window Guard |
| 64708B | Clip, Back Door Trim |
| 64780A | Panel Assy, Back Door Trim |
| 64780B | Clip(FOR BACK DOOR TRIM PANEL) |
| 64780D | Retainer(FOR BACK DOOR TRIM BOARD) |
| 64780E | Cap, Door Trim Retainer |
| 64790B | Panel Assy, Back Door Trim, Upper |
| 64795A | Trim, Back Window Opening |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 64827A | Clip, Back Window Glass, RH |
| 67005 | Panel Sub-assy, Back Door |
| 67115 | Panel, Back Door, Outer |
| 67687C | Garnish, Back Window |
| 67847A | Cover, Back Door Service Hole |
| 67881A | Weatherstrip, Back Door |
| 68131 | Glass, Back Door |
| 68291 | Weatherstrip, Back Door Glass |
| 68294A | Dam, Back Door Glass Adhesive |
| 68675 | Retainer, Back Door Panel, RH |
| 68676 | Retainer, Back Door Panel, LH |

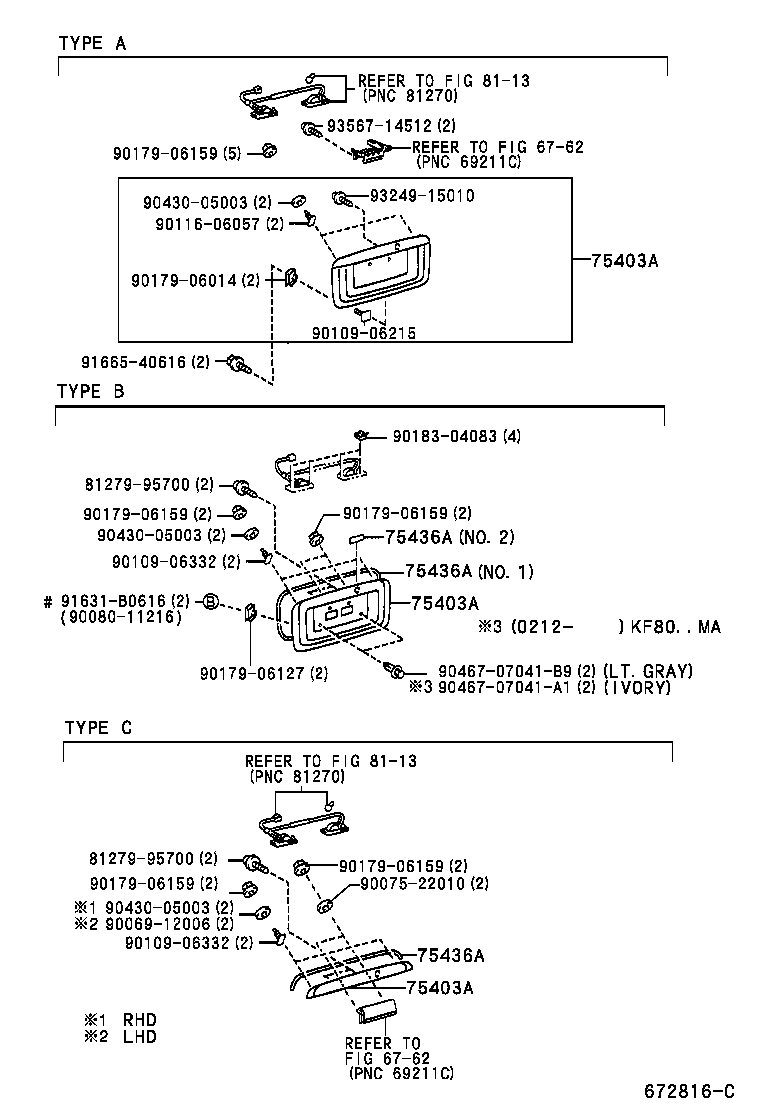

| 75403A | Ornament Sub-assy, Back Door |
| 75436A | Protector, Back Door Ornament |
| 75450 | Ornament Assy, Rear |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76801B | Garnish Sub-assy, Back Door, Outside RH |
| 76802B | Garnish Sub-assy, Back Door, Outside LH |
| 76817 | Clip, Back Door Outside Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
