Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01
Seat & Seat Track
314 part groups · 85 illustrations

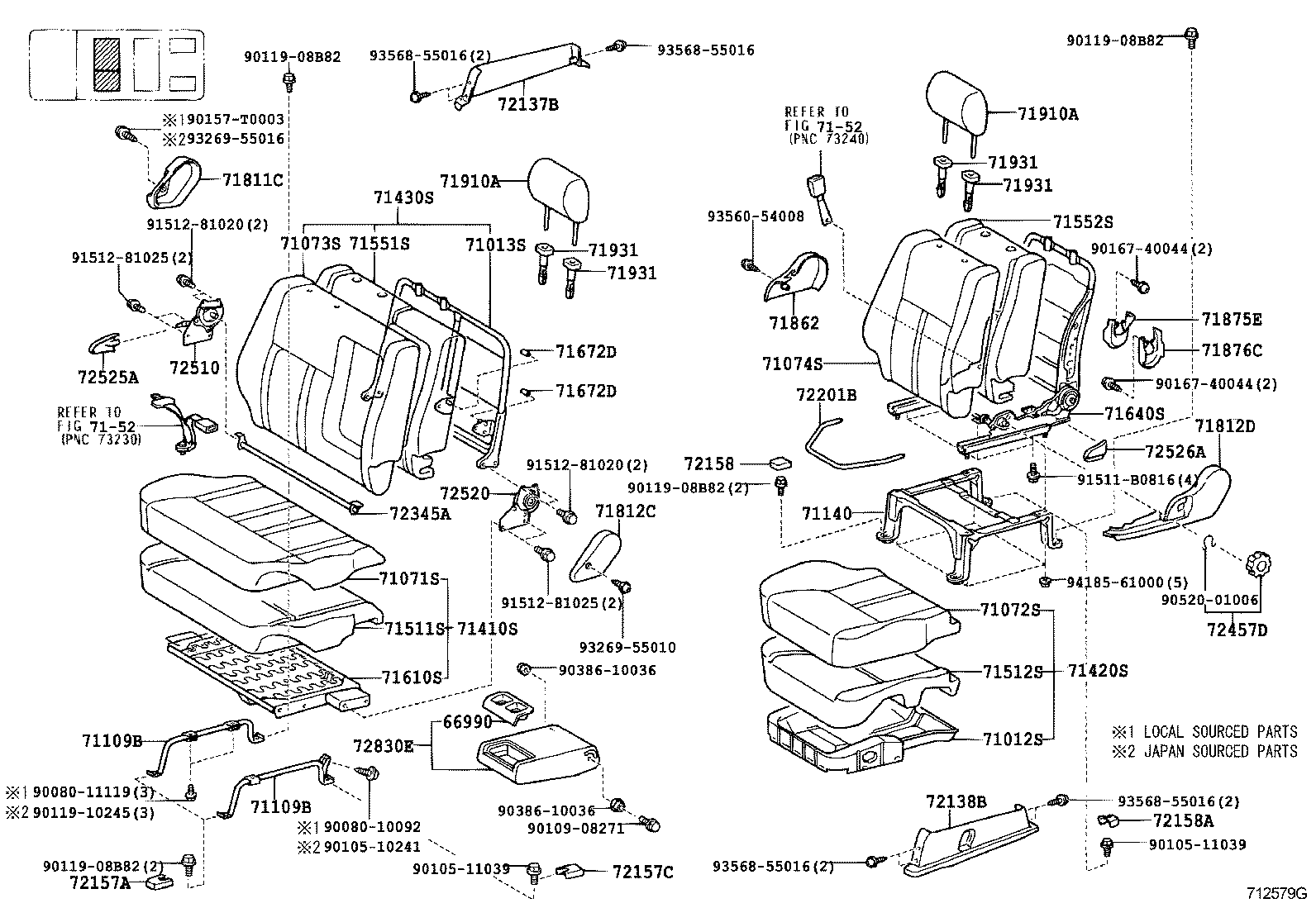

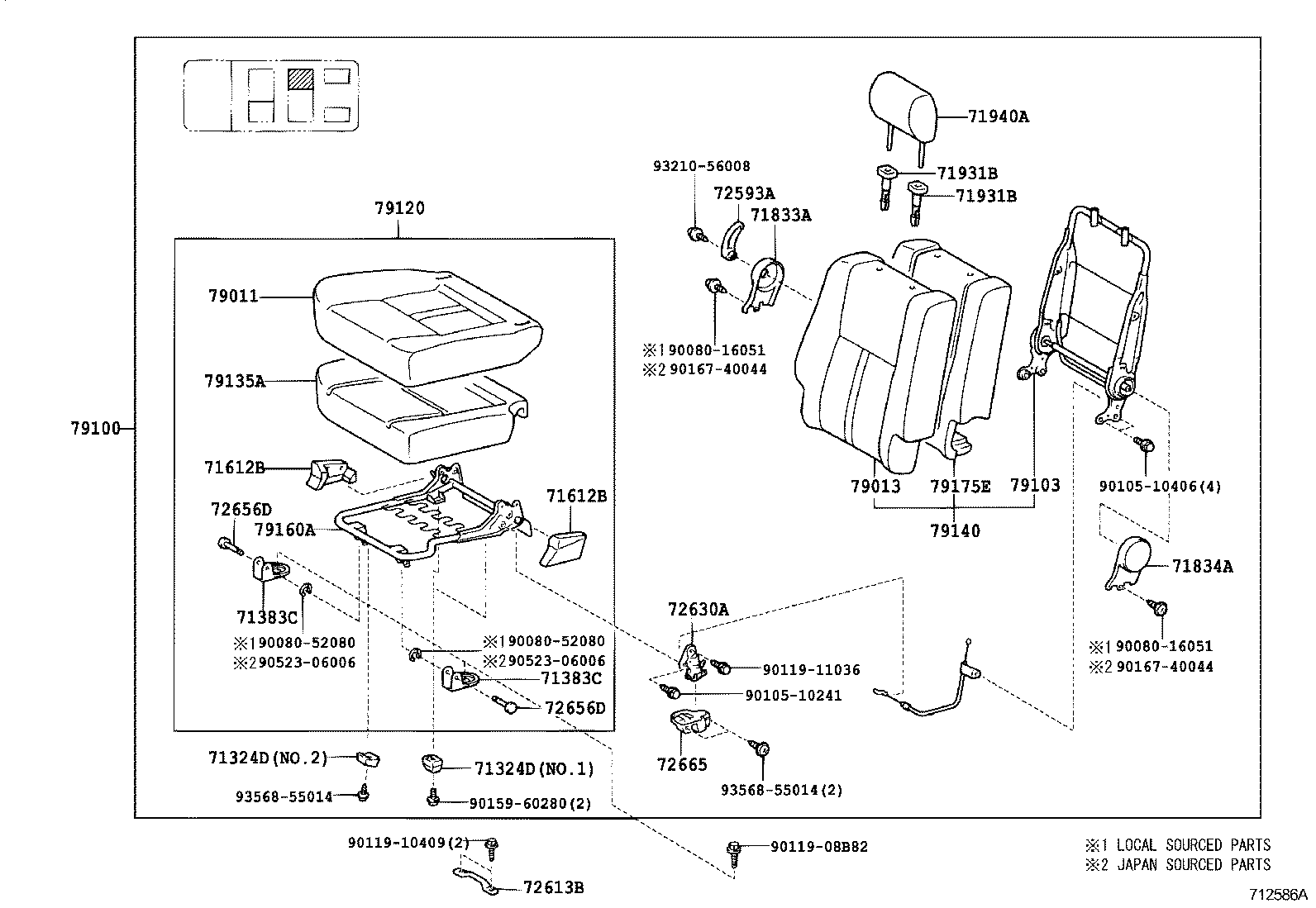

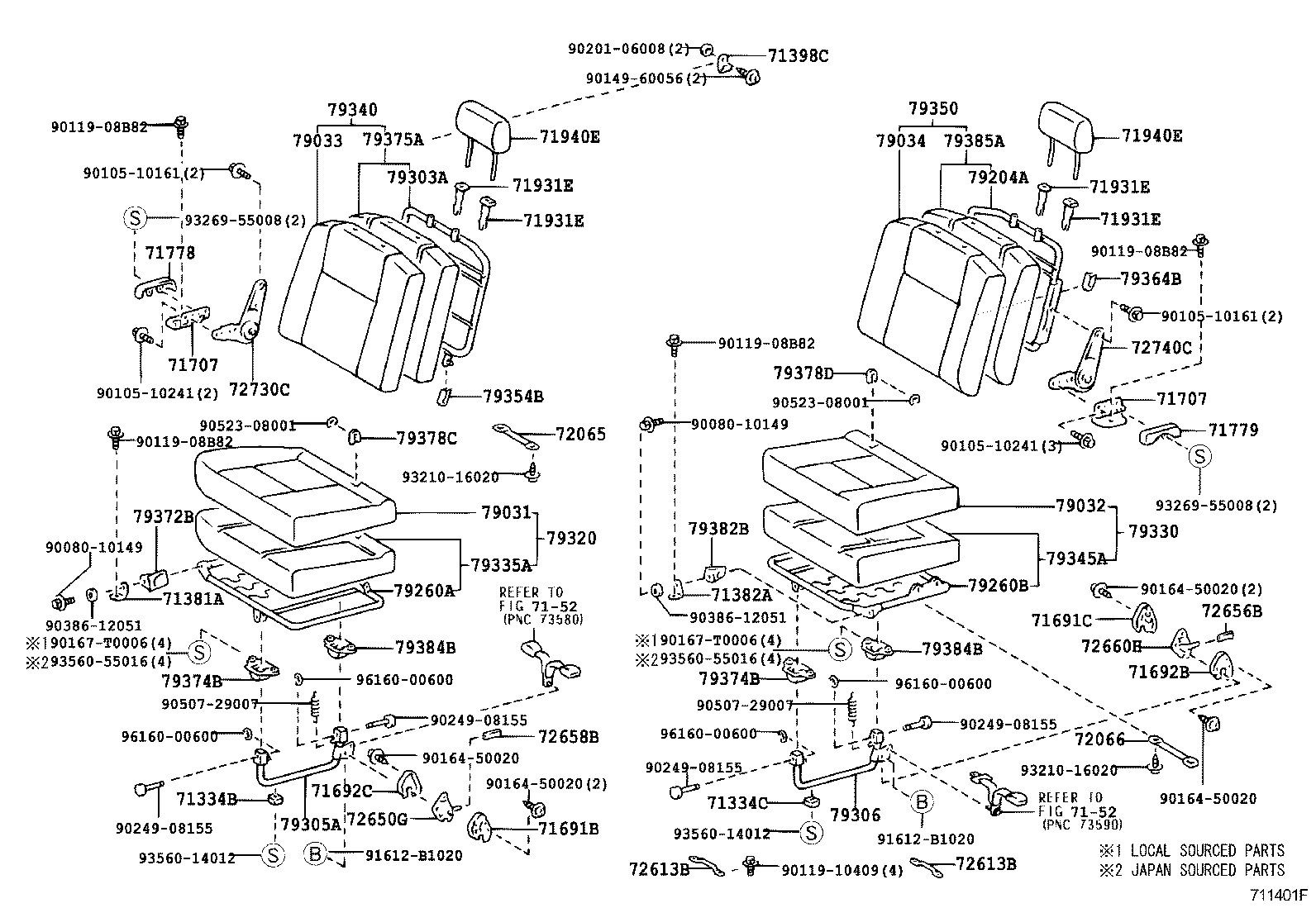

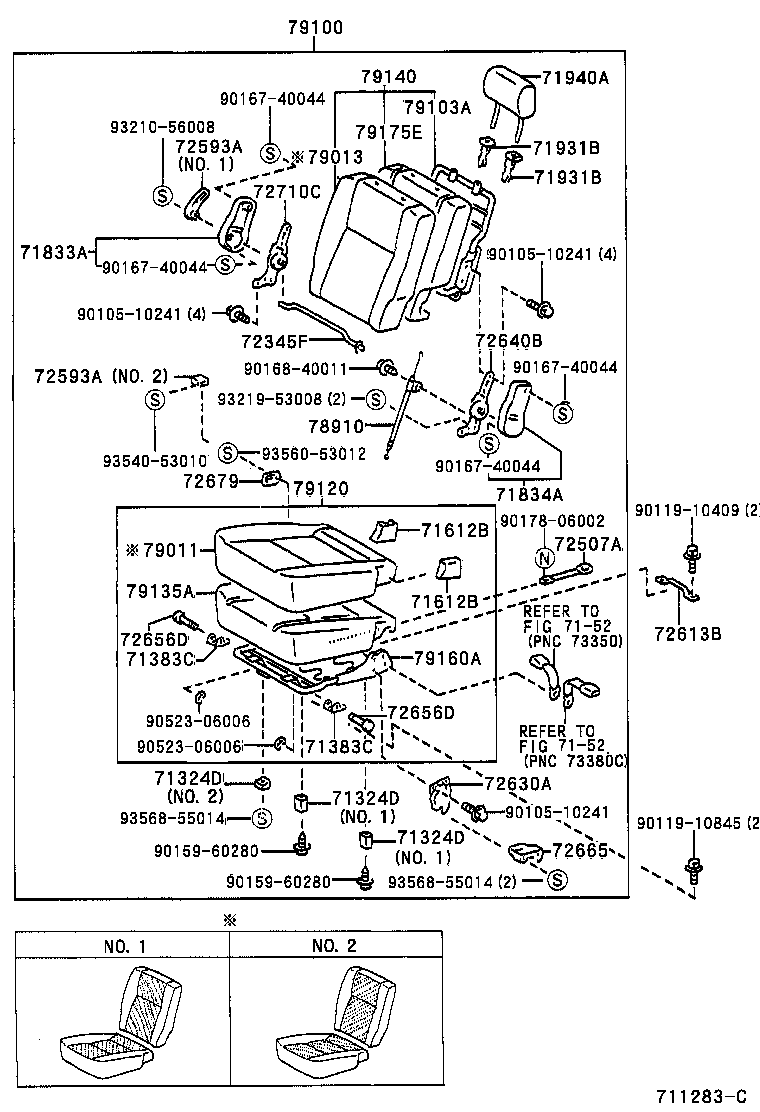

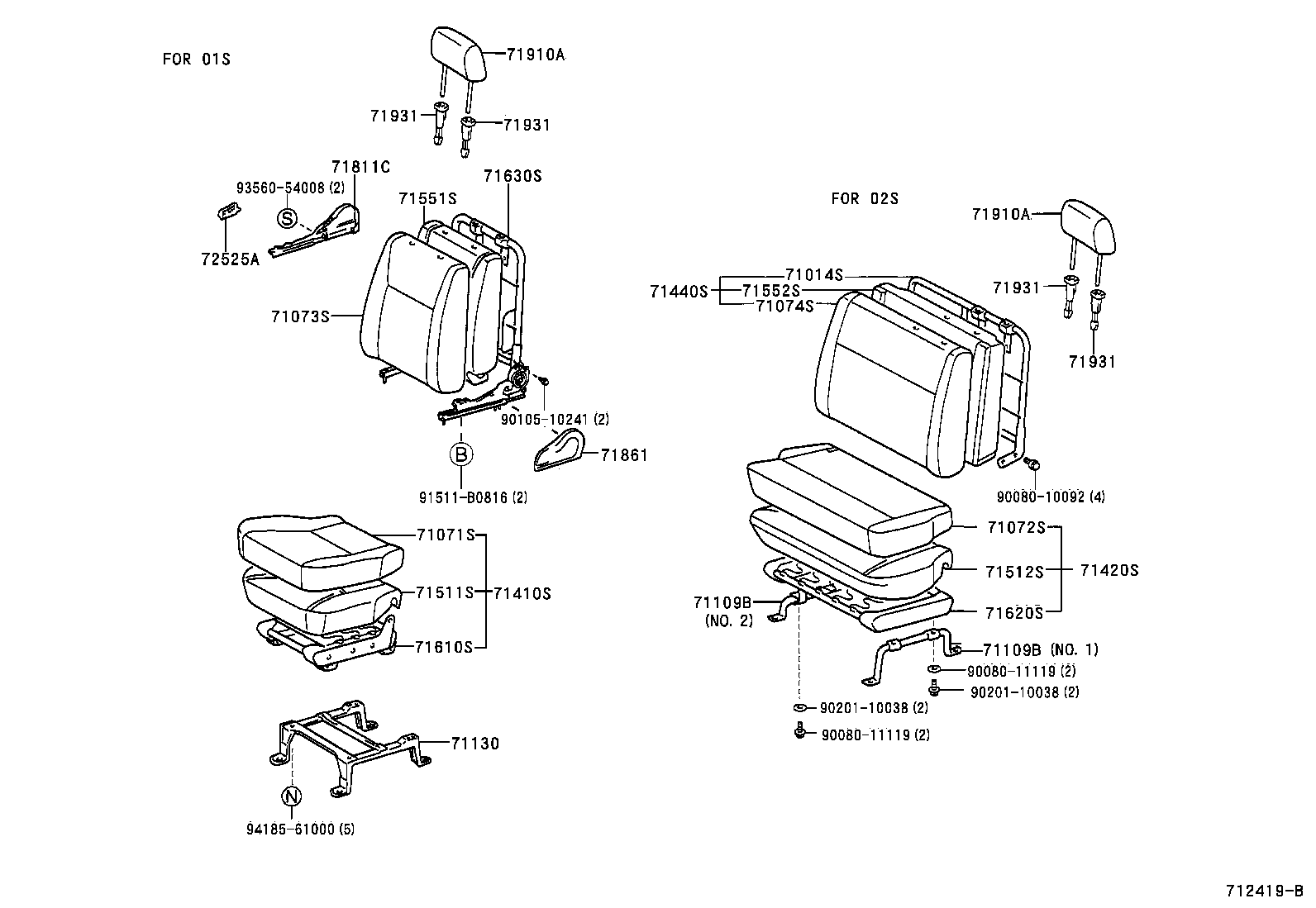

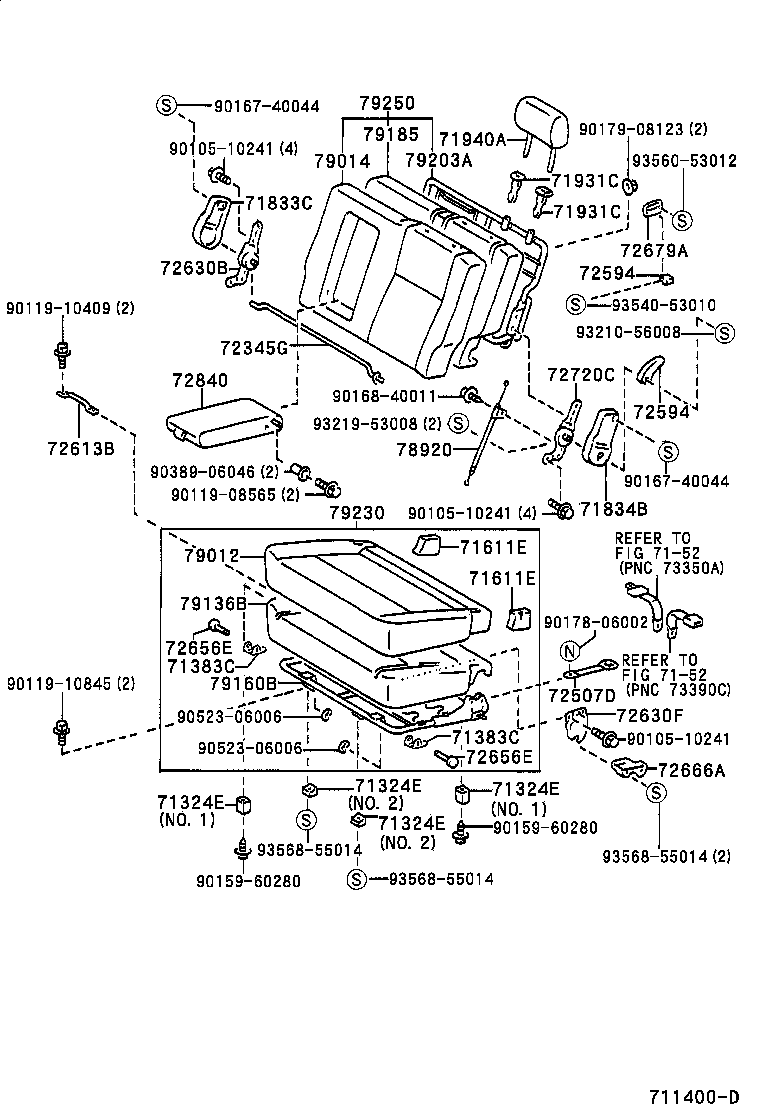

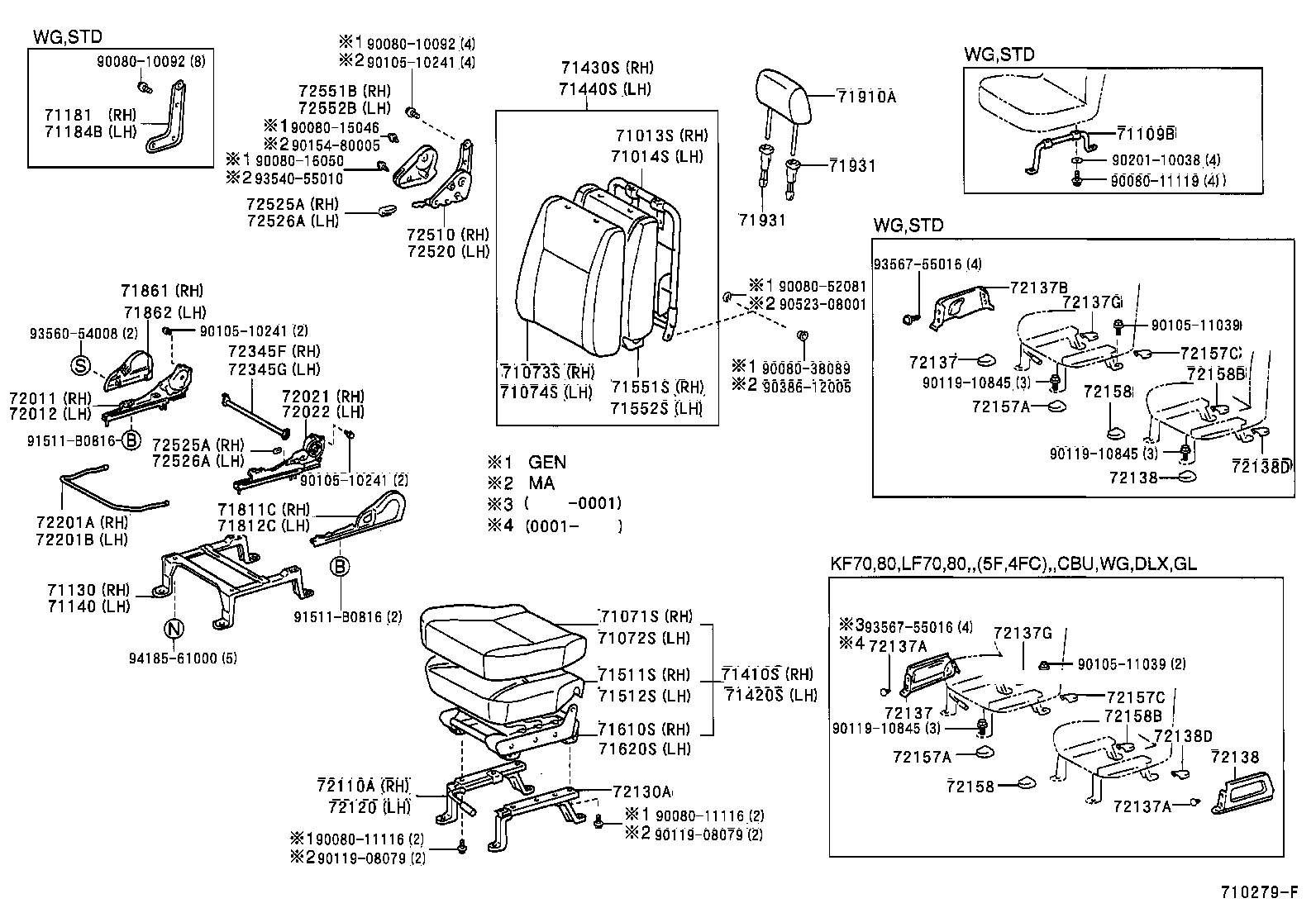

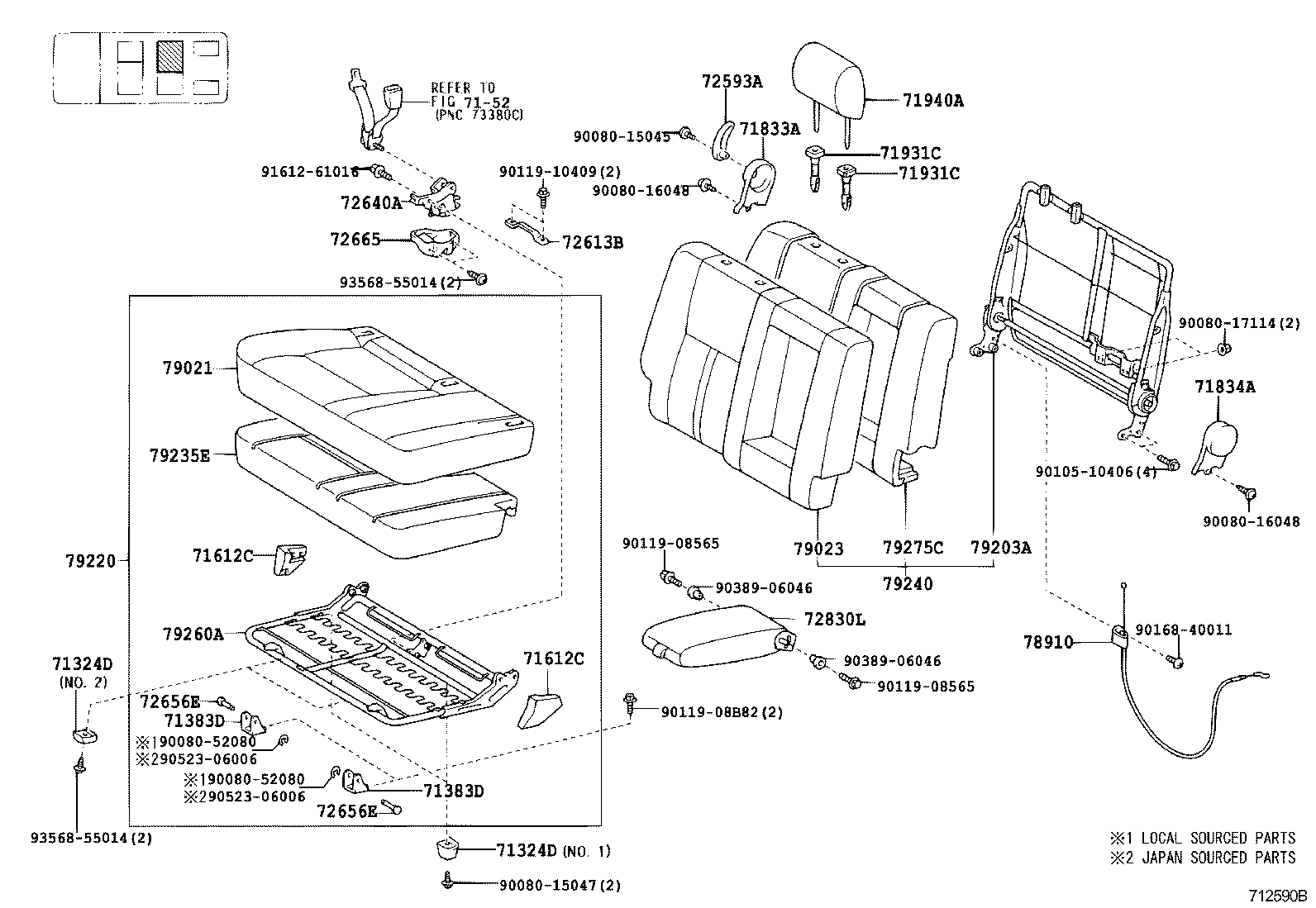

Illustrations
710278H
710278H
712419B
710279F
710279F
710279F

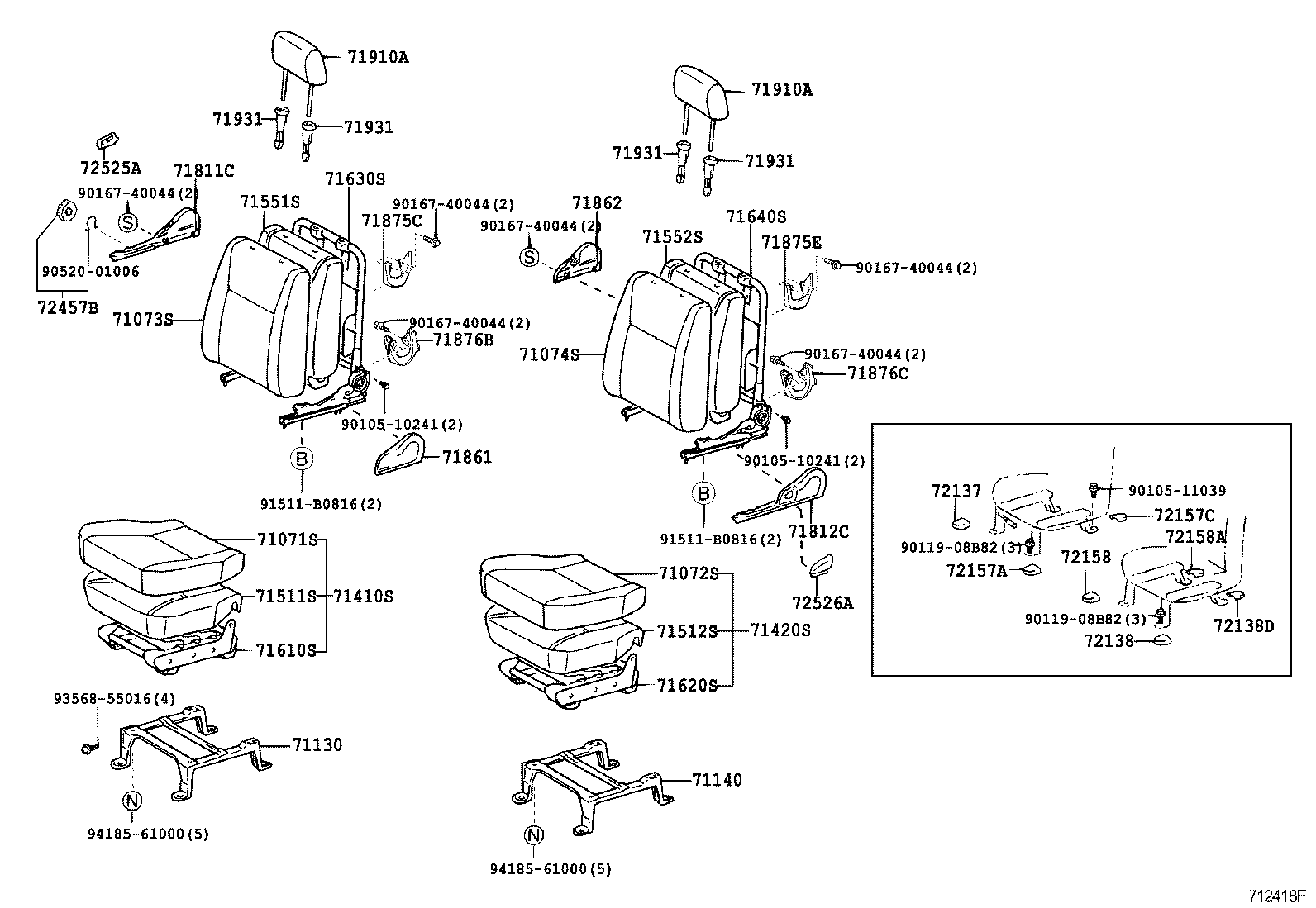

712418F

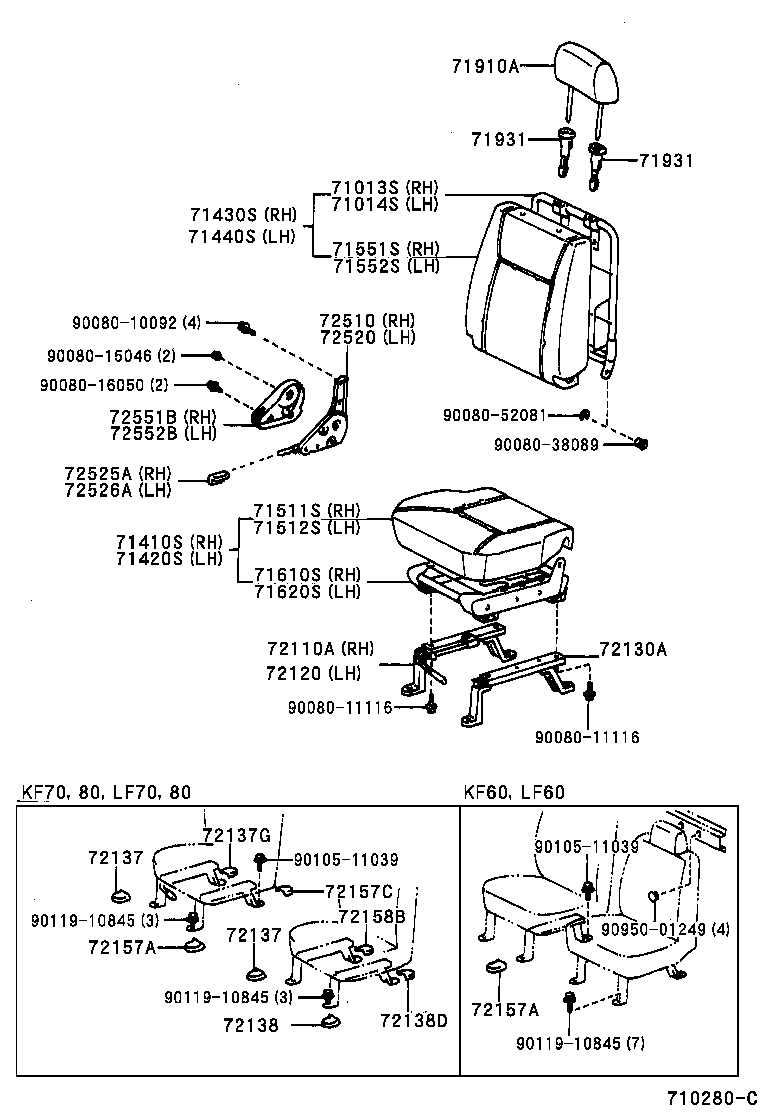

710280C

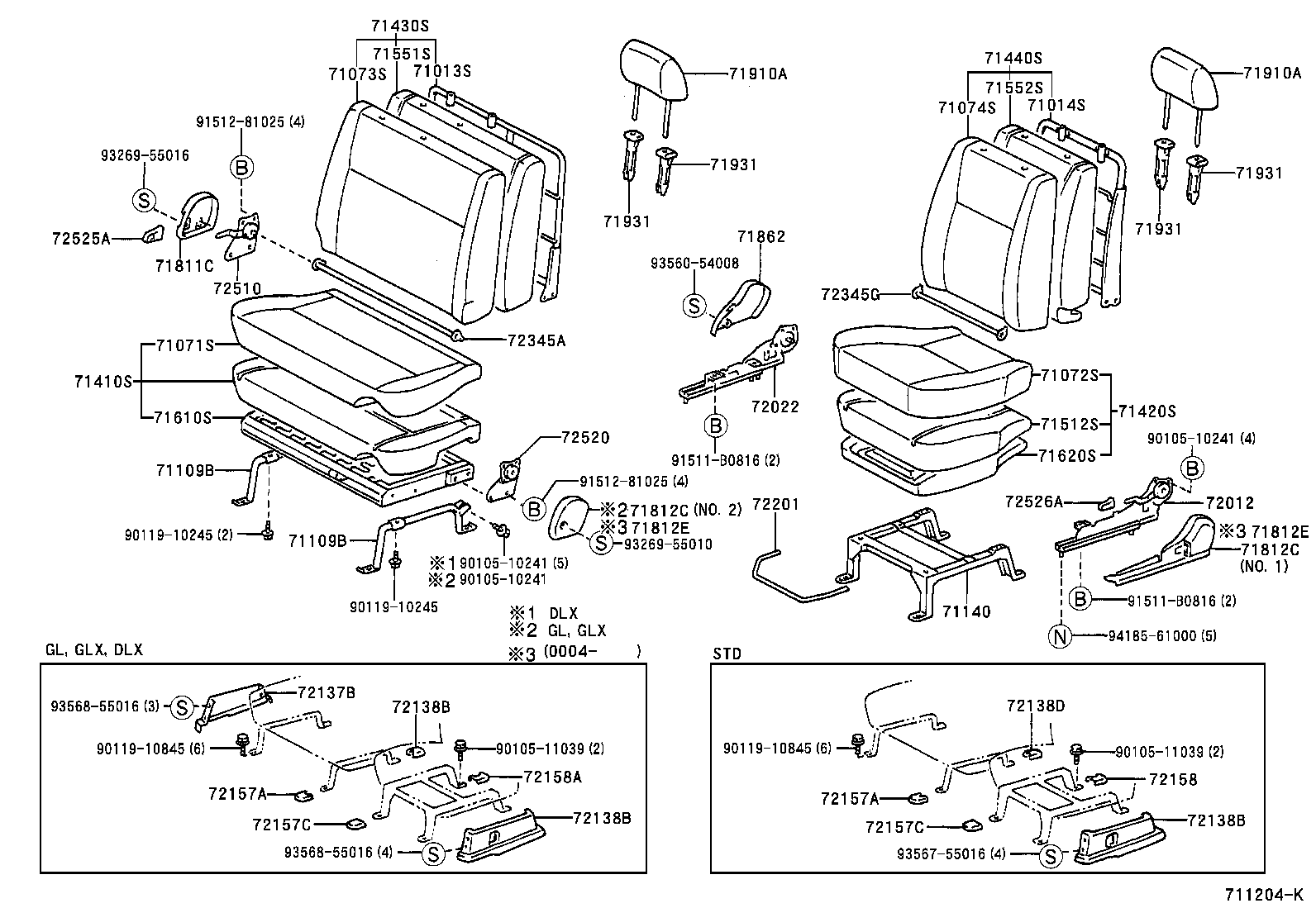

711204K
711204K
711204K

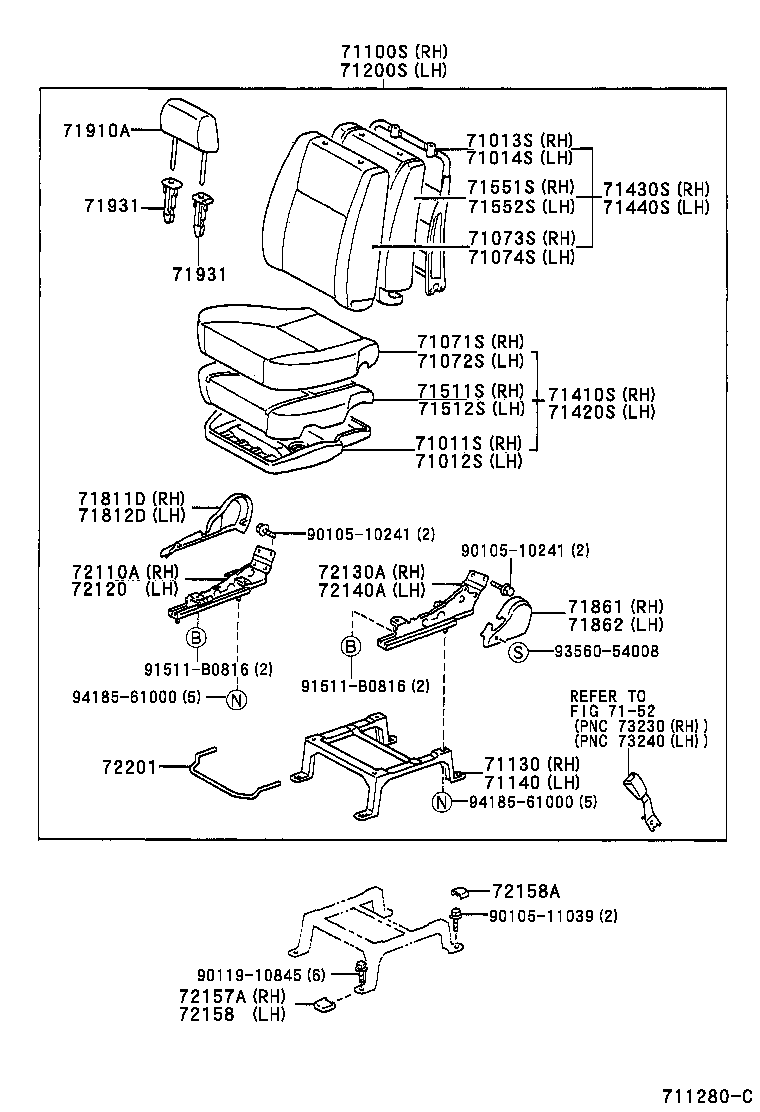

711280C
711280C
711280C

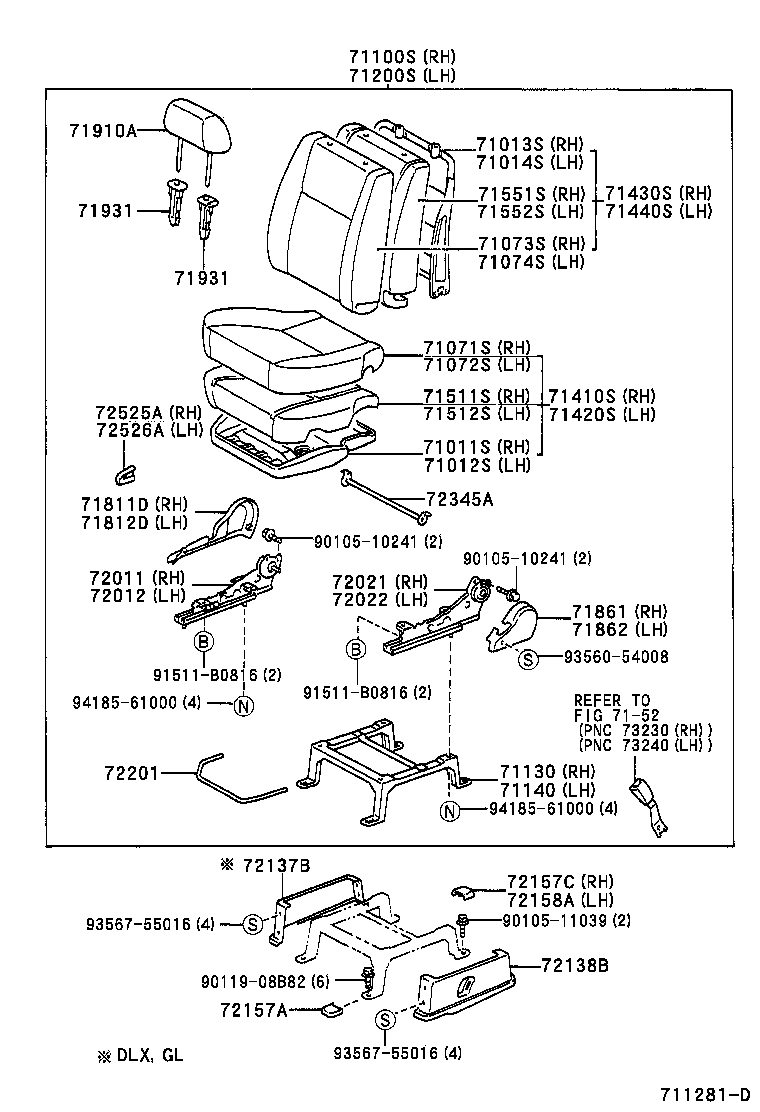

711281D
711281D

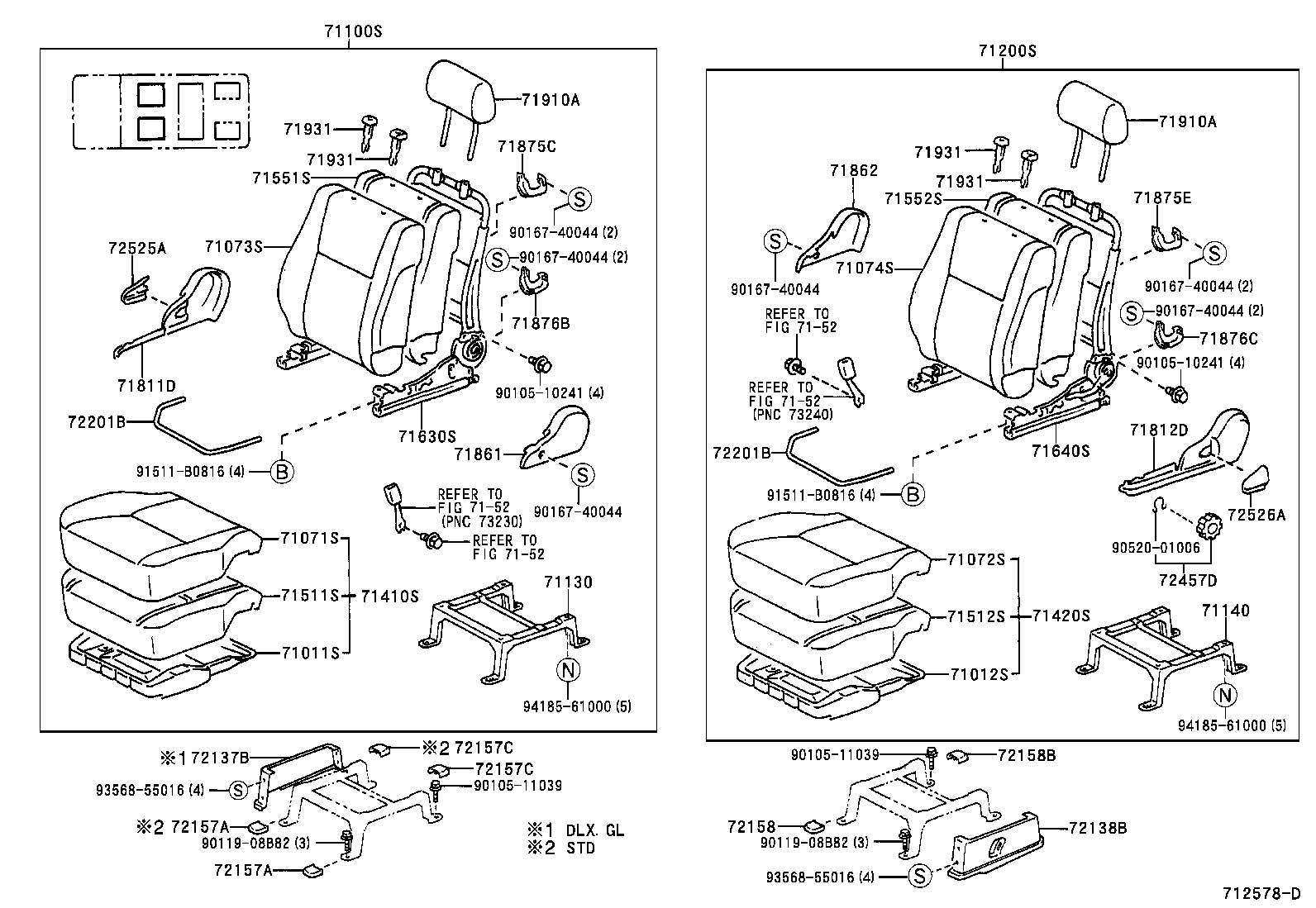

712578D
712578D
712579G

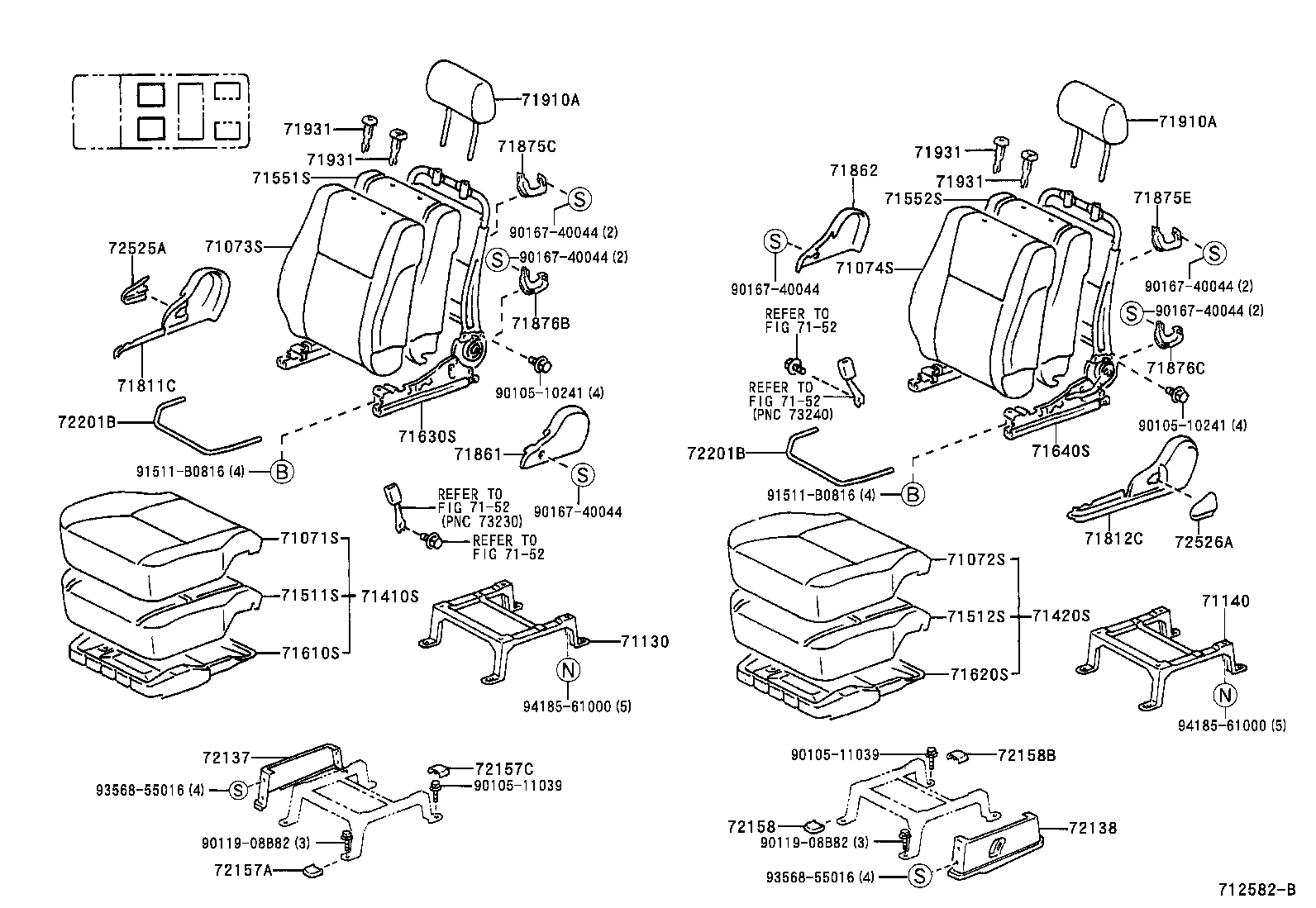

712582B

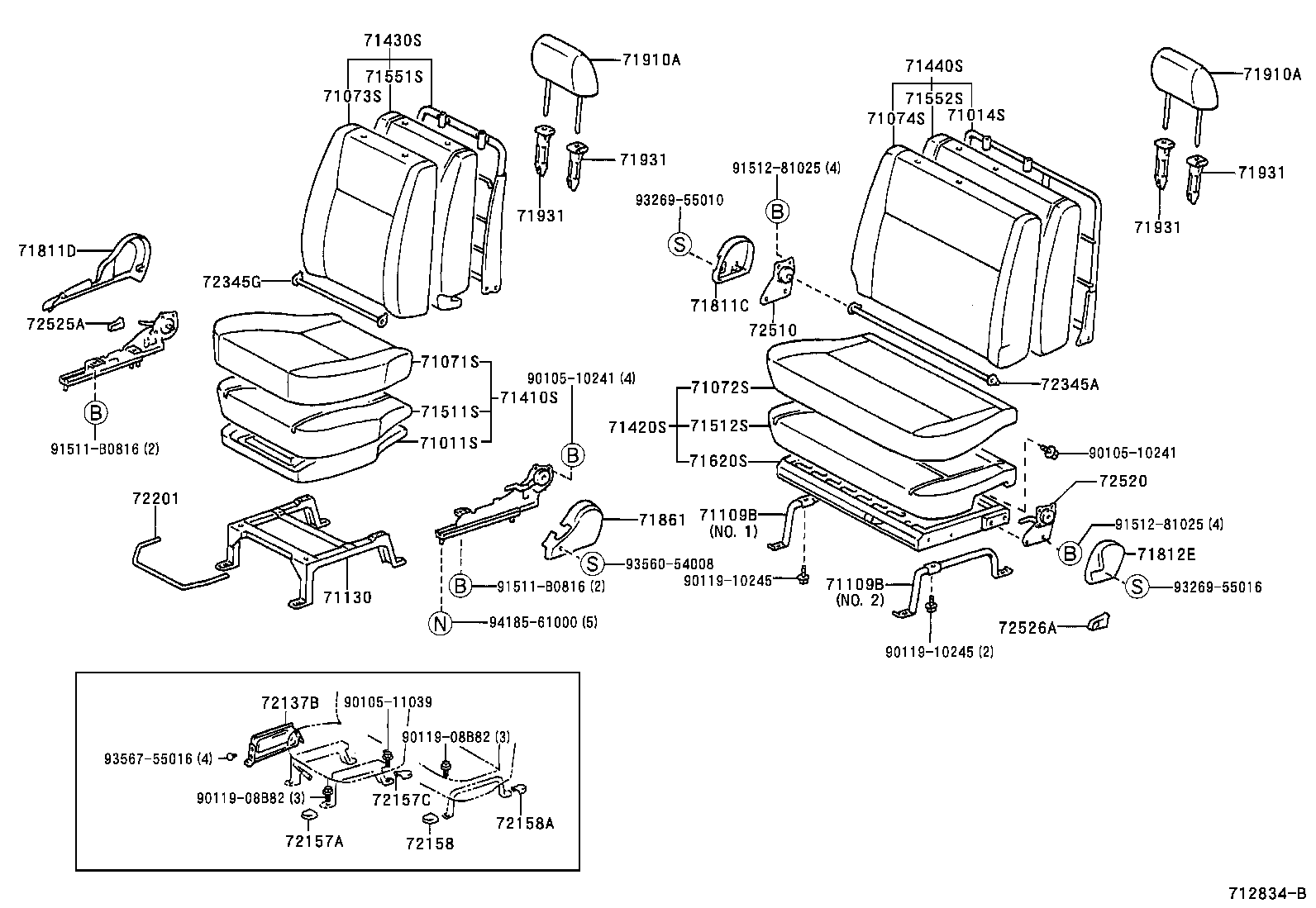

712834B

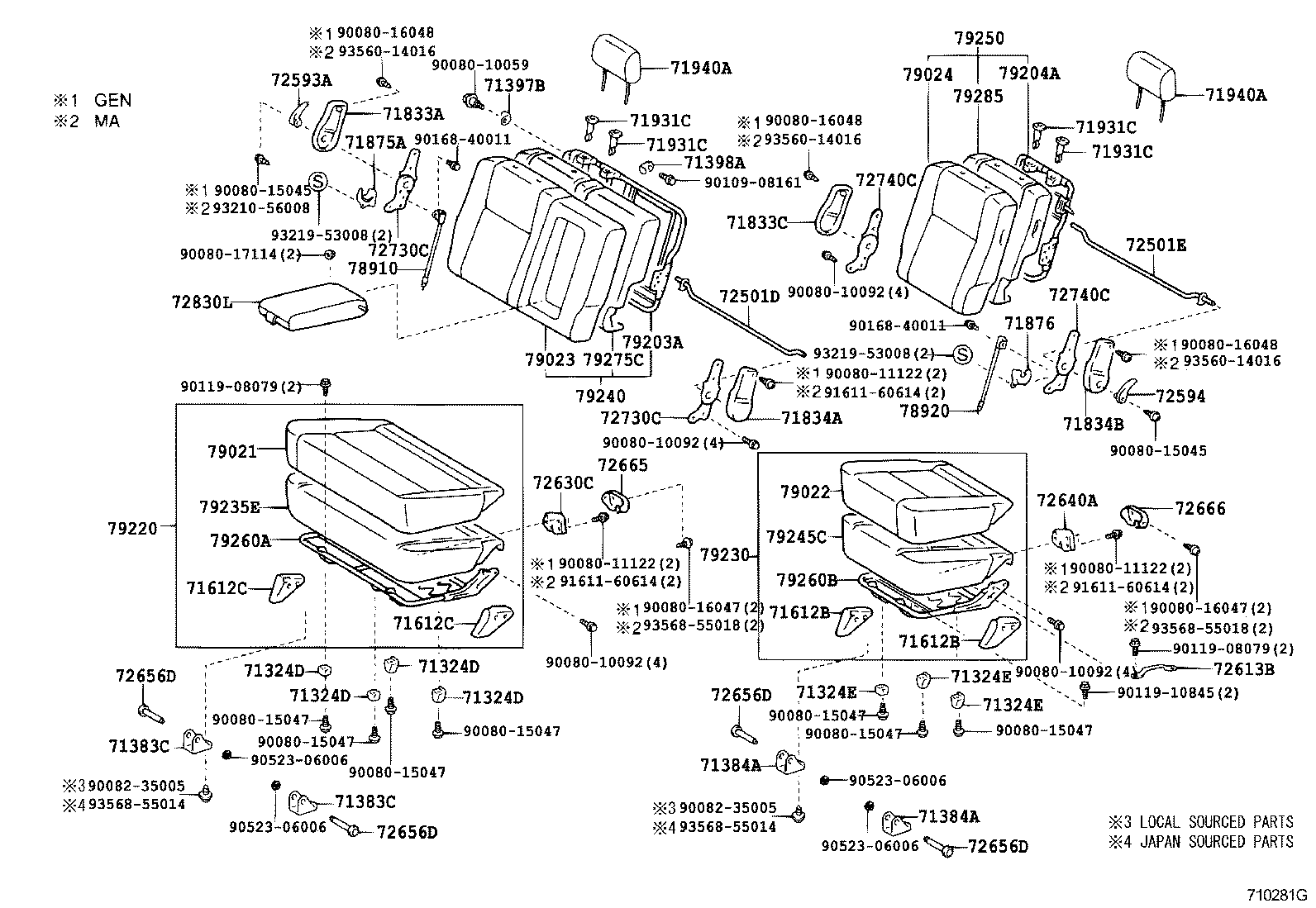

710281G
710281G

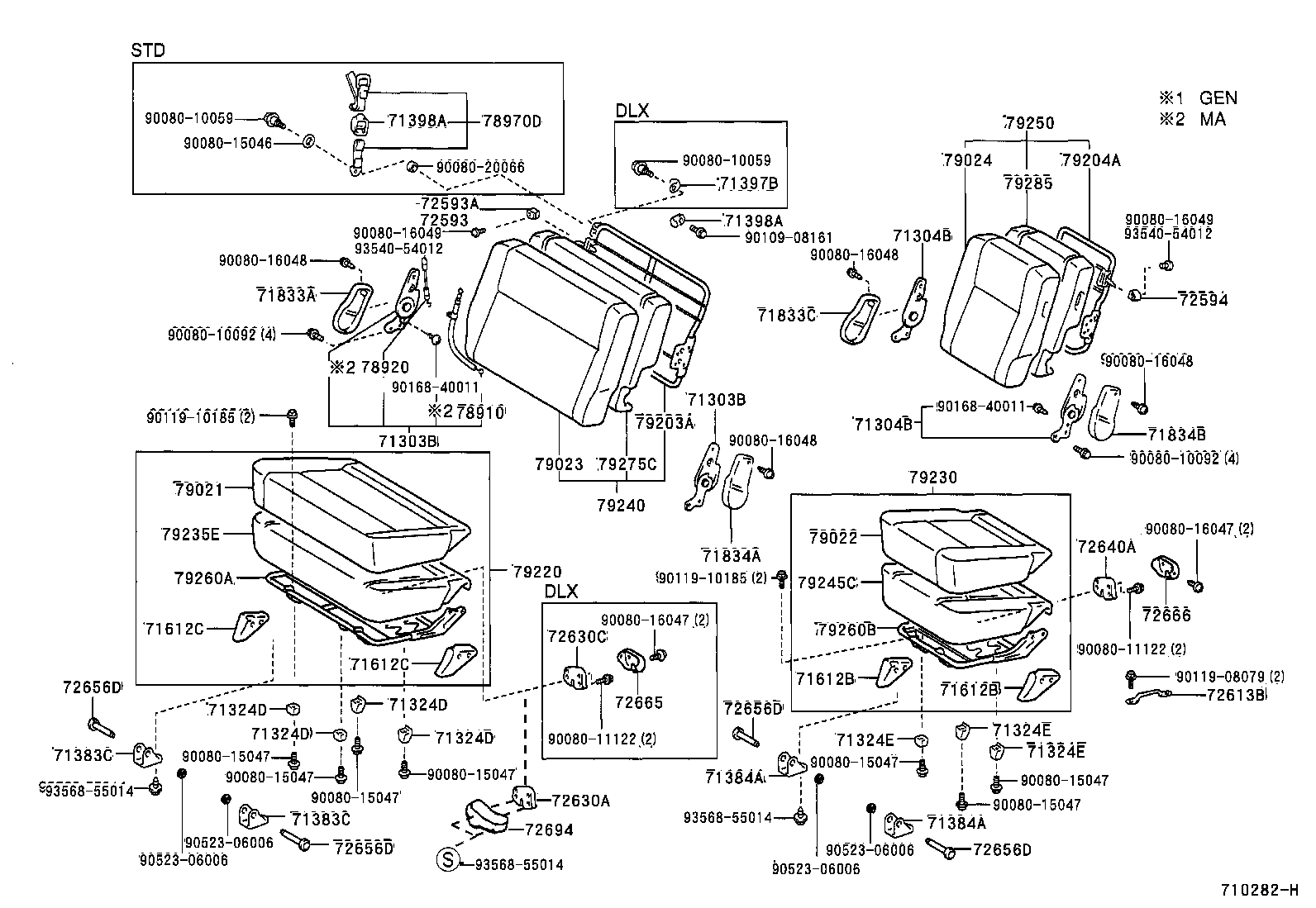

710282H
710282H
710282H

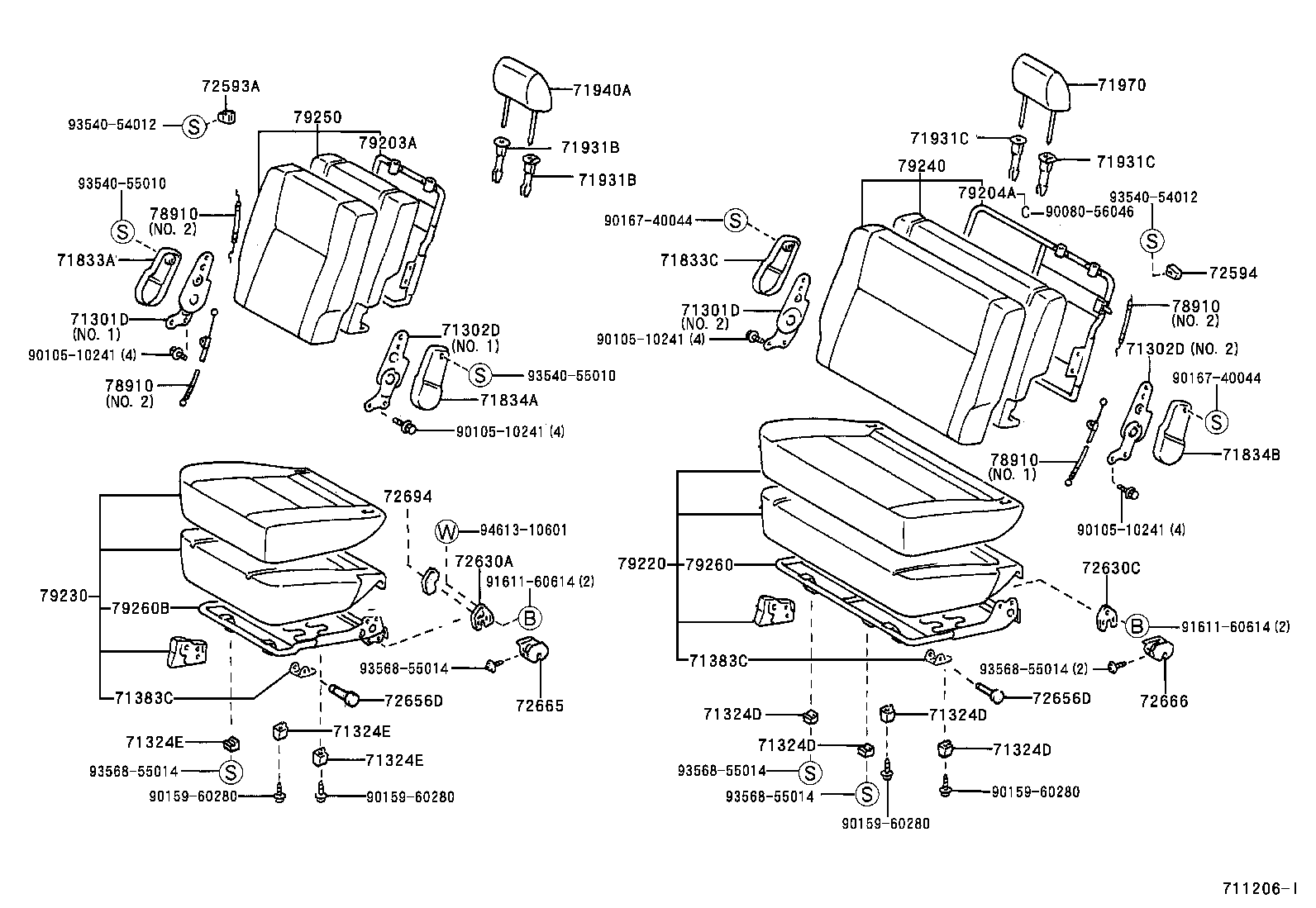

711206I
711206I

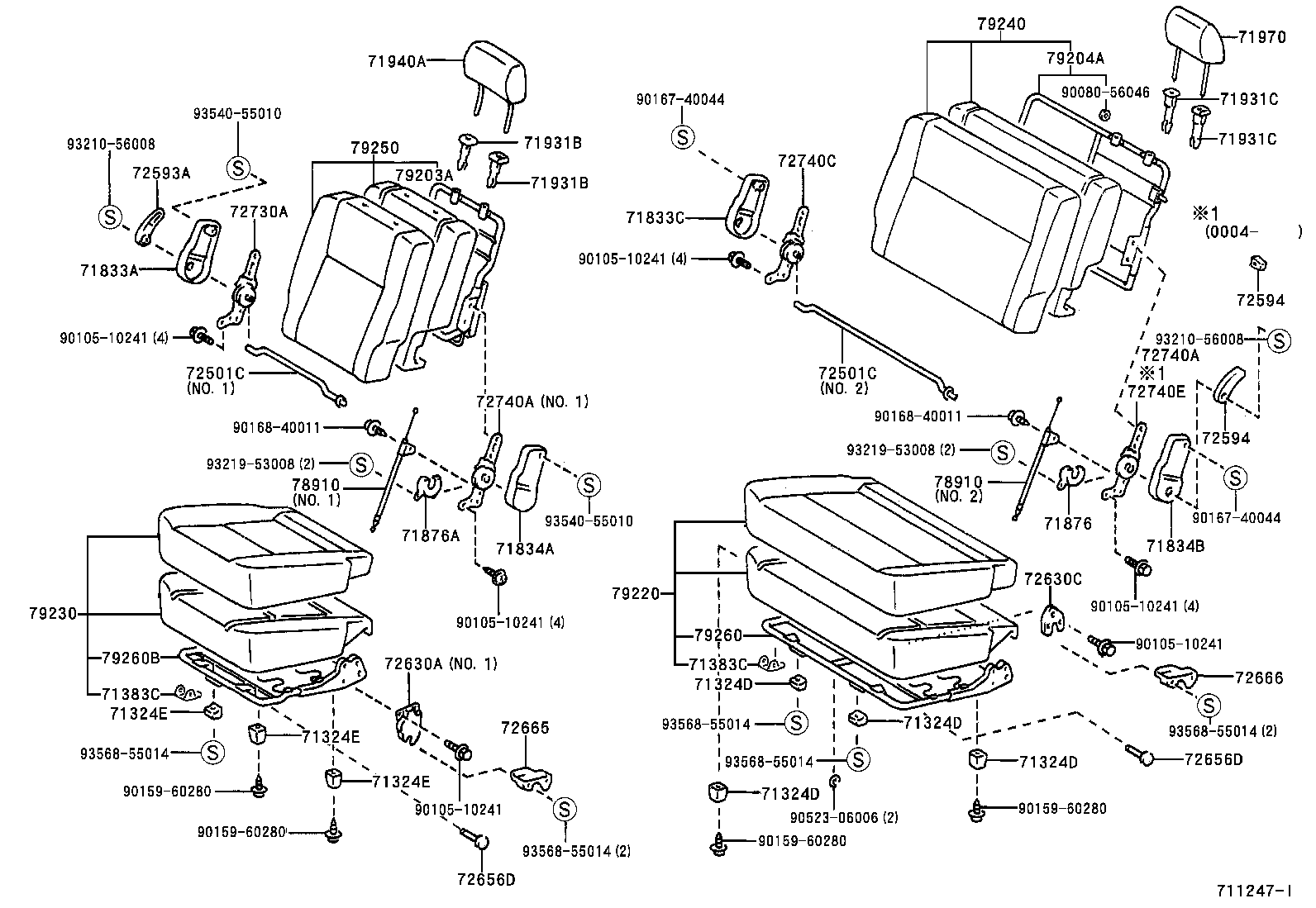

711247I
711247I
711247I

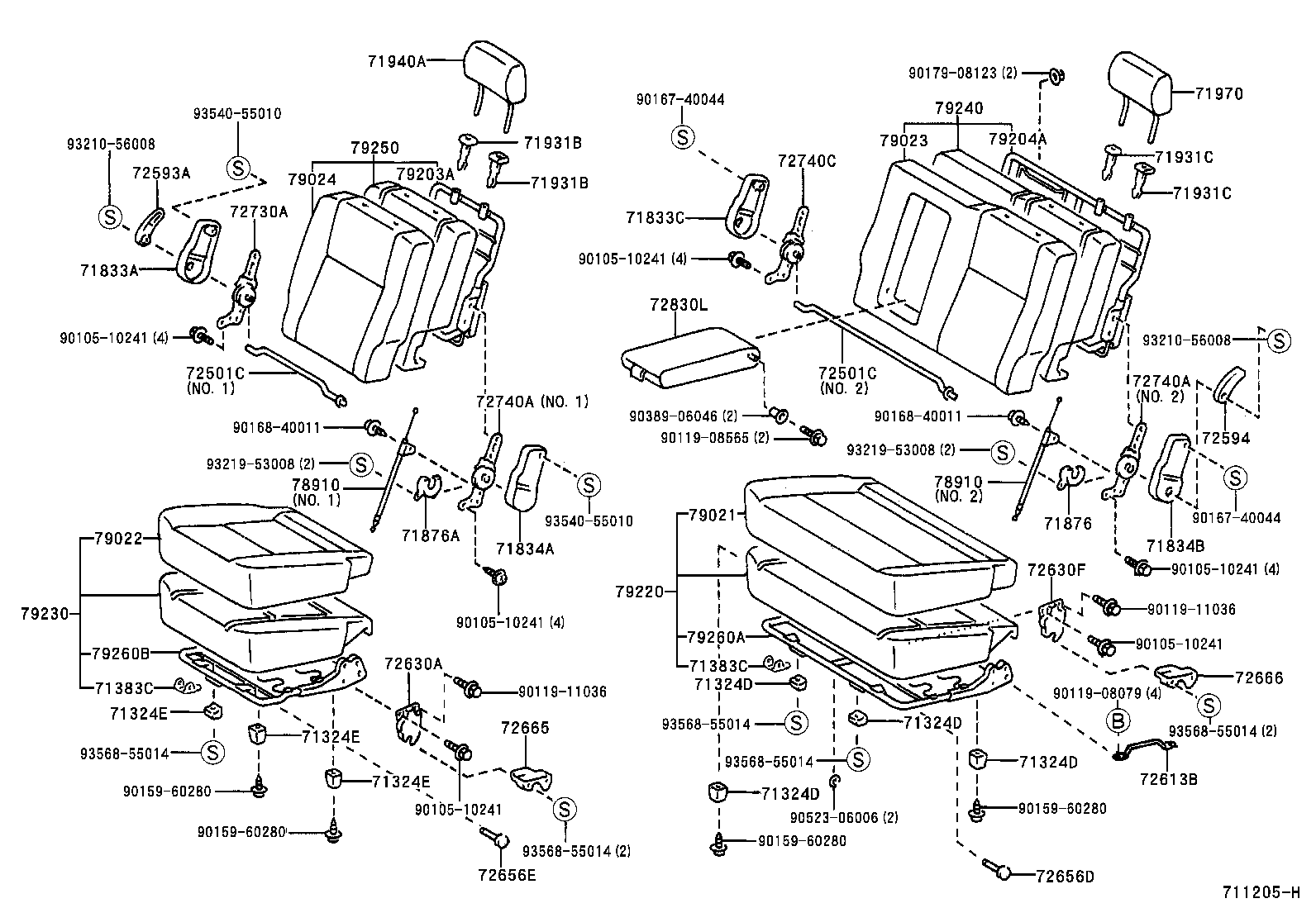

711205H
711205H
711205H

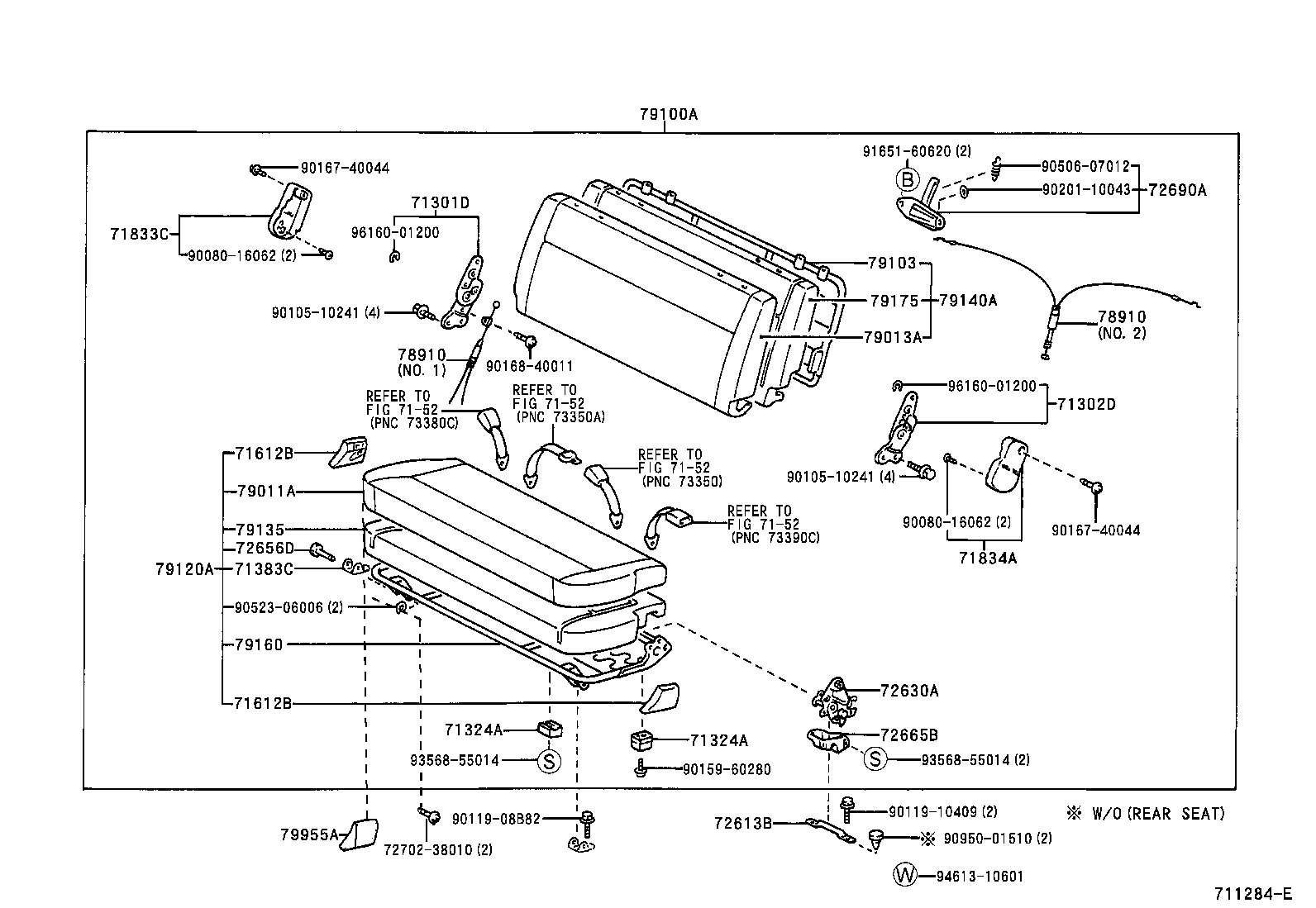

711284E
711284E
711284E

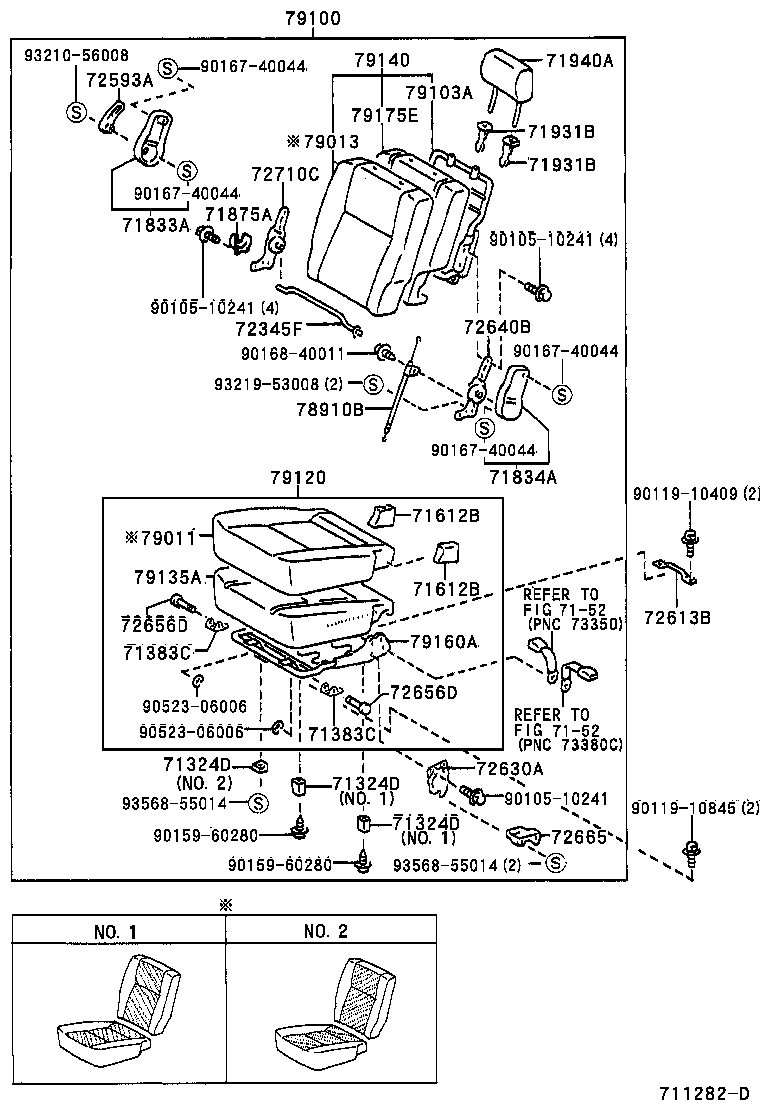

711282D
711282D
711282D
711282D
711282D

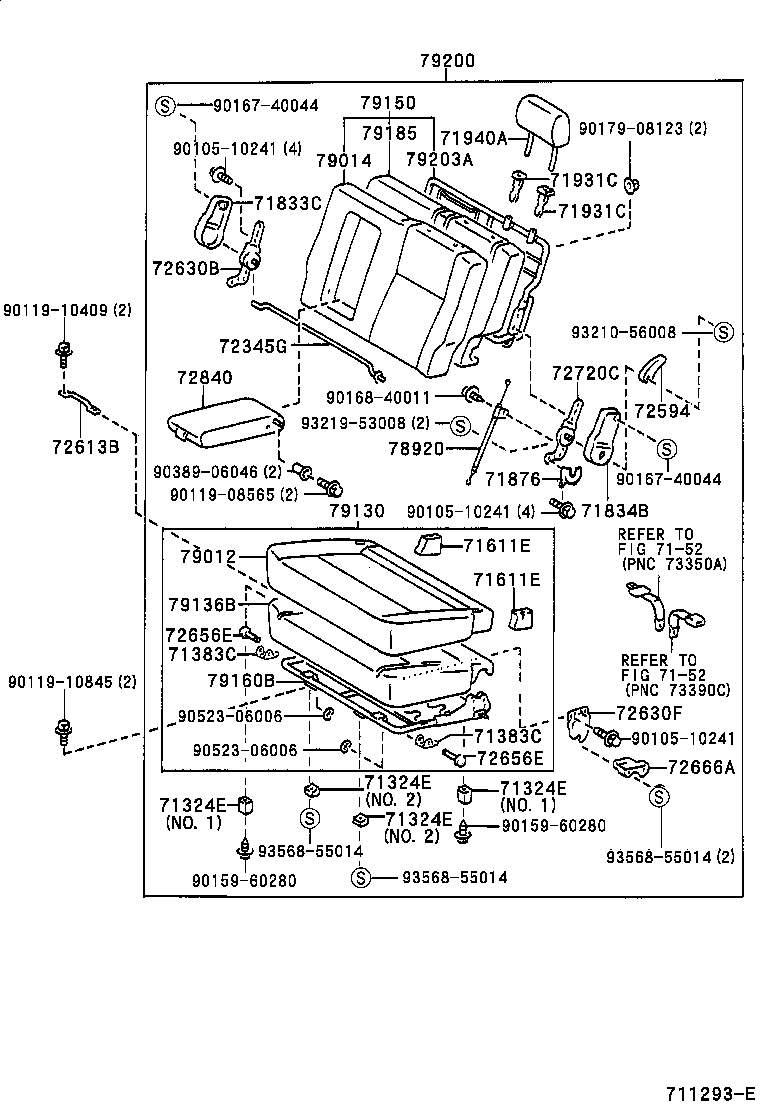

711293E
711293E
711293E
711293E
711293E
711283C
711283C
711283C
711283C

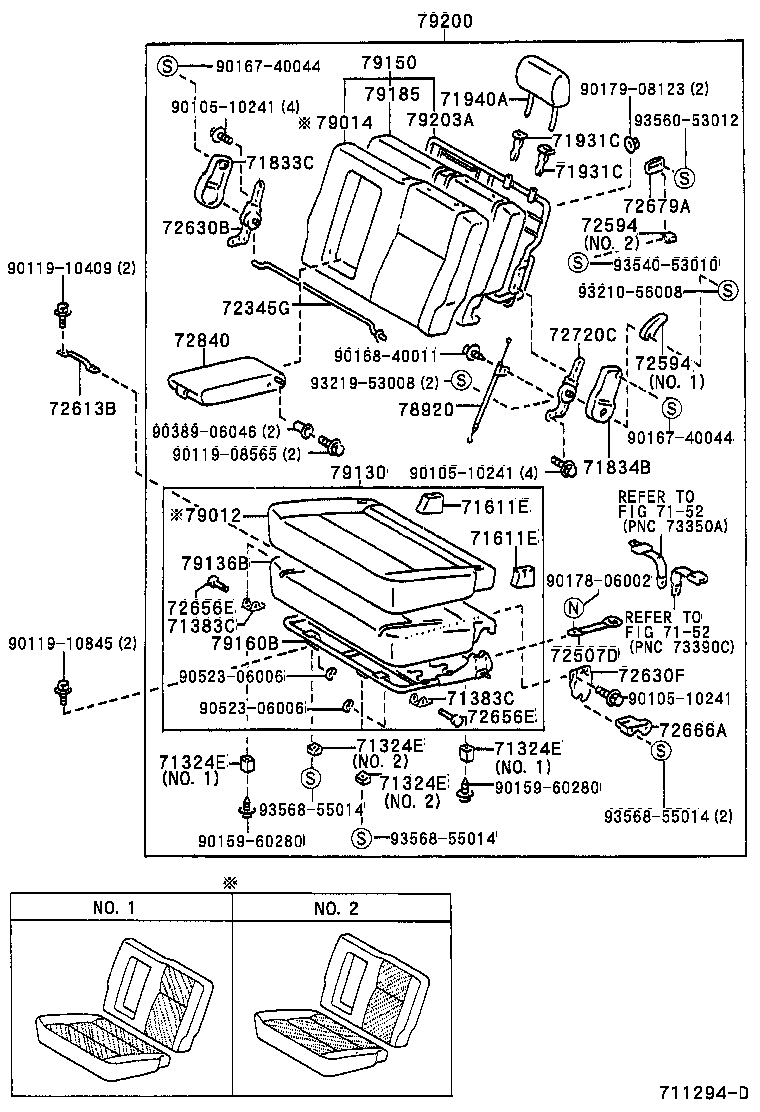

711294D
711294D
711294D
711294D

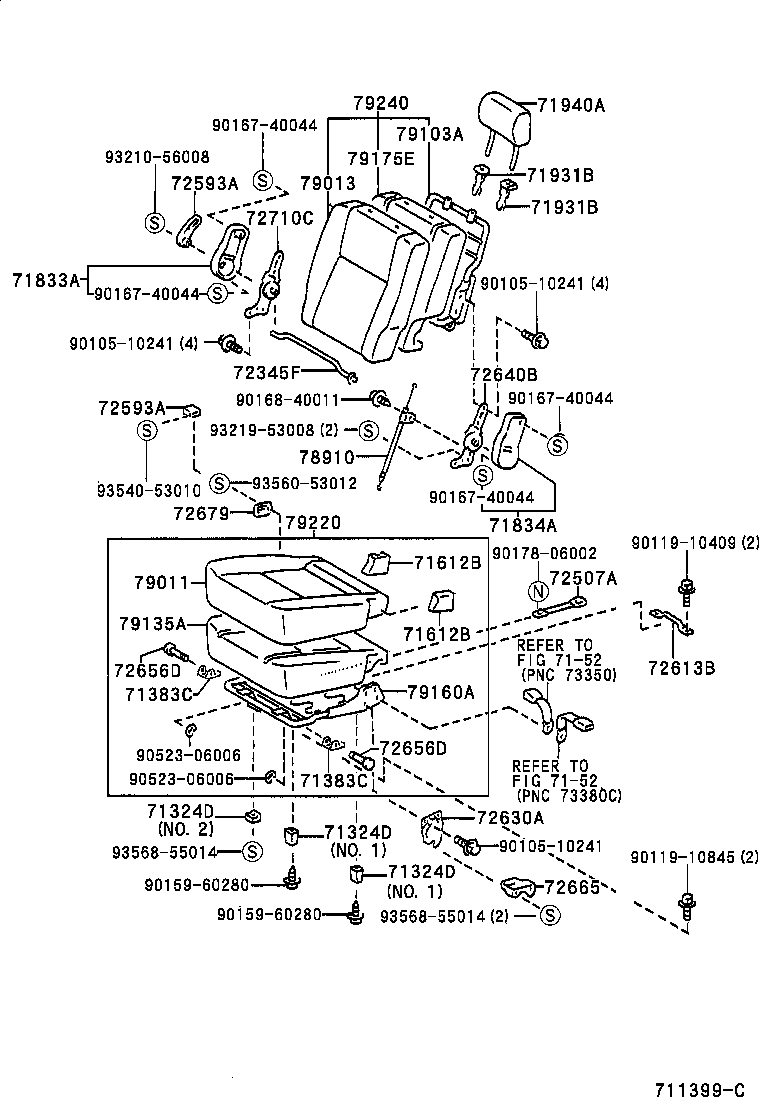

711399C
711400D

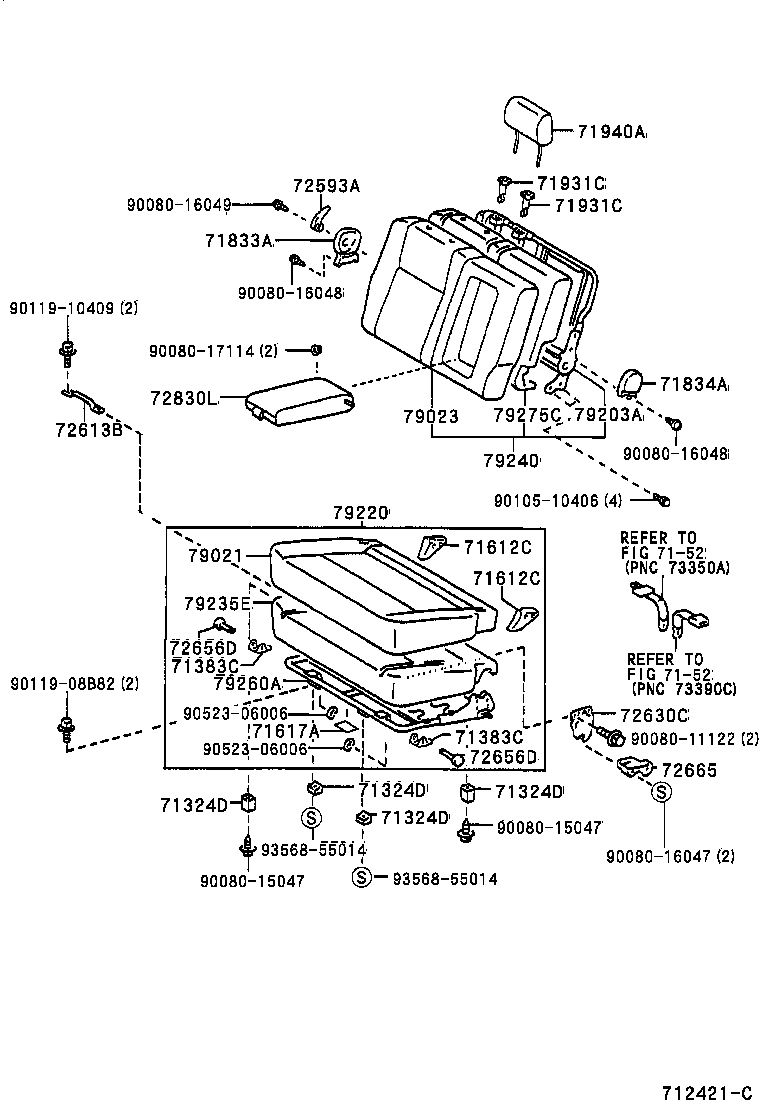

712421C

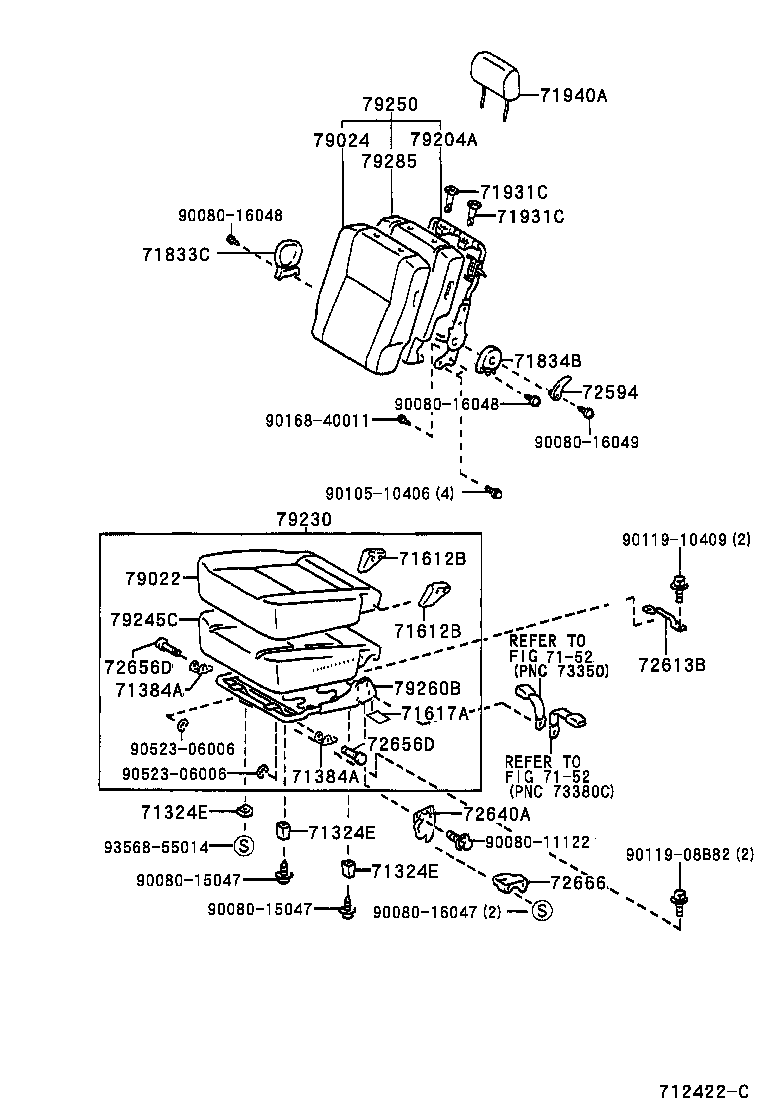

712422C

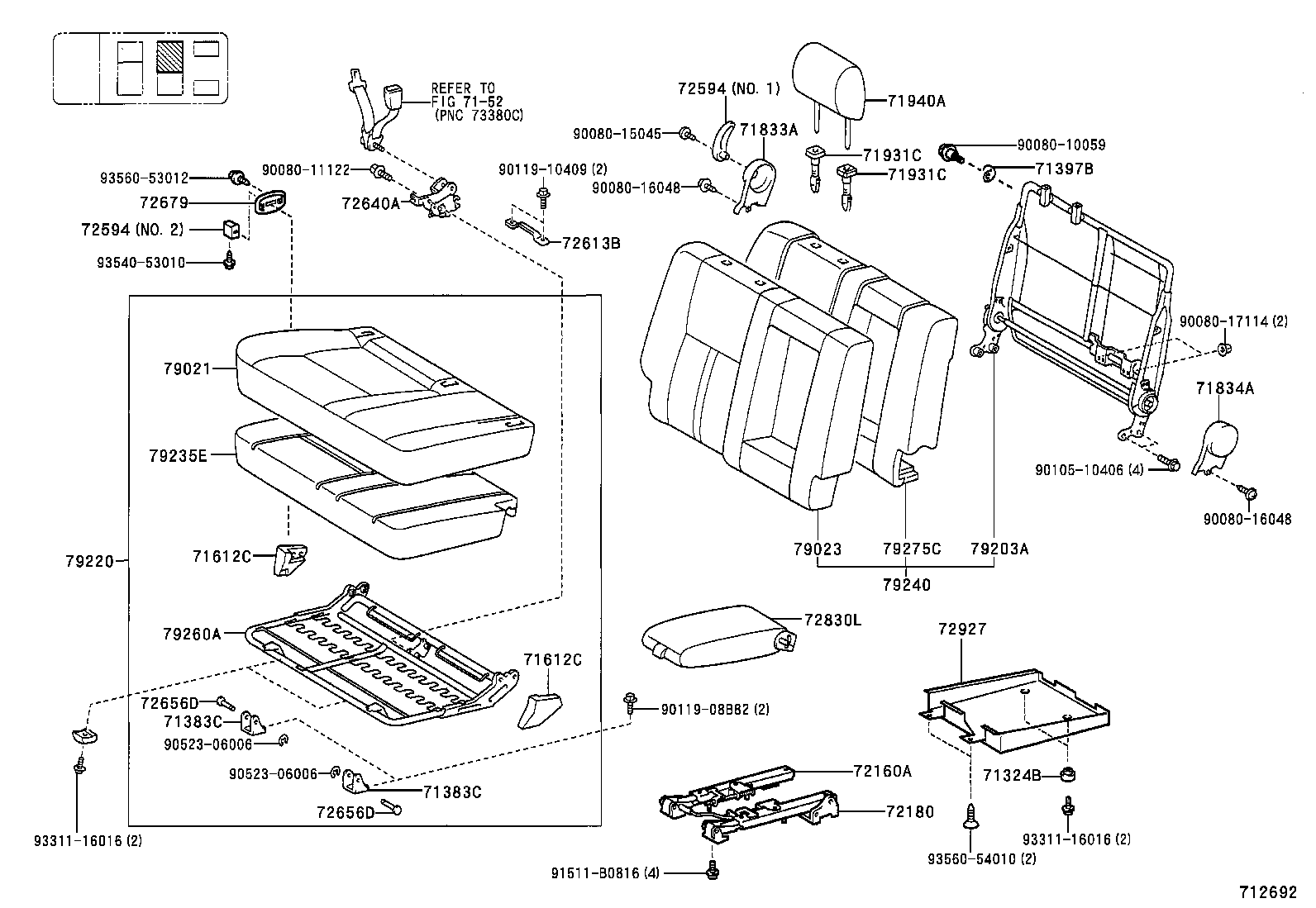

712692

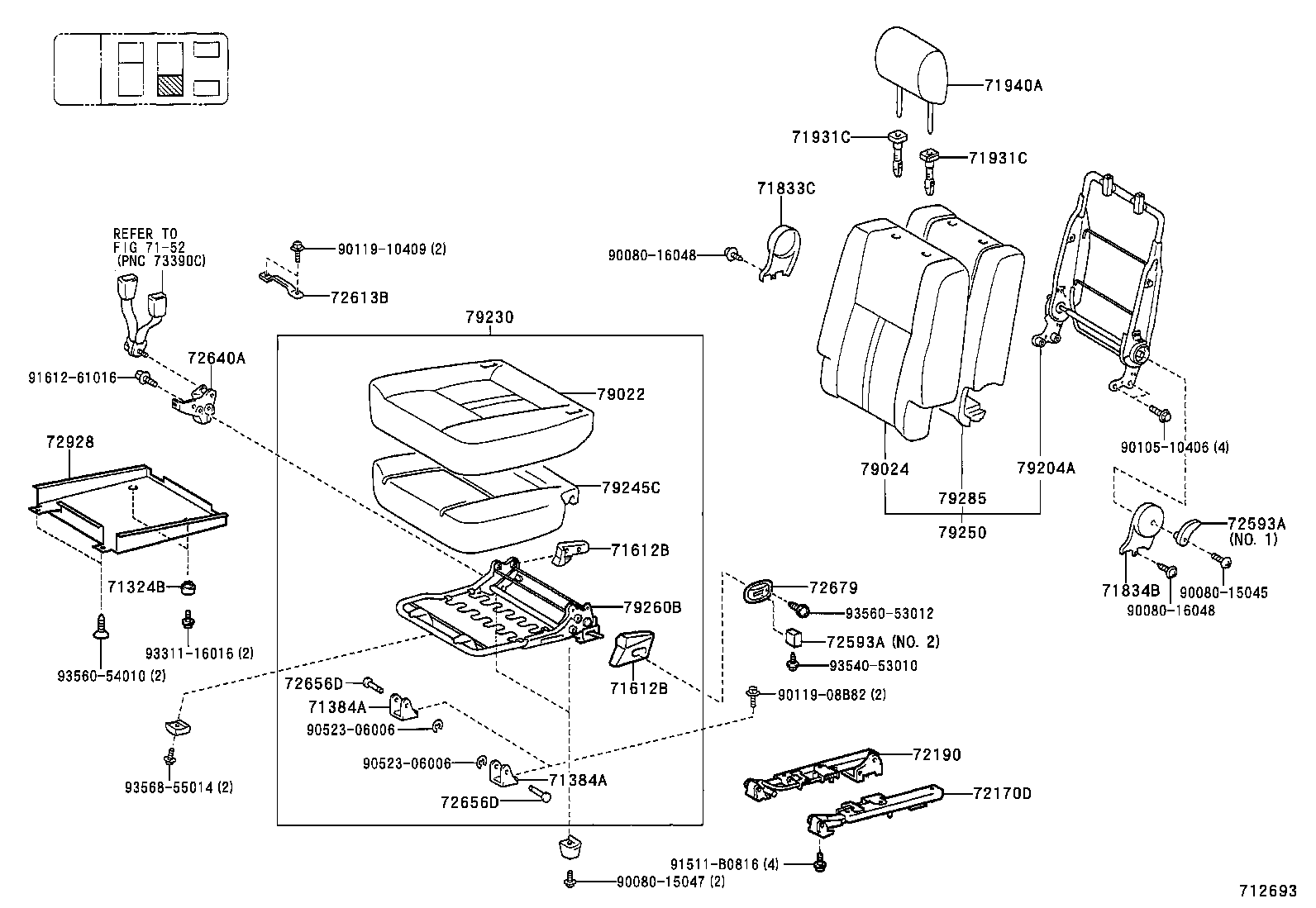

712693

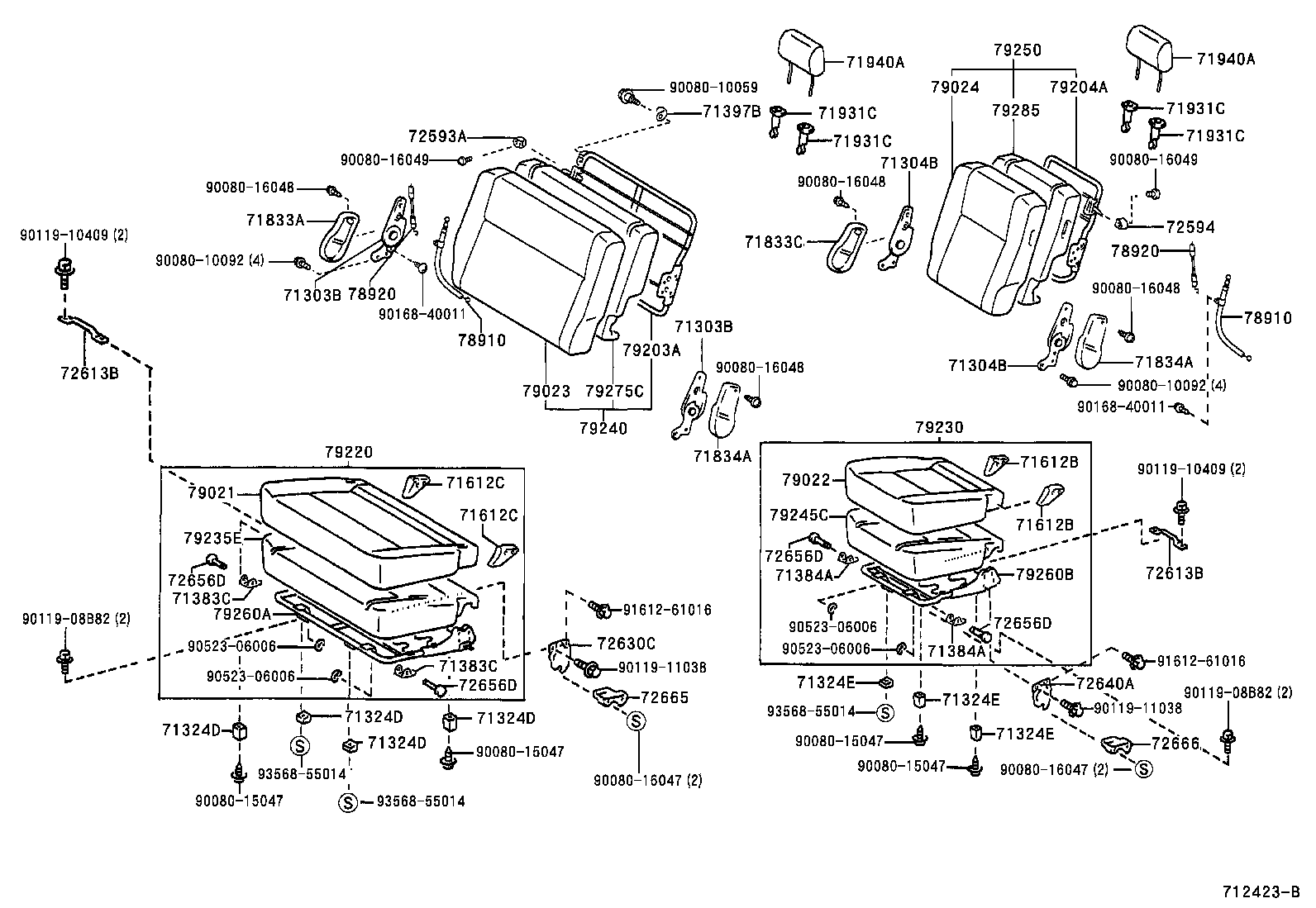

712423B

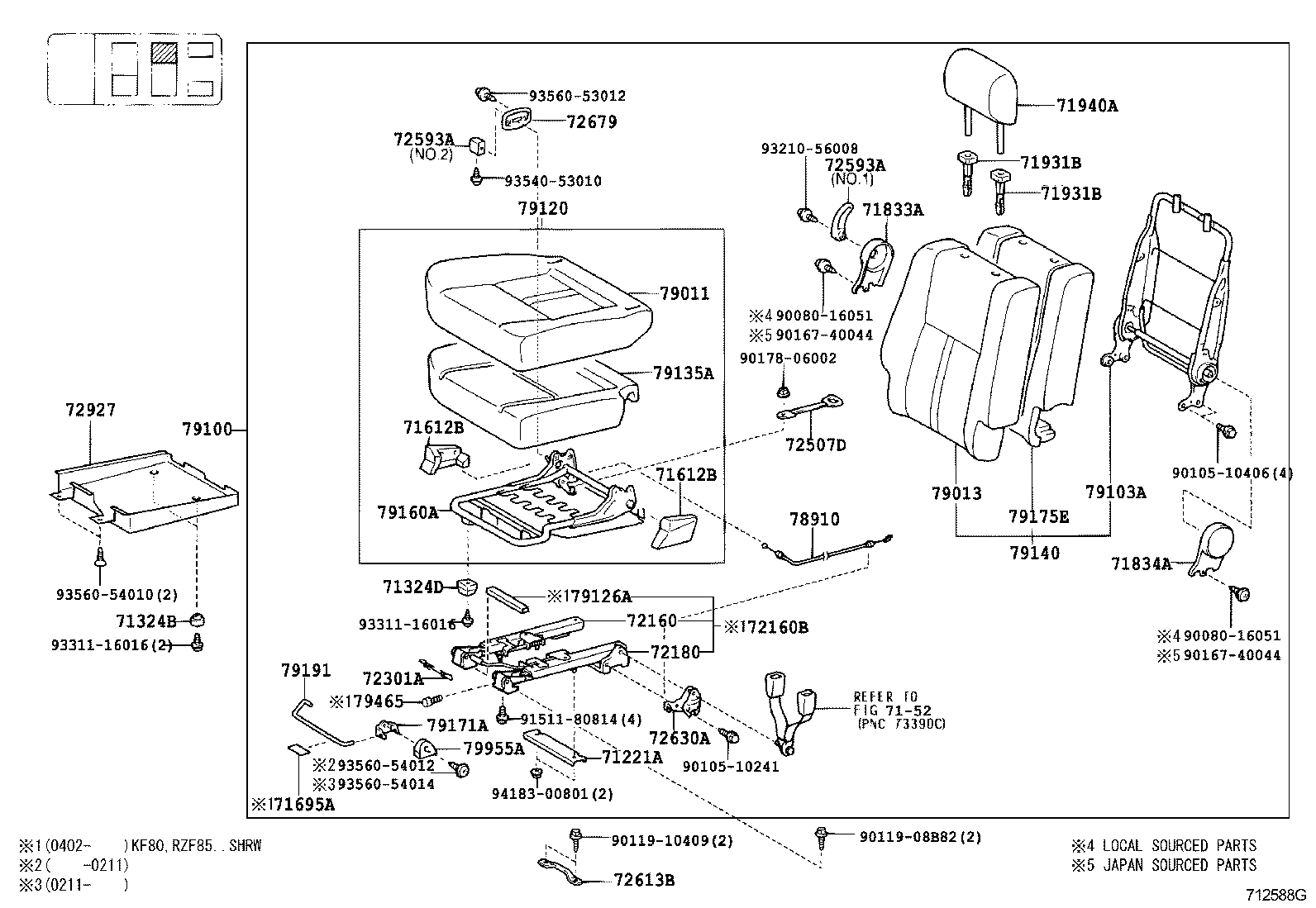

712588G

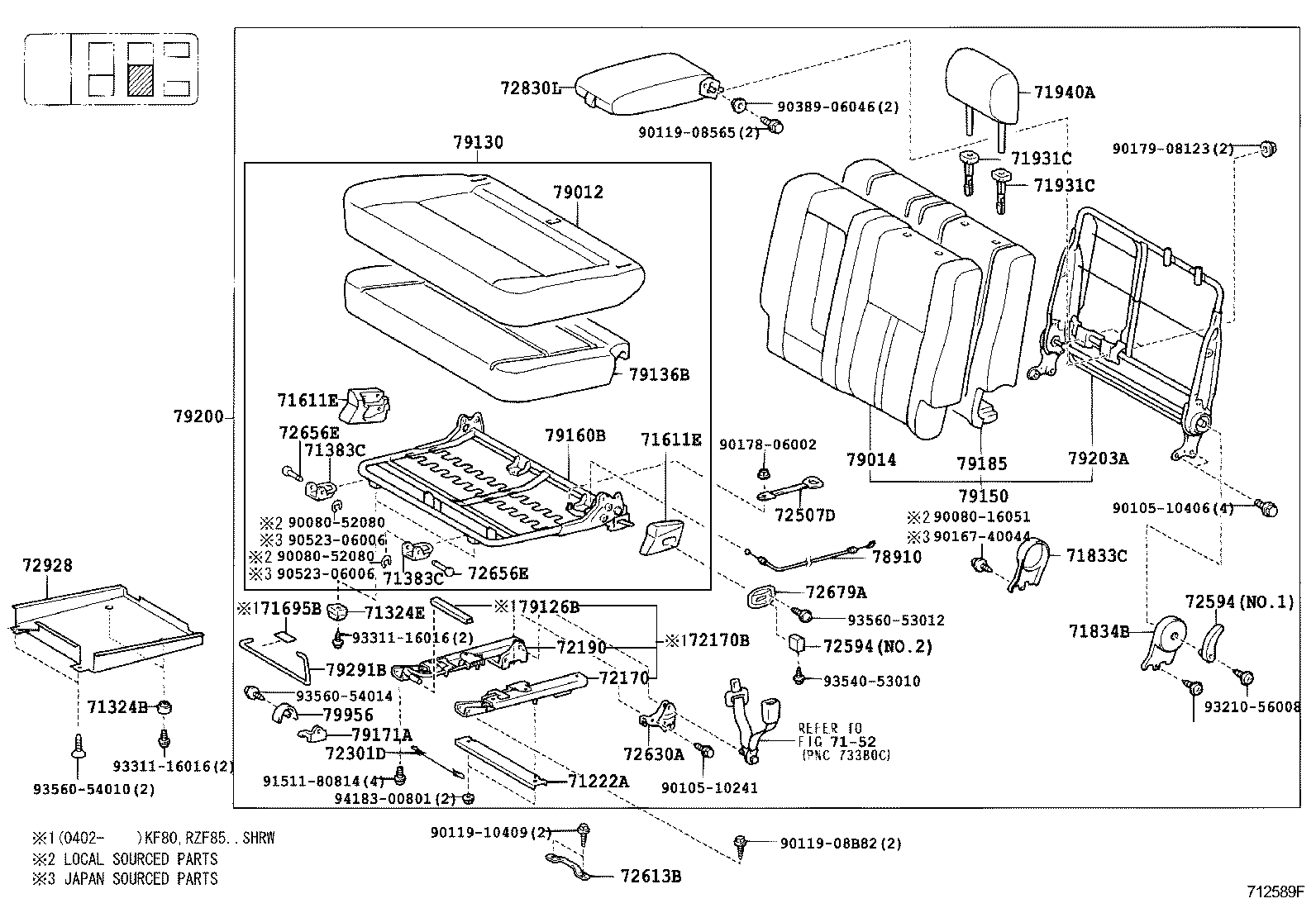

712589F
712586A

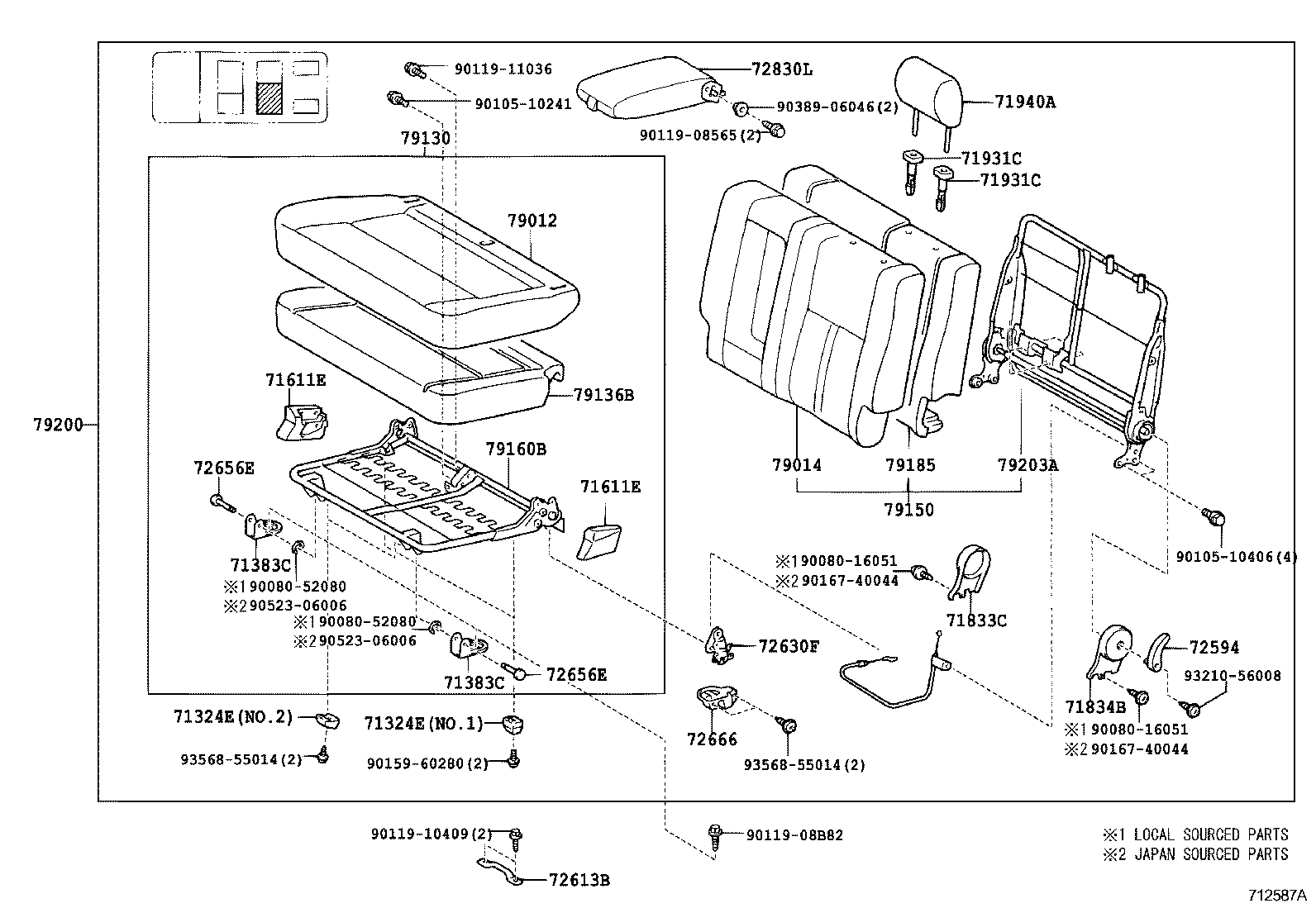

712587A

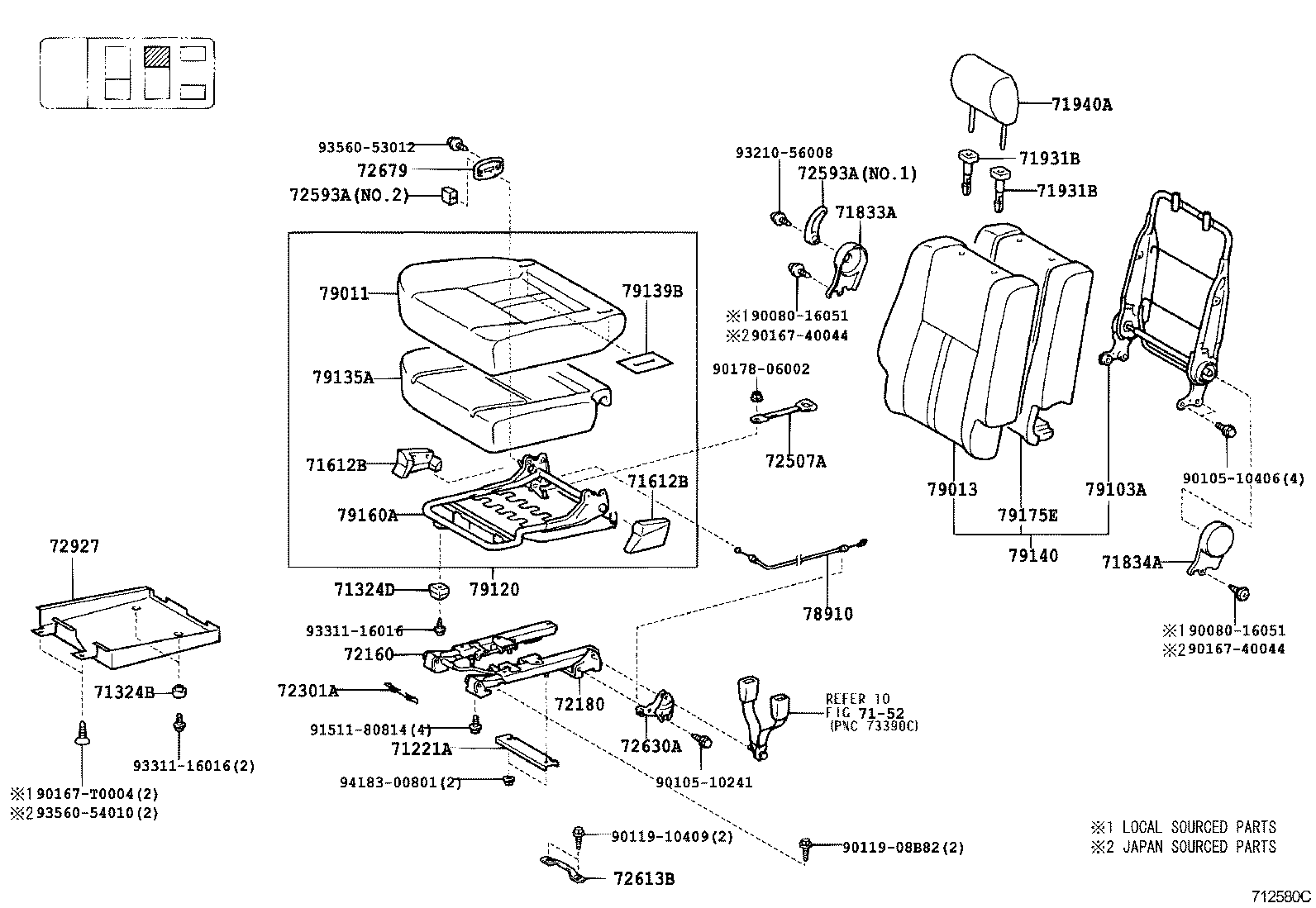

712580C

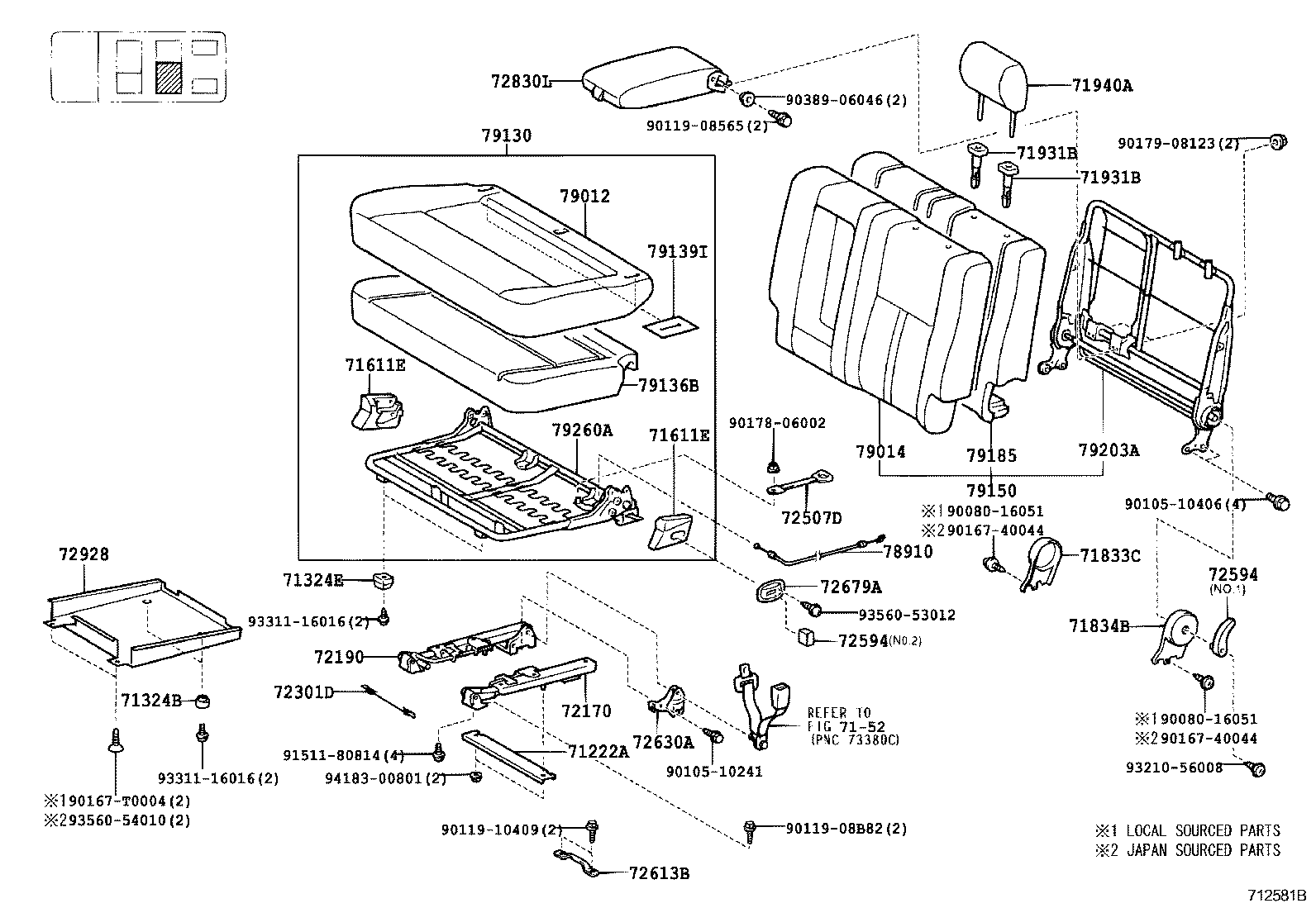

712581B

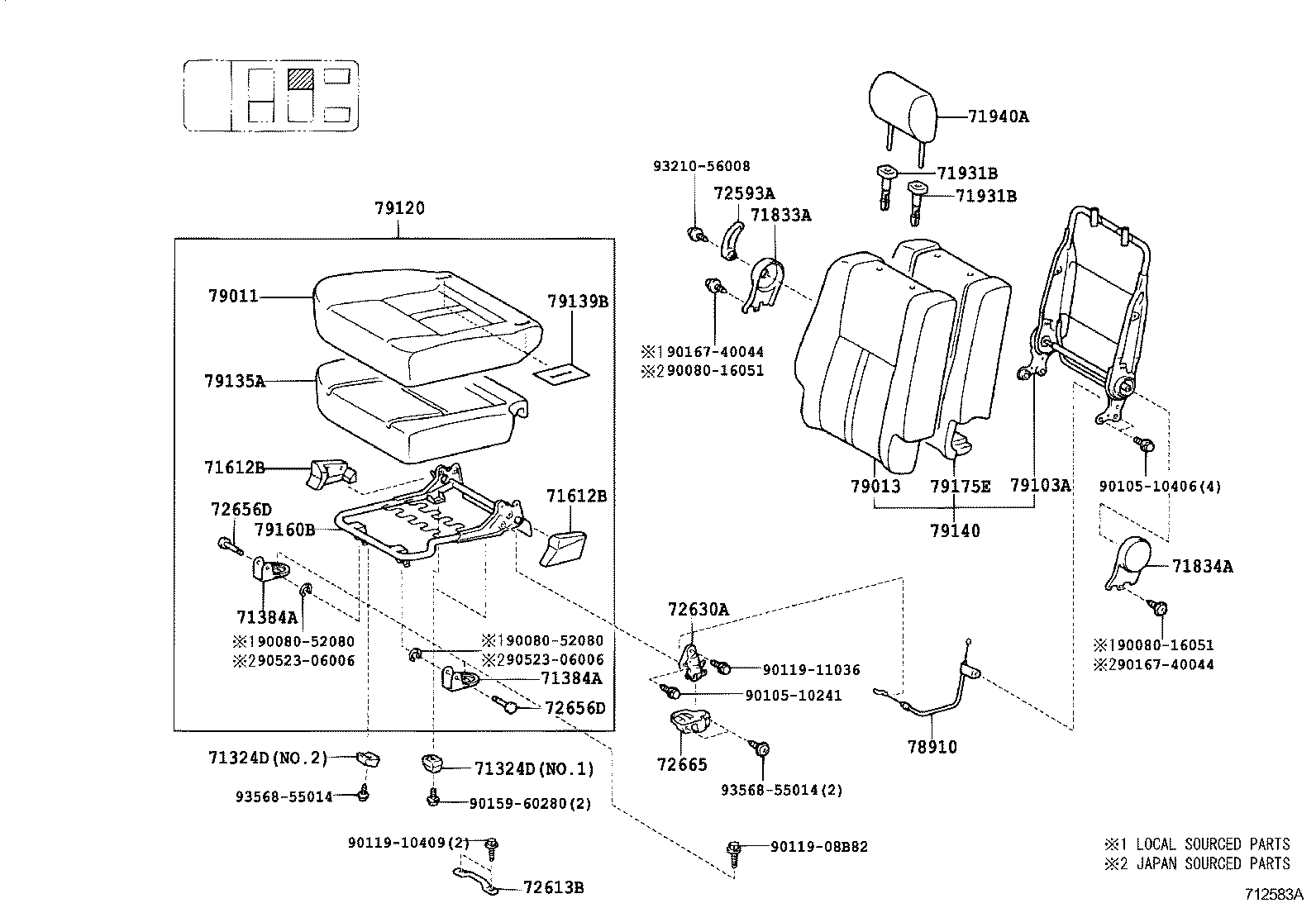

712583A

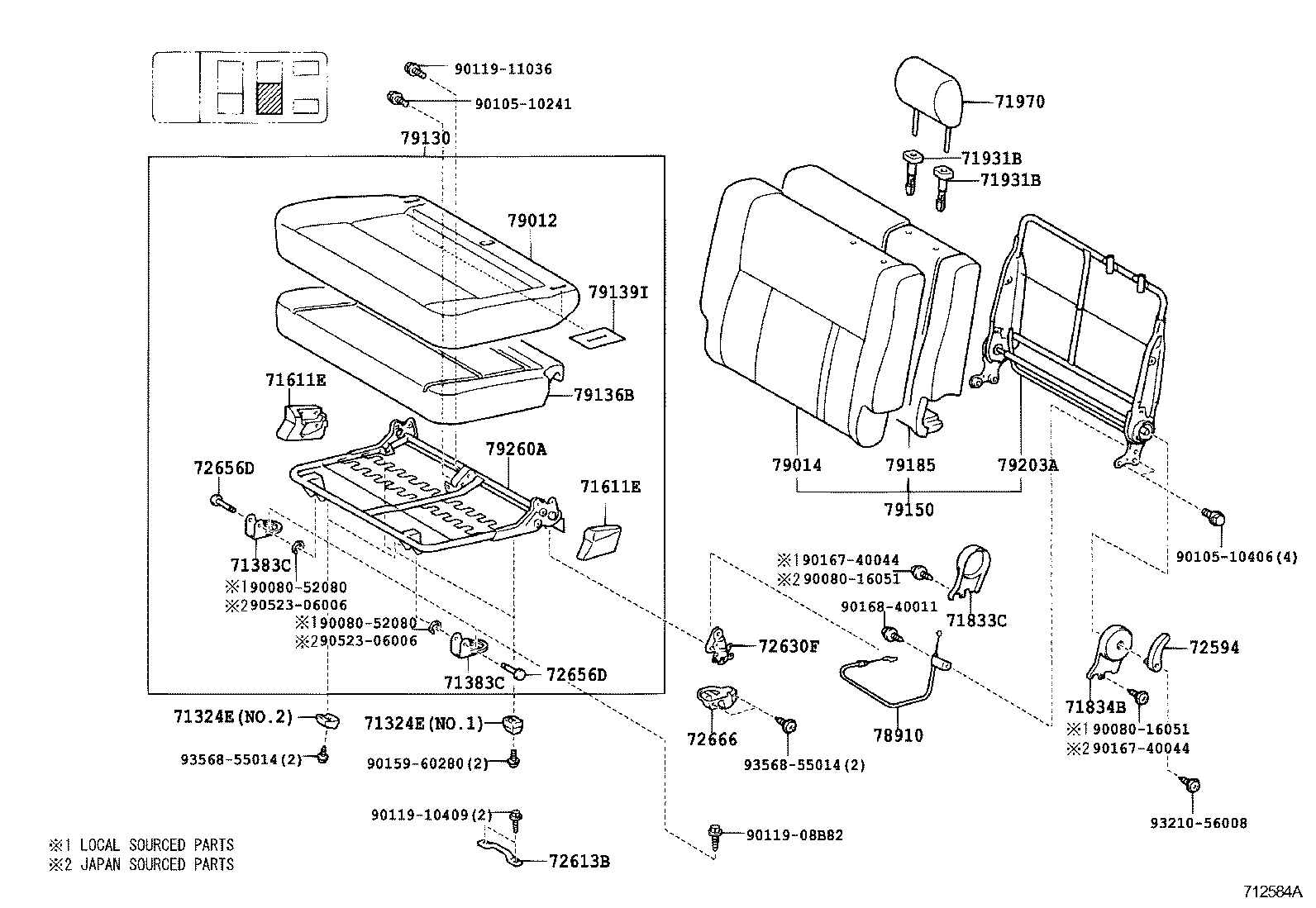

712584A

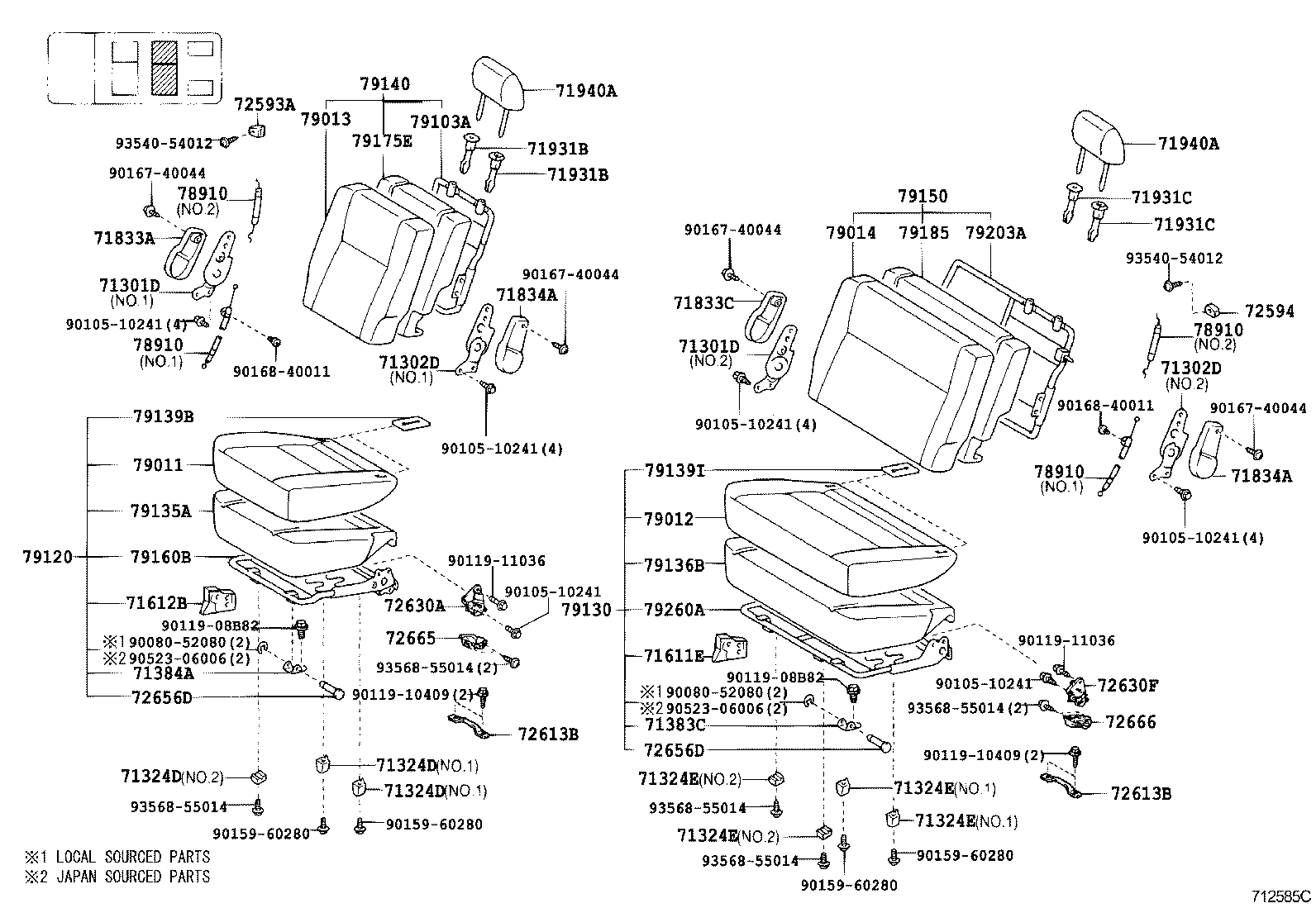

712585C
712590B

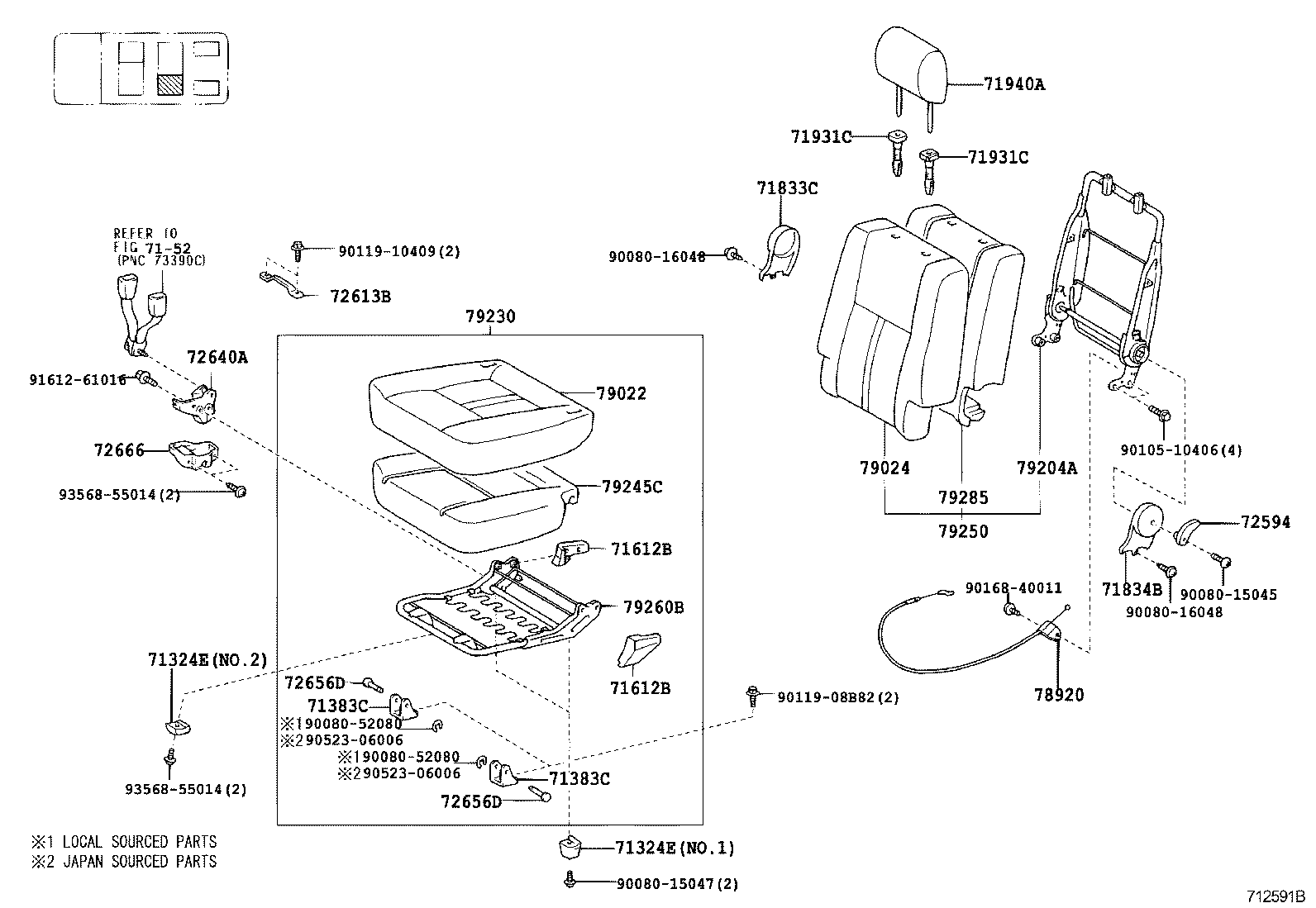

712591B

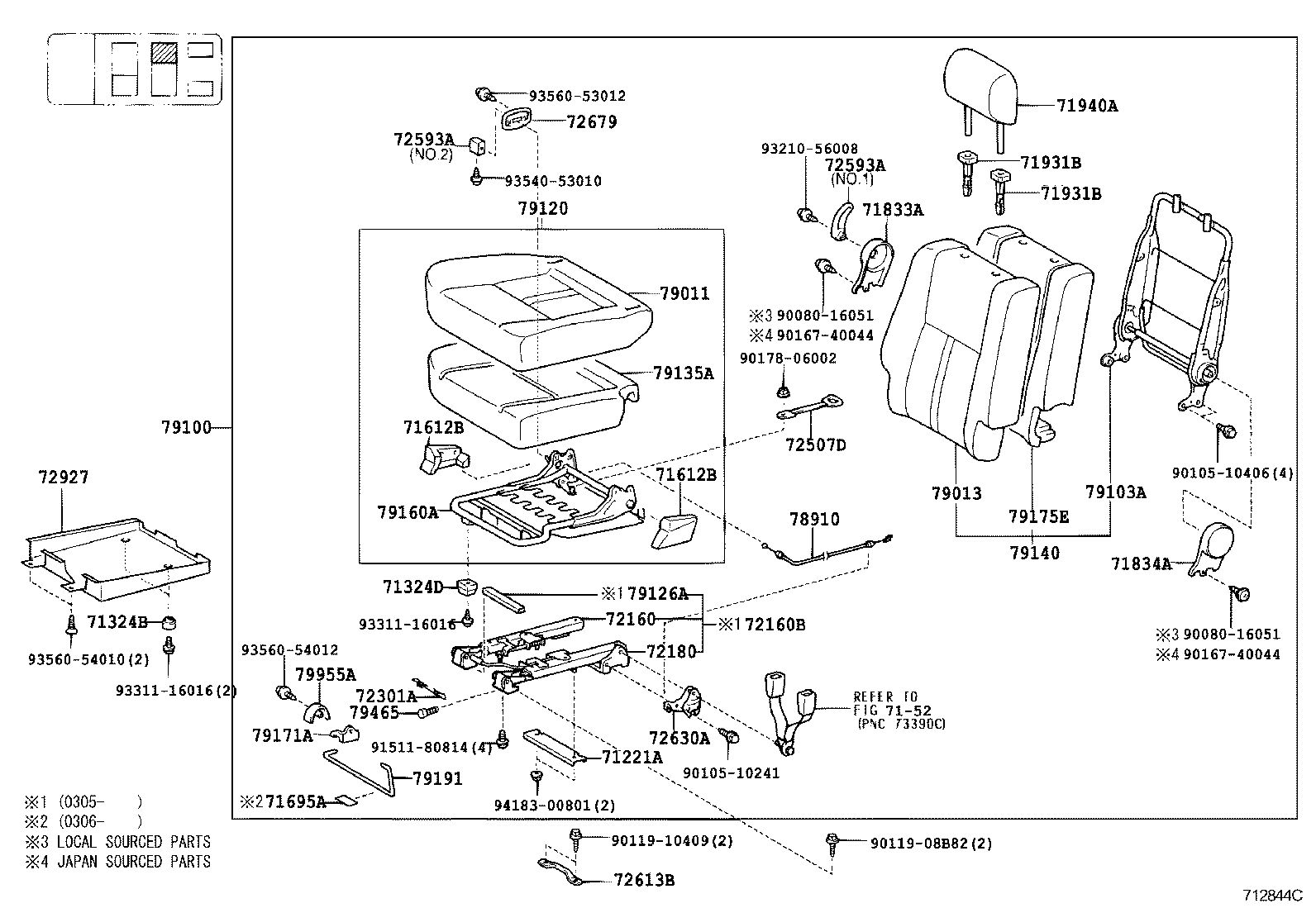

712844C

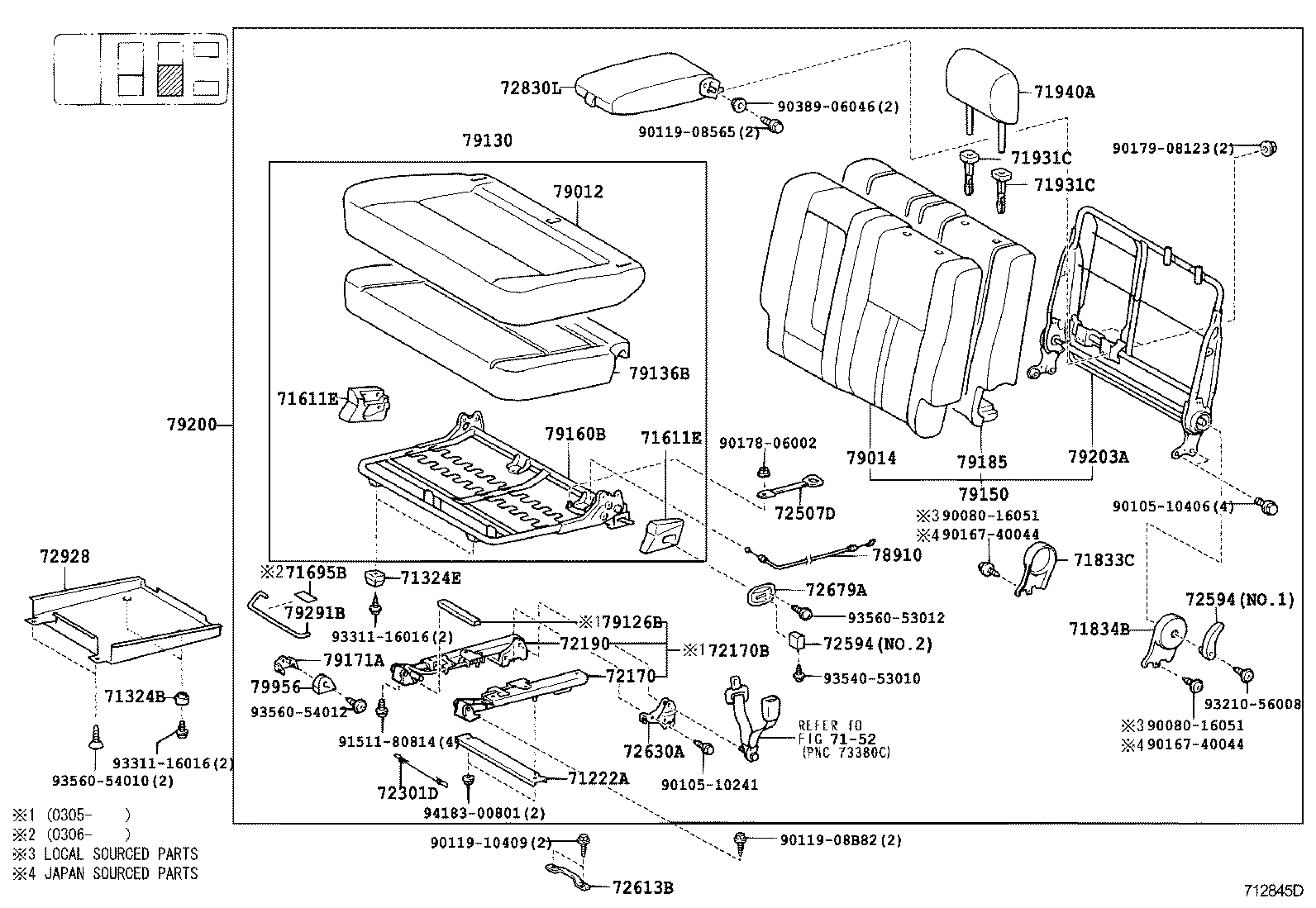

712845D

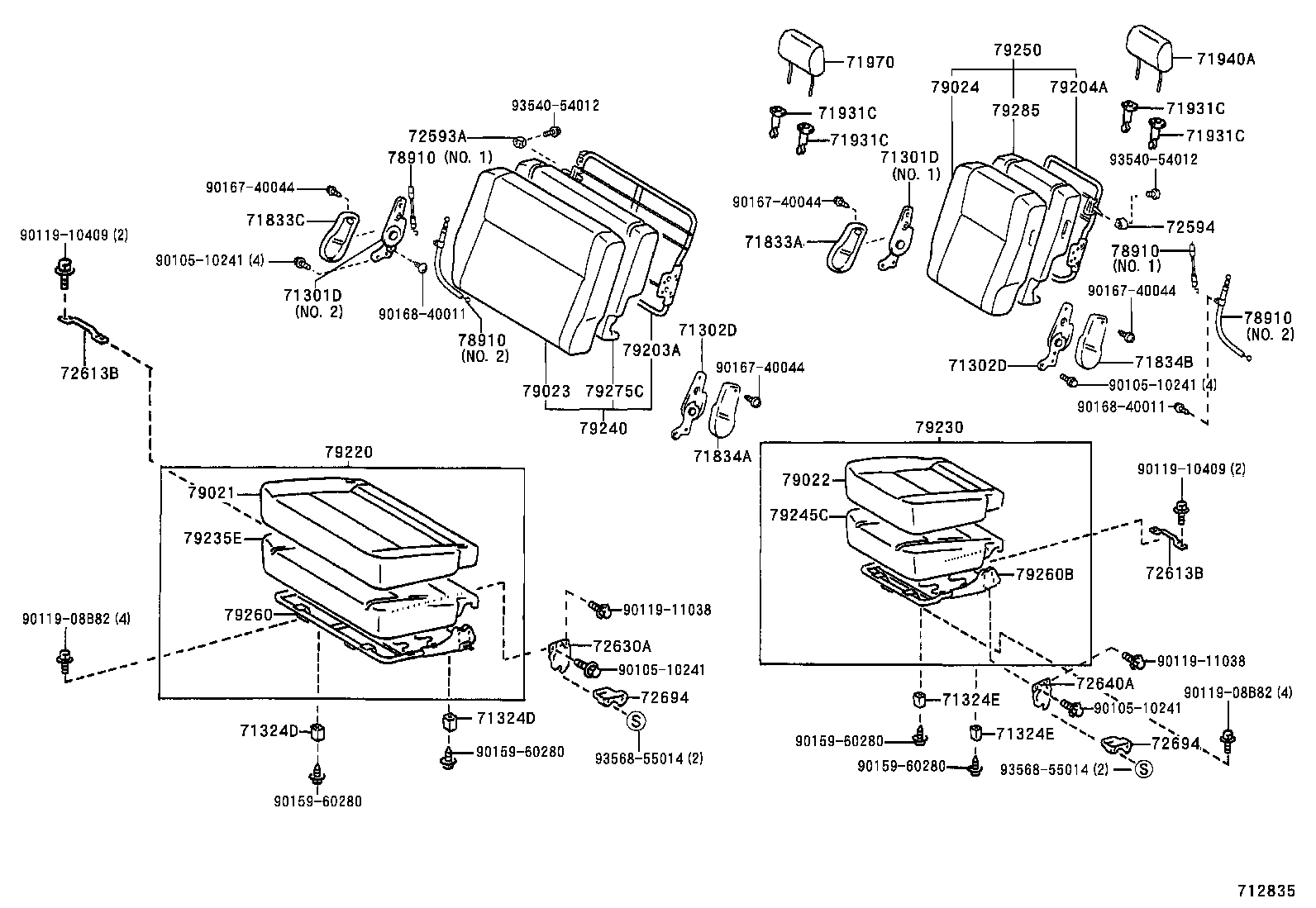

712835

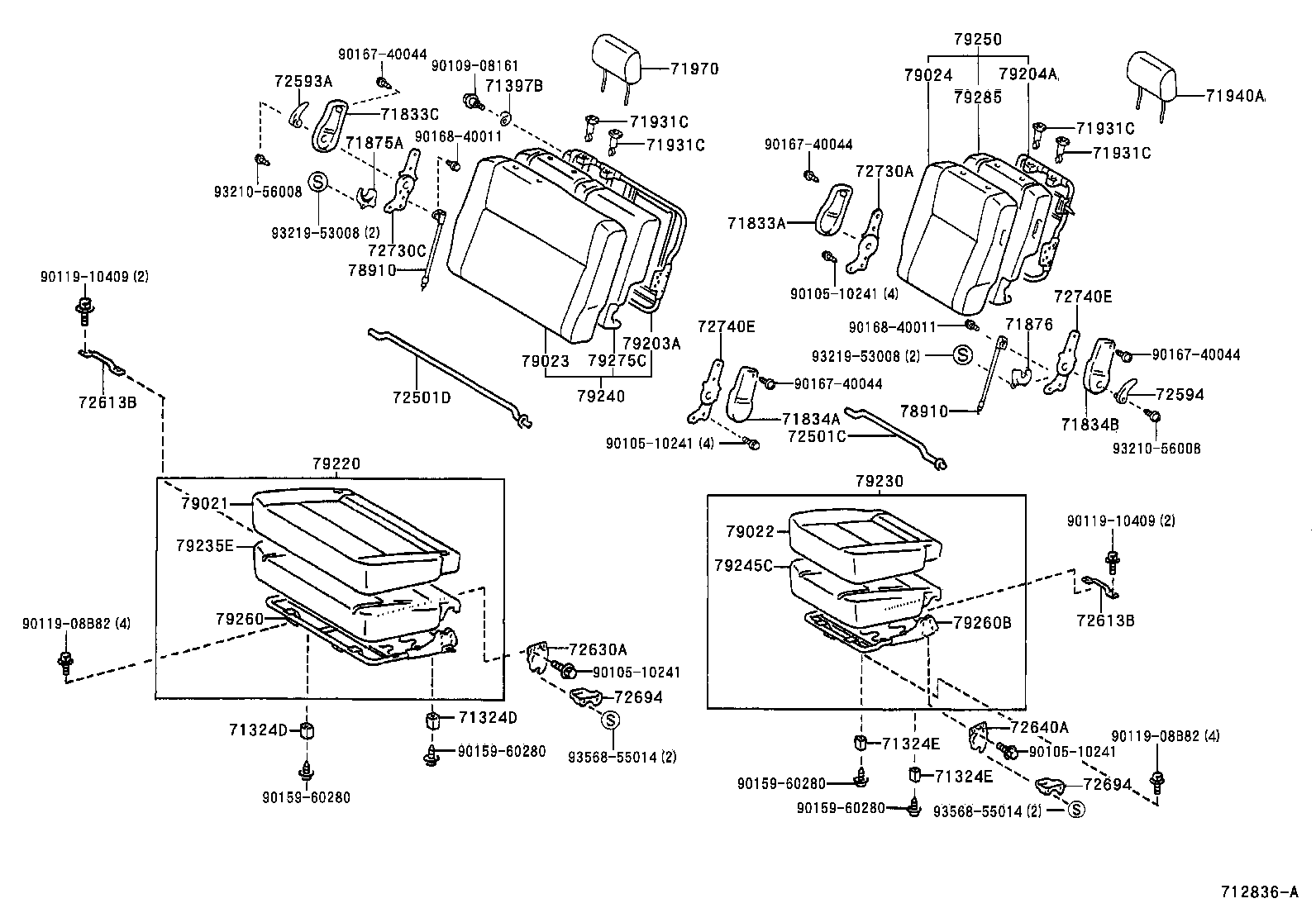

712836A

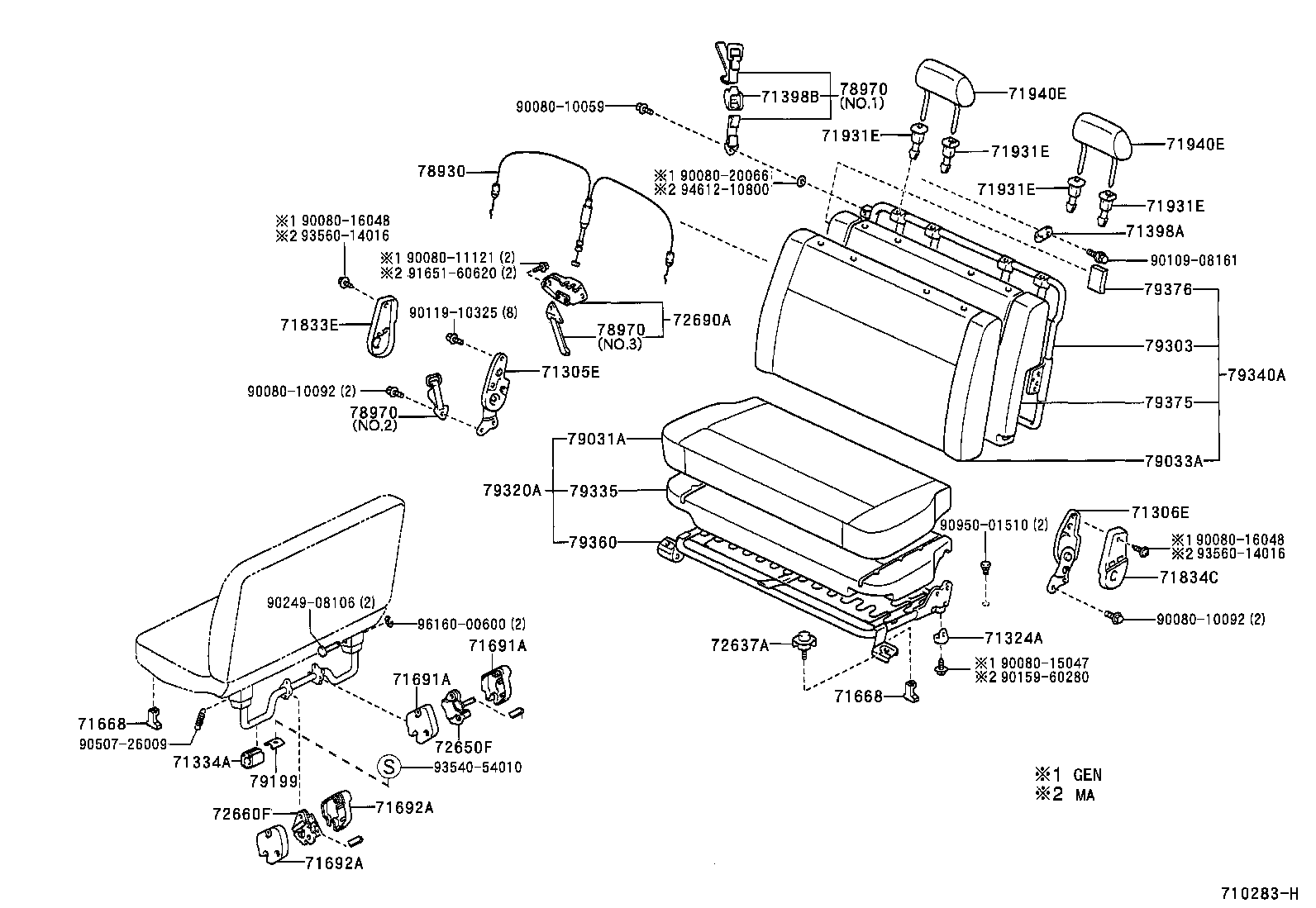

710283H

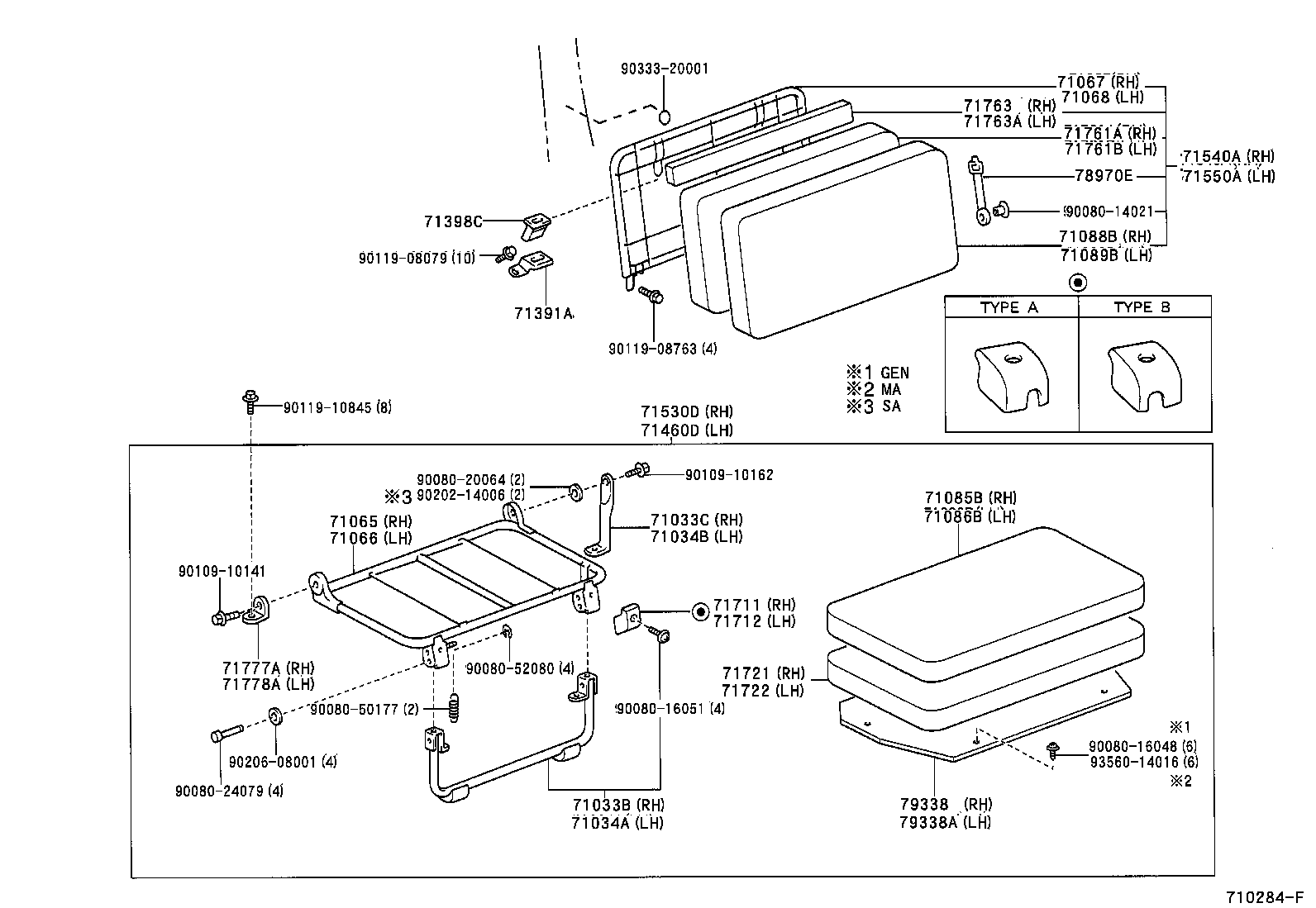

710284F

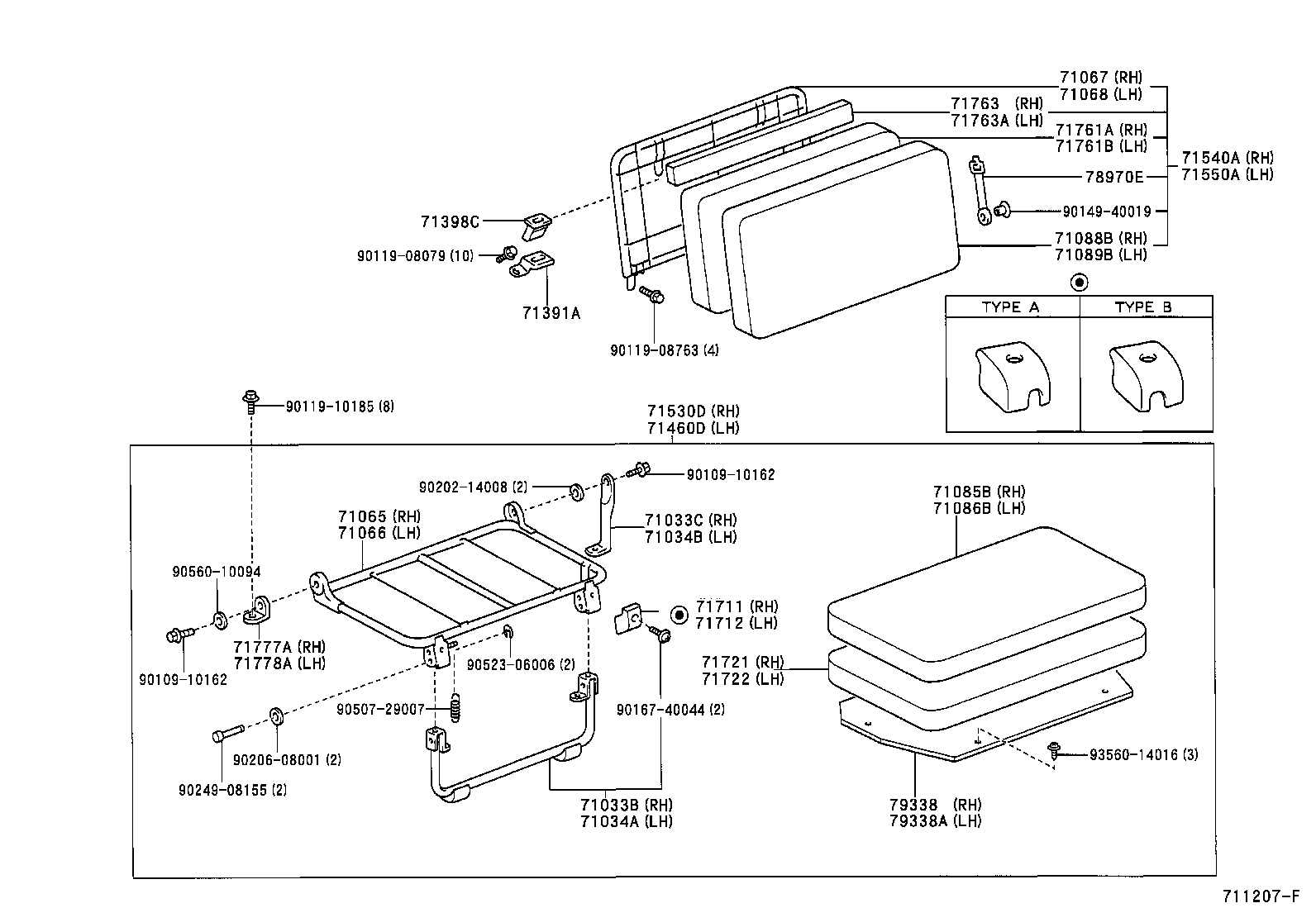

711207F

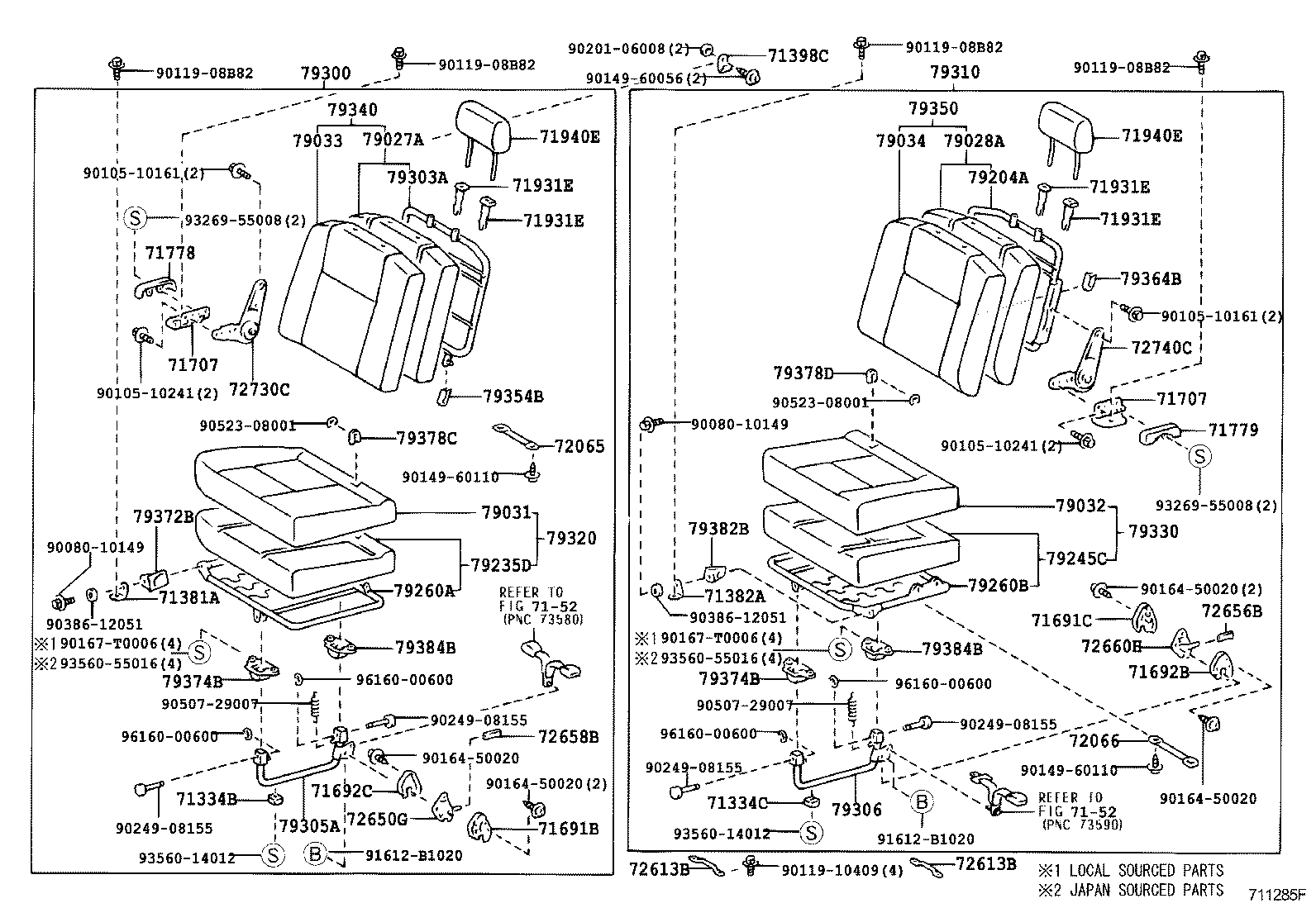

711285F
711285F
711401F
711401F
711401F
Part groups
| PNC | Description |
|---|---|
| 66990 | Holder Assy, Cup |
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71033B | Leg Sub-assy, Rear Side Seat Cushion, NO.1 RH |
| 71033C | Leg Sub-assy, Rear Side Seat Cushion, NO.2 RH |
| 71034A | Leg Sub-assy, Rear Side Seat Cushion, NO.1 LH |
| 71034B | Leg Sub-assy, Rear Side Seat Cushion, NO.2 LH |
| 71065 | Frame Sub-assy, Rear Side Seat Cushion, RH |
| 71066 | Frame Sub-assy, Rear Side Seat Cushion, LH |
| 71067 | Frame Sub-assy, Rear Side Seatback, RH |
| 71068 | Frame Sub-assy, Rear Side Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71085B | Cover Sub-assy, Rear Side Seat Cushion, RH |
| 71086B | Cover Sub-assy, Rear Side Seat Cushion, LH |
| 71088B | Cover Sub-assy, Rear Side Seatback, RH |
| 71089B | Cover Sub-assy, Rear Side Seatback, LH |
| 71100S | Seat Assy, Front RH |
| 71109B | Leg Sub-assy, Front Seat, LH |
| 71130 | Leg Assy, Front Seat, RH |
| 71140 | Leg Assy, Front Seat, LH |
| 71181 | Support, Front Seatback, RH |
| 71184B | Support, Front Seatback, LH |
| 71200S | Seat Assy, Front LH |
| 71221A | Reinforcement, Rear Seat Cushion, Rear |
| 71222A | Reinforcement, Rear Seat Cushion, Rear |
| 71301D | Hinge Sub-assy, Rear Seat, RH |
| 71302D | Hinge Sub-assy, Rear Seat, LH |
| 71303B | Hinge Sub-assy, Rear NO.2 Seat, RH |
| 71304B | Hinge Sub-assy, Rear NO.2 Seat, LH |
| 71305E | Hinge Sub-assy, Rear NO.3 Seat, RH |
| 71306E | Hinge Sub-assy, Rear NO.3 Seat, LH |
| 71324A | Cushion, Rear Seat |
| 71324B | Cushion, Rear Seat |
| 71324D | Cushion, Rear Seat, RH |
| 71324E | Cushion, Rear Seat, LH |
| 71334A | Stopper, Rear Seat Leg |
| 71334B | Stopper, Rear Seat Leg, RH |
| 71334C | Stopper, Rear Seat Leg, LH |
| 71381A | Bracket, Rear Seat Cushion Set, RH |
| 71382A | Bracket, Rear Seat Cushion Set, LH |
| 71383C | Bracket, Rear Seat Cushion Set, Rear RH |
| 71383D | Bracket, Rear NO.2 Seat Cushion Set, Rear RH |
| 71384A | Bracket, Rear Seat Cushion Set, Rear LH |
| 71391A | Bracket, Rear Seatback Lock Set |
| 71397B | Holder, Rear Seatback, RH |
| 71398A | Holder, Rear Seatback |
| 71398B | Holder, Rear Seatback, LH |
| 71398C | Holder, Rear Seatback |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71460D | Cushion Assy, Rear Side Seat, LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71530D | Cushion Assy, Rear Side Seat, RH |
| 71540A | Back Assy, Rear Side Seat, RH |
| 71550A | Back Assy, Rear Side Seat, LH |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71611E | Pad, Rear NO.2 Seat Cushion, A |
| 71612B | Pad, Rear Seat Cushion, B |
| 71612C | Pad, Rear Seat Cushion, C |
| 71617A | Cloth, Rear Seat Cushion Under |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71668 | Cushion, Rear NO.3 Seat |
| 71672D | Silencer, Front Seatback |
| 71691A | Cover, Rear NO.3 Seat Lock, RH |
| 71691B | Cover, Rear Seat Lock, Outer RH |
| 71691C | Cover, Rear Seat Lock, Inner RH |
| 71692A | Cover, Rear NO.3 Seat Lock, LH |
| 71692B | Cover, Rear Seat Lock, Outer LH |
| 71692C | Cover, Rear Seat Lock, Inner LH |
| 71695A | Protector, Rear Seat, NO.1 RH |
| 71695B | Protector, Rear Seat, NO.1 LH |
| 71707 | Hinge Sub-assy, Rear Seat Side |
| 71711 | Leather, For Seat, A RH |
| 71712 | Leather, For Seat, B RH |
| 71721 | Pad, Rear Side Seat Cushion, RH |
| 71722 | Pad, Rear Side Seat Cushion, LH |
| 71761A | Pad, Rear Side Seatback, RH |
| 71761B | Pad, Rear Side Seatback, LH |
| 71763 | Pad, Rear Side Seatback Support, RH |
| 71763A | Pad, Rear Side Seatback Support, LH |
| 71777A | Plate, Rear Side Seat Hinge, Lower RH |
| 71778 | Cover, Rear Seat Side Hinge Male, RH |
| 71778A | Plate, Rear Side Seat Hinge, Lower LH |
| 71779 | Cover, Rear Seat Side Hinge Male, LH |
| 71811C | Cover, Reclining Adjuster, RH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812C | Cover, Reclining Adjuster, LH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71812E | Cover, Reclining Adjuster, LH |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71833C | Cover, Rear Seat Reclining, NO.2 RH |
| 71833E | Cover, Rear Seat Reclining, NO.3 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71834B | Cover, Rear Seat Reclining, NO.2 LH |
| 71834C | Cover, Rear Seat Reclining, NO.3 LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875C | Cover, Reclining Adjuster Inside, RH |
| 71875E | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876B | Cover, Reclining Adjuster Inside, LH |
| 71876C | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 71931B | Support Assy, Rear NO.1 Seat Headrest |
| 71931C | Support Assy, Rear NO.2 Seat Headrest |
| 71931E | Support Assy, Rear NO.3 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71940E | Headrest Assy, NO.2 Seat |
| 71970 | Headrest Assy, Rear Seat |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72021 | Adjuster Sub-assy, Front Seat, Inner RH |
| 72022 | Adjuster Sub-assy, Front Seat, Inner LH |
| 72065 | Belt Sub-assy, Rear Seat Hook, RH |
| 72066 | Belt Sub-assy, Rear Seat Hook, LH |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72137 | Cover, Seat Track, Outer RH |
| 72137A | Clip (FOR SEAT TRACK COVER) |
| 72137B | Cover, Seat Track, RH |
| 72137G | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72138B | Cover, Seat Track, LH |
| 72138D | Cover, Seat Track, Outer, LH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72157C | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72158A | Cover, Rear Seat Track Bracket, Inner LH |
| 72158B | Cover, Seat Track Bracket, Inner LH |
| 72160 | Track Assy, Rear Seat, Outer RH |
| 72160A | Track Assy, Rear Seat, LH |
| 72160B | Track Assy, Rear NO.1 Seat, RH |
| 72170 | Track Assy, Rear Seat, Outer LH |
| 72170B | Track Assy, Rear NO.1 Seat, LH |
| 72170D | Track Assy, Rear Seat, Outer LH |
| 72180 | Track Assy, Rear Seat, Inner RH |
| 72190 | Track Assy, Rear Seat Inner, LH |
| 72201 | Handle Sub-assy, Seat Track |
| 72201A | Handle Sub-assy, Seat Track RH |
| 72201B | Handle Sub-assy, Seat Track LH |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72301D | Wire Sub-assy, Seat Track Equalizing, LH |
| 72345A | Pipe, Reclining Connecting |
| 72345F | Pipe, Reclining Connecting, RH |
| 72345G | Pipe, Reclining Connecting, LH |
| 72457B | Knob, Vertical Seat Adjuster, RH |
| 72457D | Knob, Vertical Seat Adjuster, LH |
| 72501C | Pipe Sub-assy, Reclining Connecting |
| 72501D | Pipe Sub-assy, Reclining Connecting, RH |
| 72501E | Pipe Sub-assy, Reclining Connecting, LH |
| 72507A | Handle Sub-assy, Reclining Release |
| 72507D | Handle Sub-assy, NO.2 Seat Reclining Release |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72551B | Cover, Reclining Hinge, RH |
| 72552B | Cover, Reclining Hinge, LH |
| 72593 | Knob, Reclining Remote Control Lever |
| 72593A | Knob, Remote Control Lever, RH |
| 72594 | Knob, Remote Control Lever, LH |
| 72613B | Striker, Rear Seat Lock |
| 72630A | Lock Assy, Rear NO.1 Seat |
| 72630B | Adjuster Assy, Rear NO.1 Seat, Inner RH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72630F | Lock Assy, Rear NO.2 Seat |
| 72637A | Handle, Rear Seat Lock |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72640B | Adjuster Assy, Rear NO.1 Seat, Inner LH |
| 72650F | Lock Assy, Rear Seat, RH |
| 72650G | Lock Assy, Rear NO.2 Seat, RH |
| 72656B | Button, Rear Seatback Stop Release |
| 72656D | Pin, Rear Seat Cushion Support |
| 72656E | Pin, Rear Seat Cushion Support |
| 72658B | Knob, Rear Seat Lock Handle |
| 72660F | Lock Assy, Rear Seat, LH |
| 72660H | Lock Assy, Rear NO.2 Seat, LH |
| 72665 | Cover, Rear Seatback Lock, RH |
| 72665B | Cover, Rear Seatback Lock |
| 72666 | Cover, Rear Seatback Lock, LH |
| 72666A | Cover, Front Seatback Lock, LH |
| 72679 | Bezel, Rear Seatback Lock Control |
| 72679A | Bezel, NO.2 Seatback Lock Control |
| 72690A | Strap Assy, Rear Seat Lock Release |
| 72694 | Cover, Rear Seat Cushion Lock |
| 72710C | Adjuster Assy, NO.1 Seat Reclining, RH |
| 72720C | Adjuster Assy, NO.1 Seat Reclining, LH |
| 72730A | Adjuster Assy, Rear Seat Reclining, RH |
| 72730C | Adjuster Assy, NO.2 Seat Reclining, RH |
| 72740A | Adjuster Assy, Rear Seat Reclining, LH |
| 72740C | Adjuster Assy, NO.2 Seat Reclining, LH |
| 72740E | Adjuster Assy, Rear Seatback, Outer LH |
| 72830E | Armrest Assy, Front Seat |
| 72830L | Armrest Assy, Rear NO.2 Seat, RH |
| 72840 | Armrest Assy, Rear NO.1 Seat, LH |
| 72927 | Cover, Rear Seat Cushion Under, RH |
| 72928 | Cover, Rear Seat Cushion Under, LH |
| 78910 | Cable Assy, Fold Seat Lock Control, NO.1 |
| 78910B | Cable Assy, Fold Seat Lock Control, NO.1 RH |
| 78920 | Cable Assy, Fold Seat Lock Control, NO.2 |
| 78930 | Cable Assy, Fold Seat Lock Control, NO.3 |
| 78970 | Band Assy, Seat Lock |
| 78970D | Band Assy, Seat Lock, RH |
| 78970E | Band Assy, Side Seat Lock |
| 79011 | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79011A | Cover Sub-assy, NO.1 Seat Cushion |
| 79012 | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013 | Cover Sub-assy, NO.1 Seatback, RH |
| 79013A | Cover Sub-assy, NO.1 Seatback |
| 79014 | Cover Sub-assy, NO.1 Seatback, LH |
| 79021 | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79022 | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79023 | Cover Sub-assy, NO.2 Seatback, RH |
| 79024 | Cover Sub-assy, NO.2 Seatback, LH |
| 79027A | Pad Sub-assy, NO.2 Seatback, RH |
| 79028A | Pad Sub-assy, NO.2 Seatback, LH |
| 79031 | Cover Sub-assy, NO.3 Seat Cushion, RH |
| 79031A | Cover Sub-assy, NO.3 Seat Cushion |
| 79032 | Cover Sub-assy, NO.3 Seat Cushion, LH |
| 79033 | Cover Sub-assy, NO.3 Seatback, RH |
| 79033A | Cover Sub-assy, NO.3 Seatback |
| 79034 | Cover Sub-assy, NO.3 Seatback, LH |
| 79100 | Seat Assy, Rear NO.1 RH (FOR SEPARATE TYPE) |
| 79100A | Seat Assy, Rear NO.1 (FOR BENCH TYPE) |
| 79103 | Frame Sub-assy, NO.1 Seatback |
| 79103A | Frame Sub-assy, NO.1 Seatback, RH |
| 79120 | Cushion Assy, NO.1 Seat, RH |
| 79120A | Cushion Assy, NO.1 Seat |
| 79126A | Reinforcement, NO.1 Seat Leg, NO.1 |
| 79126B | Reinforcement, NO.1 Seat Leg, NO.2 |
| 79130 | Cushion Assy, NO.1 Seat, LH |
| 79135 | Pad, NO.1 Seat Cushion |
| 79135A | Pad, NO.1 Seat Cushion, RH |
| 79136B | Pad, NO.1 Seat Cushion, LH |
| 79139B | Cloth, NO.1 Seat Cushion |
| 79139I | Cloth, NO.1 Seat Cushion |
| 79140 | Back Assy, NO.1 Seat, RH |
| 79140A | Back Assy, NO.1 Seat |
| 79150 | Back Assy, NO.1 Seat, LH |
| 79160 | Spring Assy, NO.1 Seat Cushion |
| 79160A | Spring Assy, NO.1 Seat Cushion, RH |
| 79160B | Spring Assy, NO.1 Seat Cushion, LH |
| 79171A | Bracket, NO.1 Seat |
| 79175 | Pad, NO.1 Seatback |
| 79175E | Pad, NO.1 Seatback, RH |
| 79185 | Pad, NO.1 Seatback, LH |
| 79191 | Spring, NO.1 Seat Cushion, NO.1 |
| 79199 | Holder, NO.1 Seat Leg Stopper |
| 79200 | Seat Assy, Rear NO.1 LH (FOR SEPARATE TYPE) |
| 79203A | Frame Sub-assy, NO.2 Seatback, RH |
| 79204A | Frame Sub-assy, NO.2 Seatback, LH |
| 79220 | Cushion Assy, NO.2 Seat, RH |
| 79230 | Cushion Assy, NO.2 Seat, LH |
| 79235D | Pad, NO.2 Seat Cushion, RH |
| 79235E | Pad, NO.2 Seat Cushion, RH |
| 79240 | Back Assy, NO.2 Seat, RH |
| 79245C | Pad, NO.2 Seat Cushion, LH |
| 79250 | Back Assy, NO.2 Seat, LH |
| 79260 | Spring Assy, NO.2 Seat Cushion |
| 79260A | Spring Assy, NO.2 Seat Cushion, RH |
| 79260B | Spring Assy, NO.2 Seat Cushion, LH |
| 79275C | Pad, NO.2 Seatback, RH |
| 79285 | Pad, NO.2 Seatback, LH |
| 79291B | Spring, NO.2 Seat Cushion, NO.1 |
| 79300 | Seat Assy, Rear NO.2 RH (FOR SEPARATE TYPE) |
| 79303 | Frame Sub-assy, NO.3 Seatback |
| 79303A | Frame Sub-assy, NO.3 Seatback, RH |
| 79305A | Leg Sub-assy, NO.3 Seat, RH |
| 79306 | Leg Sub Assy, NO.3 Seat, LH |
| 79310 | Seat Assy, Rear NO.2 LH (FOR SEPARATE TYPE) |
| 79320 | Cushion Assy, NO.3 Seat, RH |
| 79320A | Cushion Assy, NO.3 Seat |
| 79330 | Cushion Assy, NO.3 Seat, LH |
| 79335 | Pad, NO.3 Seat Cushion |
| 79335A | Pad, NO.3 Seat Cushion, RH |
| 79338 | Board, Rear Side Seat Cushion, RH |
| 79338A | Board, Rear Side Seat Cushion, LH |
| 79340 | Back Assy, NO.3 Seat, RH |
| 79340A | Back Assy, NO.3 Seat |
| 79345A | Pad, NO.3 Seat Cushion, LH |
| 79350 | Back Assy, NO.3 Seat, LH |
| 79354B | Cover, NO,3 Seatback Hinge |
| 79360 | Spring Assy, NO.3 Seat Cushion |
| 79364B | Cover, NO.3 Seatback Hinge |
| 79372B | Cover, NO.2 Seat Front Bracket, RH |
| 79374B | Cover, NO.3 Seat Leg, Rear RH |
| 79375 | Pad, NO.3 Seatback |
| 79375A | Pad, NO.3 Seatback, RH |
| 79376 | Pad, NO.3 Seatback Side |
| 79378C | Cover, NO.3 Seat Cushion Hinge |
| 79378D | Cover, NO.3 Seat Cushion Hinge |
| 79382B | Cover, NO.2 Seat Front Bracket, LH |
| 79384B | Cover, NO.3 Seat Leg, Rear, LH |
| 79385A | Pad, NO.3 Seatback, LH |
| 79465 | Stopper Rear Seat Torsion Bar |
| 79955A | Cover, Rear Seat Front Bracket, RH |
| 79956 | Cover, Rear Seat Leg Bracket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
