Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

14 part groups · 8 illustrations

Illustrations

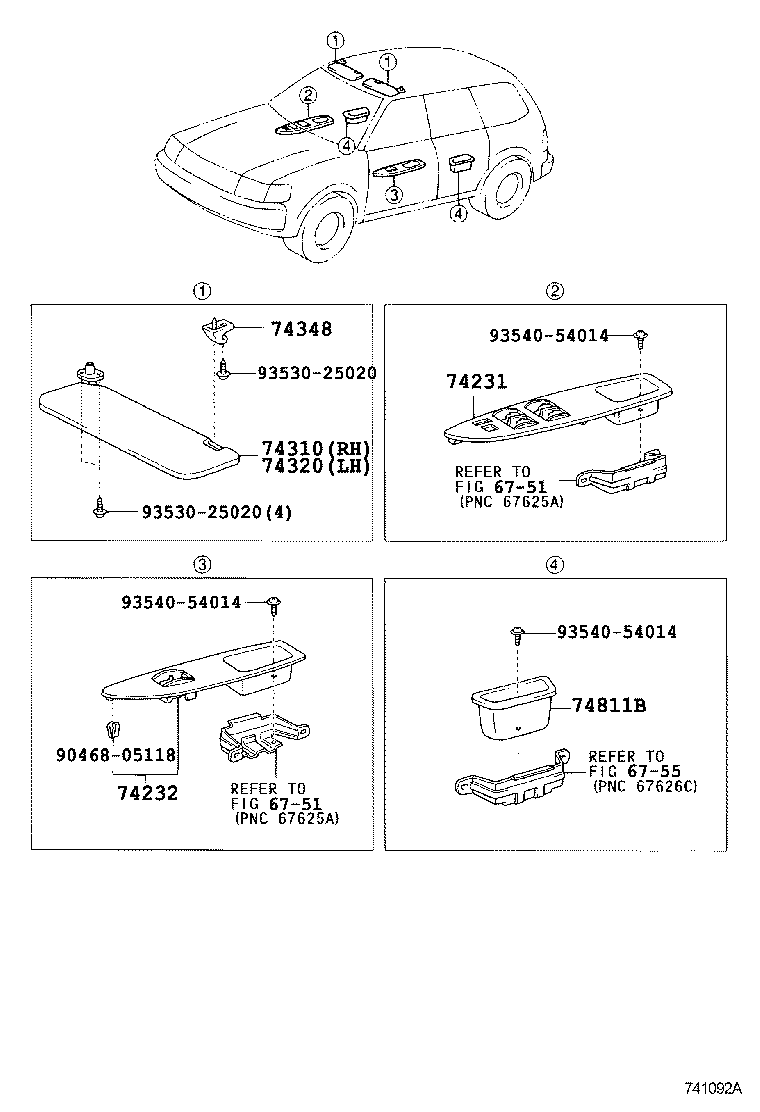

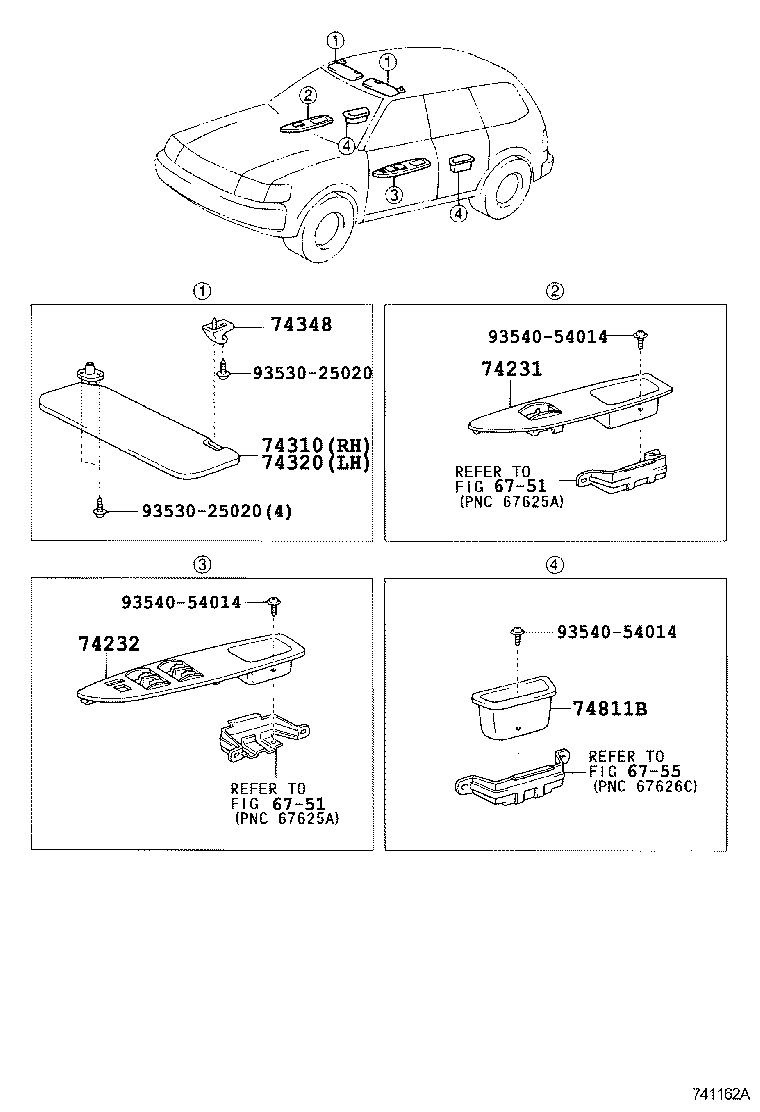

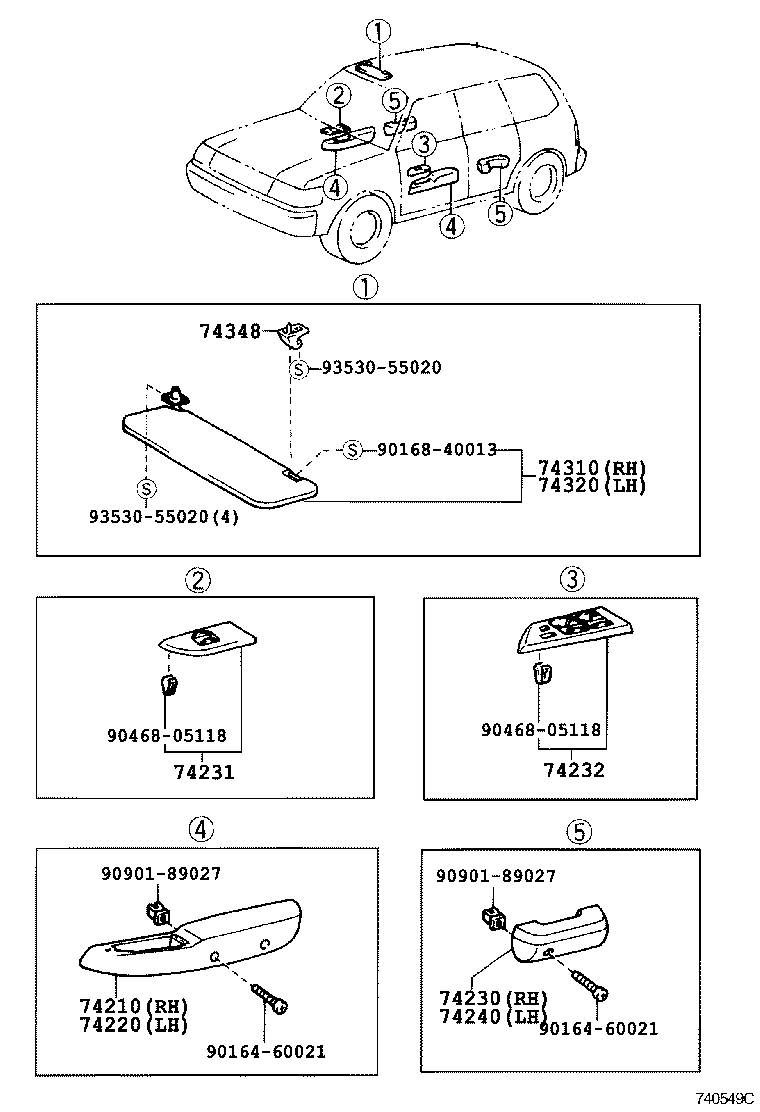

Figure 740107E 740107E 1996-12 → — Figure 741092A 741092A 2002-08 → — Figure 741092A 741092A 2002-12 → — Figure 740110C 740110C 1996-12 → — Figure 740549C 740549C 1998-10 → 2002-10 Figure 740549C 740549C 2002-10 → — Figure 741162A 741162A 2002-10 → — Figure 740109E 740109E 1996-12 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74230 Armrest Assy, Rear, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74240 Armrest Assy, Rear, LH
74310 Visor Assy, RH
74310B Plug, Hole (FOR VISOR)
74320 Visor Assy, LH
74348 Holder, Visor
74371B Plug, Hole (FOR VISOR HANGER)
74611B Grip, Assist
74617A Plug, Assist Grip
74811B Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
