Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

9 part groups · 6 illustrations

Illustrations

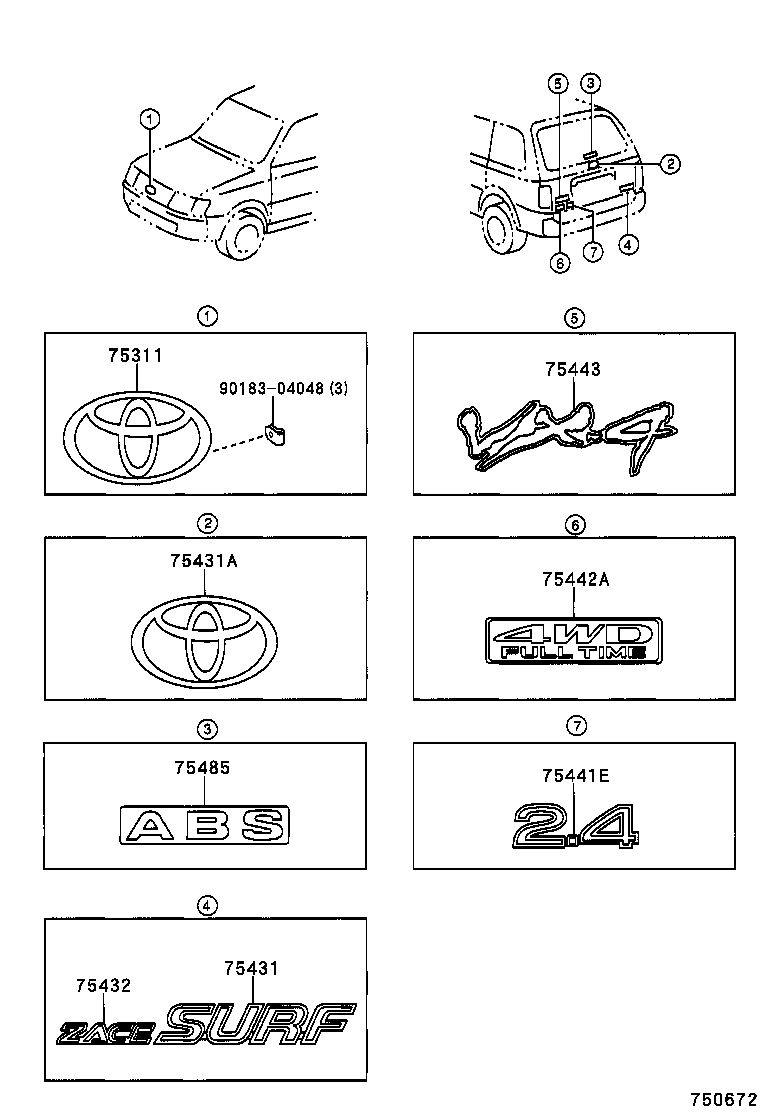

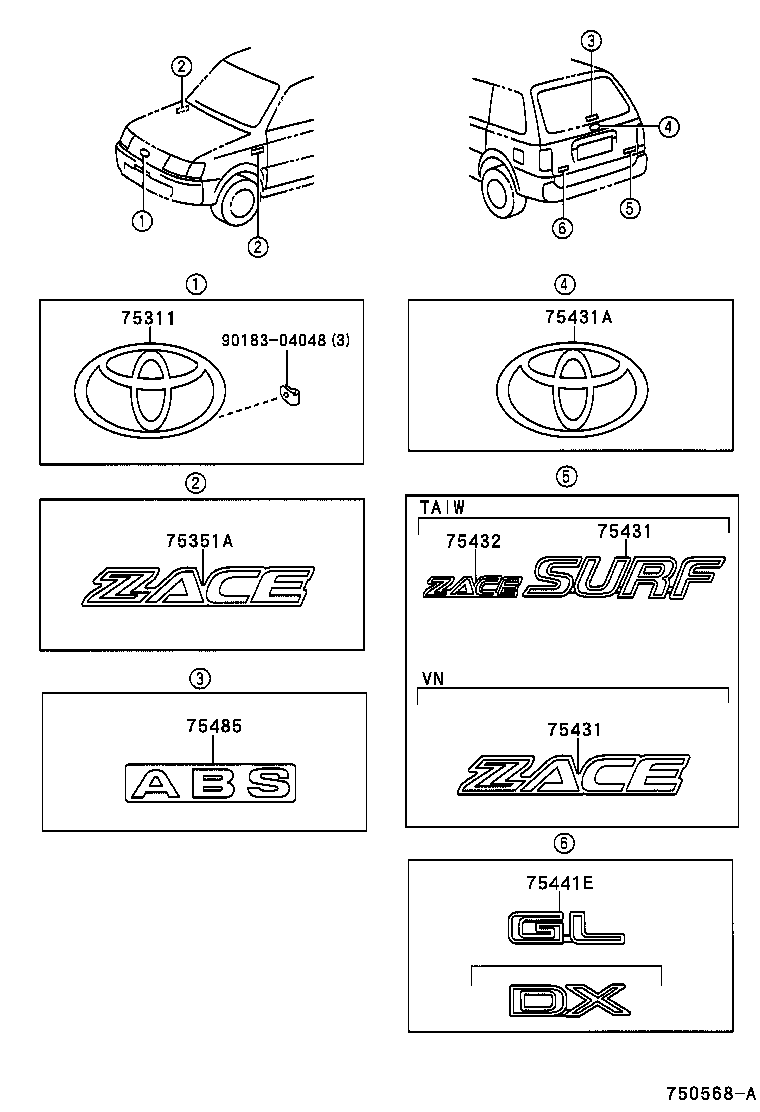

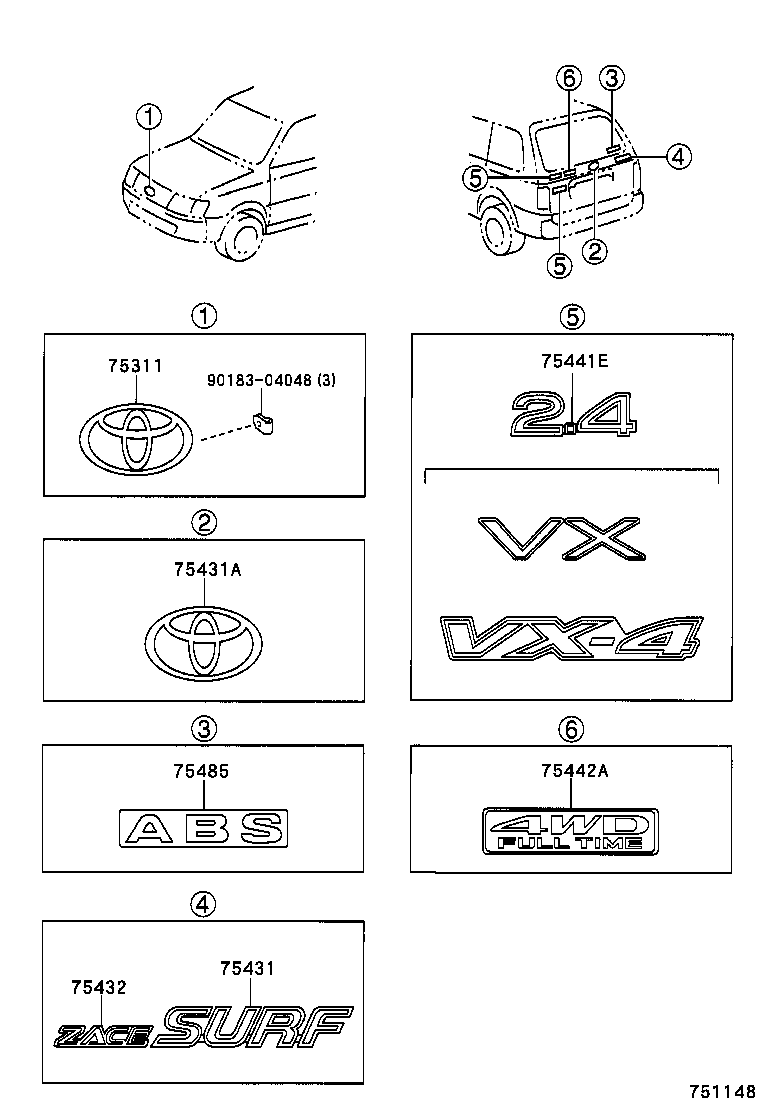

Figure 750100F 750100F 1996-12 → — Figure 751102 751102 2002-08 → — Figure 751214 751214 2003-06 → — Figure 750568A 750568A 1999-02 → — Figure 750672 750672 1999-11 → 2002-10 Figure 751148 751148 2002-10 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75351A Emblem, Front Fender
75431 Emblem, Luggage Compartment Door
75431A Emblem, Back Door, NO.1
75432 Emblem, Back Door, NO.2
75441E Plate, Back Door Name, NO.1
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
