Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01
Moulding
32 part groups · 12 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 75503 | Moulding Sub-assy, Windshield, Outside Upper |
| 75504 | Moulding Sub-assy, Windshild, Outside Lower |
| 75531 | Moulding, Windshield, Outer Upper |
| 75533 | Moulding, Windshield, Outside RH |
| 75534 | Moulding, Windshield, Outside LH |
| 75535A | Moulding, Windshield, Outside Lower |
| 75536A | Cover, Windshield Outside Moulding Joint |
| 75548A | Fastener, Windshield Outside Moulding, NO.1 |
| 75548F | Fastener, Windshield Outside Moulding |
| 75548G | Fastener, Windshield Outside Moulding |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75553A | Moulding, Roof Drip Side Finish, Rear RH |
| 75554A | Moulding, Roof Drip Side Finish, Rear LH |
| 75563 | Retainer, Roof Drip Side Finish Moulding, NO.1 |
| 75611C | Moulding, Front Fender, Outside RH |
| 75612C | Moulding, Front Fender, Outside LH |

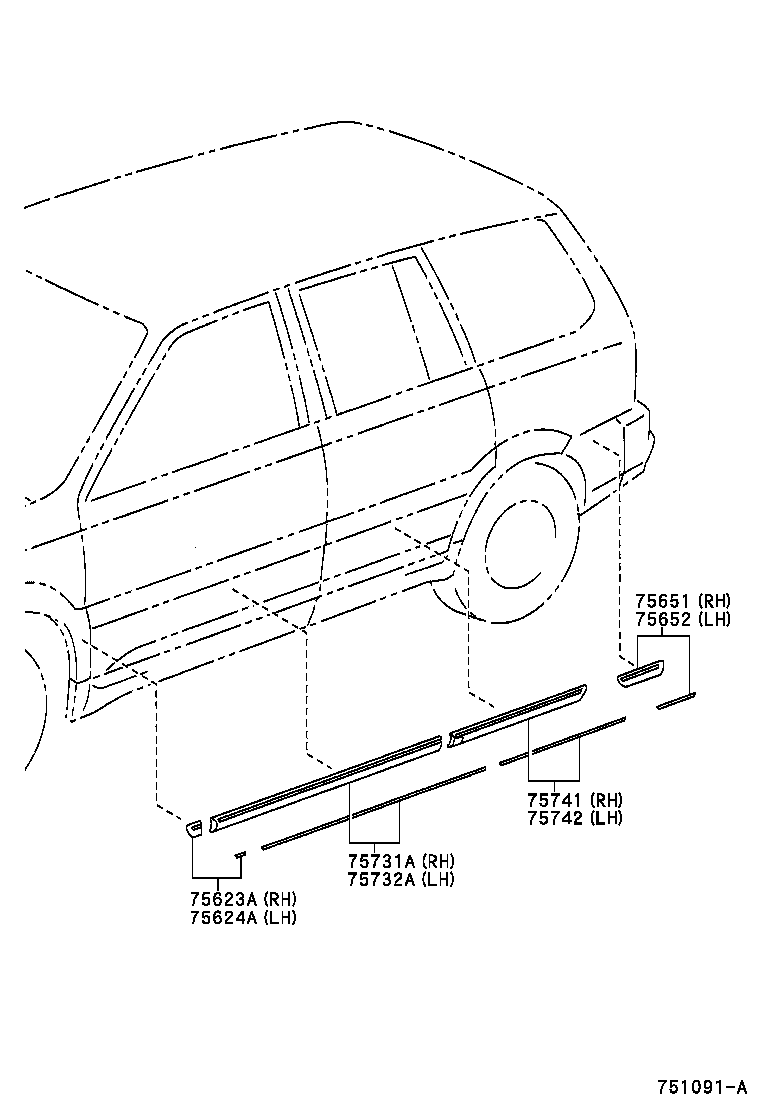

| 75623A | Moulding, Front Fender, Outside Rear RH |
| 75624A | Moulding, Front Fender, Outside Rear LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |

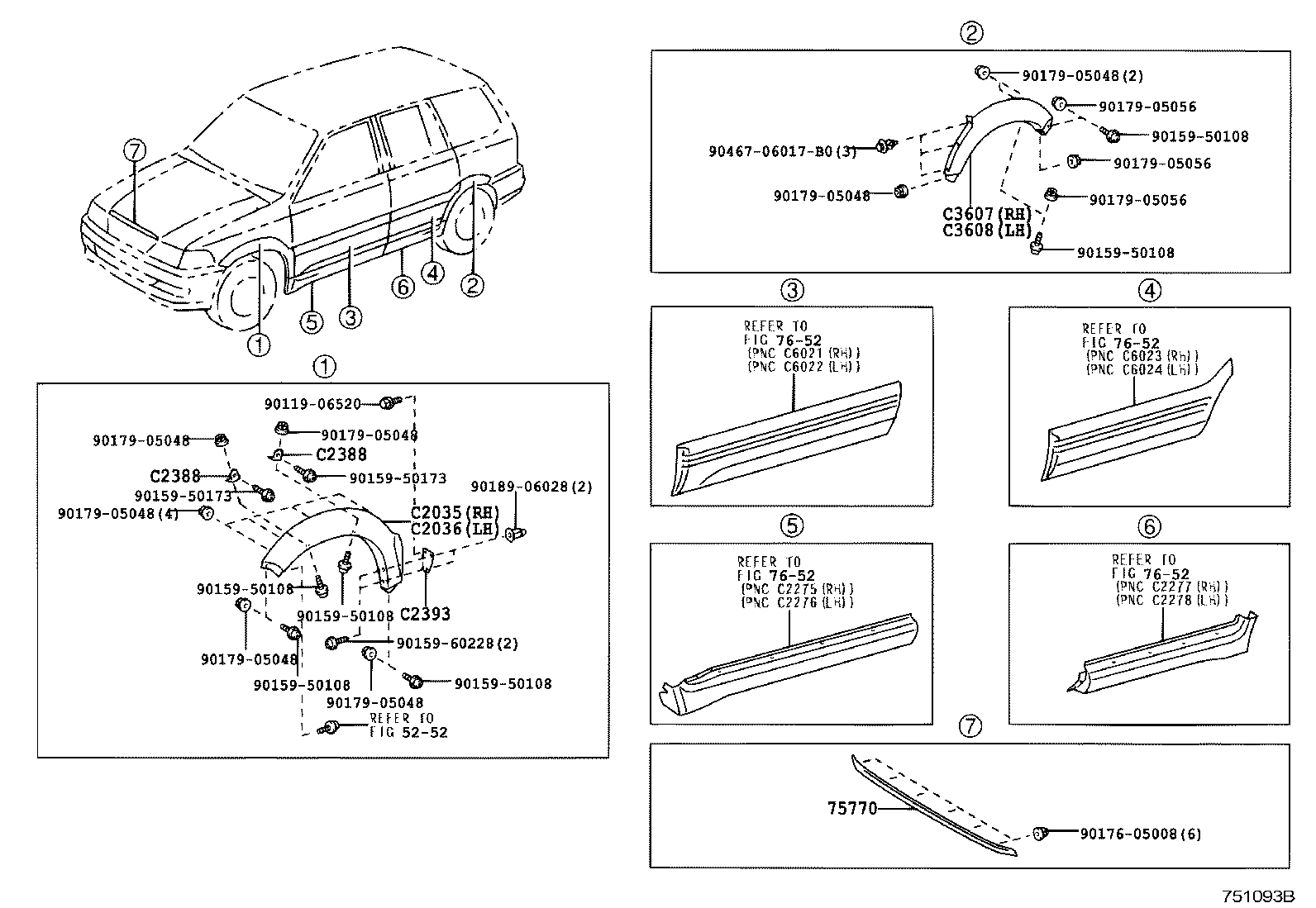

| 75770 | Moulding Assy, Hood, Front |
| C2035 | Extension Sub-assy, Front Fender, RH |
| C2036 | Extension Sub-assy, Front Fender, LH |
| C2388 | Bracket, Front Fender, Rear Lower LH |
| C2393 | Mudguard, Front |
| C3607 | Extension Sub-assy, Rear Fender, RH |
| C3608 | Extension Sub-assy, Rear Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
