Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

14 part groups · 7 illustrations

Illustrations

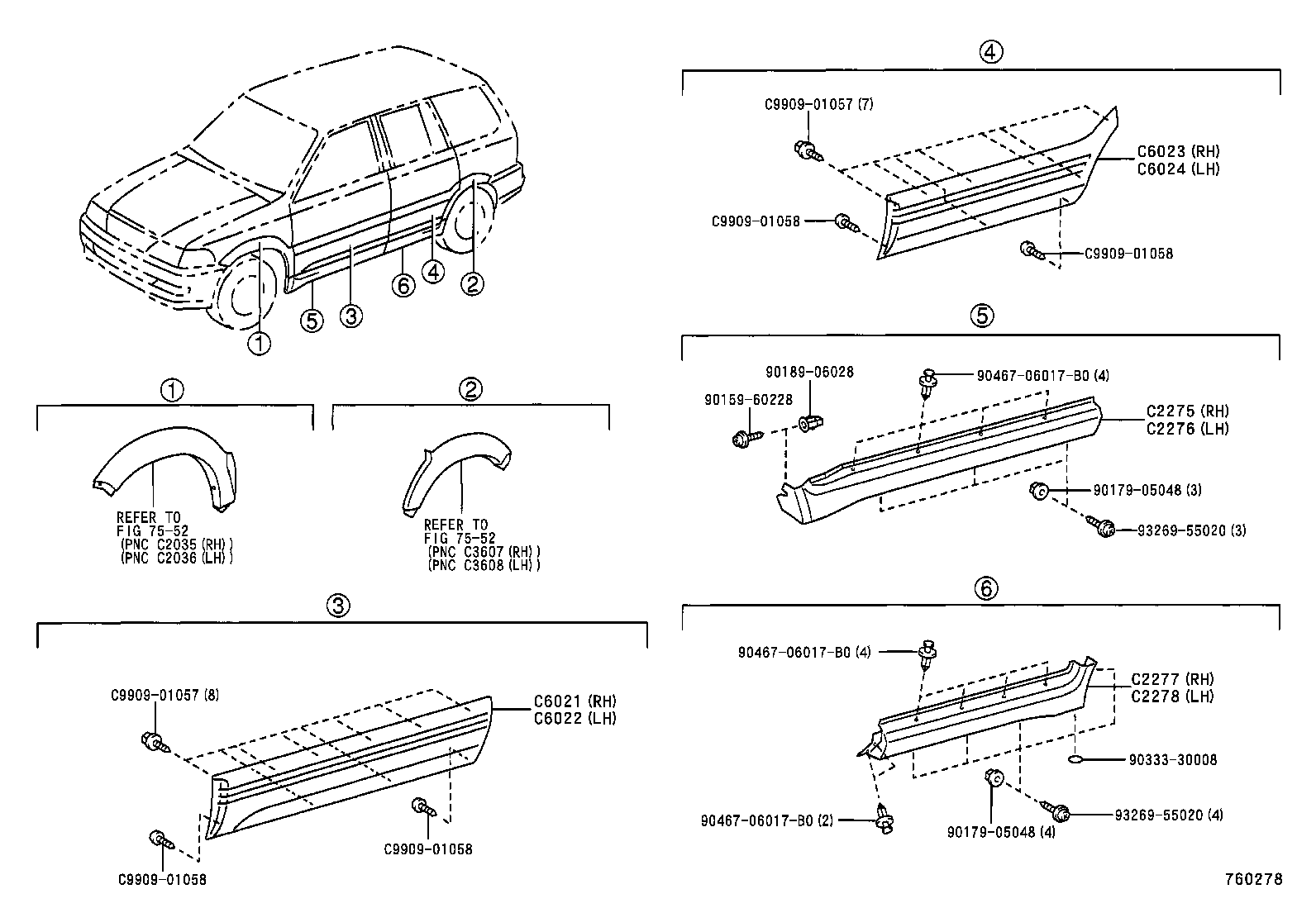

Figure 760228 760228 2001-02 → — Figure 760228 760228 2002-11 → — Figure 760278 760278 2002-08 → — Figure 760278 760278 2002-11 → — Figure 760278 760278 2002-12 → — Figure 760302 760302 2002-10 → — Figure 760323 760323 2003-06 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76865 Retainer, Rear Spoiler, NO.1
76872 Protector, Rear Spoiler, NO.1
76889B Seal, Rear Spoiler, NO.1
76891 Spoiler, Rear NO.1
76892 Spoiler, Rear NO.2
C2275 Mudguard, Side, Front RH
C2276 Mudguard, Side, Front LH
C2277 Mudguard, Side, Rear RH
C2278 Mudguard, Side, Rear LH
C6021 Moulding Sub-assy, Front Door, Outside RH
C6022 Moulding Sub-assy, Front Door, Outside LH
C6023 Moulding Sub-assy, Rear Door, Outside RH
C6024 Moulding Sub-assy, Rear Door, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
