Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

58 part groups · 27 illustrations

Illustrations

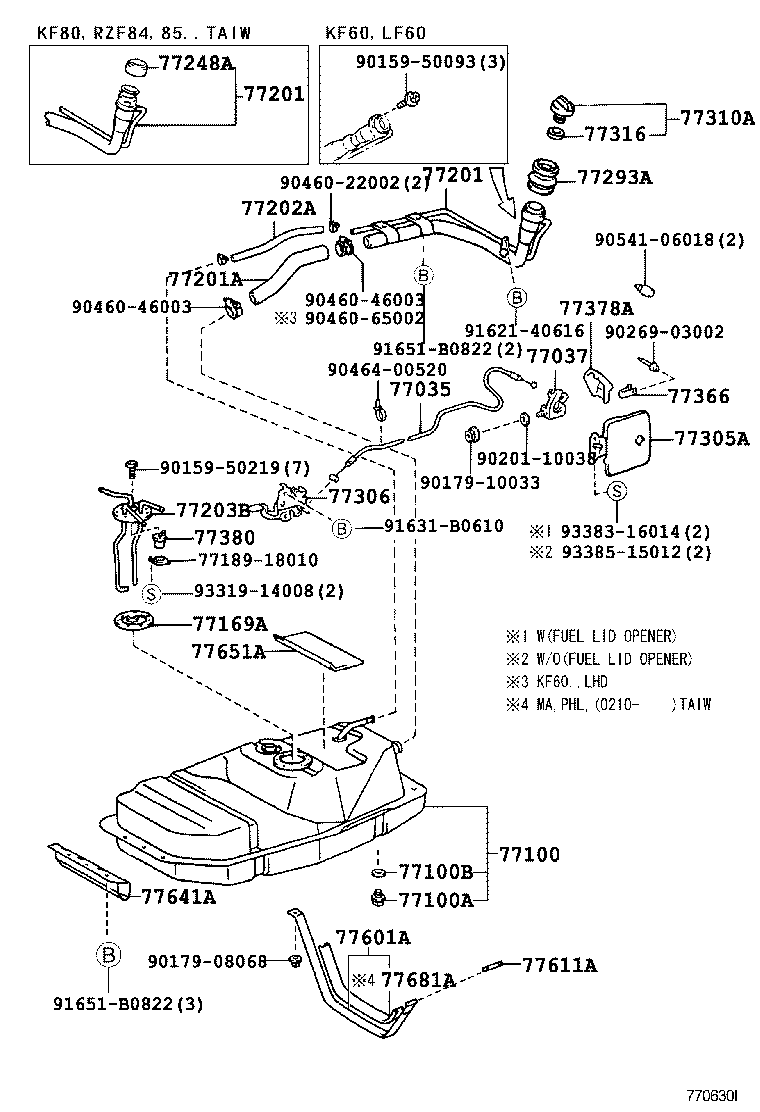

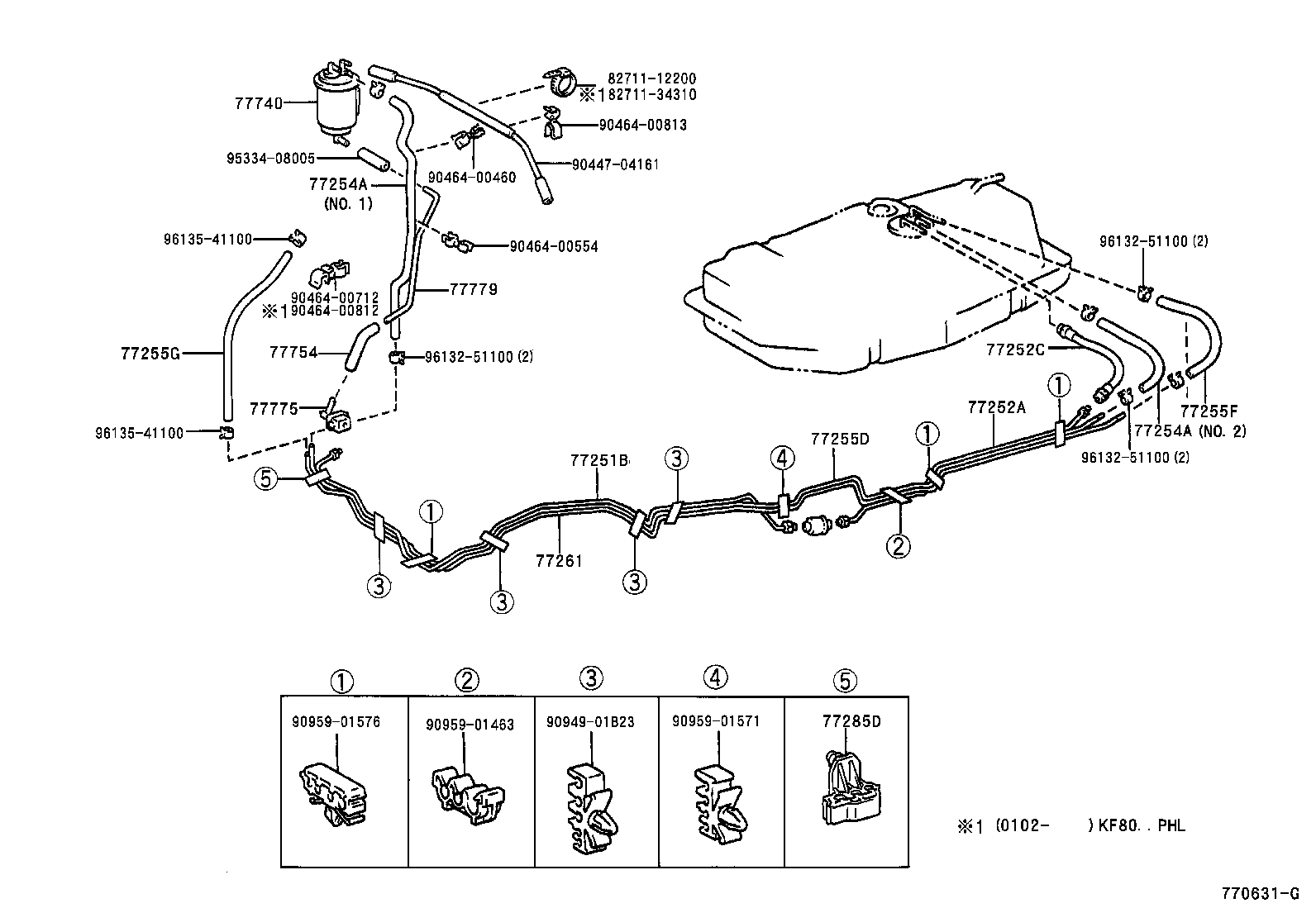

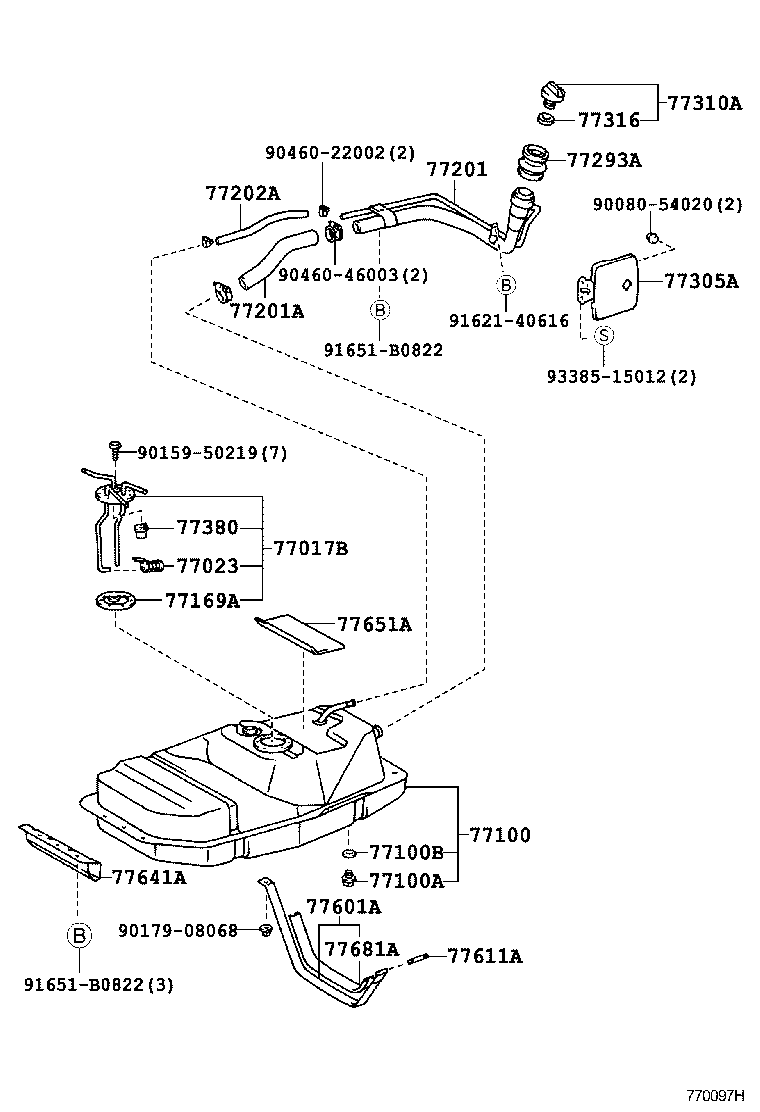

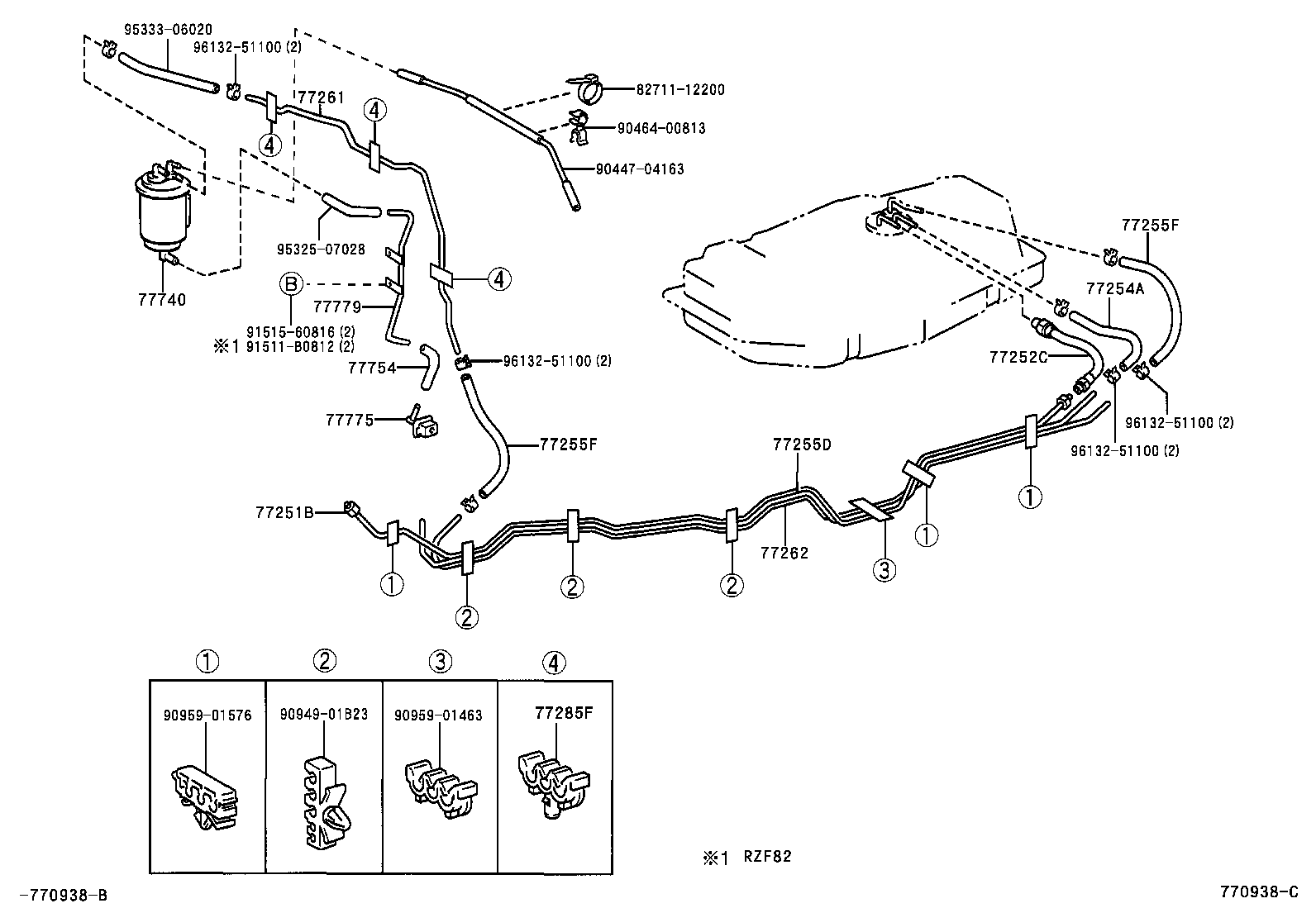

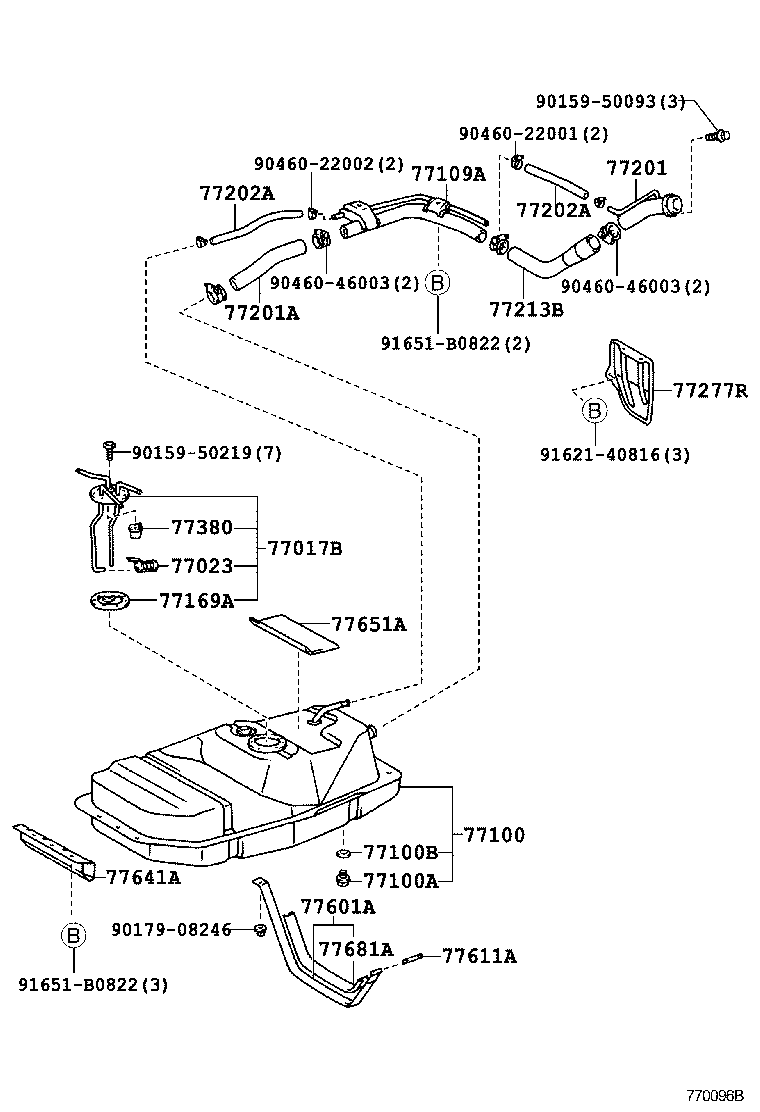

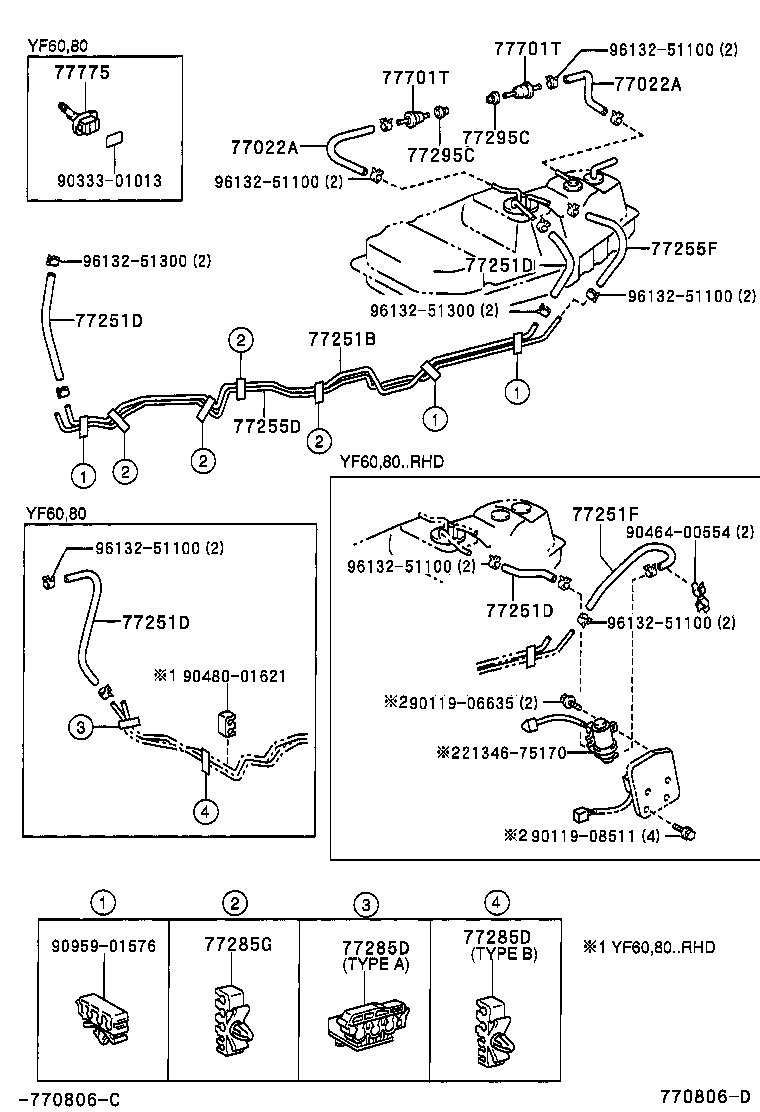

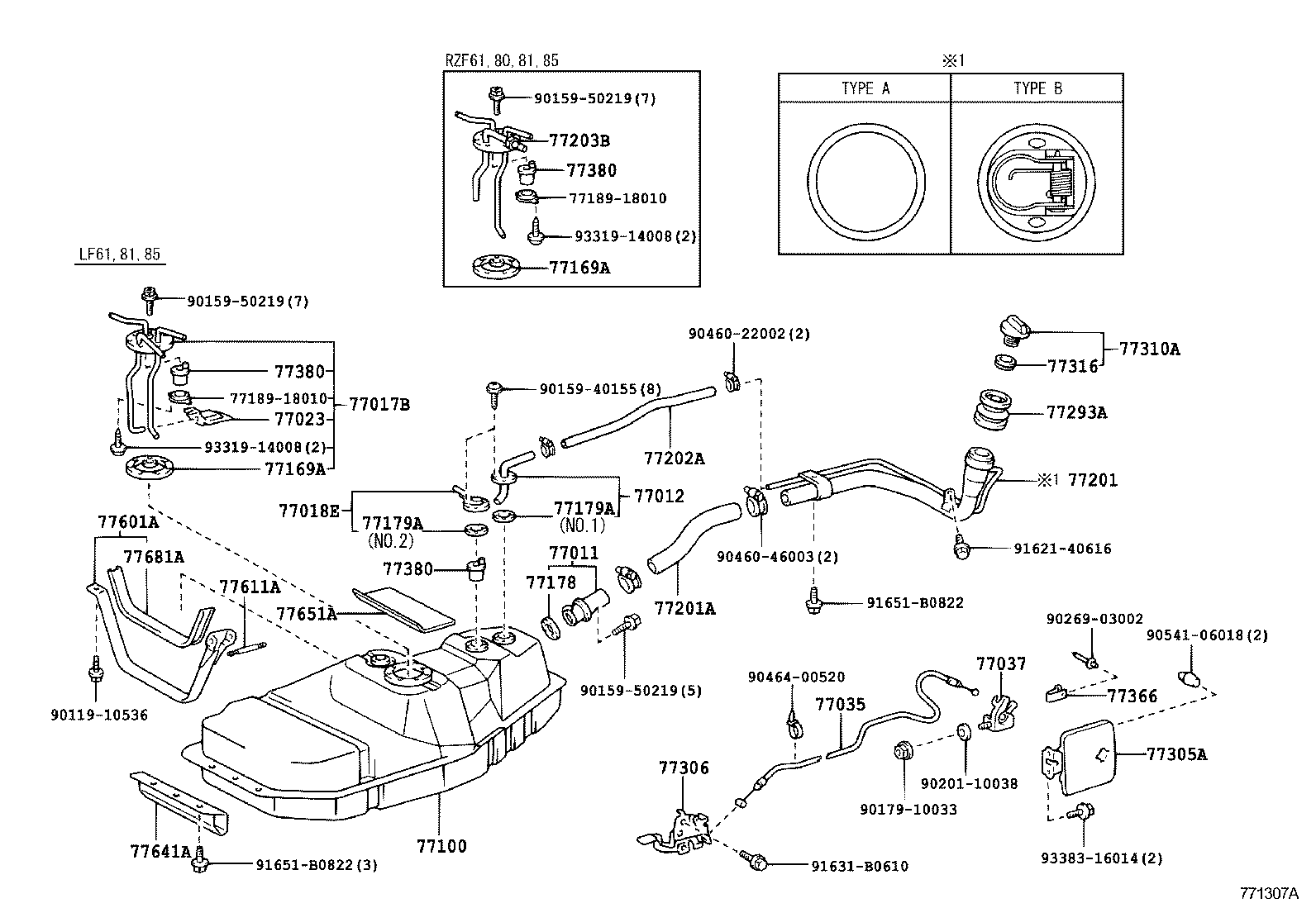

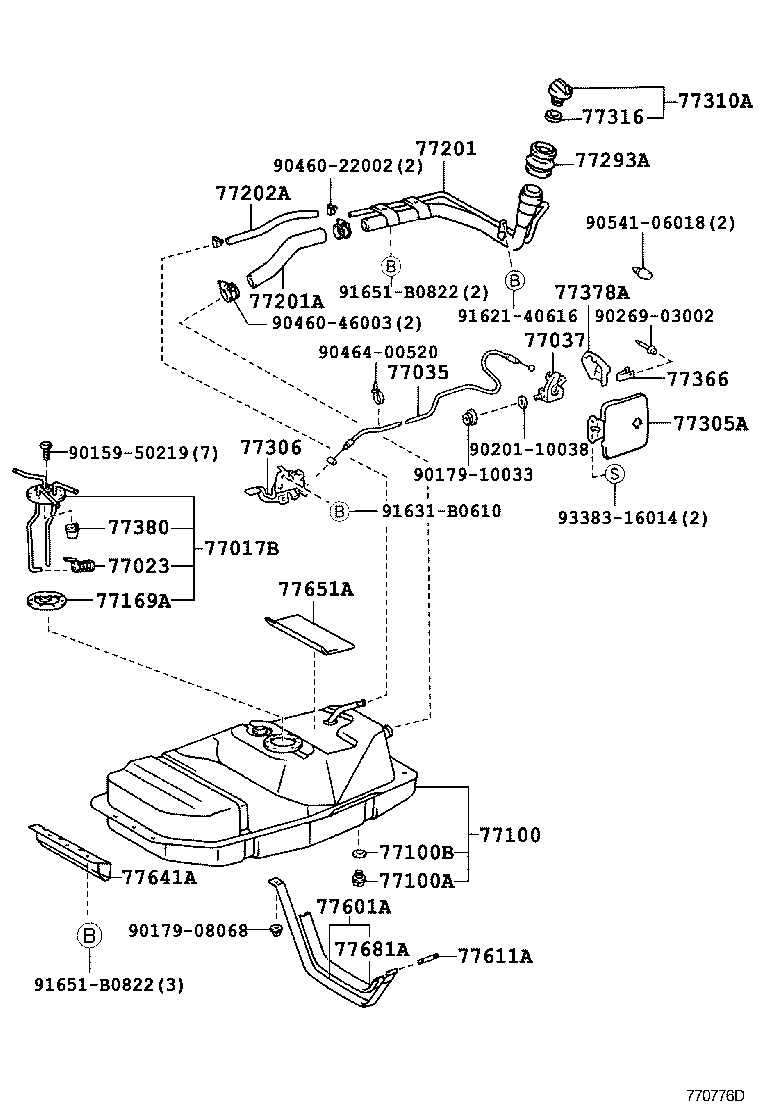

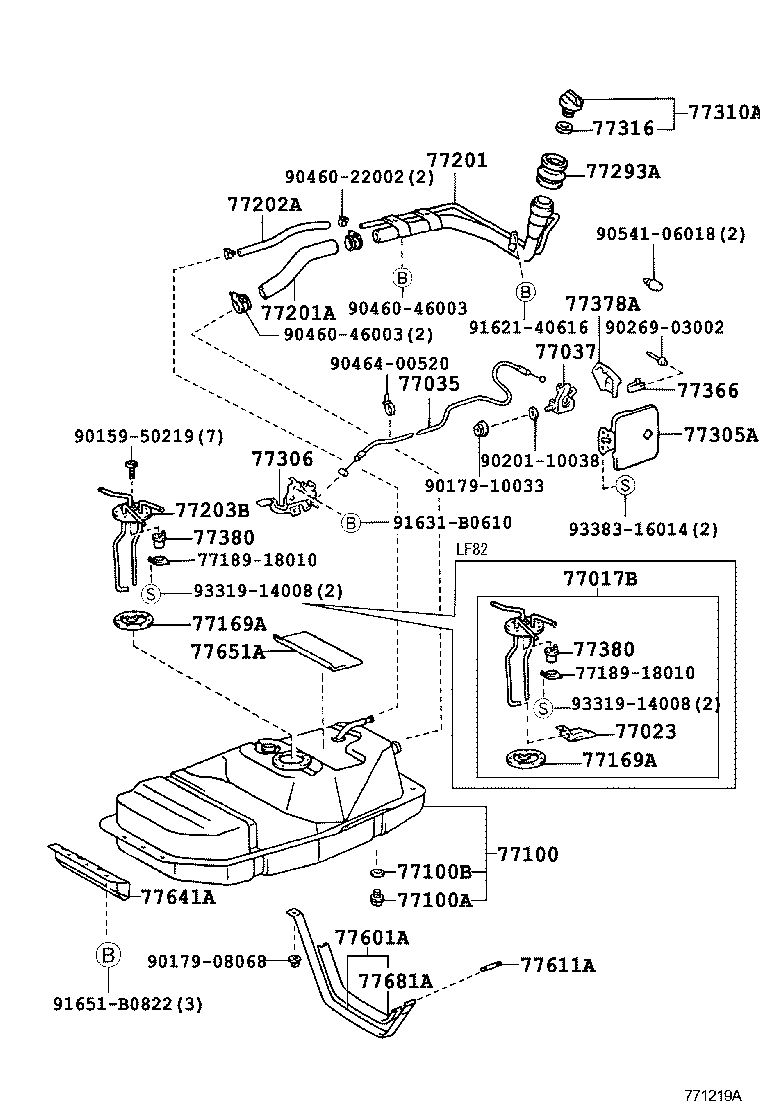

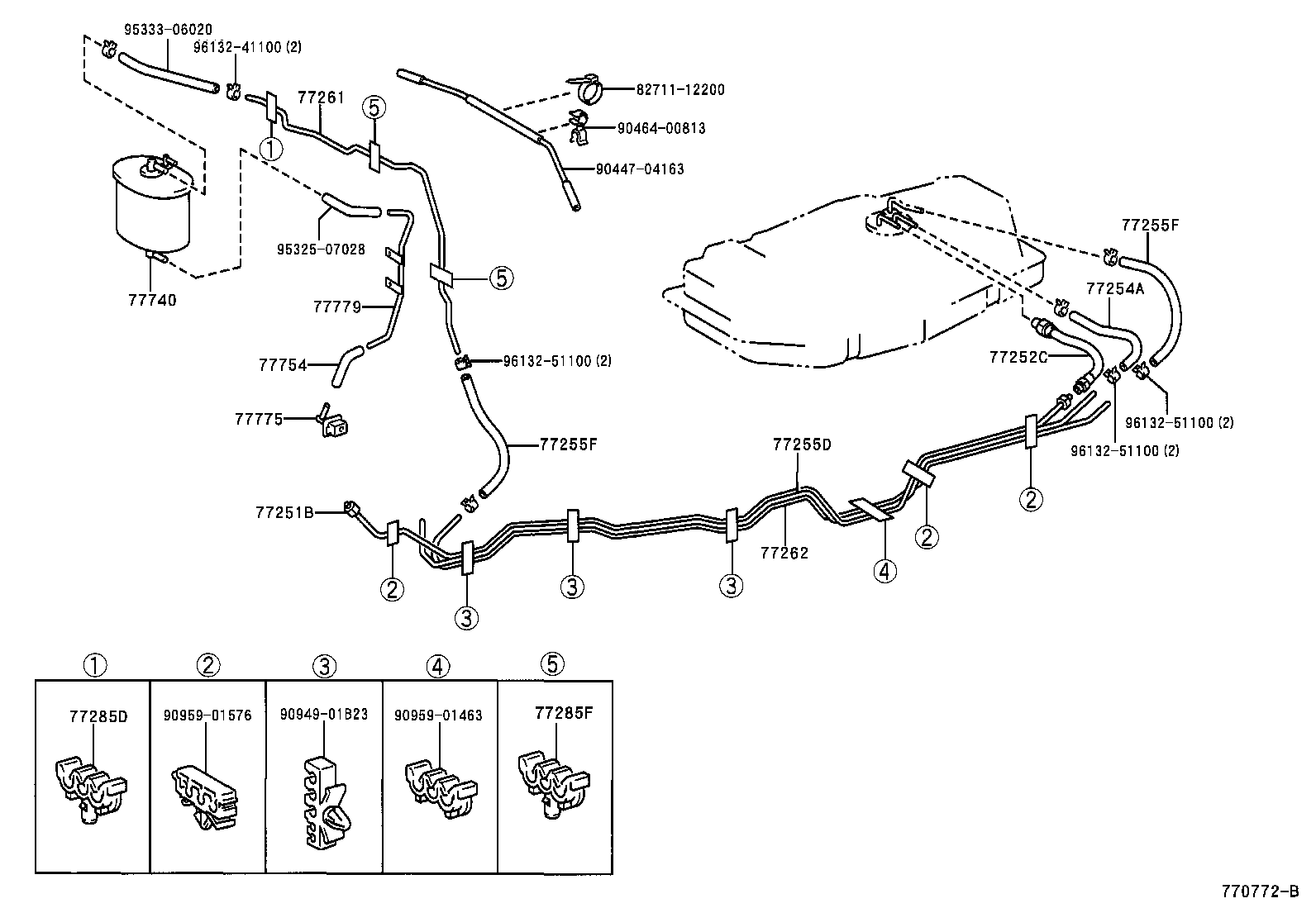

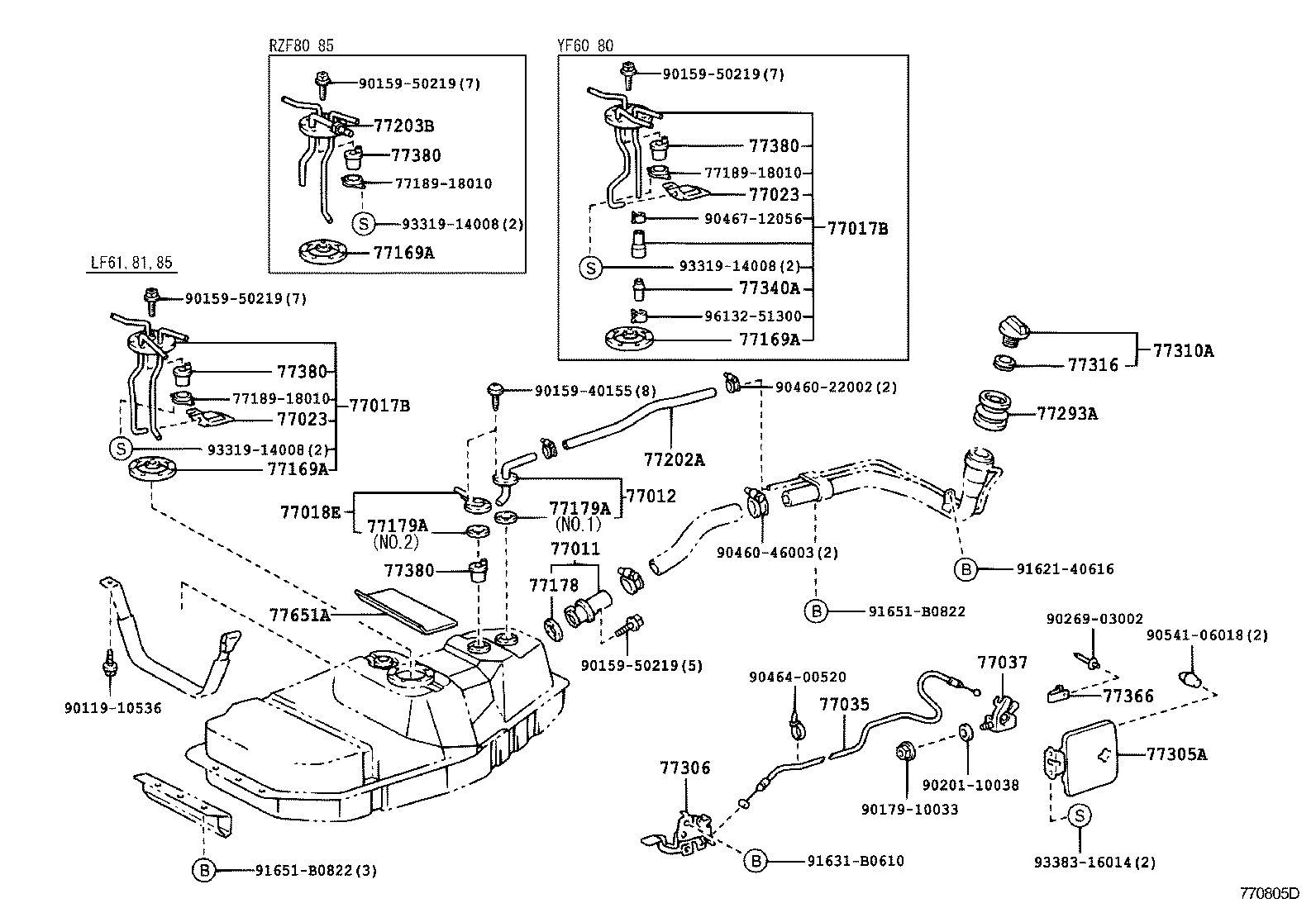

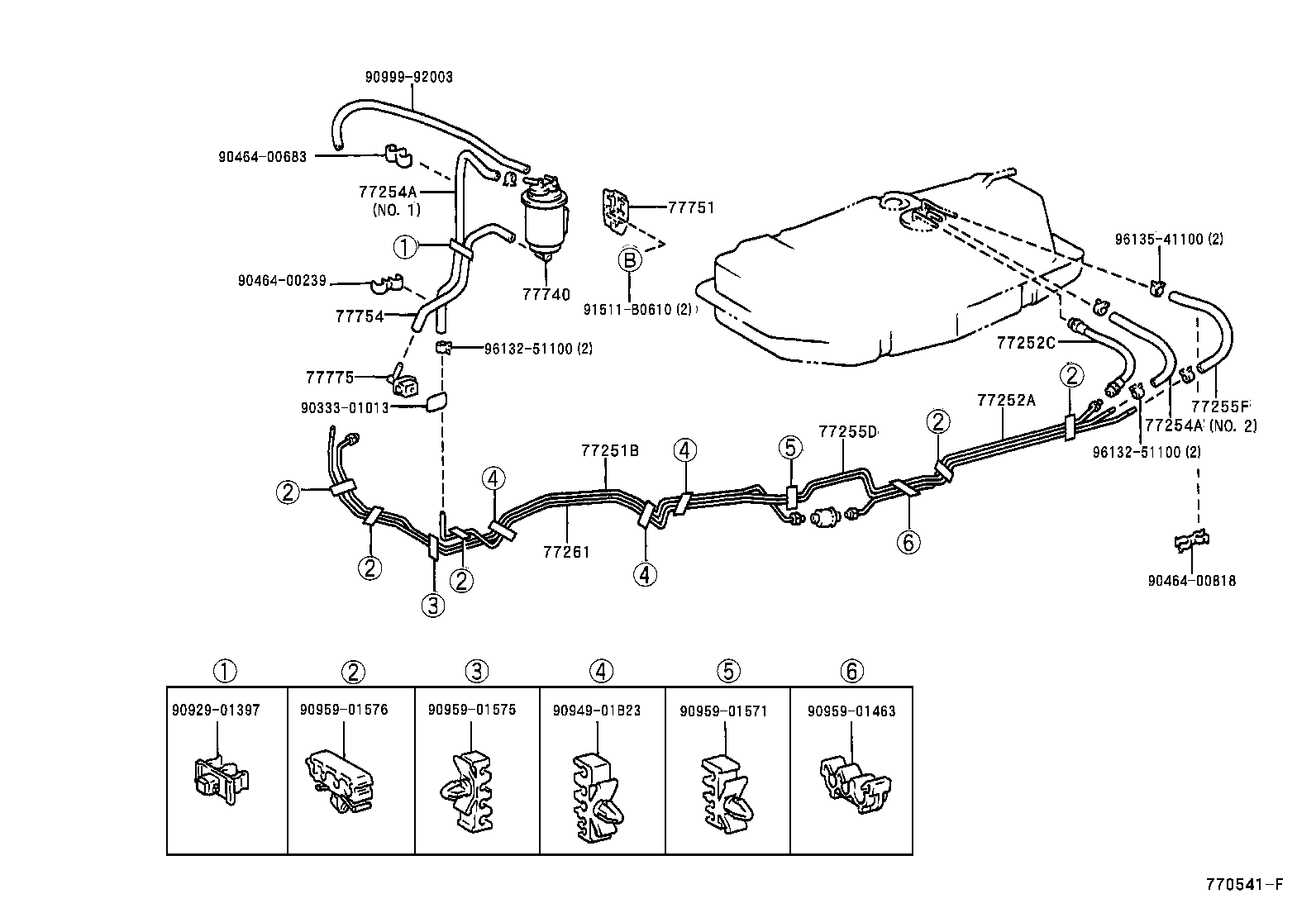

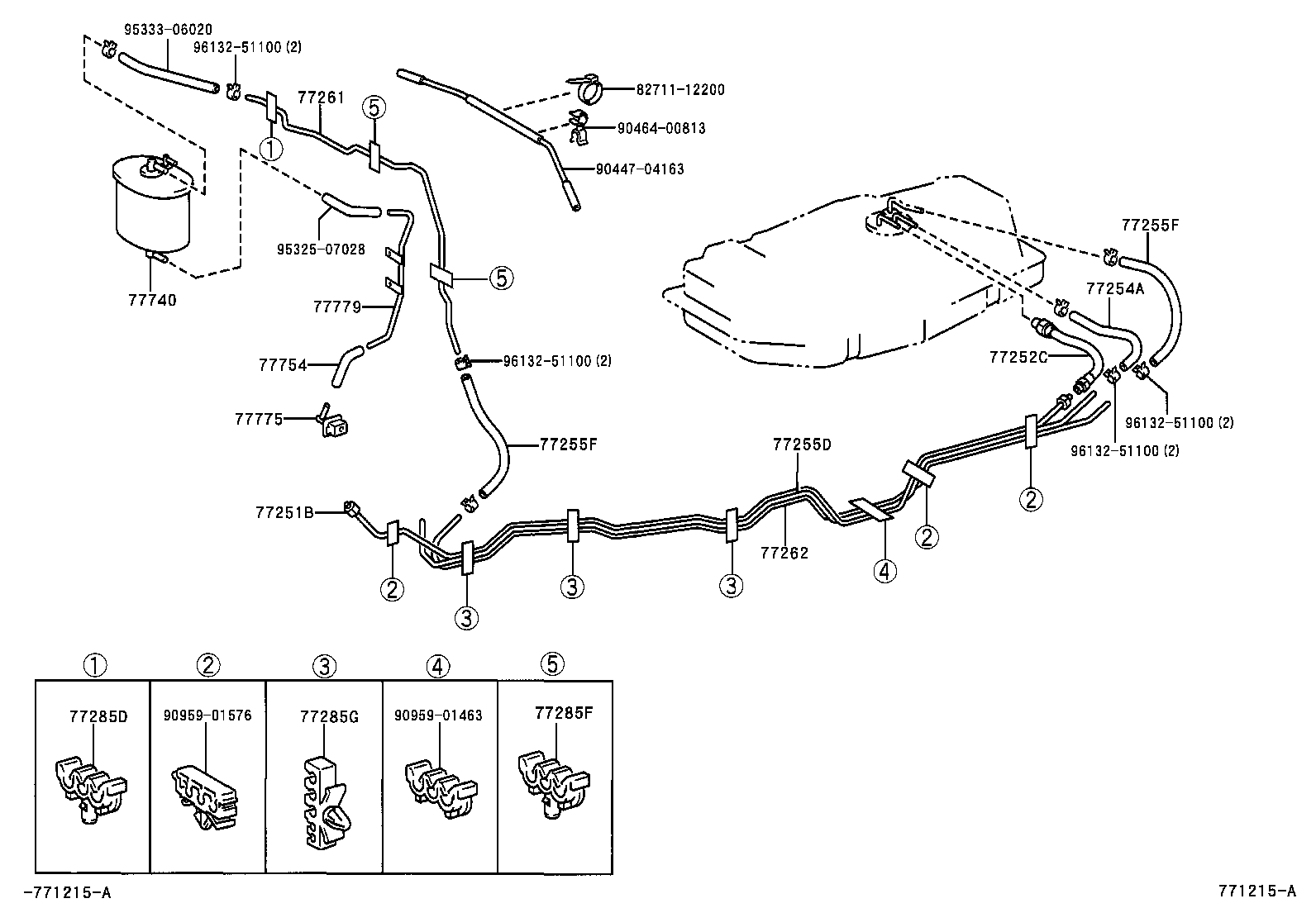

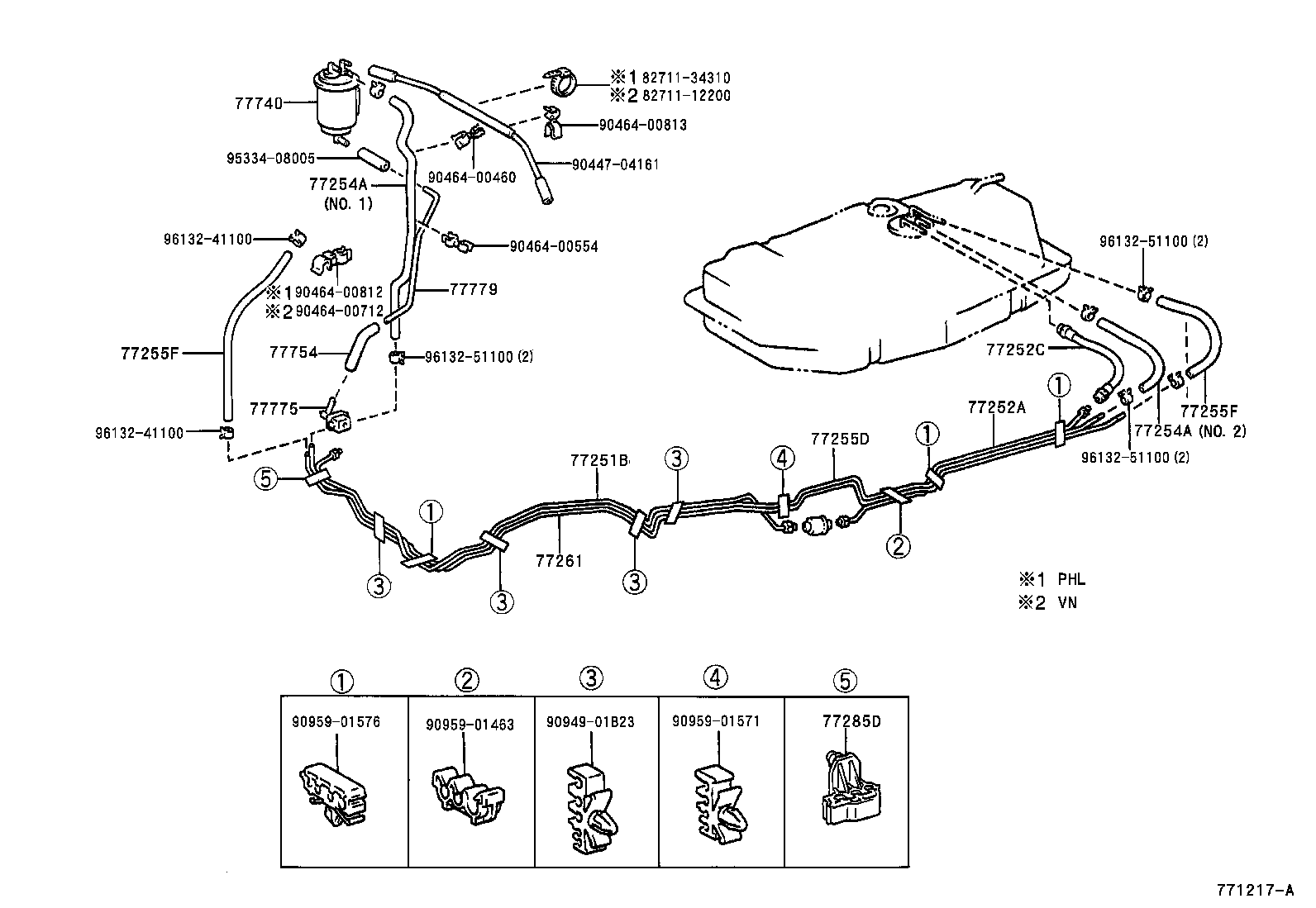

Figure 770095B 770095B 1996-12 → — Figure 770096B 770096B 1996-12 → — Figure 770097H 770097H 1996-12 → 2000-01 Figure 770097H 770097H 1996-12 → 2001-03 Figure 770630I 770630I 1998-04 → — Figure 770630I 770630I 2000-01 → — Figure 770776D 770776D 1998-10 → — Figure 770776D 770776D 2000-01 → — Figure 770776D 770776D 2001-03 → — Figure 770805D 770805D 2000-04 → 2003-06 Figure 771307A 771307A 2003-06 → — Figure 771219A 771219A 2002-11 → — Figure 770099B 770099B 1996-12 → — Figure 770098B 770098B 1996-12 → — Figure 770098B 770098B 2000-01 → — Figure 770541F 770541F 1998-04 → — Figure 770541F 770541F 2000-01 → — Figure 770631G 770631G 1998-10 → — Figure 770629C 770629C 1998-10 → — Figure 770772B 770772B 1999-11 → 2002-10 Figure 771215A 771215A 2002-10 → — Figure 770806D 770806D 2000-04 → 2003-06 Figure 771308 771308 2003-06 → — Figure 770807B 770807B 2000-04 → — Figure 770893A 770893A 2000-10 → — Figure 770938C 770938C 2001-02 → — Figure 771217A 771217A 2002-11 → —

Part groups

PNCDescription
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77012 Tube Sub-assy, Fuel Tank Breather
77017B Tube Sub-assy, Fuel Tank Vent
77018E Tube Sub-assy, Fuel Tank Evaporation Vent
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77109A Pipe Sub-assy, Fuel Tank Filler, Lower
77169A Gasket, Fuel Suction Tube Set
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77202A Hose, Fuel, NO.1 (FOR BREATHER TUBE)
77203B Tube Sub-assy, Fuel Suction
77213B Hose, Fuel Tank TO Filler Pipe
77248A Holder, Fuel Tank Filler Pipe Cover
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77251D Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
77251F Hose, Fuel
77252A Tube, Fuel Main, NO.2
77252C Hose, Fuel, NO.2(FOR FUEL MAIN NO.2 TUBE)
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77255G Hose, Fuel Return, NO.1 (FOR FUEL RETURN TUBE)
77261 Tube Sub-assy, Fuel Emission
77262 Tube, Fuel Emission, NO.2
77277R Protector, Fuel Tank Filler Pipe
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77293A Shield, Fuel Tank Filler Pipe, NO.3
77295C Grommet, Fuel Tube
77305A Lid Sub-assy, Fuel Filler Opening
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77340A Valve Assy, Fuel Cut Off W/Tube
77366 Spring, Fuel Filler Opening Lid Hinge
77378A Cover, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77601A Band Sub-assy, Fuel Tank, NO.1
77611A Pin (FOR FUEL TANK BAND)
77641A Protector, Fuel Tank, NO.1
77651A Cushion, Fuel Tank, NO.1
77681A Seat, Fuel Tank Band
77701T Valve, Check (FOR MAIN FUEL TANK)
77740 Canister Assy, Charcoal
77751 Bracket, Charcoal Canister Base
77754 Hose, Charcoal Canister Outlet, NO.1
77775 Guide, Charcoal Canister Outlet
77779 Tube, Charcoal Canister Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
