Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

19 part groups · 13 illustrations

Illustrations

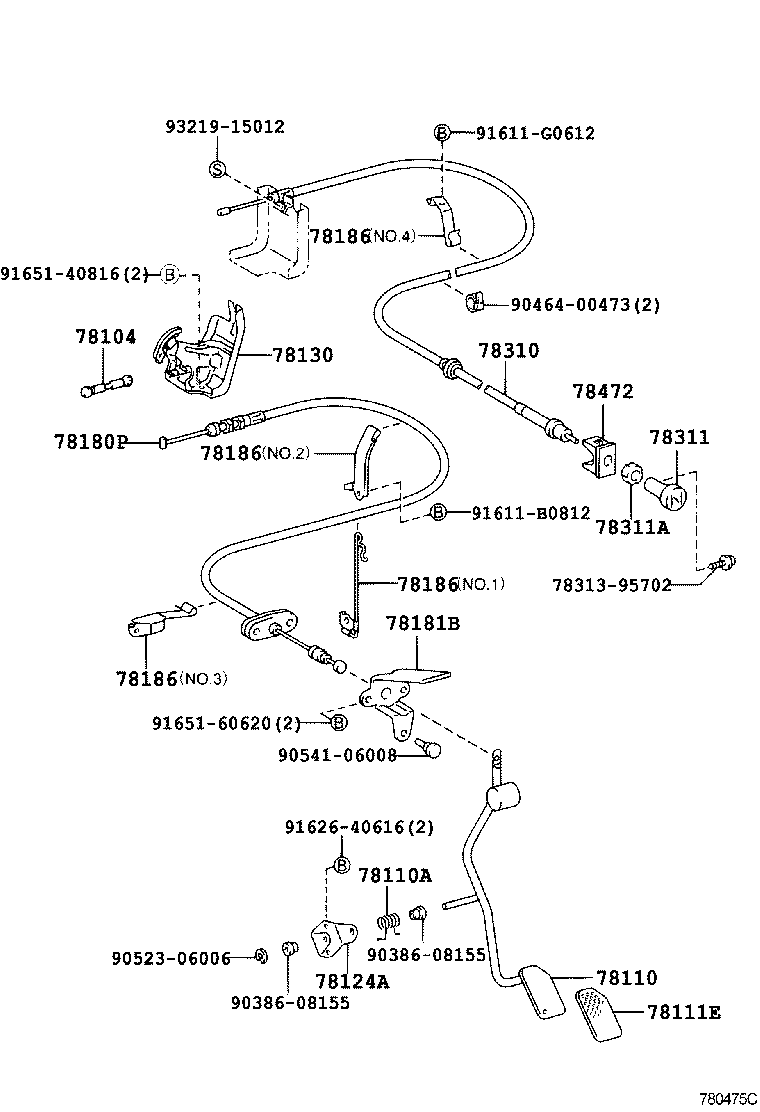

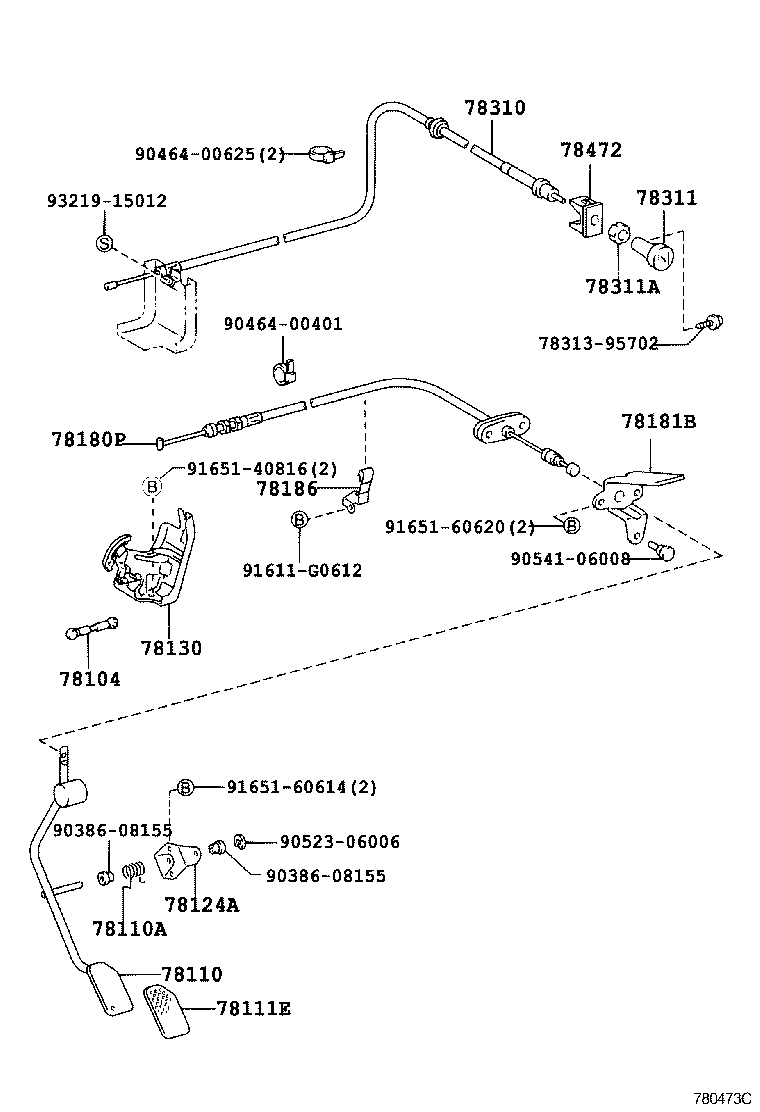

Figure 780072H 780072H 1996-12 → — Figure 780379D 780379D 1998-10 → — Figure 780073D 780073D 1996-12 → — Figure 780380F 780380F 1998-10 → — Figure 780564C 780564C 2001-02 → — Figure 780443D 780443D 1999-11 → — Figure 780443D 780443D 2001-02 → — Figure 780472C 780472C 2000-04 → — Figure 780473C 780473C 2000-04 → — Figure 780474D 780474D 2000-04 → — Figure 780475C 780475C 2000-04 → — Figure 780476D 780476D 2000-04 → — Figure 780538C 780538C 2000-10 → —

Part groups

PNCDescription
78010B Spring, Torsion (FOR ACCELERATOR LINK)
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111E Pad, Accelerator Pedal
78124A Bracket, Accelerator Pedal Rod
78130 Bellcrank Assy, Accelerator
78180P Cable Assy, Accelerator Control
78181B Stopper, Accelerator Idle Adjusting
78184B Bracket, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
78186A Clamp, Accelerator Control Cable, NO.3
78186B Support, Accelerator Control Cable NO.2
78310 Cable Assy, Choke
78311 Knob, Choke Control Cable
78311A Nut, Choke Shaft Set
78472 Support, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
