Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

34 part groups · 24 illustrations

Illustrations

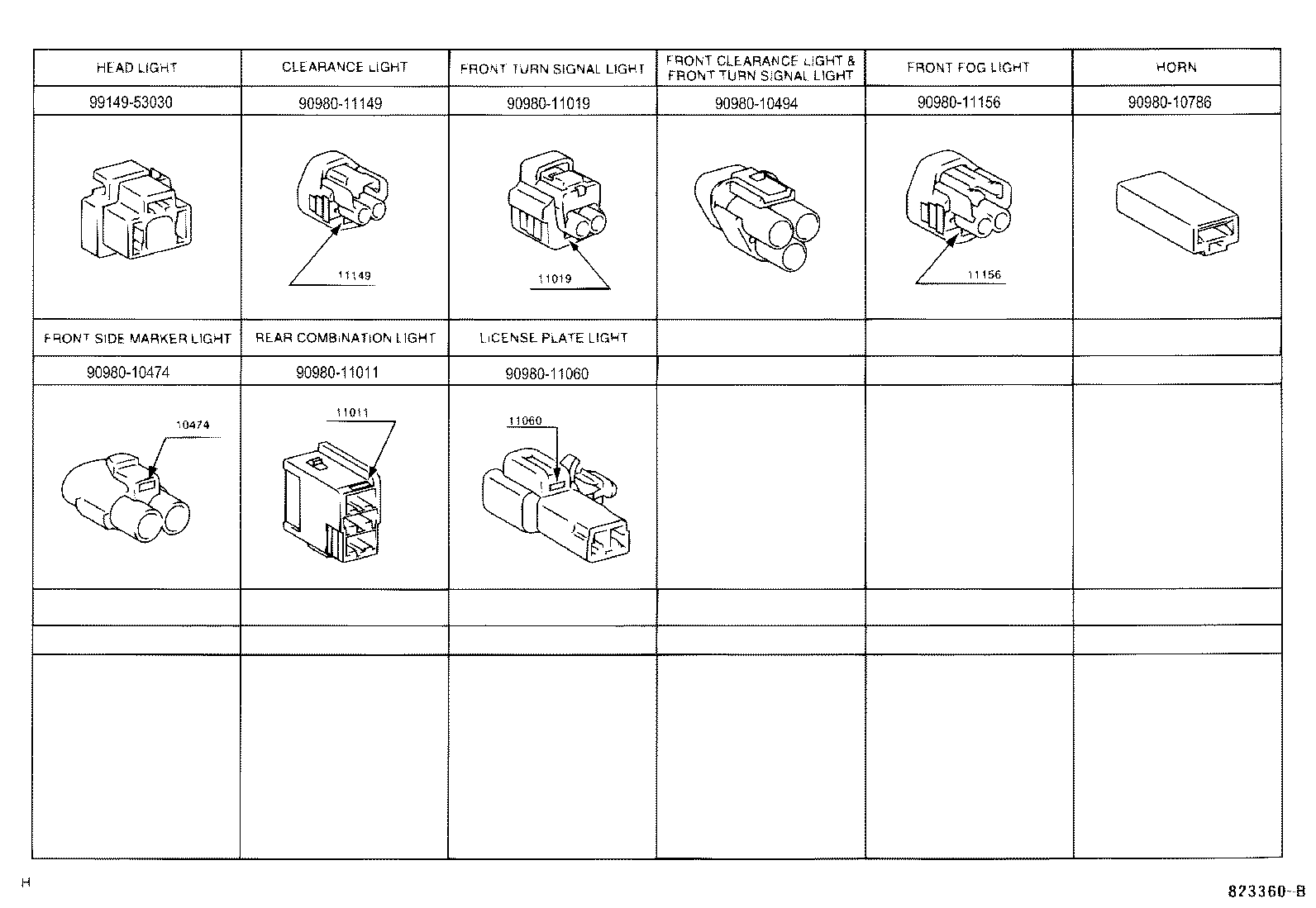

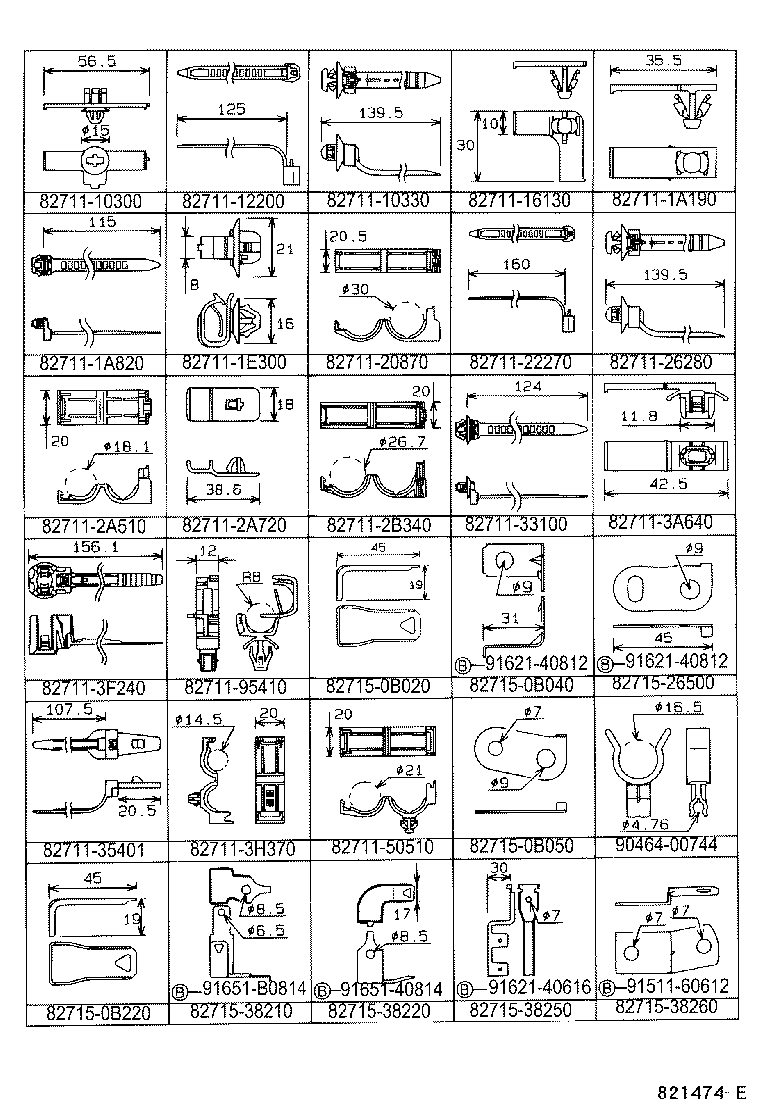

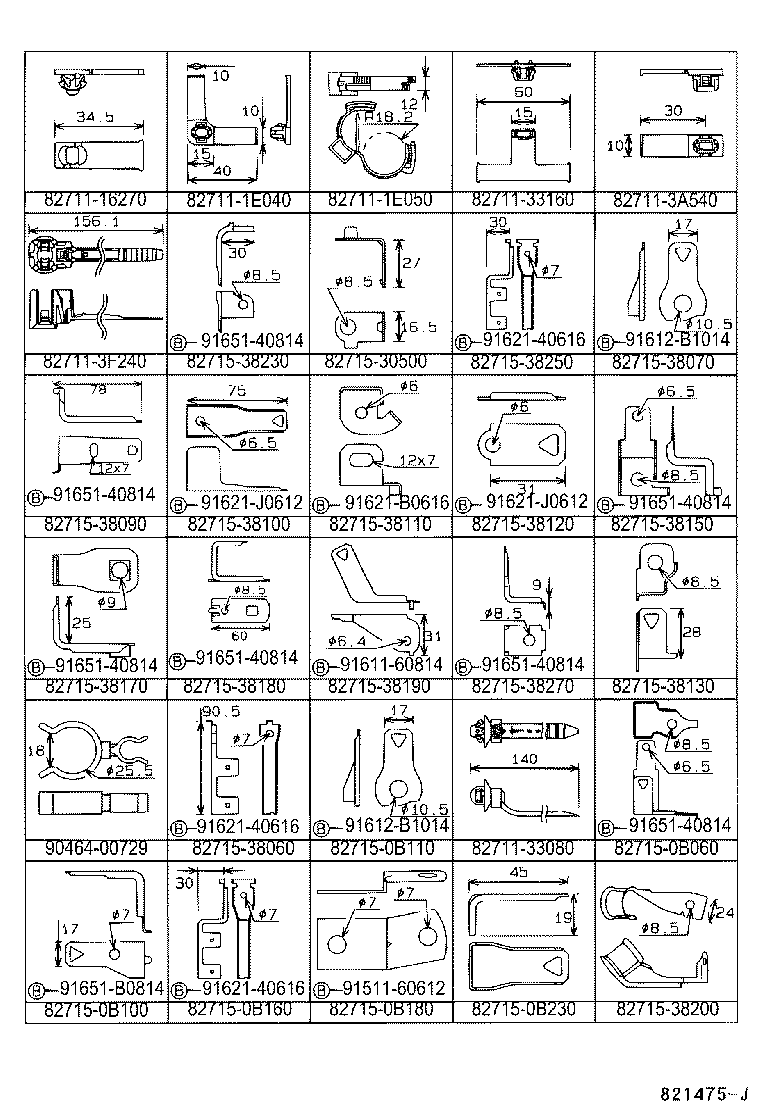

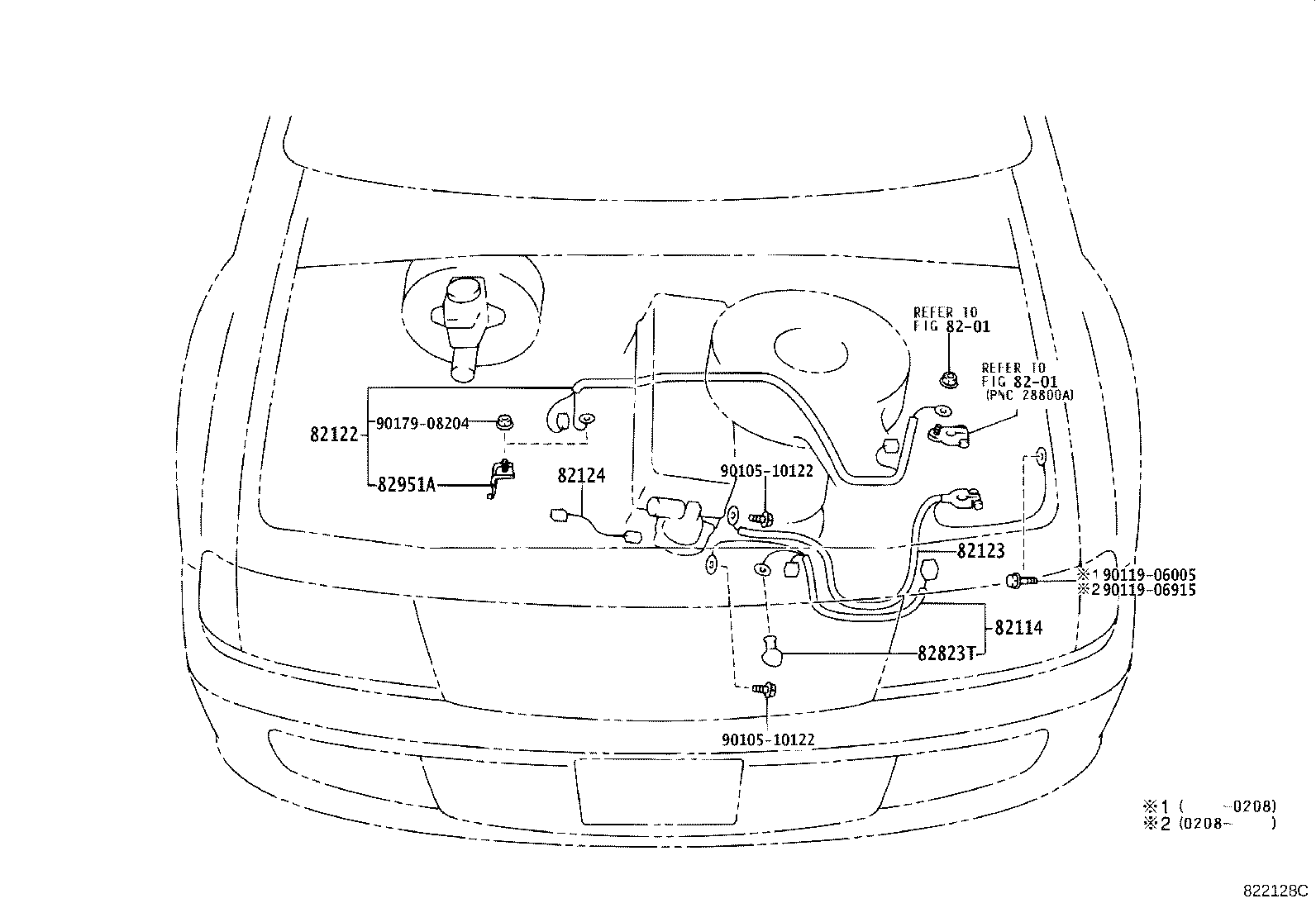

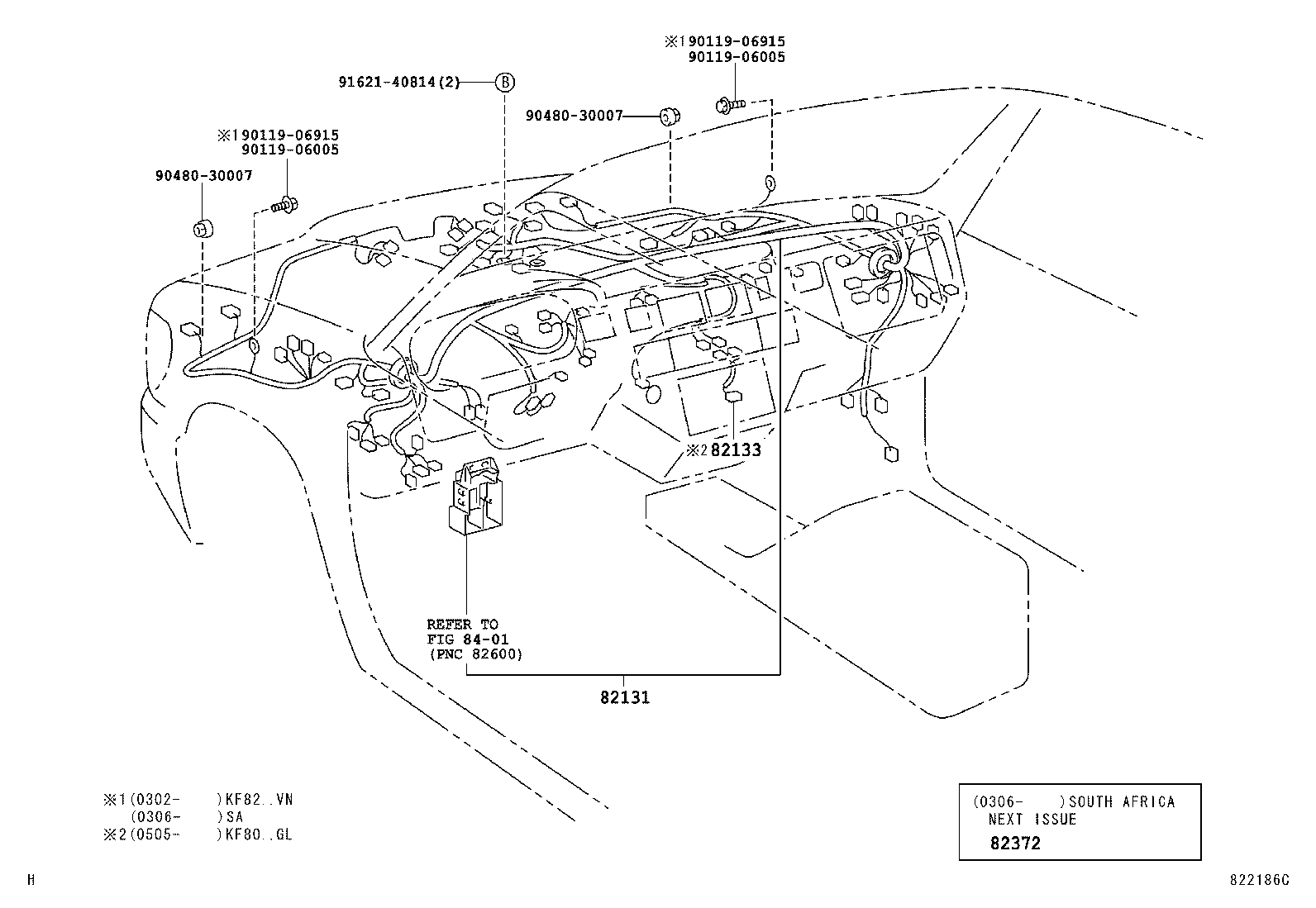

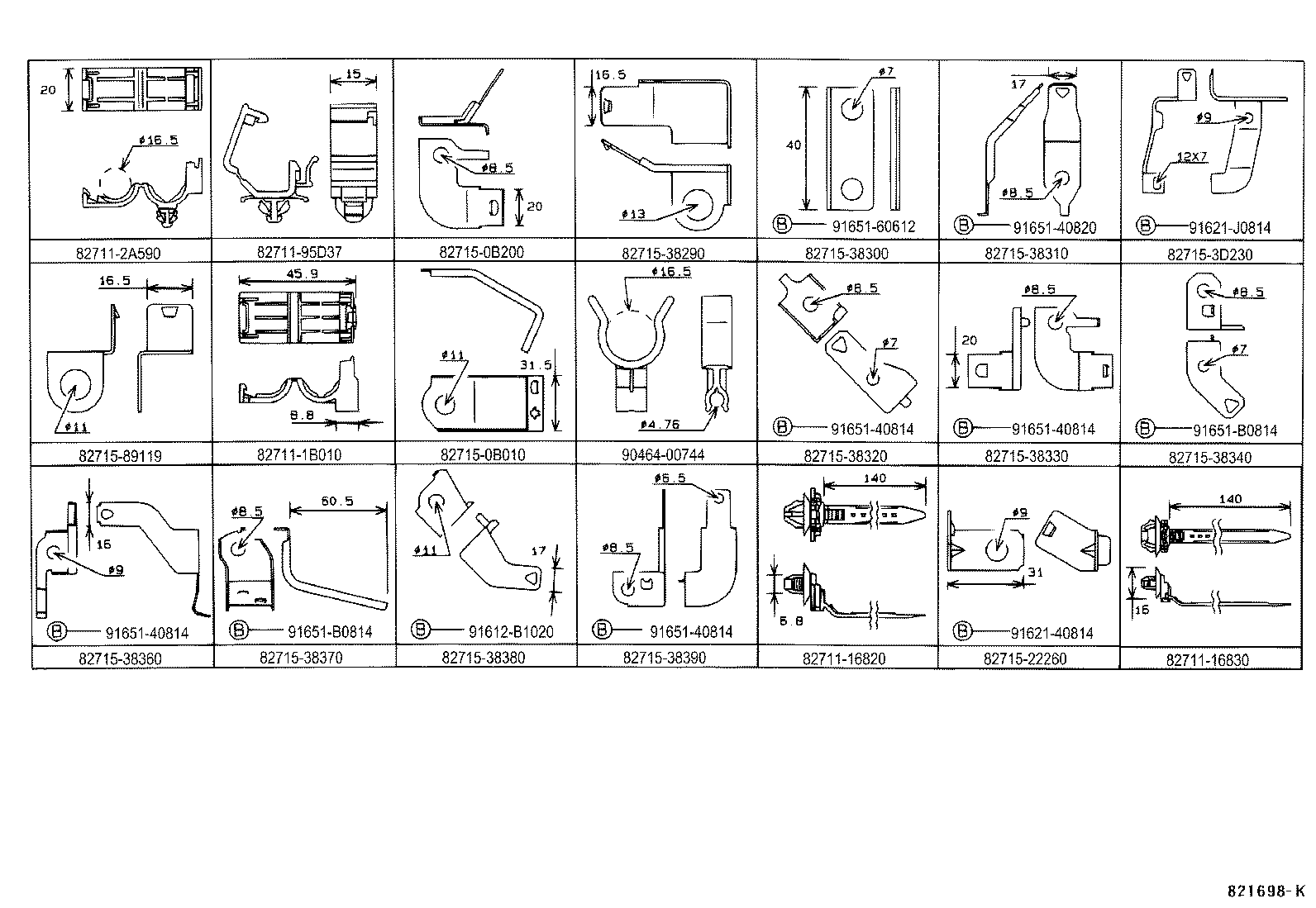

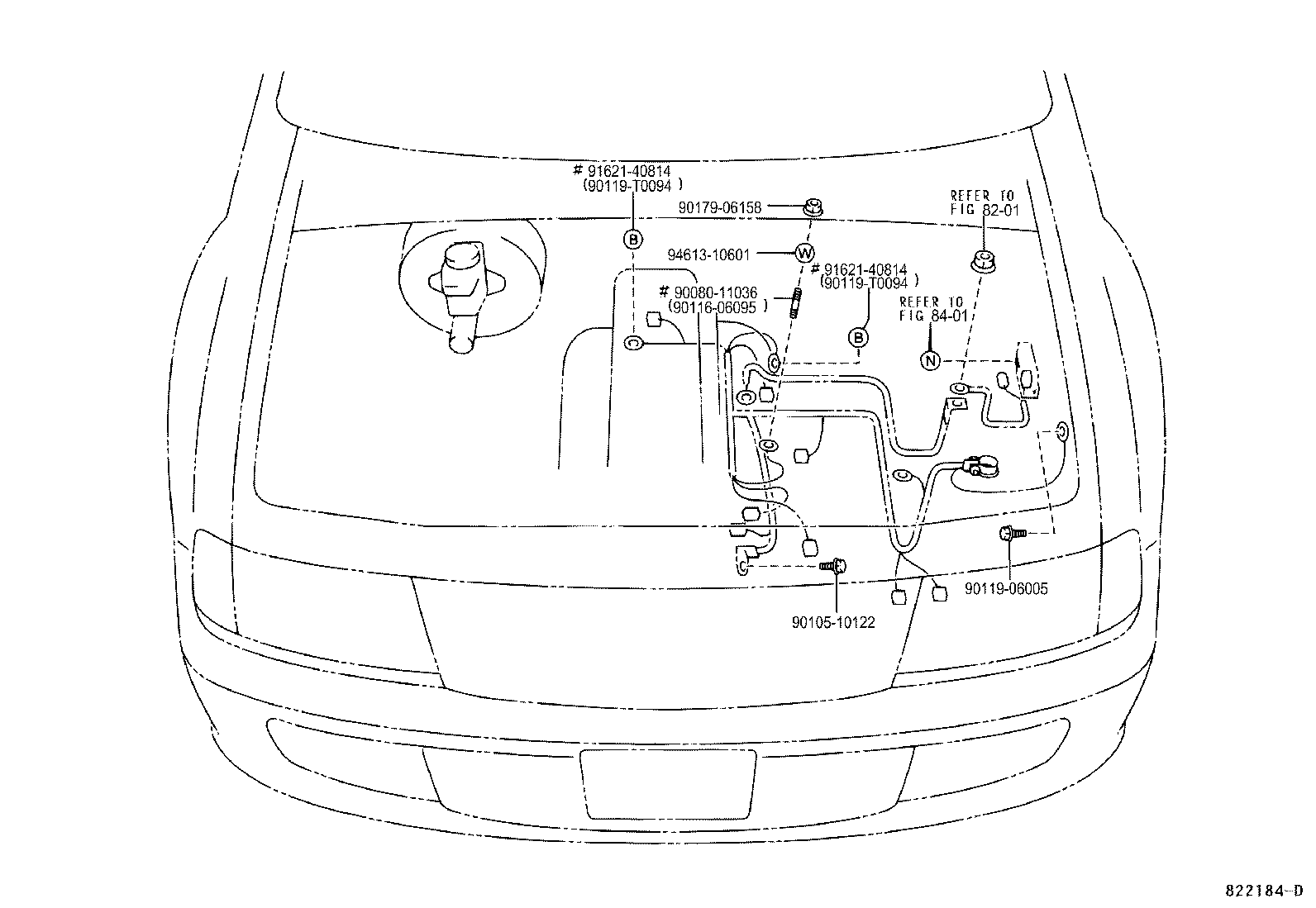

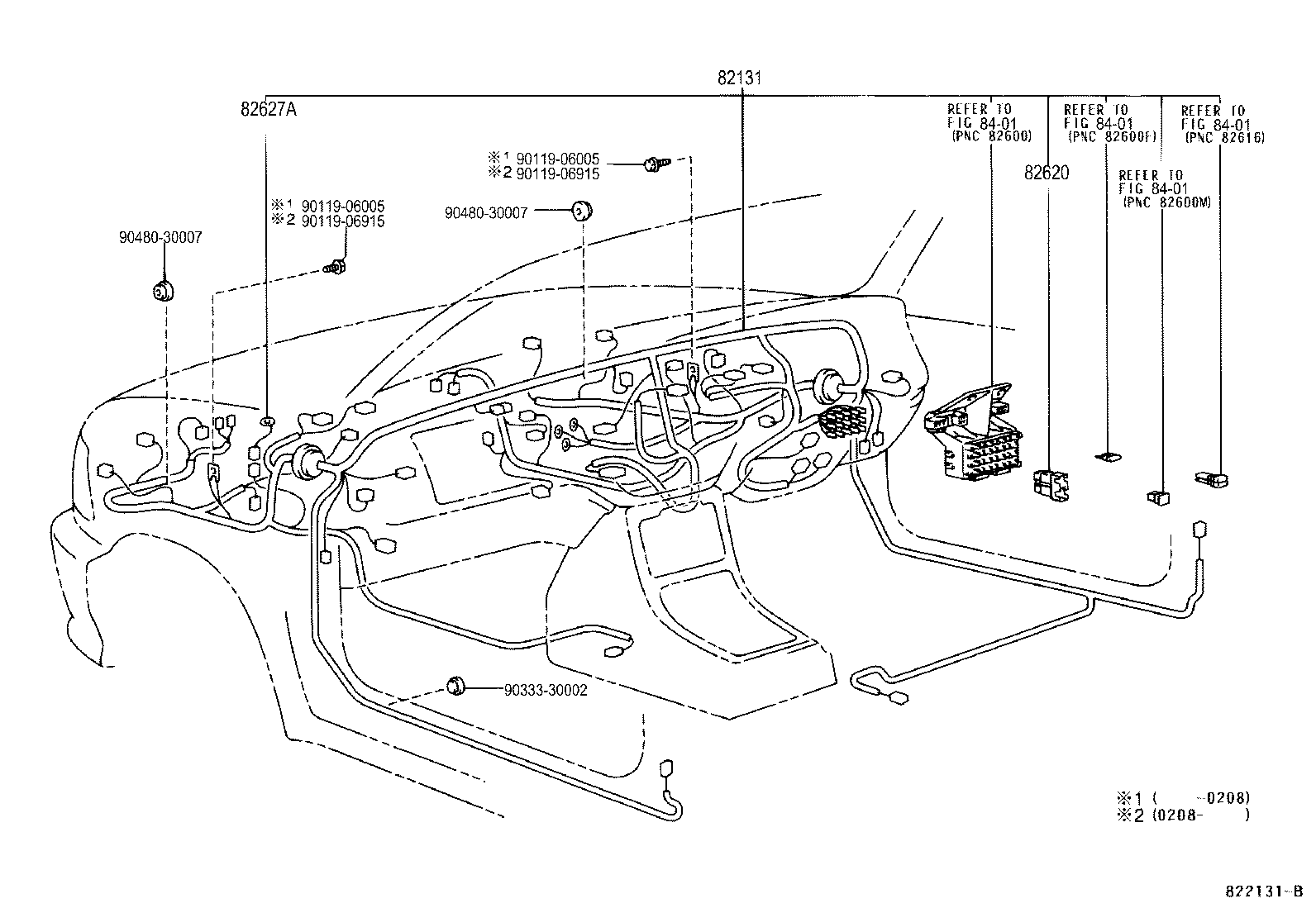

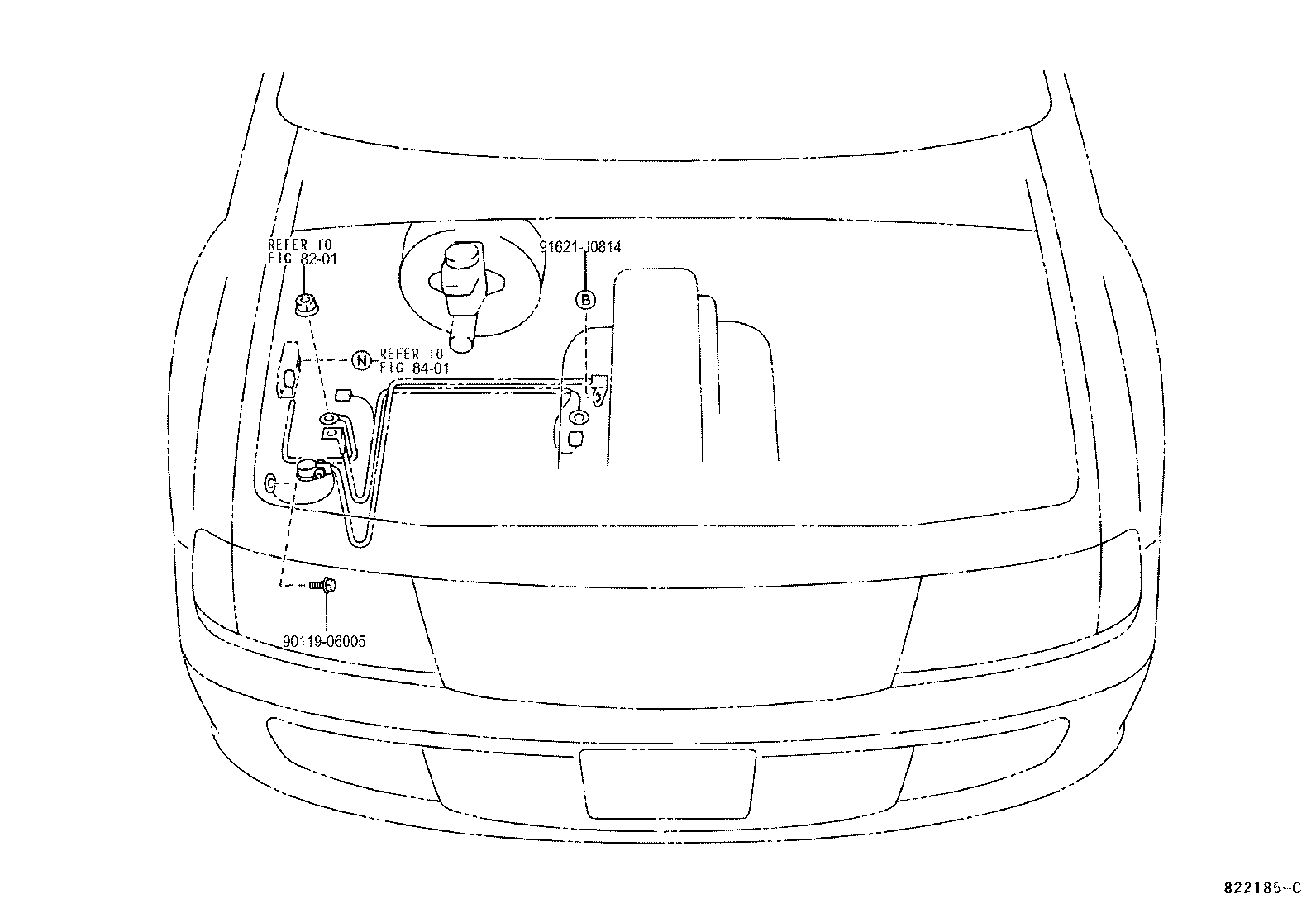

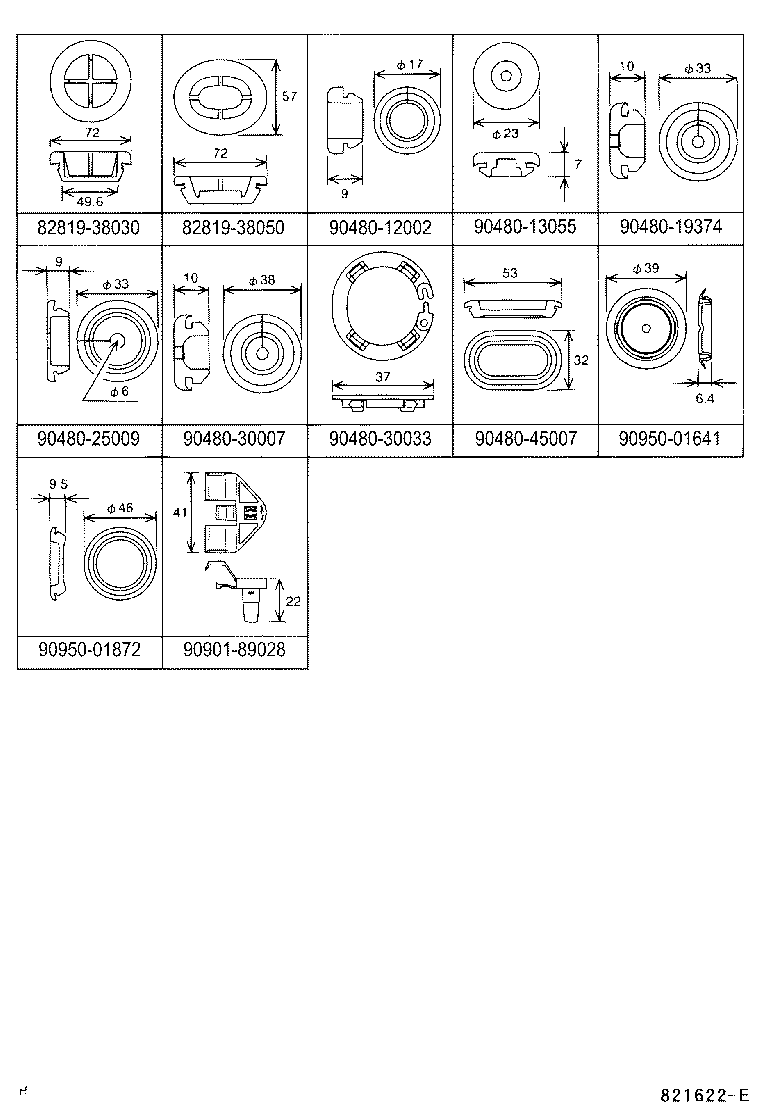

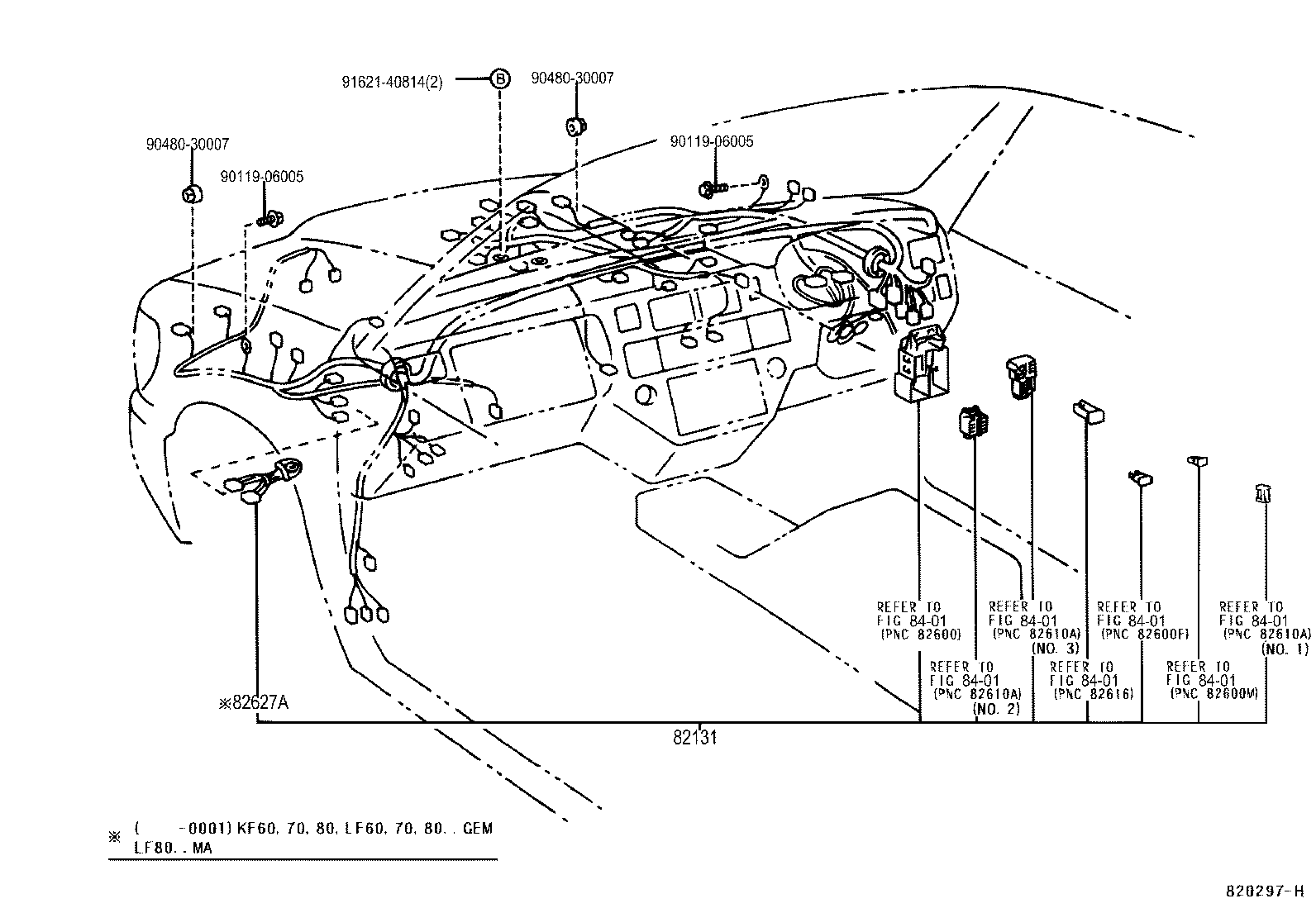

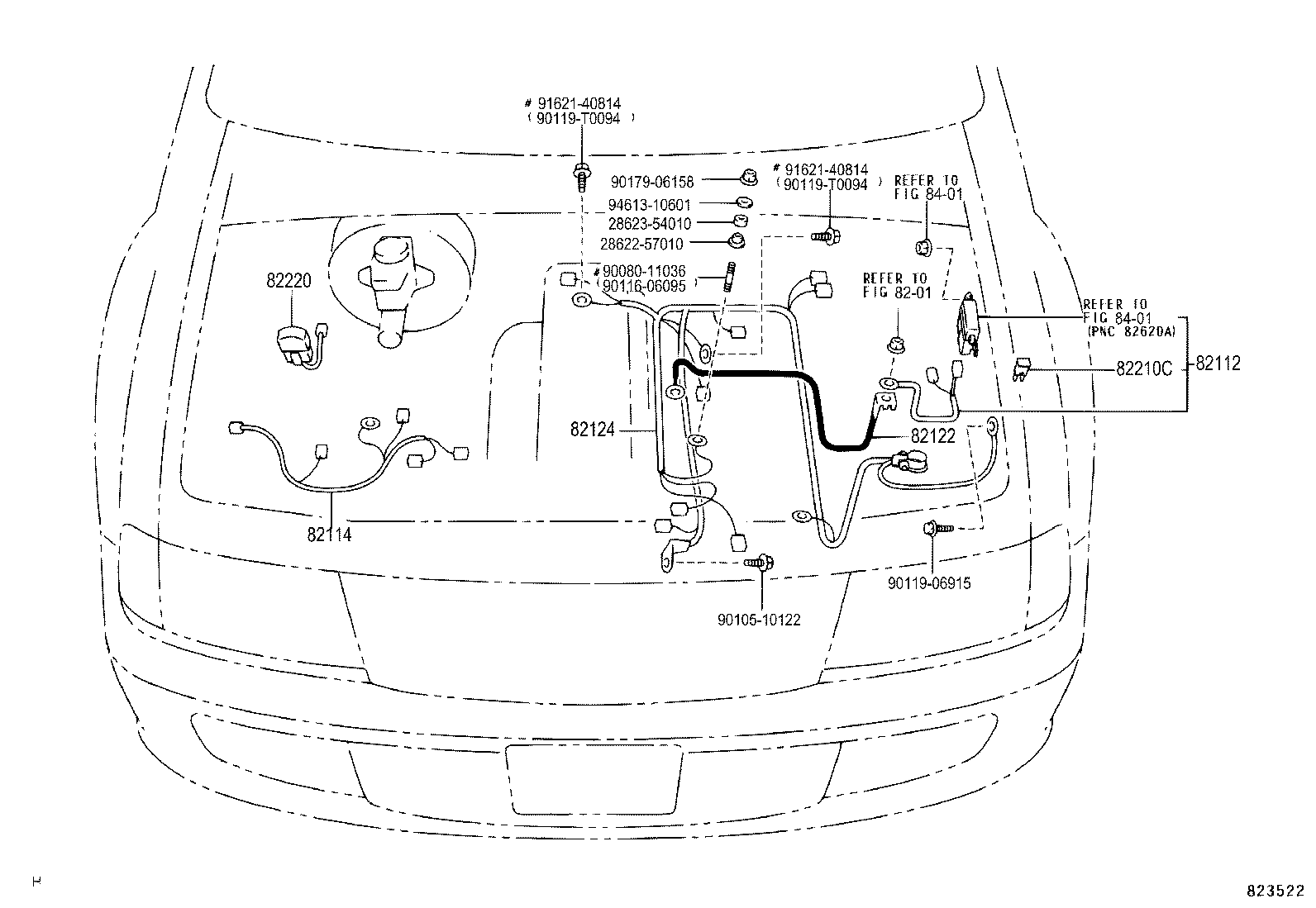

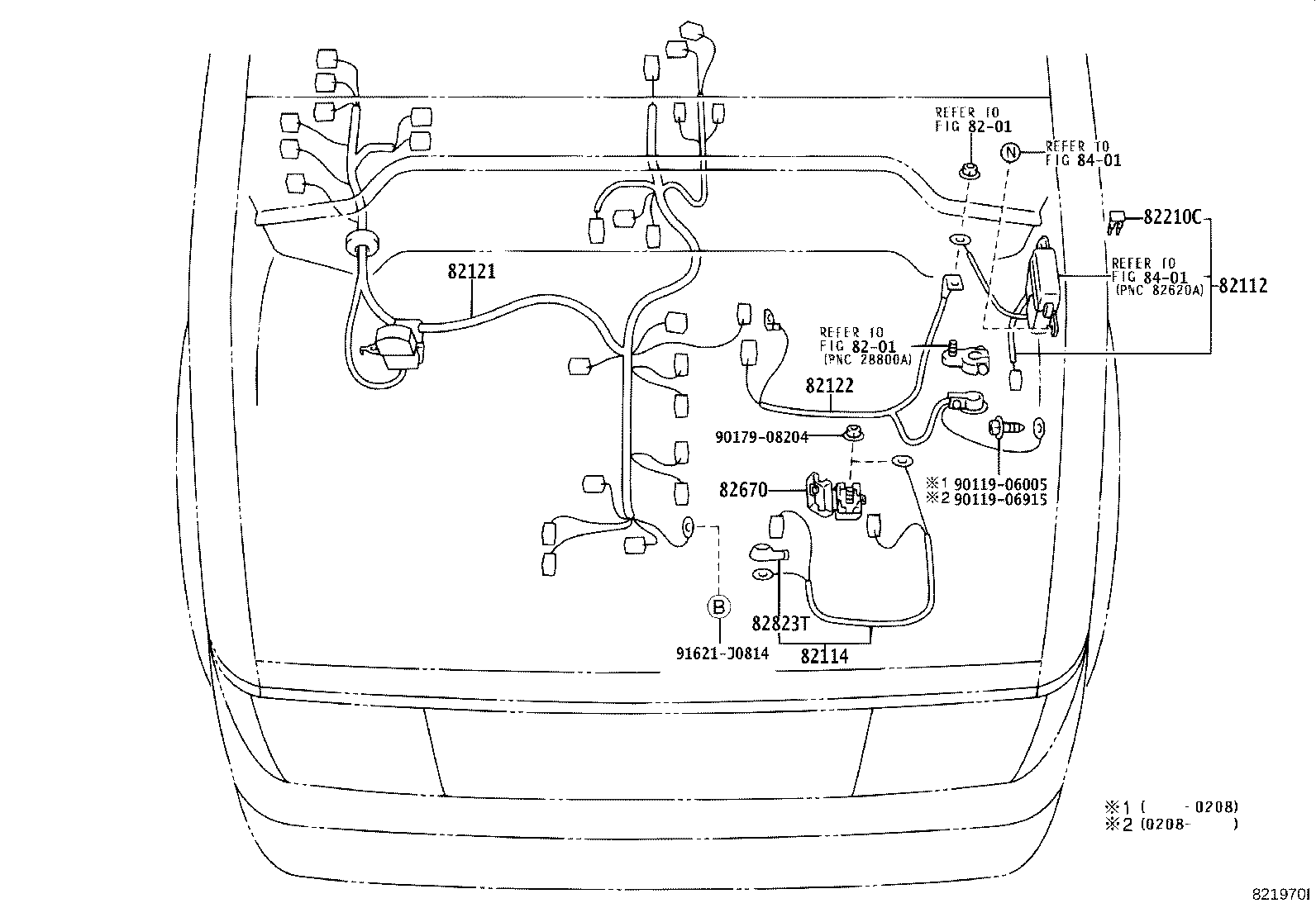

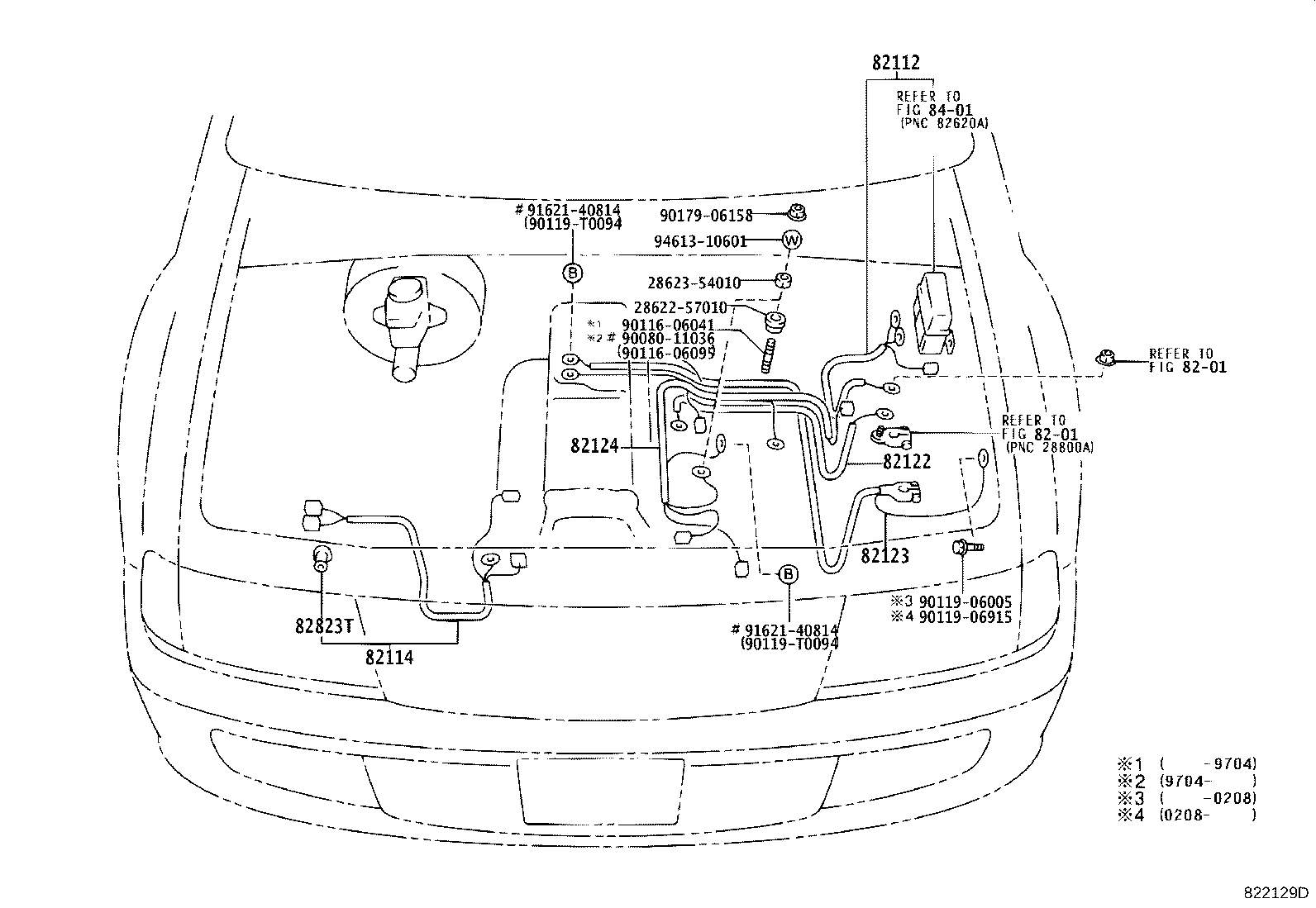

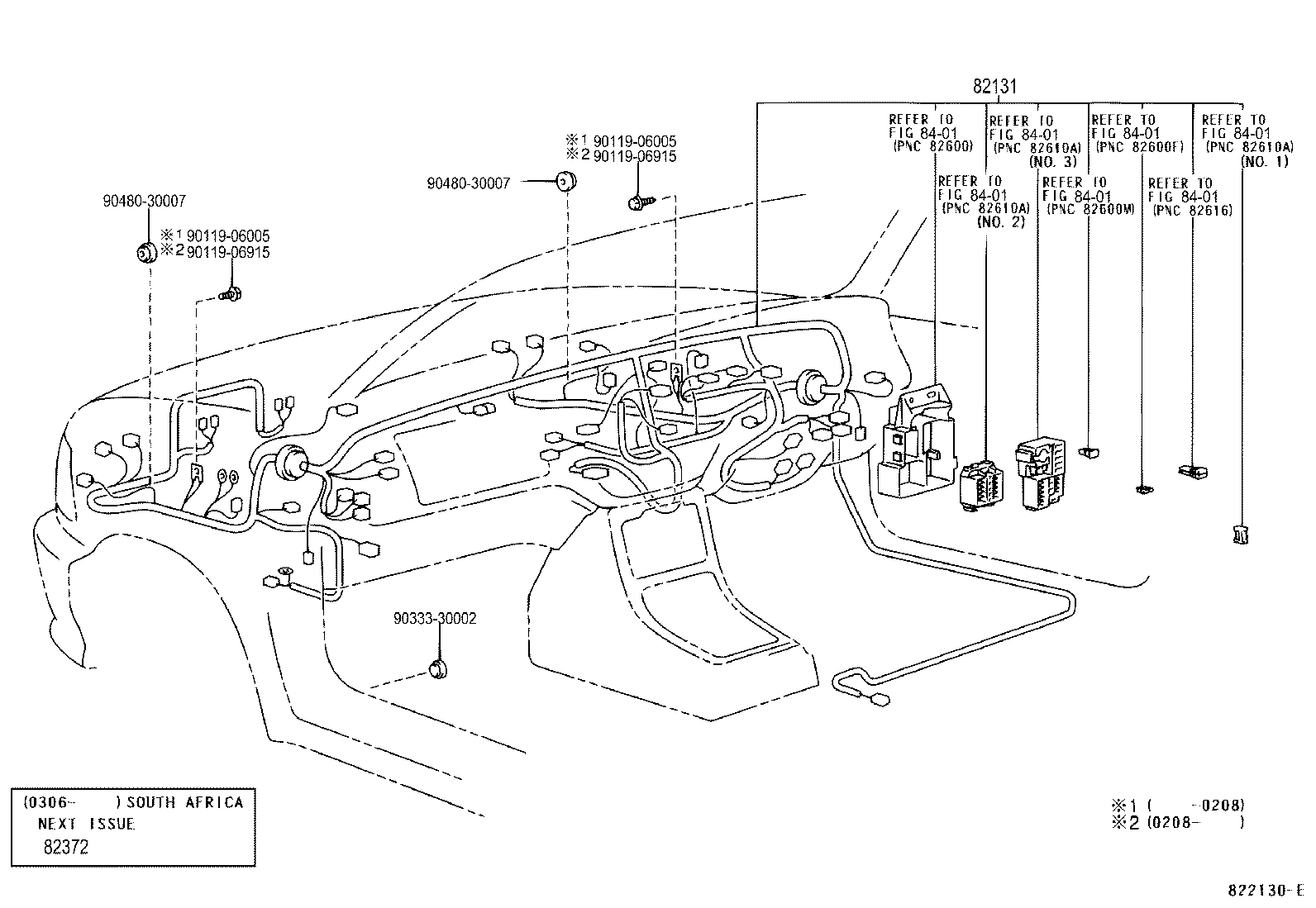

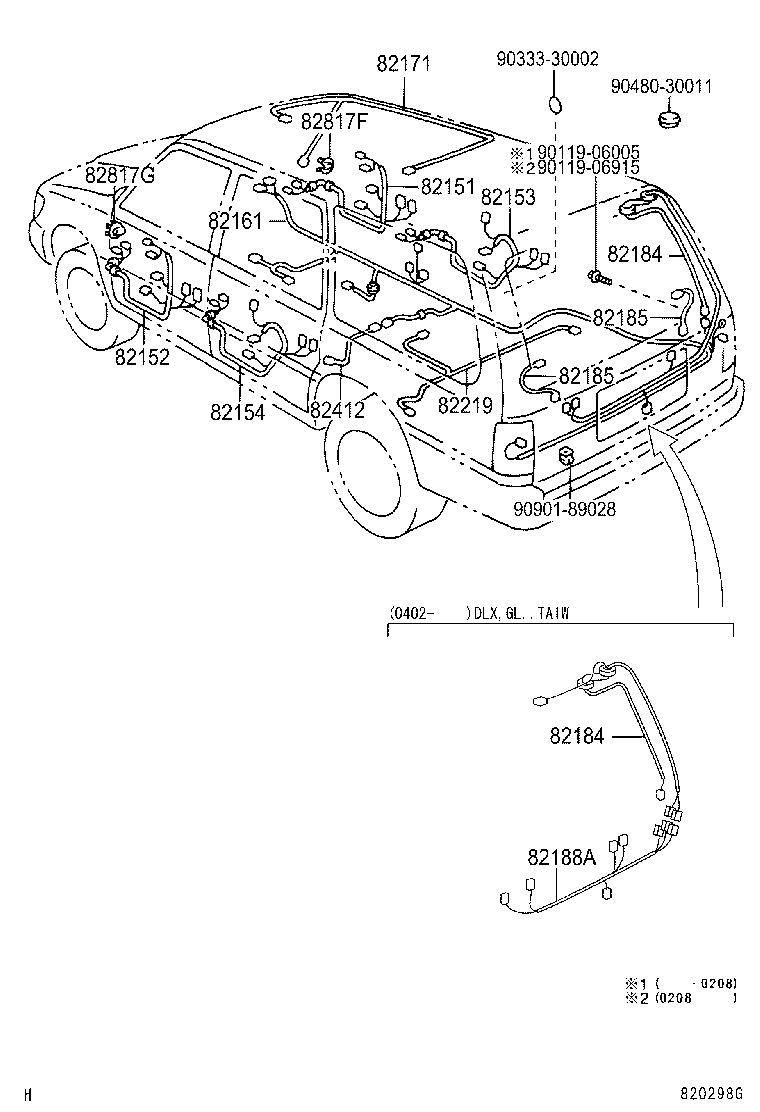

Figure 822127D 822127D 1998-04 → — Figure 822127D 822127D 2000-01 → — Figure 822128C 822128C 1996-12 → — Figure 822129D 822129D 1996-12 → — Figure 821970I 821970I 1999-11 → — Figure 822184D 822184D 2000-04 → 2003-06 Figure 823522 823522 2003-06 → — Figure 822185C 822185C 2000-04 → 2003-06 Figure 820297H 820297H 1996-12 → 2000-01 Figure 820297H 820297H 2000-01 → 2002-12 Figure 820297H 820297H 2000-01 → 2003-06 Figure 822186C 822186C 1998-10 → — Figure 822130E 822130E 2000-01 → — Figure 822130E 822130E 2002-12 → — Figure 822130E 822130E 2003-06 → — Figure 822131B 822131B 2000-01 → — Figure 820298G 820298G 1996-12 → — Figure 824096 824096 1996-12 → — Figure 820299F 820299F 1996-12 → — Figure 821474E 821474E 1996-12 → — Figure 821475J 821475J 1996-12 → — Figure 821698K 821698K 1996-12 → — Figure 821622E 821622E 1996-12 → — Figure 823360B 823360B 1996-12 → —

Part groups

PNCDescription
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82001G Cable, Bond, NO.4
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82133 Wire, Cowl, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82164 Wire, Frame
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82188A Wire, Back Door, NO.3
82210C Fusible Link
82219 Wire, Thermo Sensor
82220 Harness Assy, Wiring Cowl
82372 Wire, Radio Installation
82412 Wire, Fuel Gage
82620 Block Assy, Fusible Link
82627A Wire, Fusible Link
82670 Block Assy, Junction, NO.1
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82821A Cover, Connector
82823T Cap, Alternator Terminal
82951A Bracket, Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
