Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

19 part groups · 32 illustrations

Illustrations

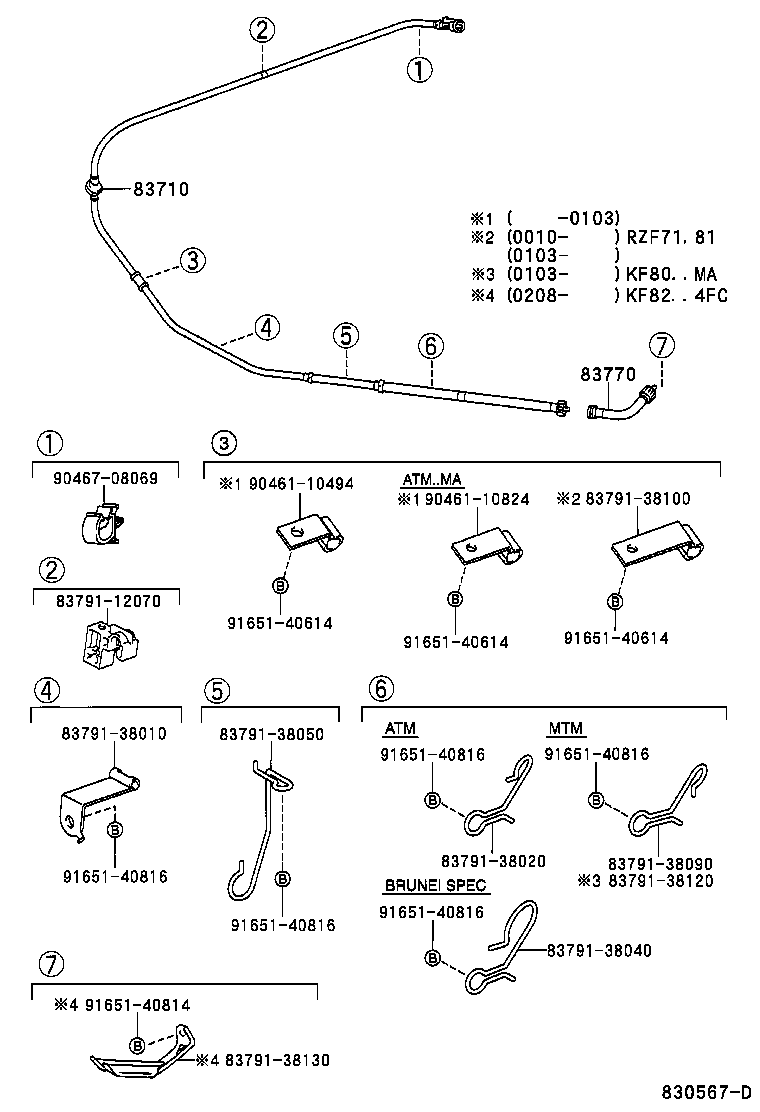

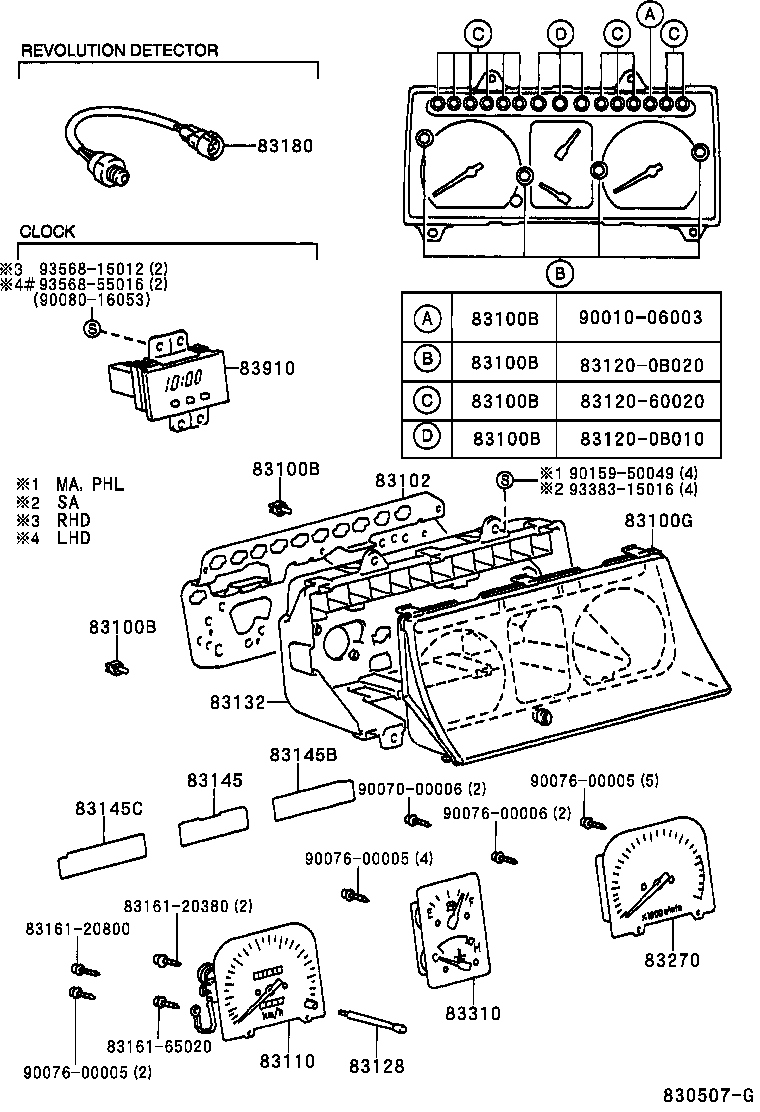

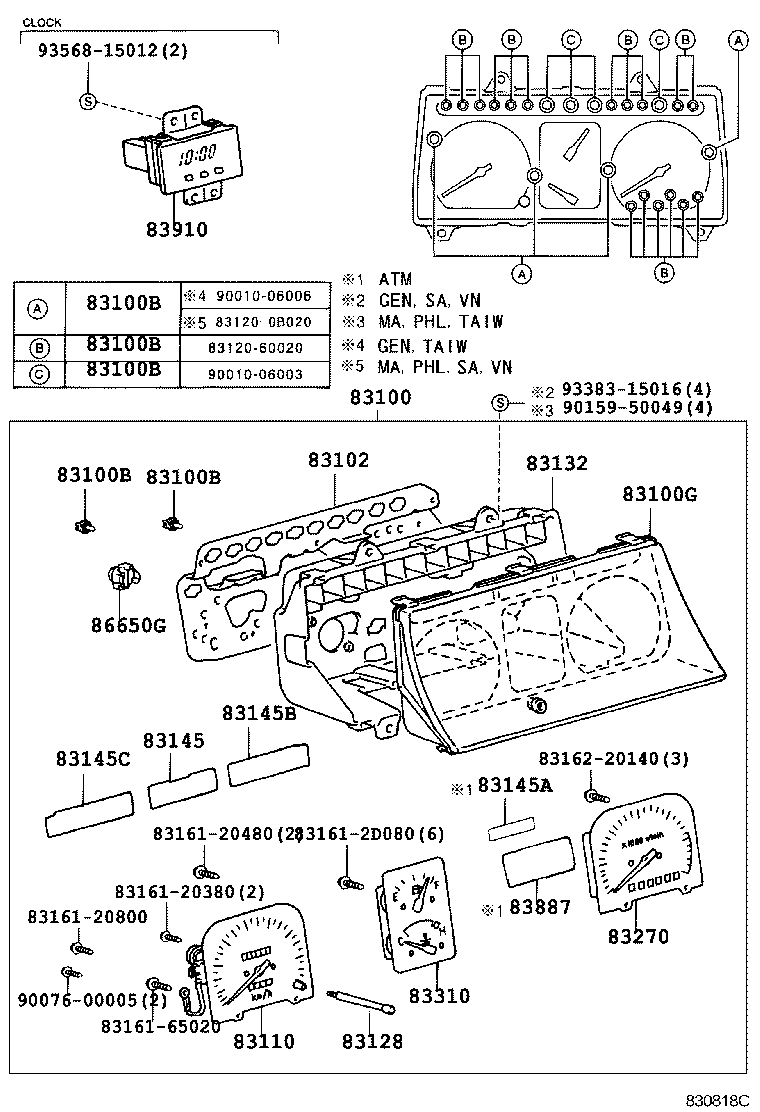

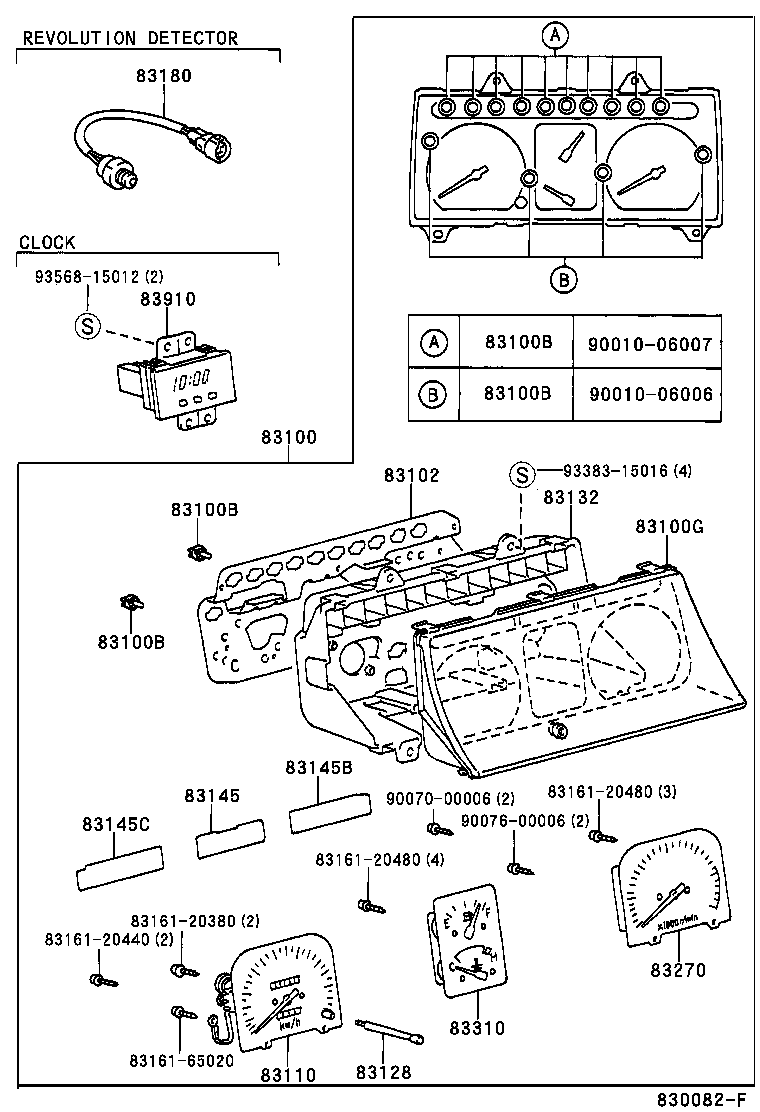

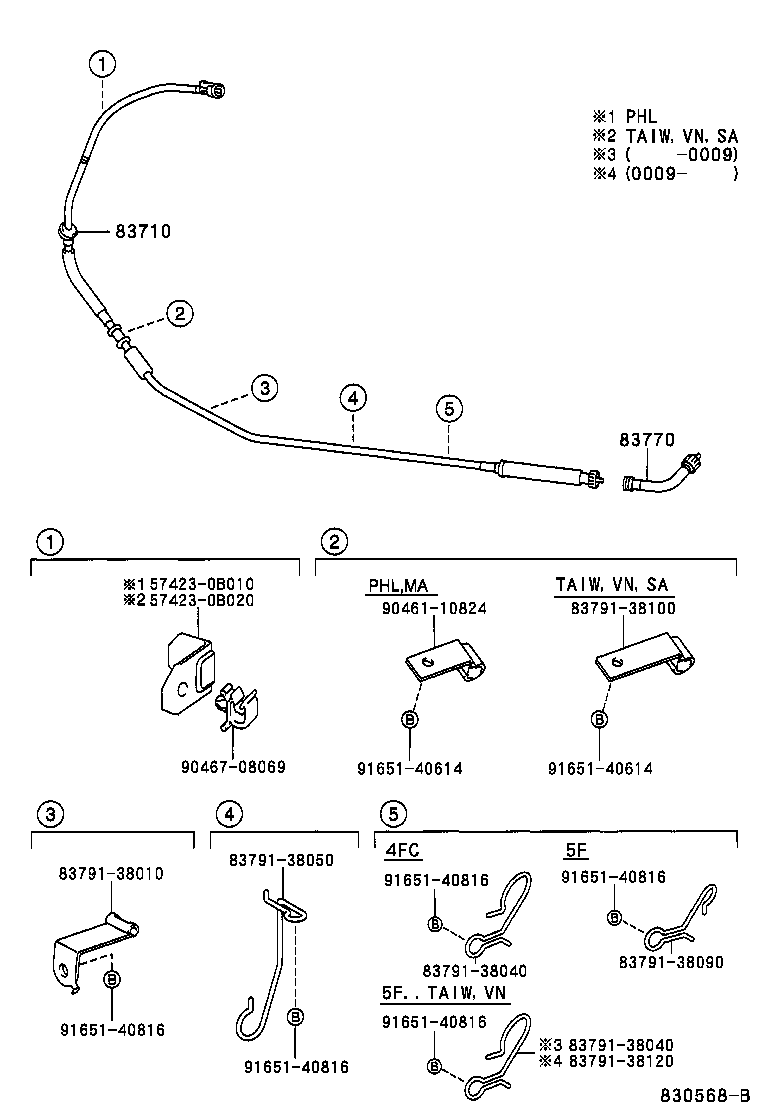

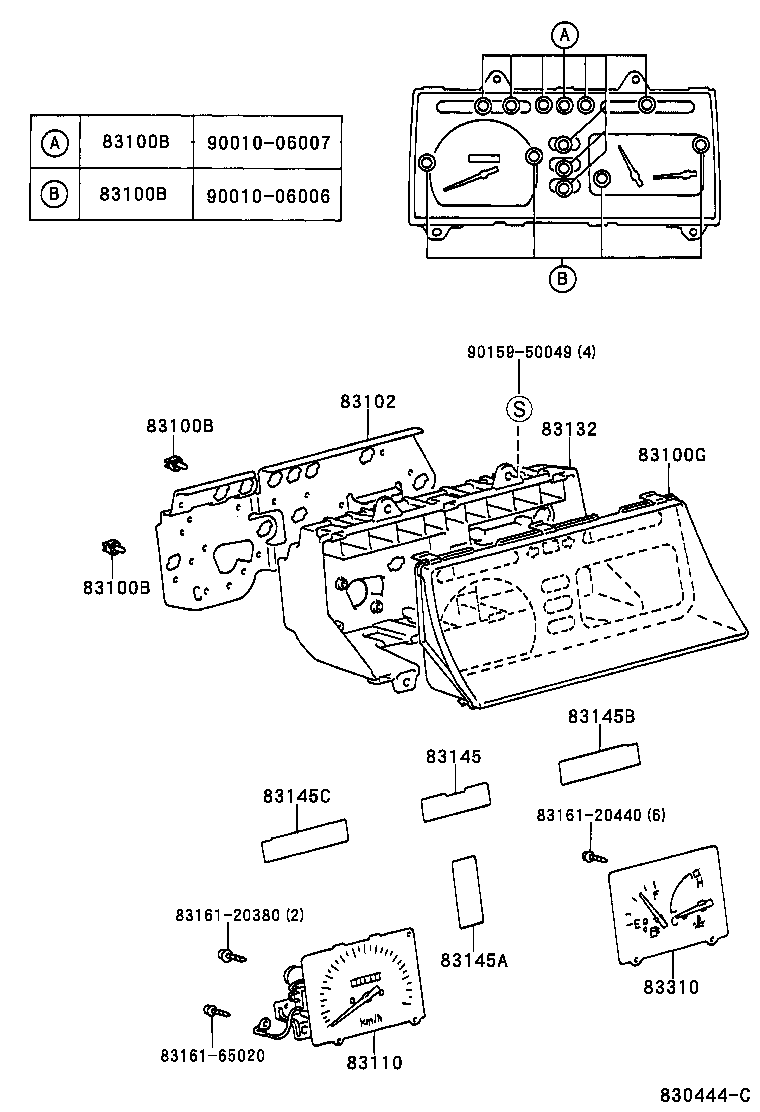

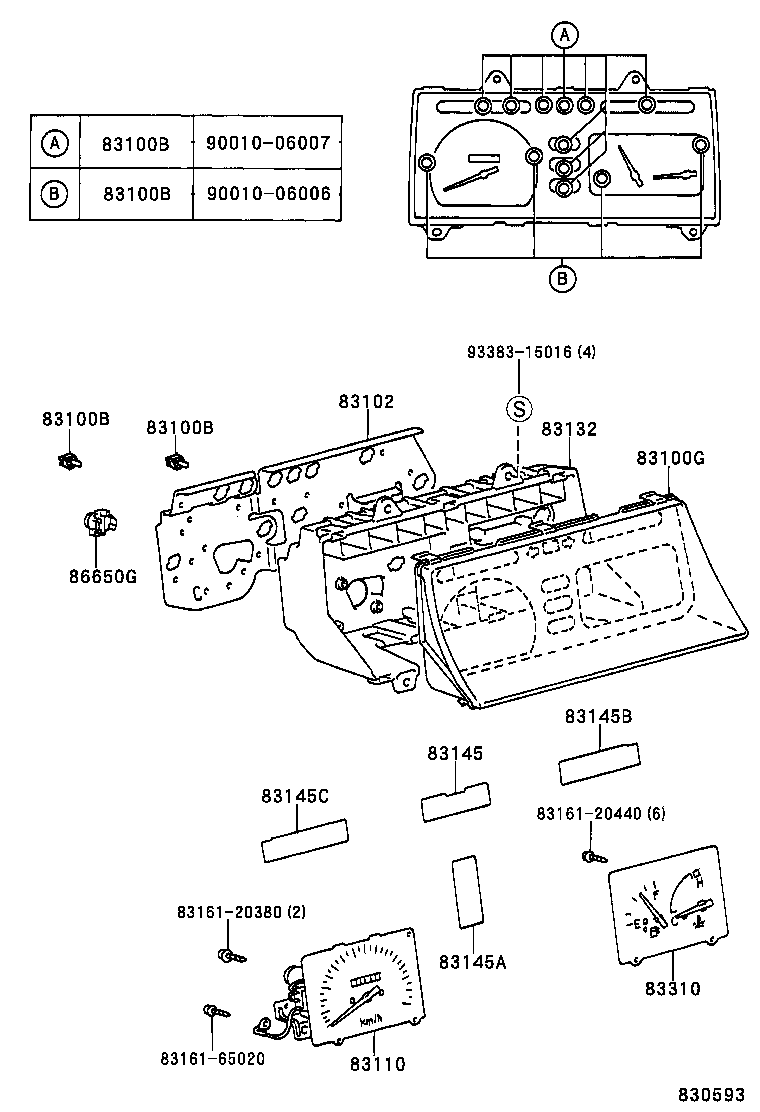

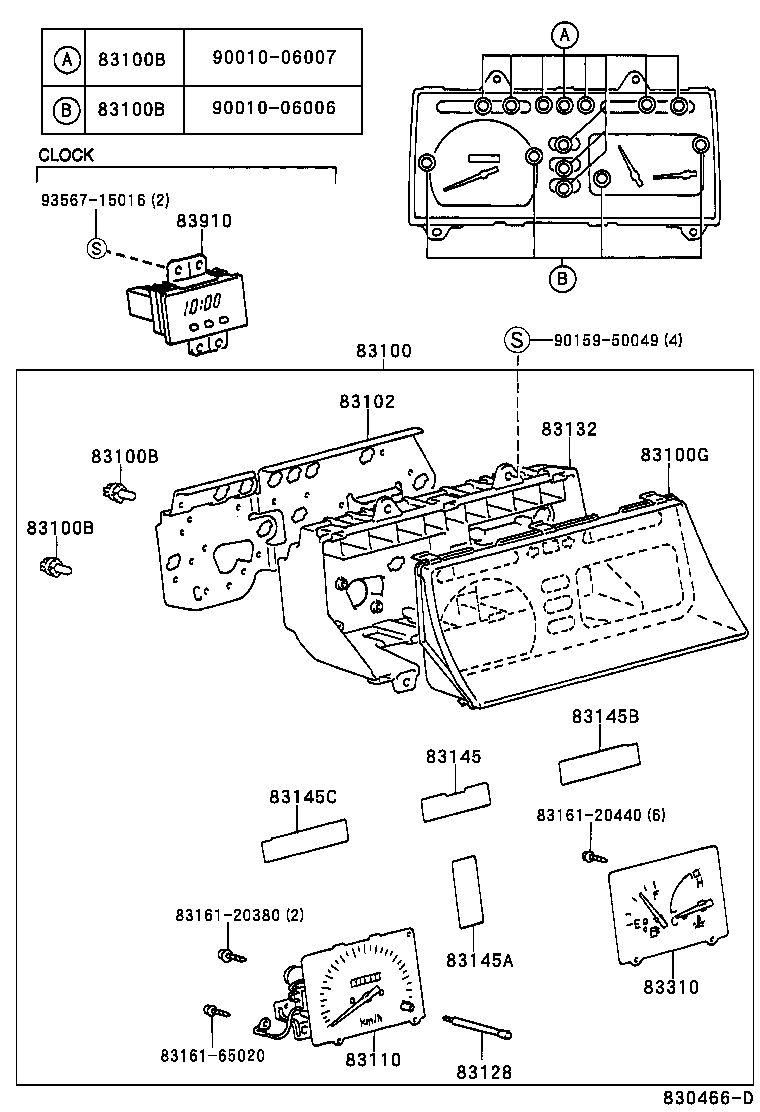

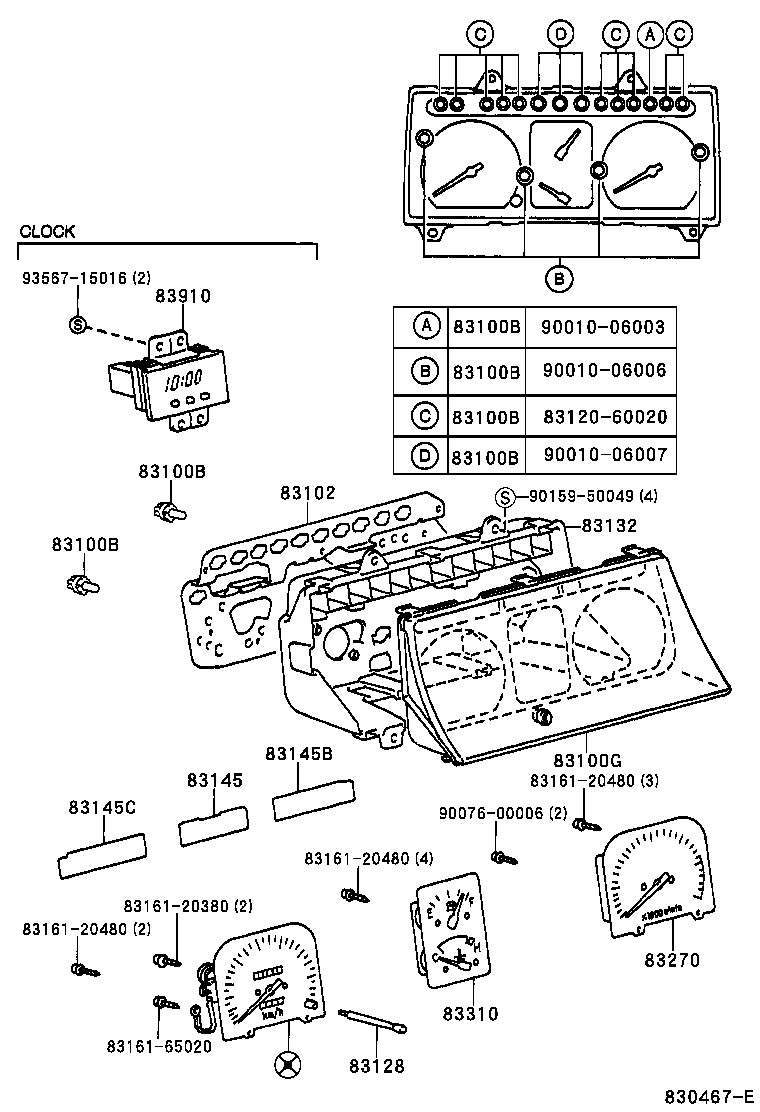

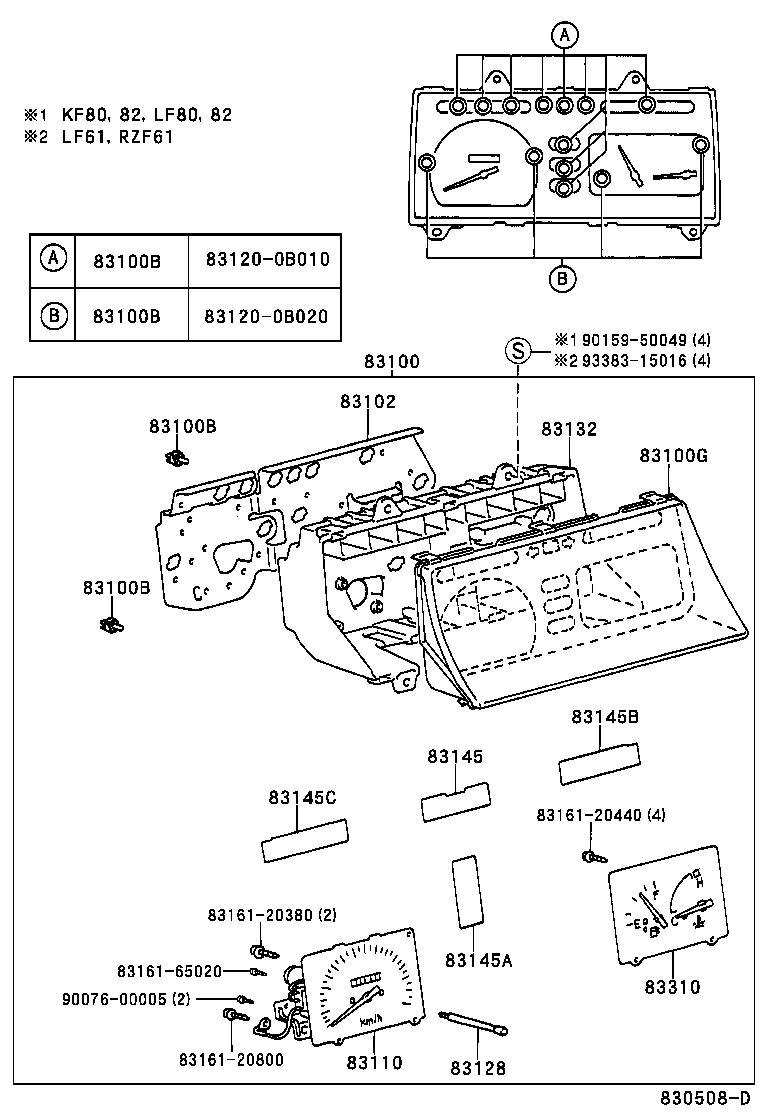

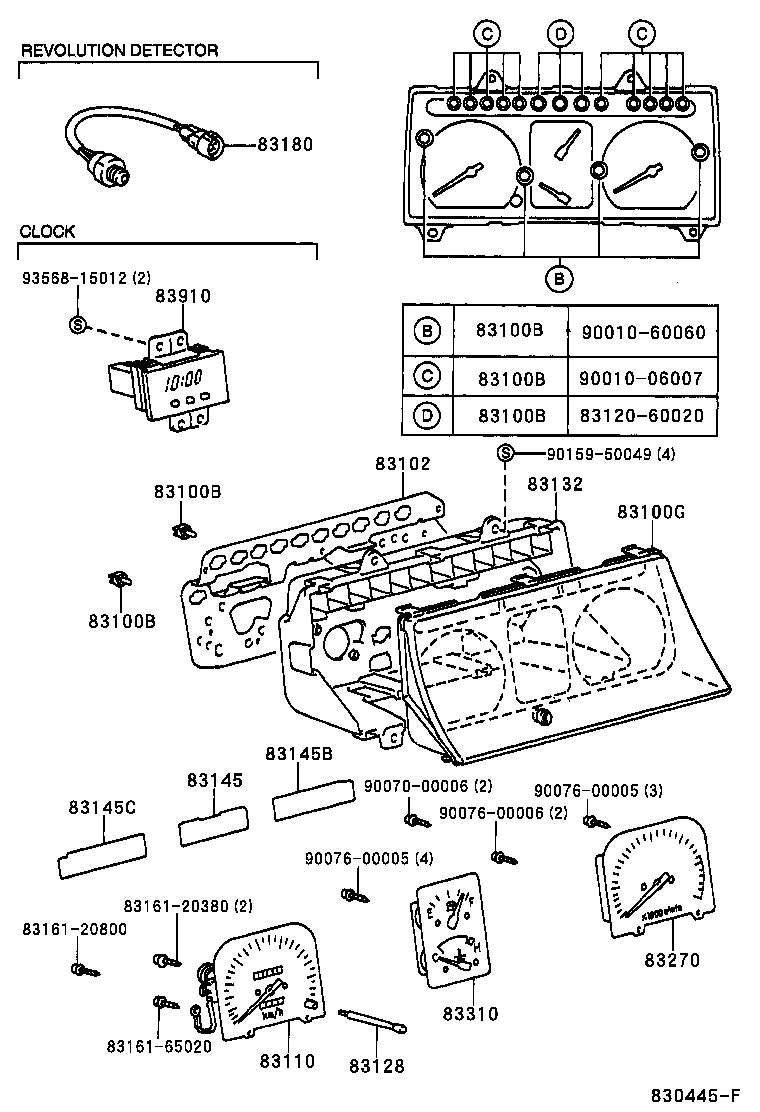

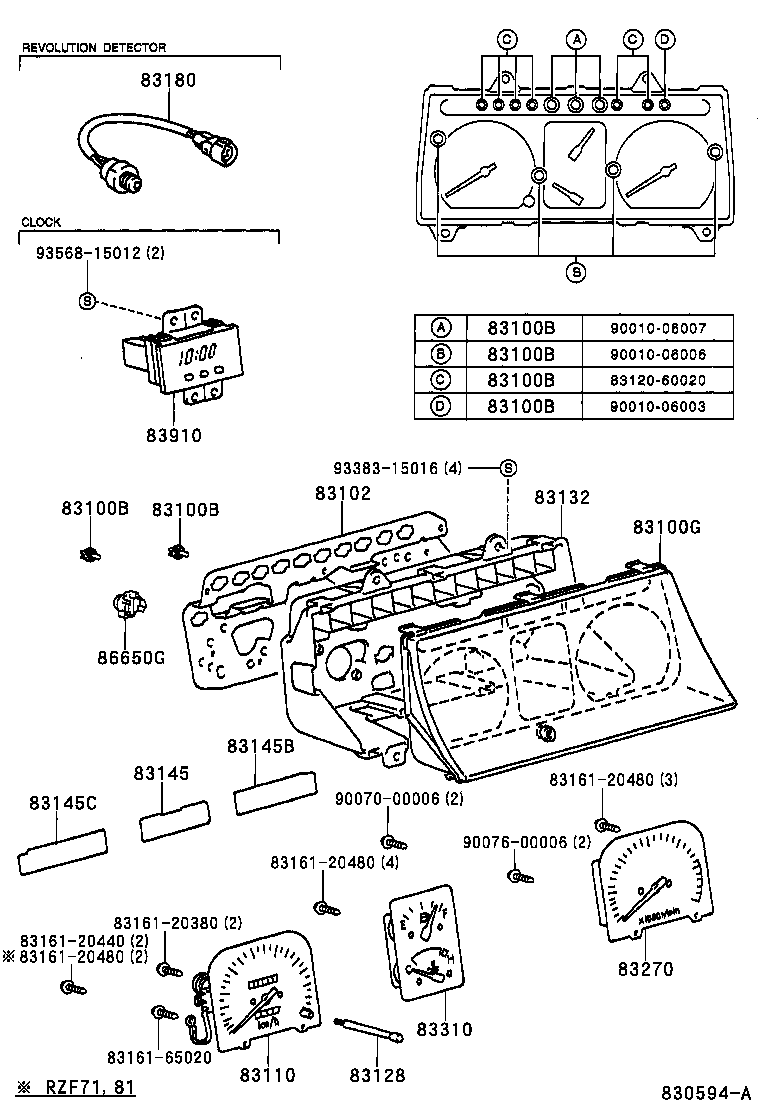

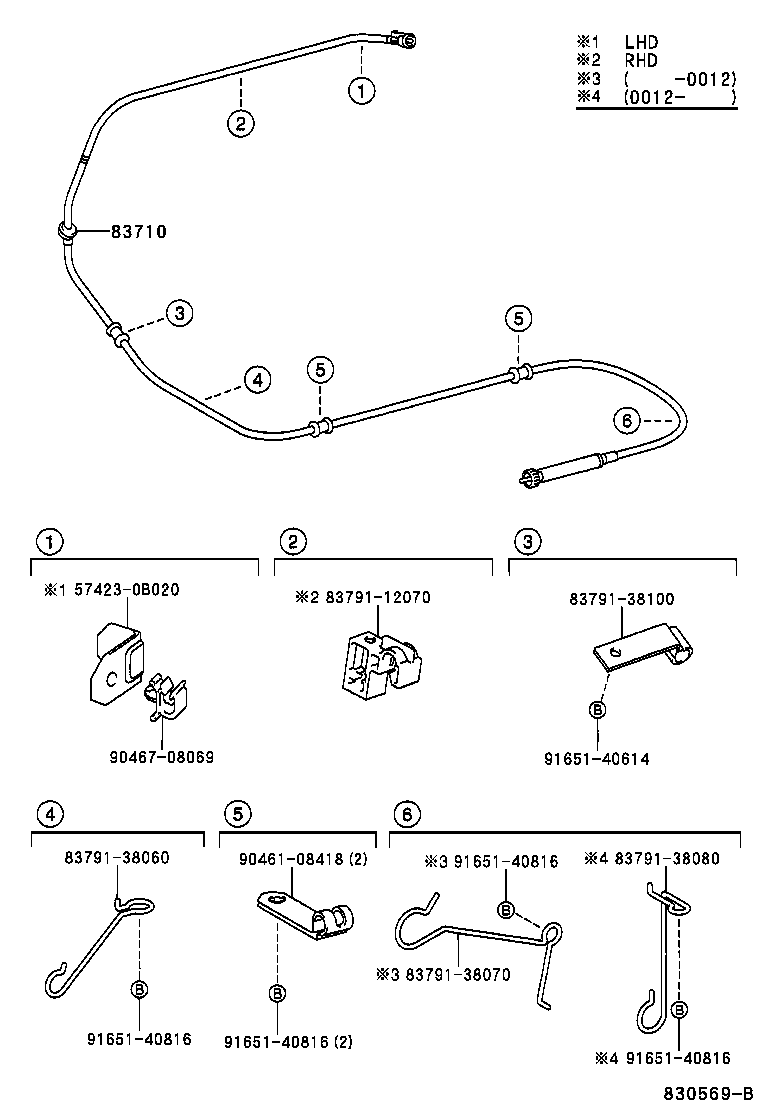

Figure 830081E 830081E 1996-12 → 2000-01 Figure 830081E 830081E 2002-08 → — Figure 830593 830593 2000-01 → 2002-08 Figure 830593 830593 2002-08 → — Figure 830082F 830082F 1996-12 → 2000-01 Figure 830594A 830594A 2000-01 → 2002-08 Figure 830594A 830594A 2002-08 → — Figure 830818C 830818C 2002-08 → — Figure 830818C 830818C 2002-10 → — Figure 830818C 830818C 2002-11 → — Figure 830818C 830818C 2002-12 → — Figure 830818C 830818C 2003-02 → — Figure 830818C 830818C 2003-06 → — Figure 830444C 830444C 1998-04 → 1999-04 Figure 830508D 830508D 1999-04 → — Figure 830508D 830508D 2002-11 → — Figure 830508D 830508D 2003-06 → — Figure 830445F 830445F 1998-04 → 1999-04 Figure 830507G 830507G 1999-04 → 2002-12 Figure 830507G 830507G 2002-12 → 2003-06 Figure 830507G 830507G 2003-06 → — Figure 830467E 830467E 1999-02 → 2002-10 Figure 830467E 830467E 2002-10 → — Figure 830466D 830466D 1999-02 → 2002-10 Figure 830466D 830466D 2002-10 → — Figure 830567D 830567D 1996-12 → — Figure 830568B 830568B 1996-12 → — Figure 830568B 830568B 2002-11 → — Figure 830569B 830569B 1999-11 → — Figure 830569B 830569B 2000-04 → — Figure 830697C 830697C 2000-03 → — Figure 830697C 830697C 2002-11 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83110 Speedometer Assy
83128 Knob, Trip Counter
83132 Case, Combination Meter
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83180 Detector Assy, Revolution
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83770 Adapter Assy, Speedometer Cable
83887 Plate, Combination Meter Prism, NO.1
83910 Clock Assy
86650G Buzzer Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
