1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

94 part groups · 31 illustrations

Illustrations

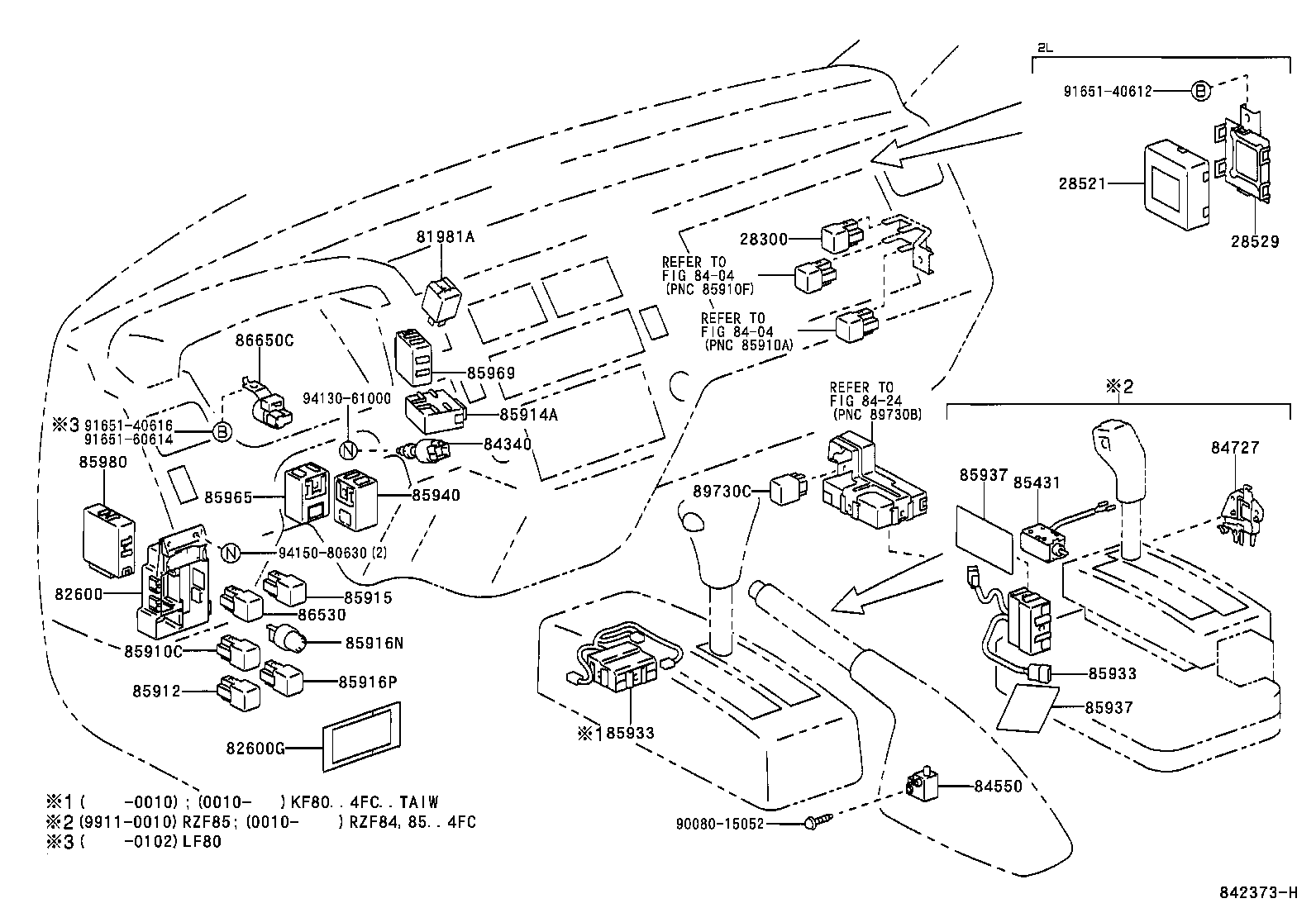

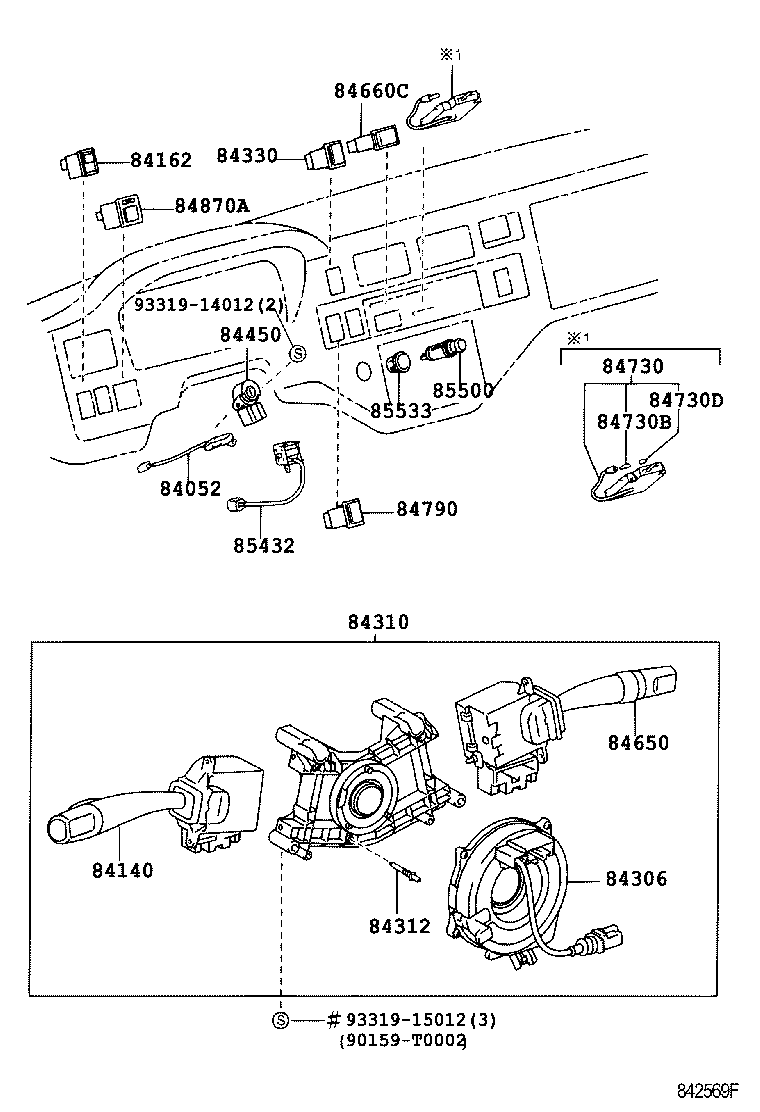

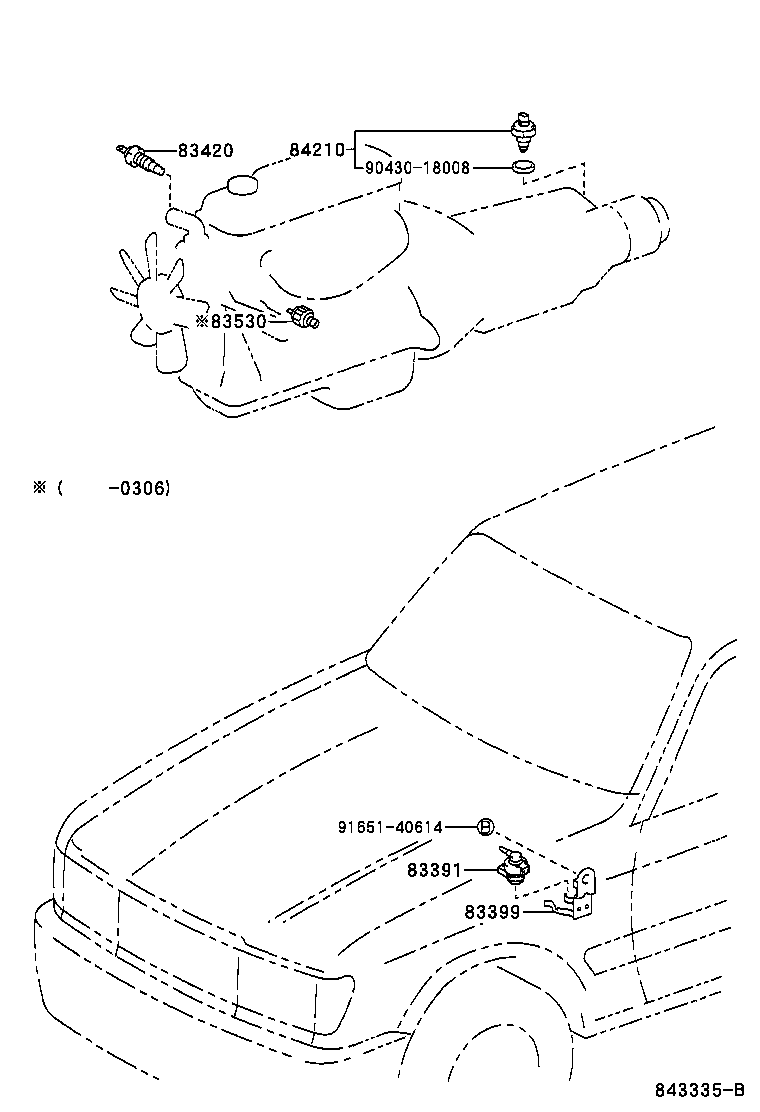

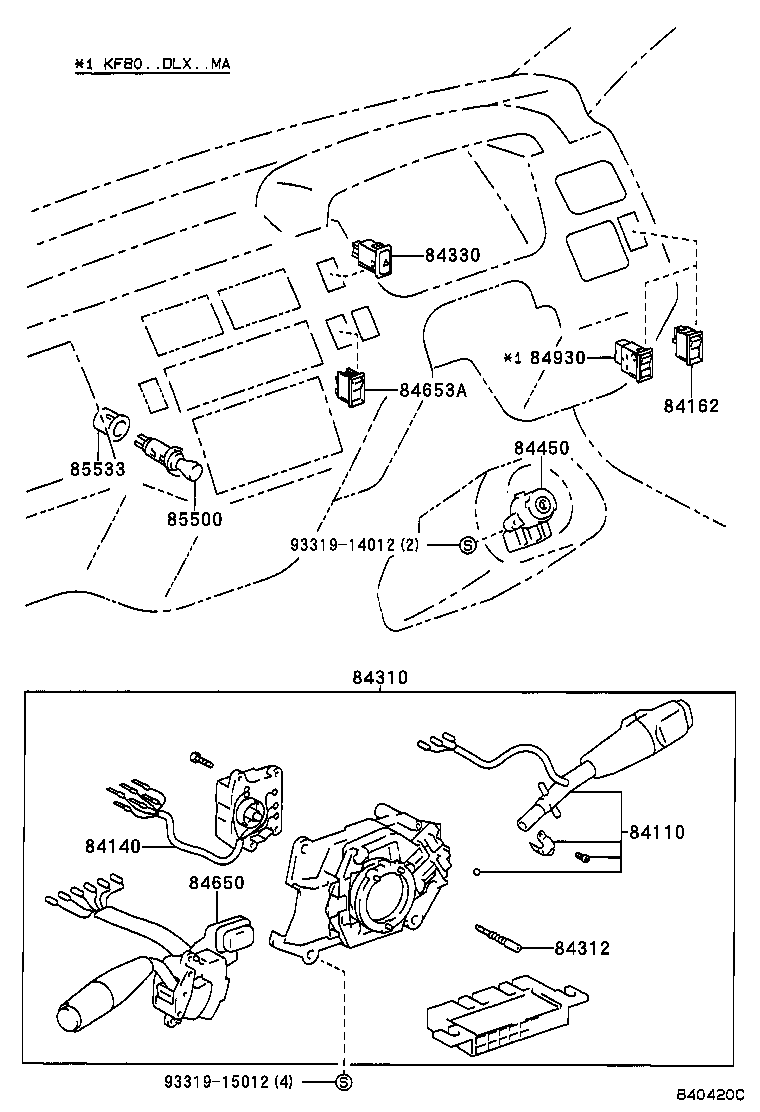

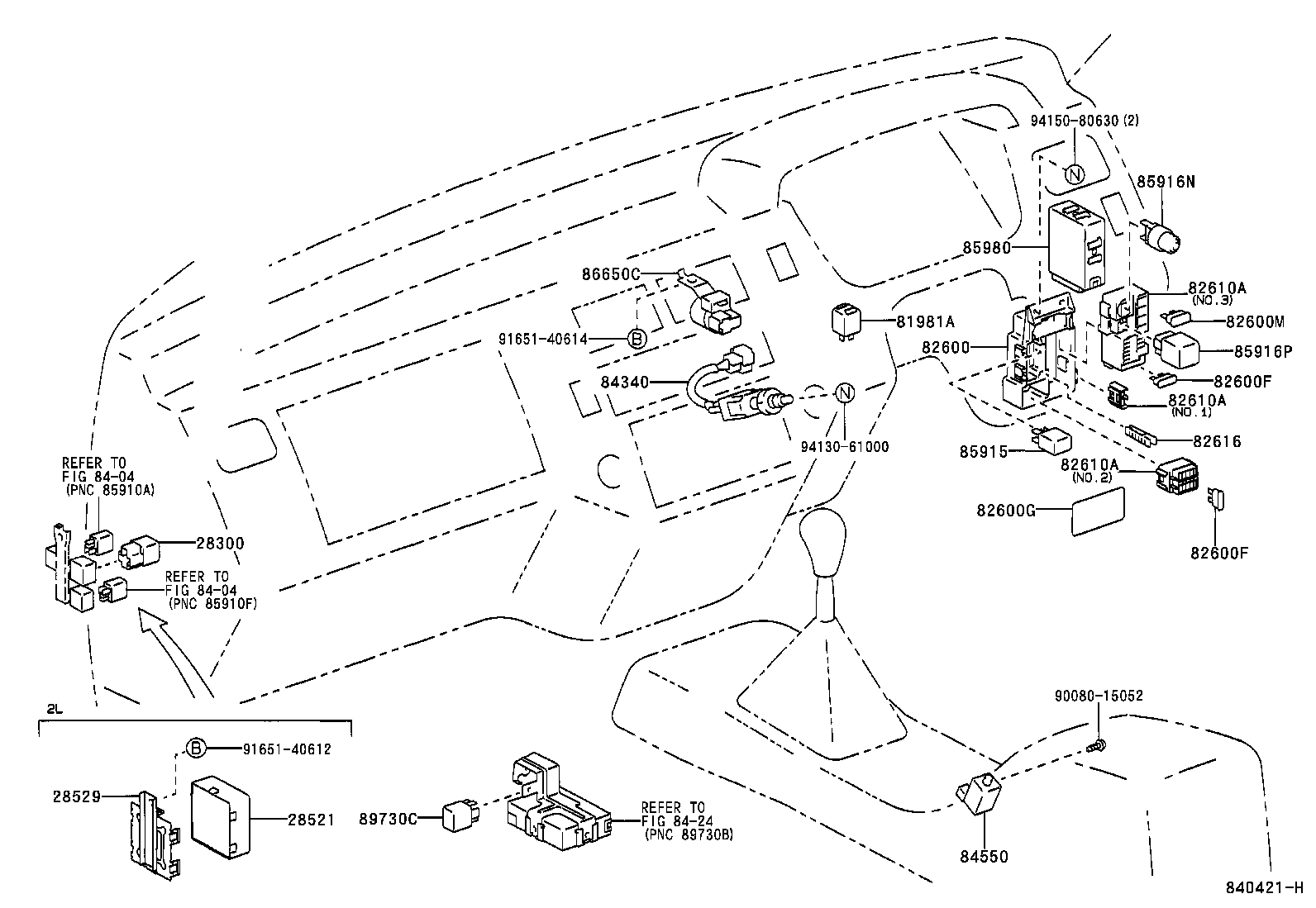

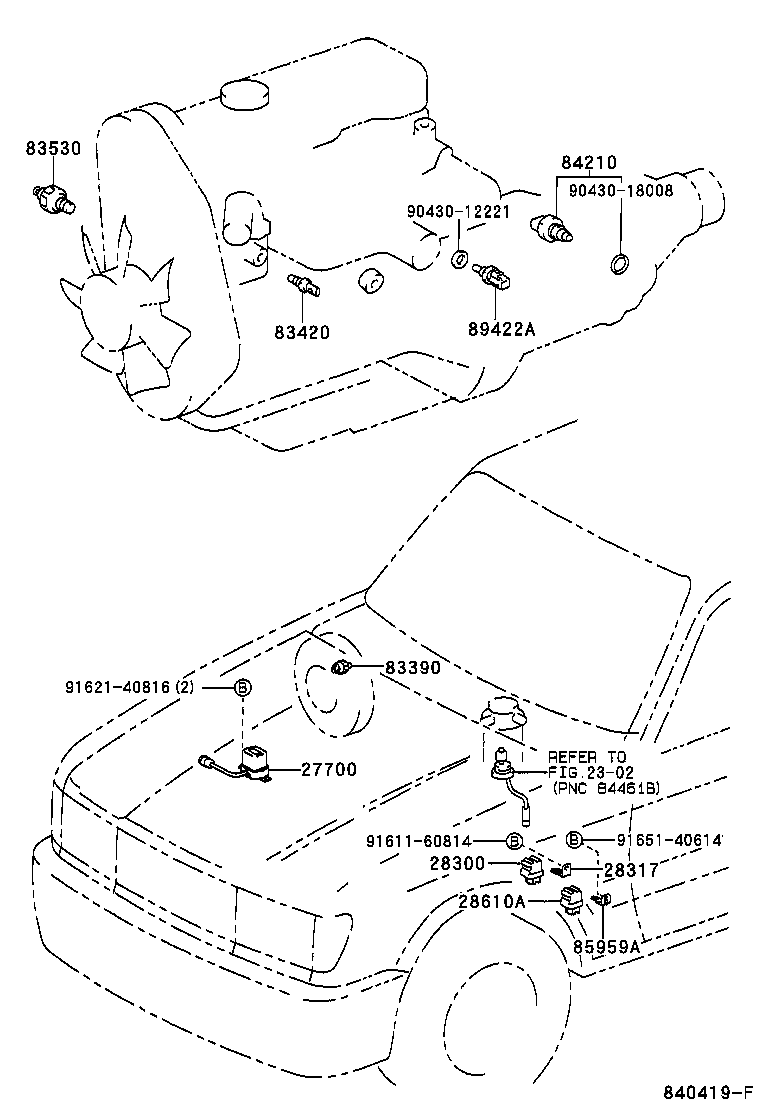

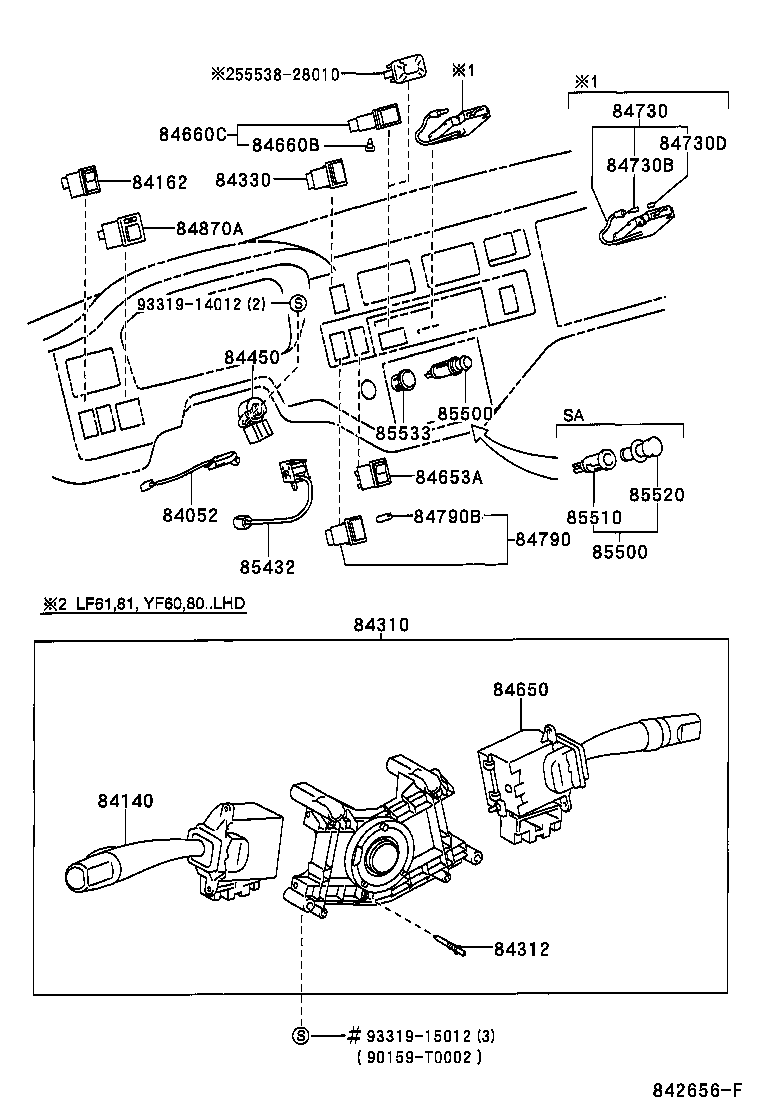

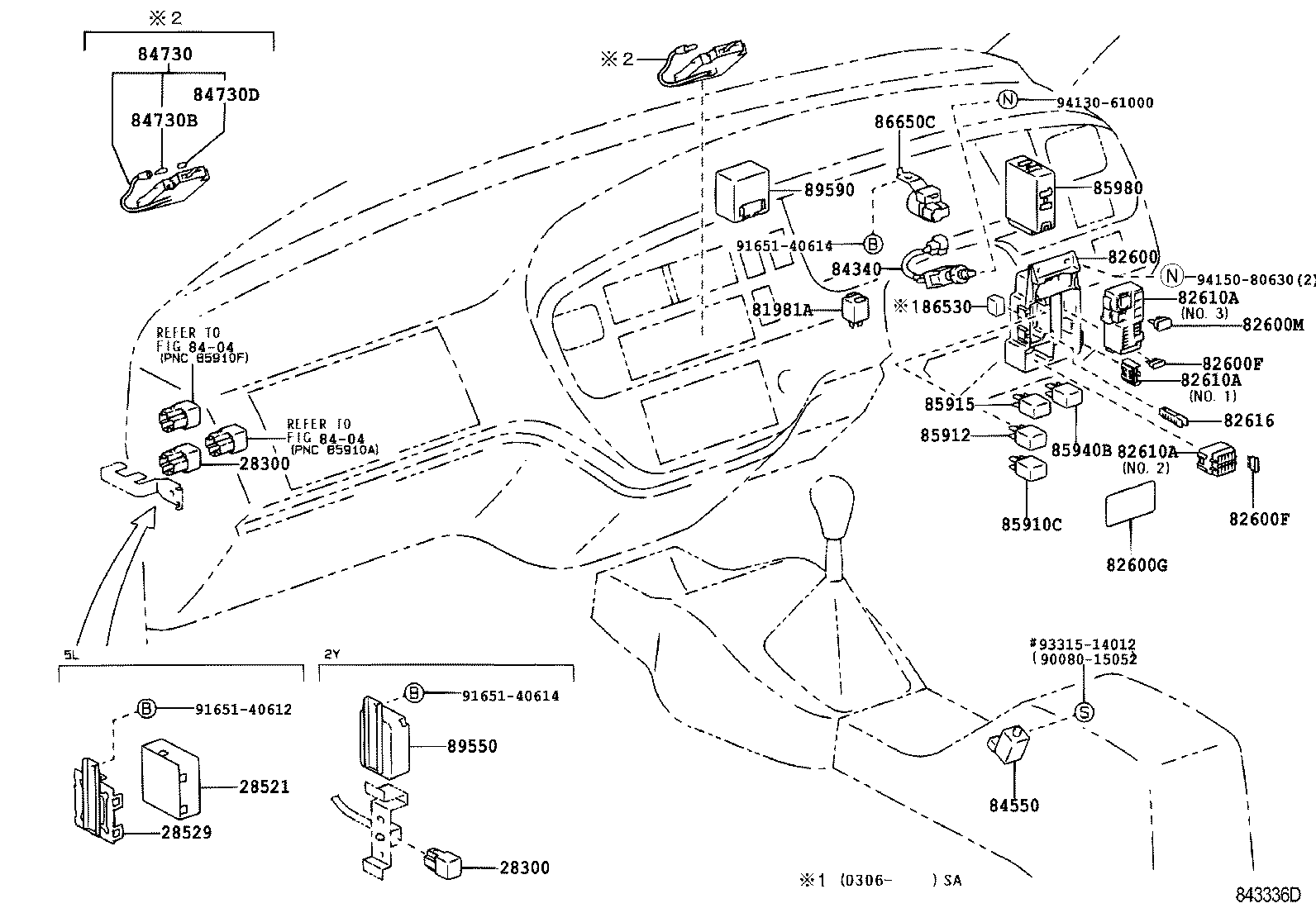

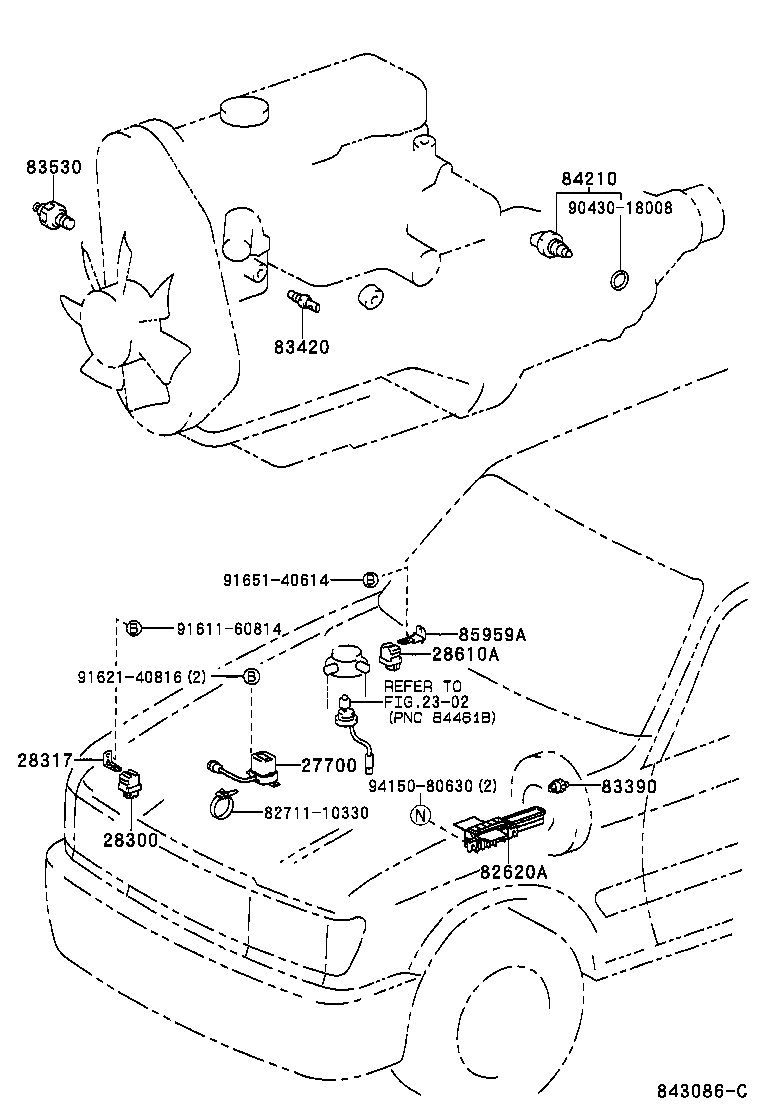

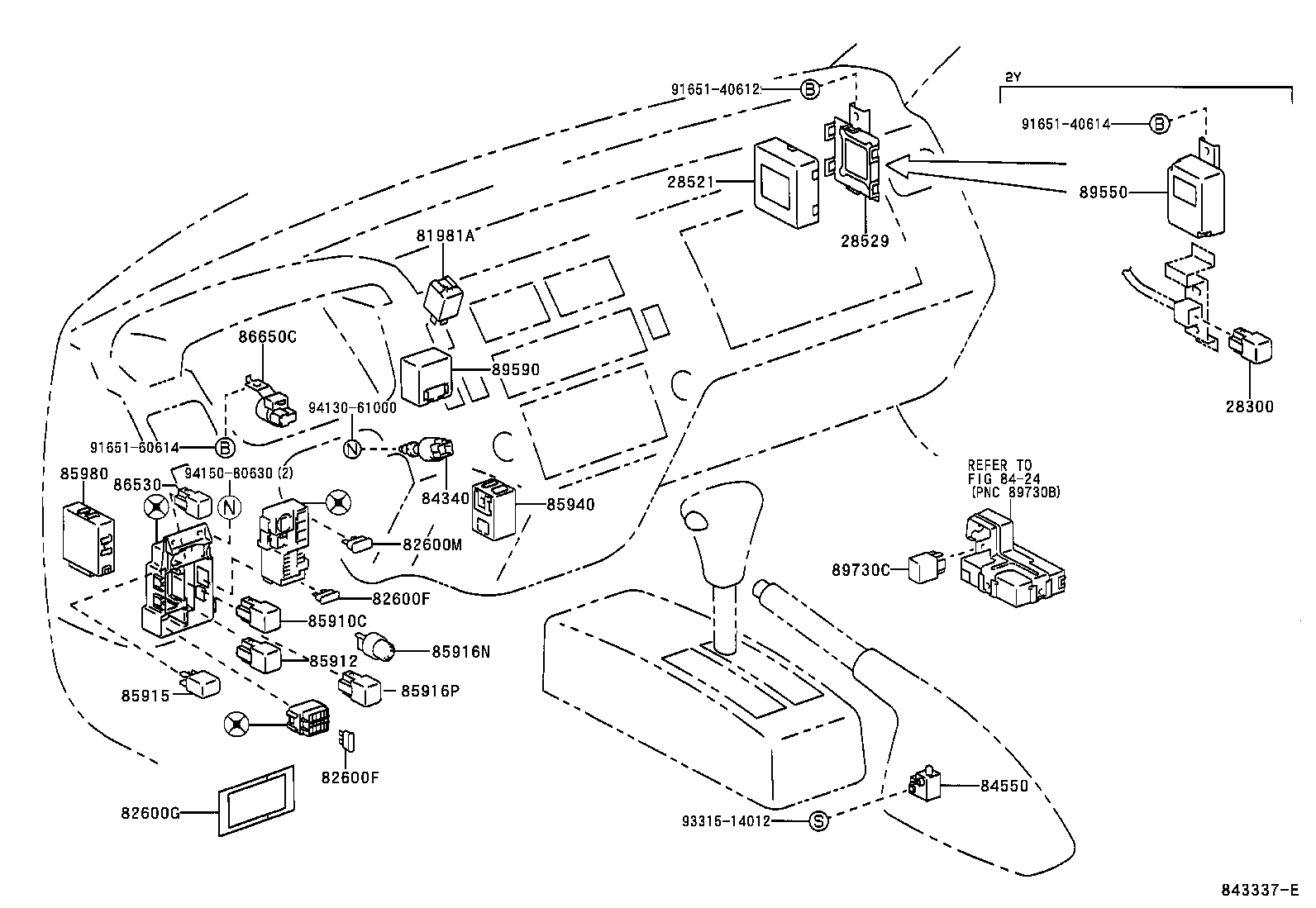

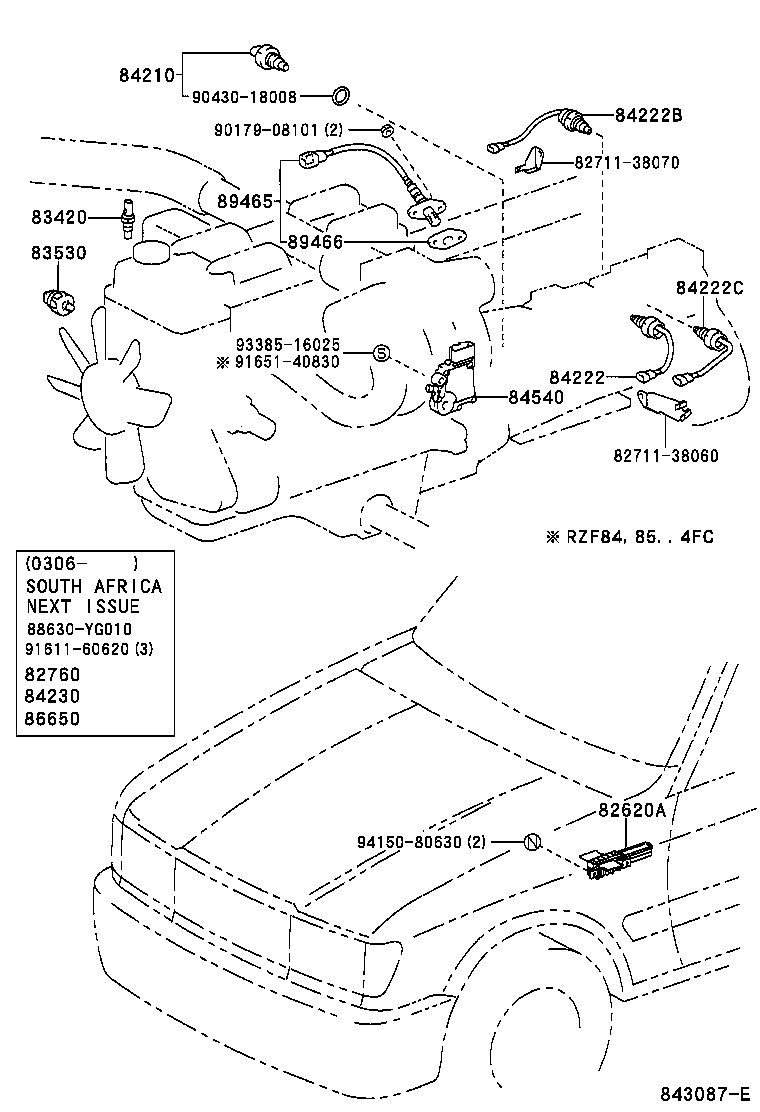

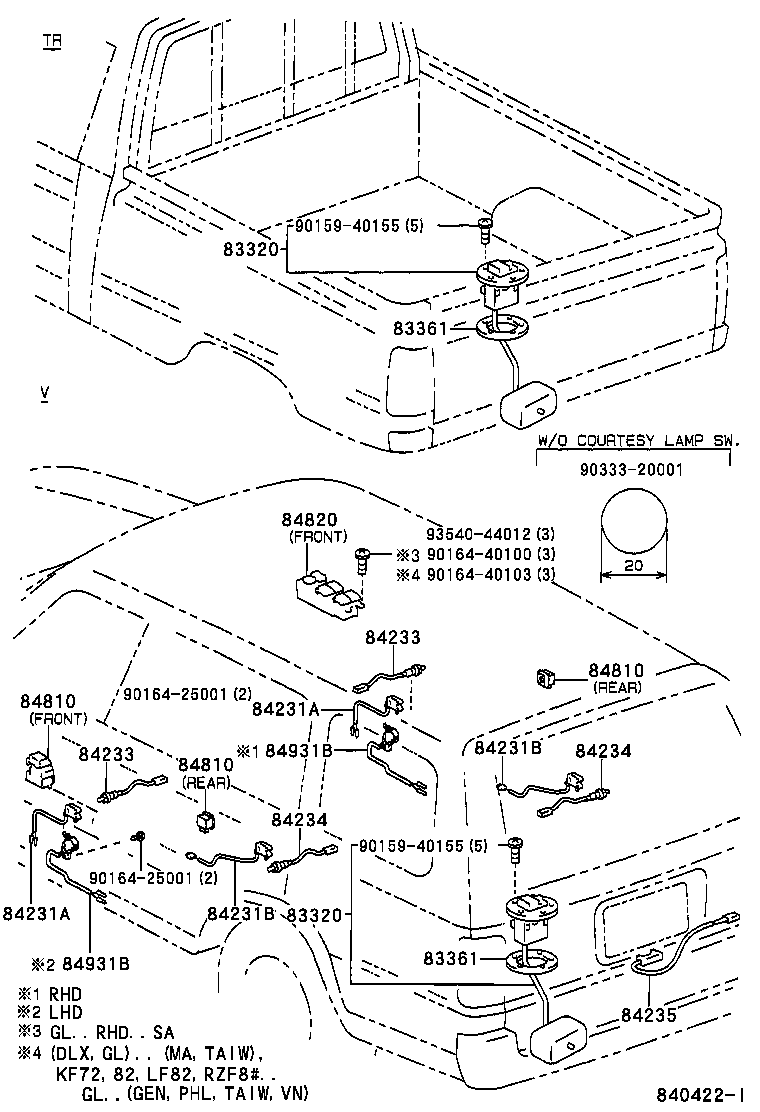

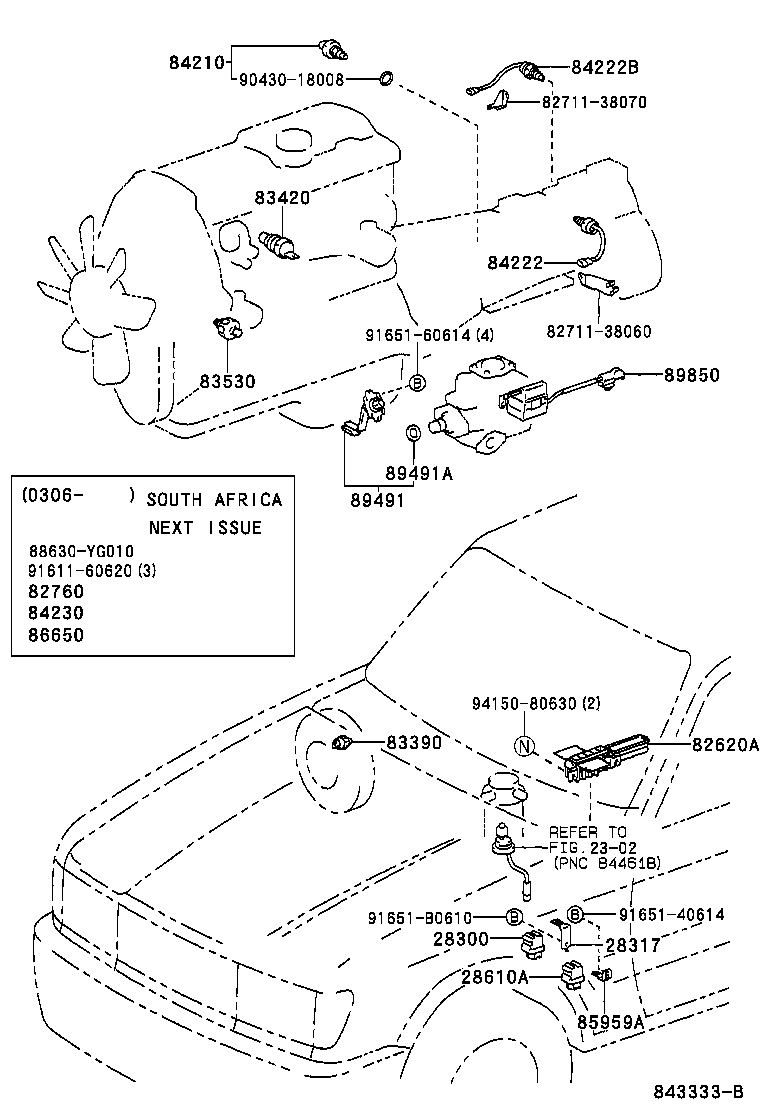

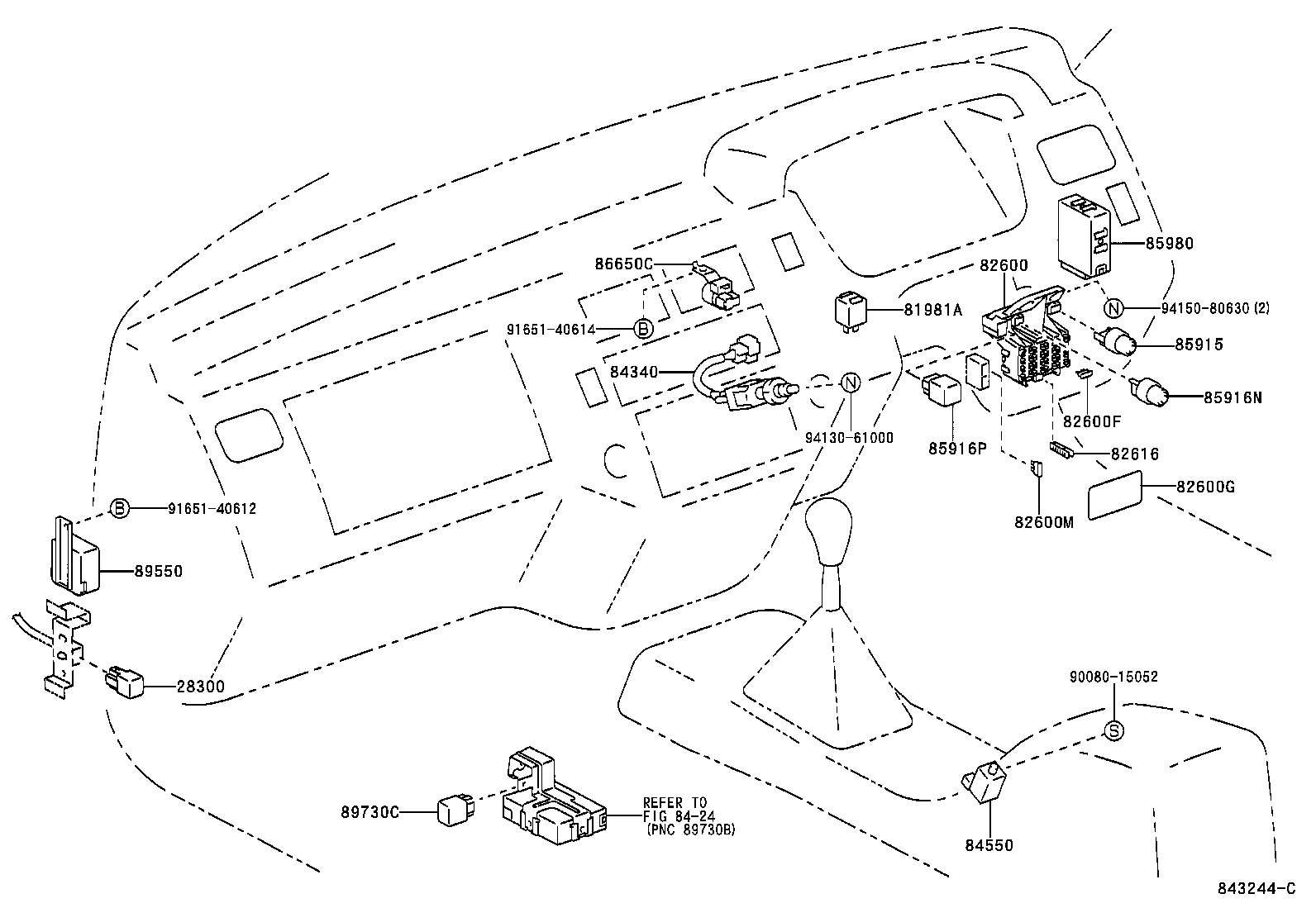

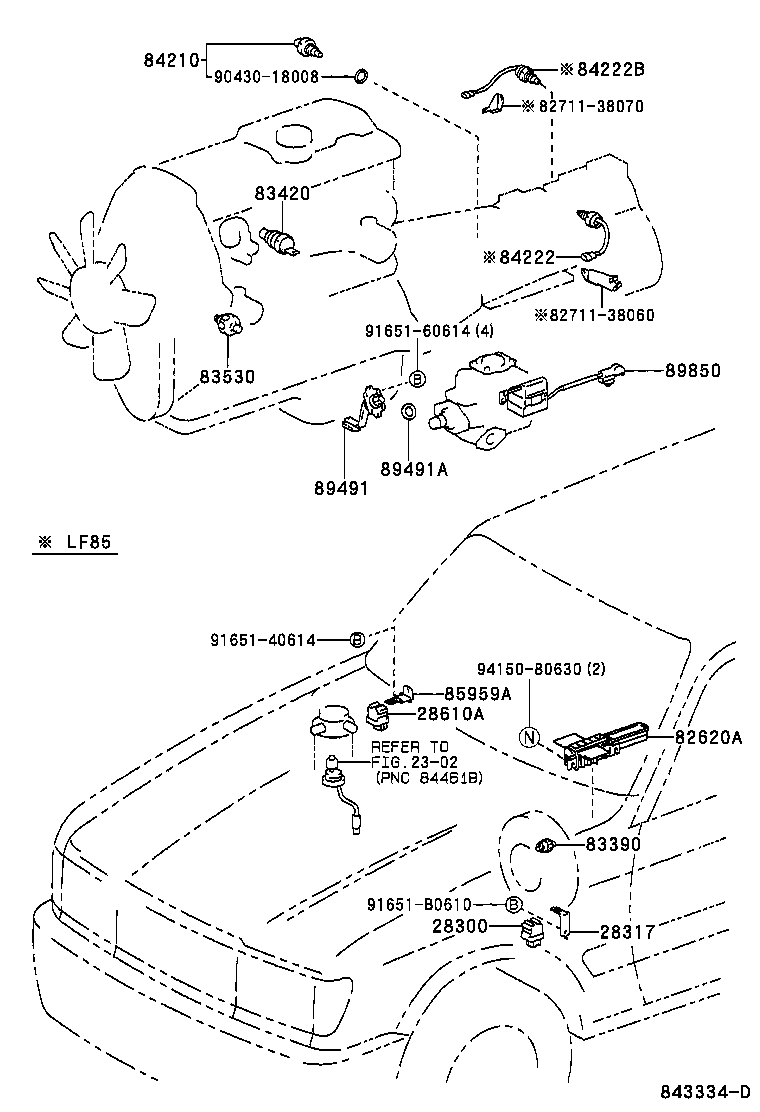

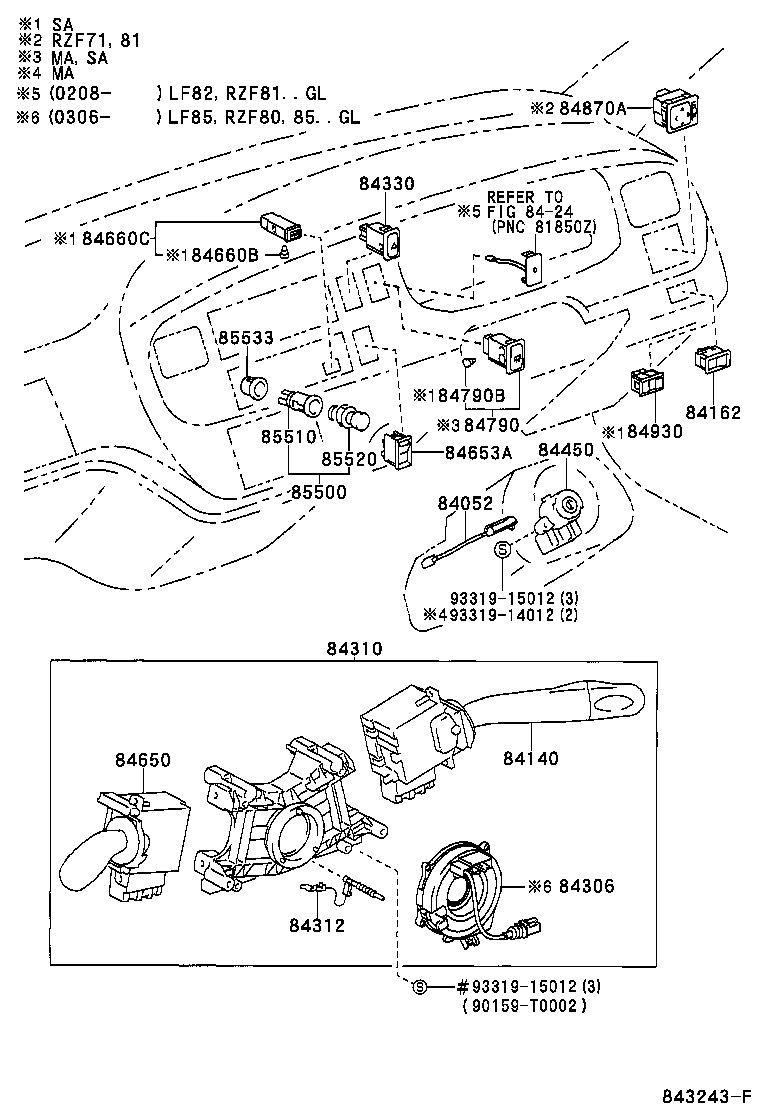

Figure 840418H 840418H 1996-12 → — Figure 840419F 840419F 1996-12 → — Figure 843086C 843086C 1998-10 → — Figure 843333B 843333B 2000-04 → — Figure 843334D 843334D 2000-04 → — Figure 843087E 843087E 1999-11 → — Figure 843335B 843335B 2000-04 → — Figure 840420C 840420C 1996-12 → 2000-01 Figure 840420C 840420C 2000-01 → 2001-03 Figure 843243F 843243F 2000-01 → — Figure 843243F 843243F 2001-03 → — Figure 842656F 842656F 1998-10 → — Figure 842656F 842656F 1999-02 → 1999-03 Figure 842656F 842656F 1999-03 → 1999-10 Figure 842656F 842656F 1999-10 → — Figure 842656F 842656F 2000-03 → 2003-06 Figure 842656F 842656F 2003-06 → — Figure 842569F 842569F 1999-02 → 1999-03 Figure 842569F 842569F 1999-03 → 1999-10 Figure 842569F 842569F 1999-10 → — Figure 842569F 842569F 2003-06 → — Figure 843244C 843244C 1996-12 → 2000-01 Figure 843244C 843244C 2000-01 → — Figure 840421H 840421H 1998-04 → 2001-03 Figure 840421H 840421H 2000-01 → — Figure 840421H 840421H 2000-10 → — Figure 843336D 843336D 2000-04 → — Figure 843336D 843336D 2001-03 → — Figure 842373H 842373H 1998-10 → — Figure 843337E 843337E 2000-04 → — Figure 840422I 840422I 1996-12 → —

Part groups

PNCDescription
27700 Regulator Assy, Generator
28300 Relay Assy, Starter
28317 Bracket, Starter Relay
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28610A Relay Assy, Glow Plug(SUB)
81981A Flasher, Turn Signal
82600 Block Assy, Fuse
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82600M Fuse, Medium Current
82610A Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82760 Bracket Assy, Relay Block
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84110 Switch Assy, Light Control, NO.1
84140 Switch Assy, Headlamp Dimmer
84162 Switch, Front Fog Lamp
84210 Switch Assy, Back-up Lamp
84222 Switch, Transfer Indicator, NO.1
84222B Switch, Transfer Indicator, NO.2
84222C Switch, Transfer Indicator, NO.3
84230 Switch Assy, Courtesy Lamp (FOR ENGINE ROOM)
84231A Switch, Courtesy Lamp
84231B Switch, Courtesy Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84653A Switch, Rear Wiper
84660B Bulb, Front Drive Switch
84660C Switch, Cooler
84727 Switch, Shift Lock Control
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84730D Cap, Heater Blower Switch Bulb
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84931B Switch, Door Control
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85510 Socket & Retainer Assy, Cigarlighter
85520 Knob And Element Assy, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85914A Relay, Motor Antenna Control
85915 Relay, Main
85916N Relay, Taillamp
85916P Relay, Headlamp
85933 Computer, Shift Lock Control
85937 Protector, Shift Lock Control
85940 Relay Assy, Windshield Wiper
85940B Relay Assy, Rear Wiper
85959A Holder, Relay
85965 Relay, Room Lamp Control
85969 Relay, Light Reminder
85980 Relay Assy, Door Control
86530 Relay Assy, Horn
86650 Buzzer Assy, Vacuum Indicator
86650C Buzzer Assy, Sedimenter Warning
89422A Sensor, Water Temperature
89437 Cover, Sensor
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89550 Computer Assy, Emission Control
89590 Computer Assy, Condition Indicator
89620 Igniter Assy
89629 Bracket, Igniter Assy
89730C Relay, Tvss
89850 Unit Assy, Fuel Cut Valve Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
