Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

13 part groups · 5 illustrations

Illustrations

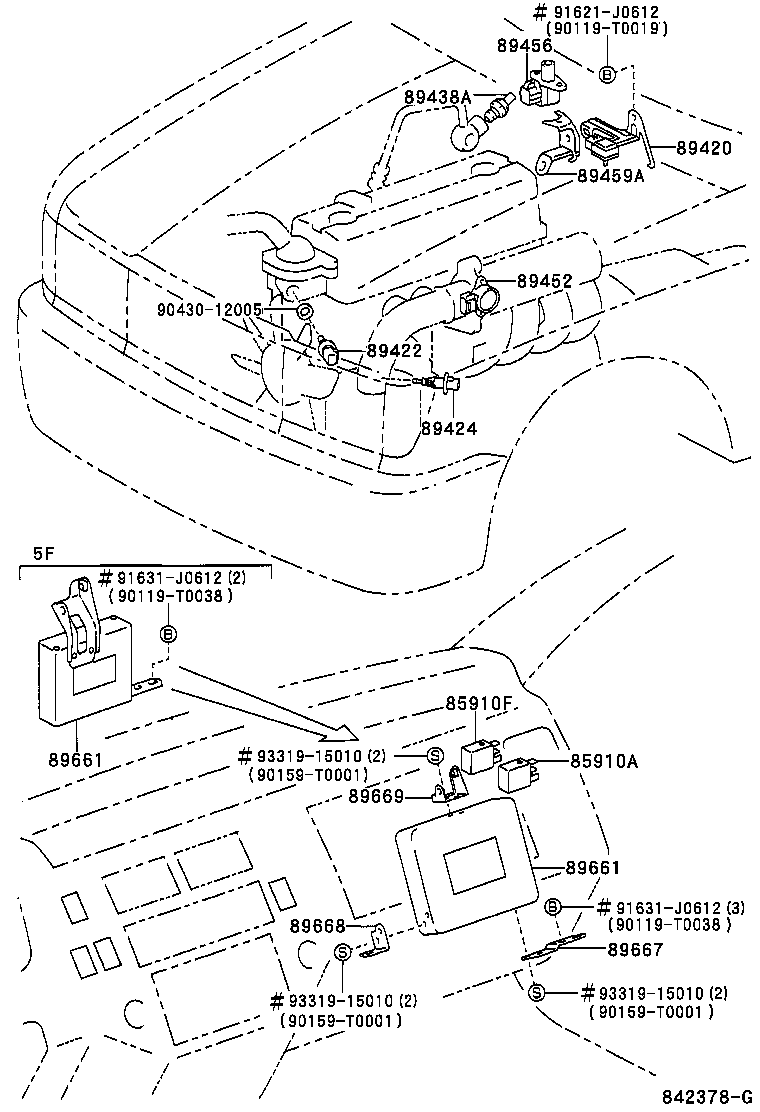

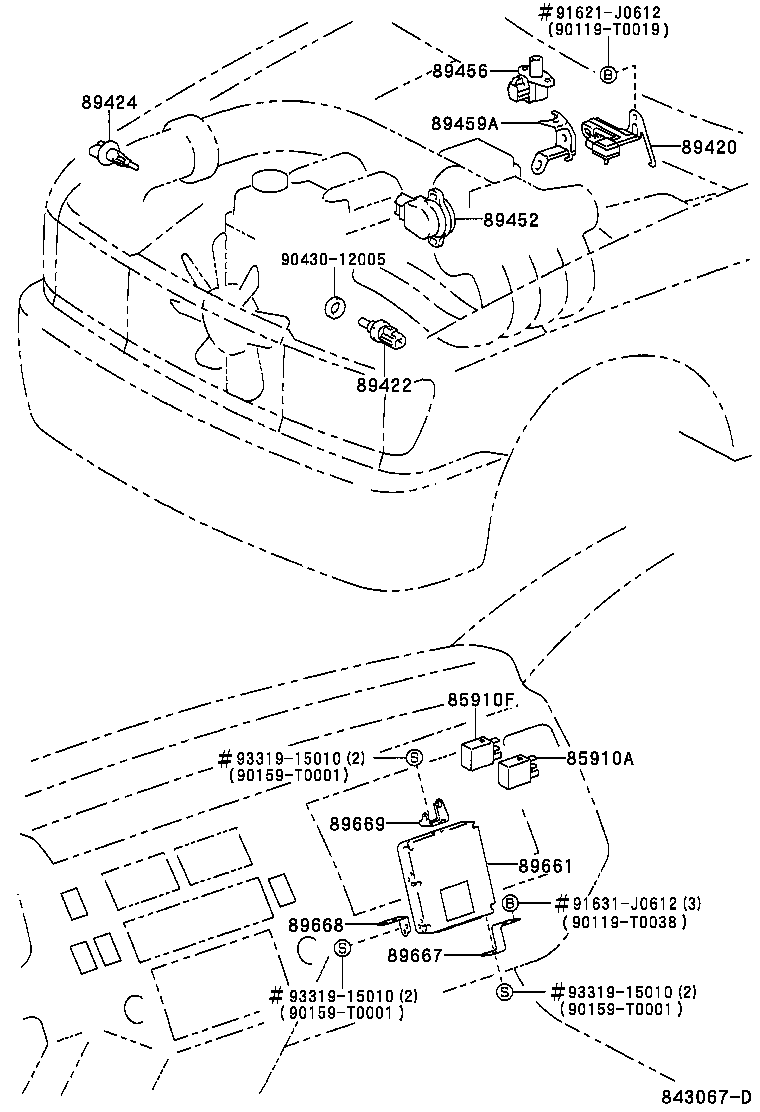

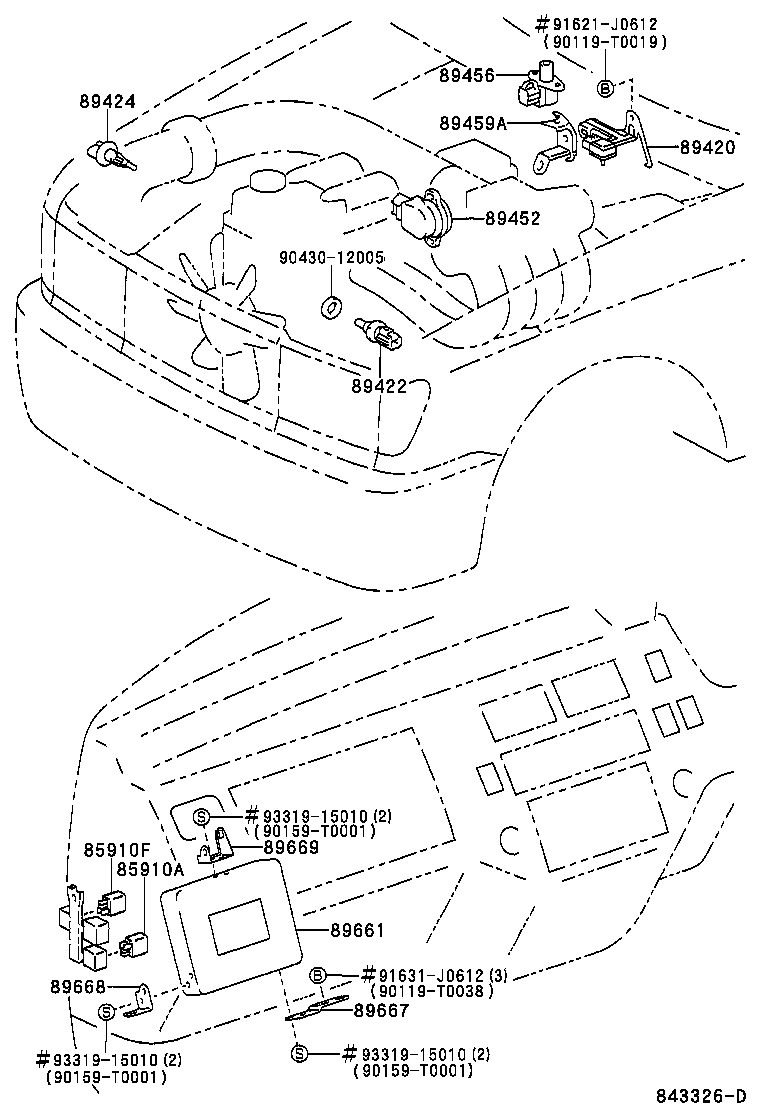

Figure 842086F 842086F 1998-04 → — Figure 842086F 842086F 2000-01 → — Figure 842378G 842378G 1998-10 → — Figure 843326D 843326D 2000-04 → — Figure 843067D 843067D 1999-11 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
89420 Sensor Assy, Vacuum
89422 Sensor, Water Temperature (FOR E.F.I.)
89424 Sensor, Inlet Air Temperature (FOR E.F.I.)
89438A Switch, Power Steering Oil Pressure
89452 Sensor, Throttle Position (FOR E.F.I.)
89456 Resistor, Variable
89459A Bracket, Variable Resistor
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
