Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

15 part groups · 7 illustrations

Illustrations

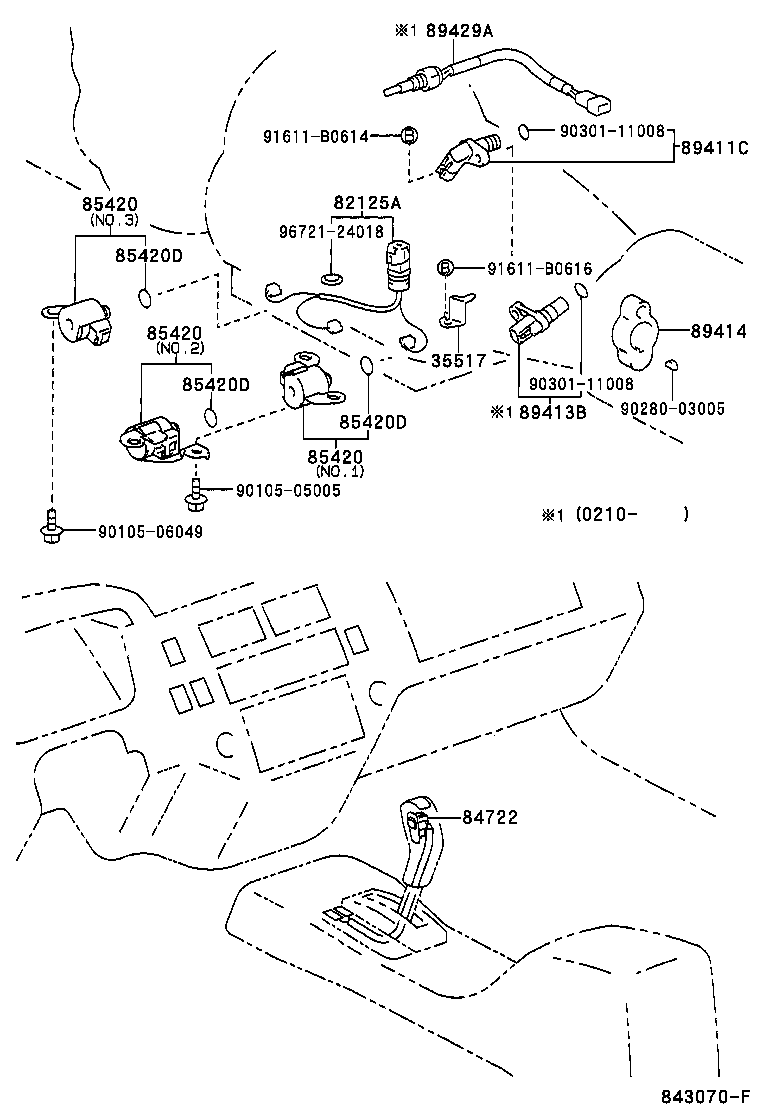

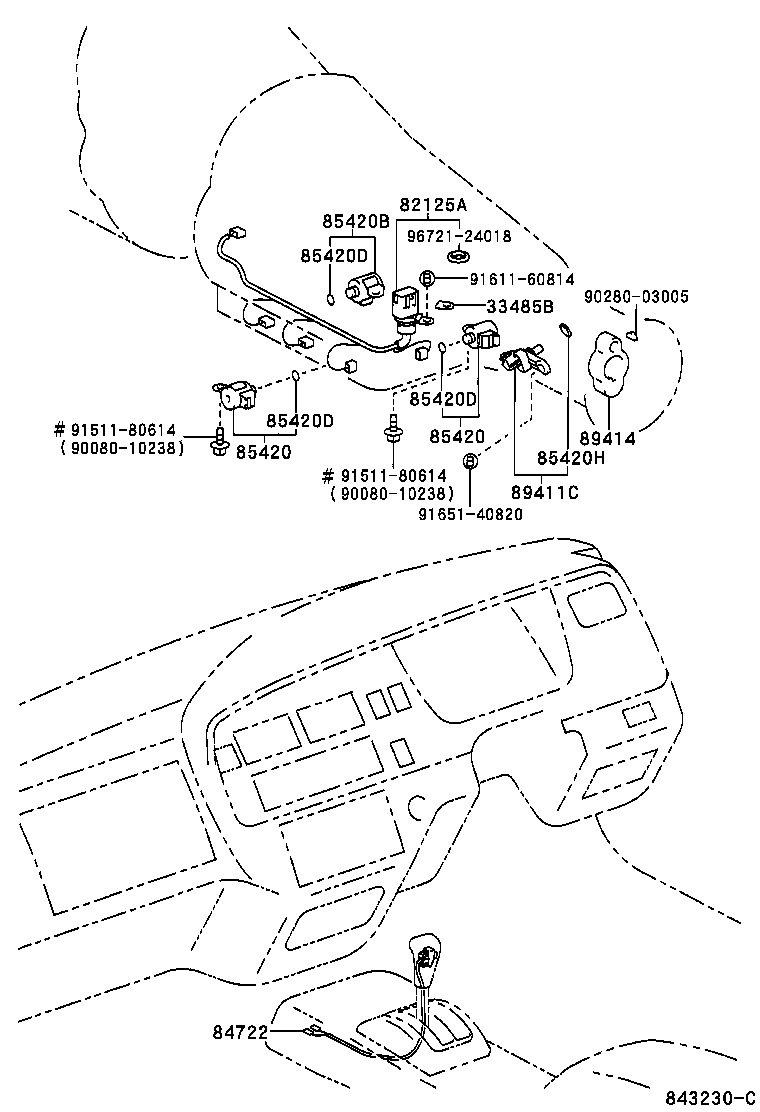

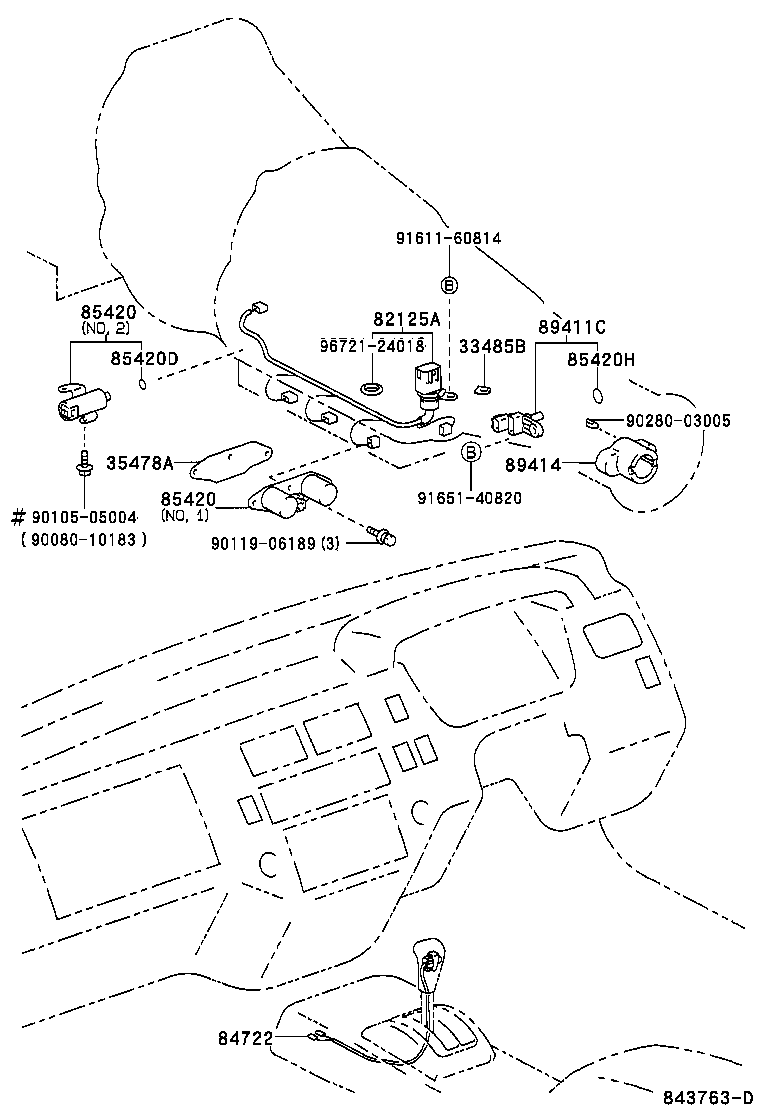

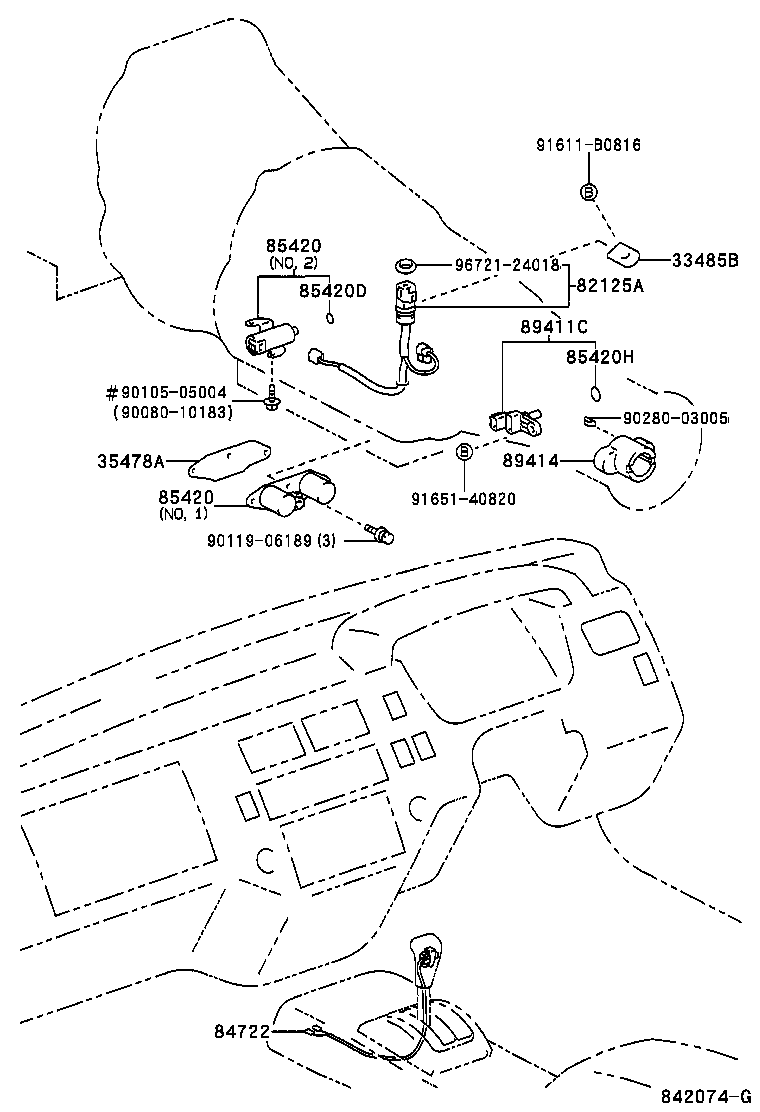

Figure 840414B 840414B 1996-12 → 2000-01 Figure 842074G 842074G 1998-04 → — Figure 842074G 842074G 2000-12 → 2002-08 Figure 843070F 843070F 1999-11 → 2006-12 Figure 843230C 843230C 2000-01 → — Figure 843763D 843763D 2000-10 → 2000-12 Figure 843763D 843763D 2002-08 → —

Part groups

PNCDescription
33485B Plate, Transmission Wire
35478A Gasket, Shift Control Solenoid
35517 Plate, Transmission Wire Lock
82125A Wire, Transmission
83531B Switch, Oil Pressure
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
85420H Ring, O(FOR SPEED SENSOR)
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
89414 Rotor, Sensor
89429A Sensor, Temperature
89530A Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
