Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01

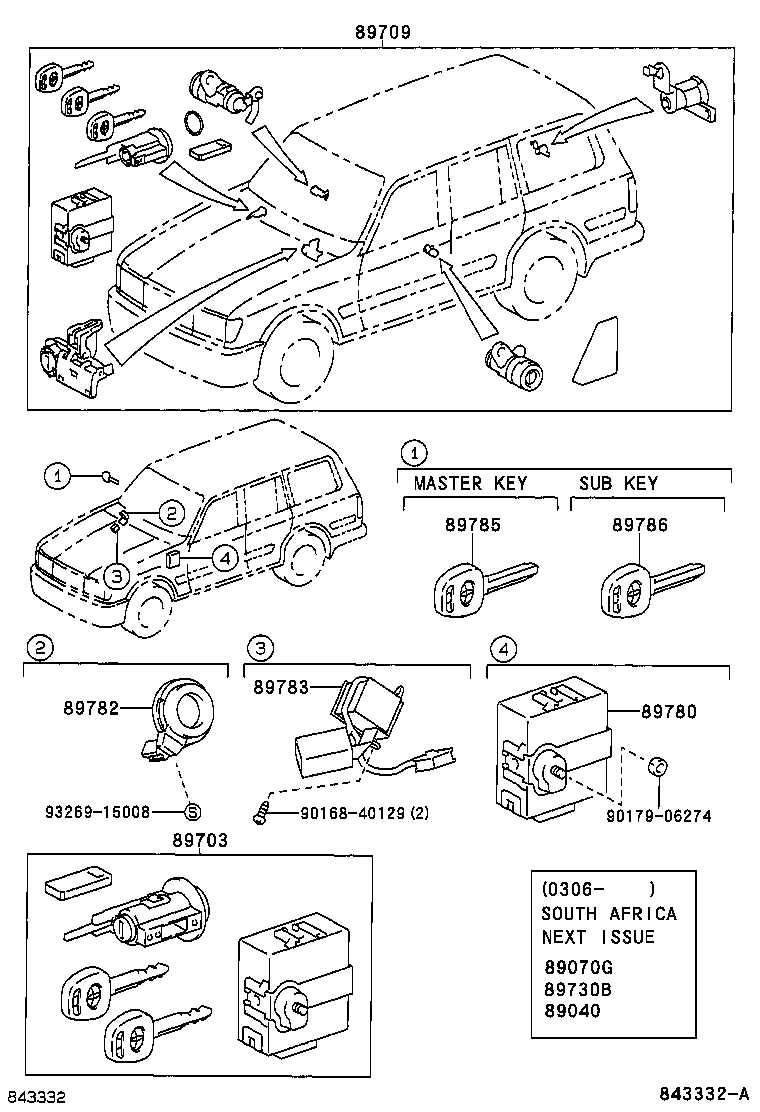

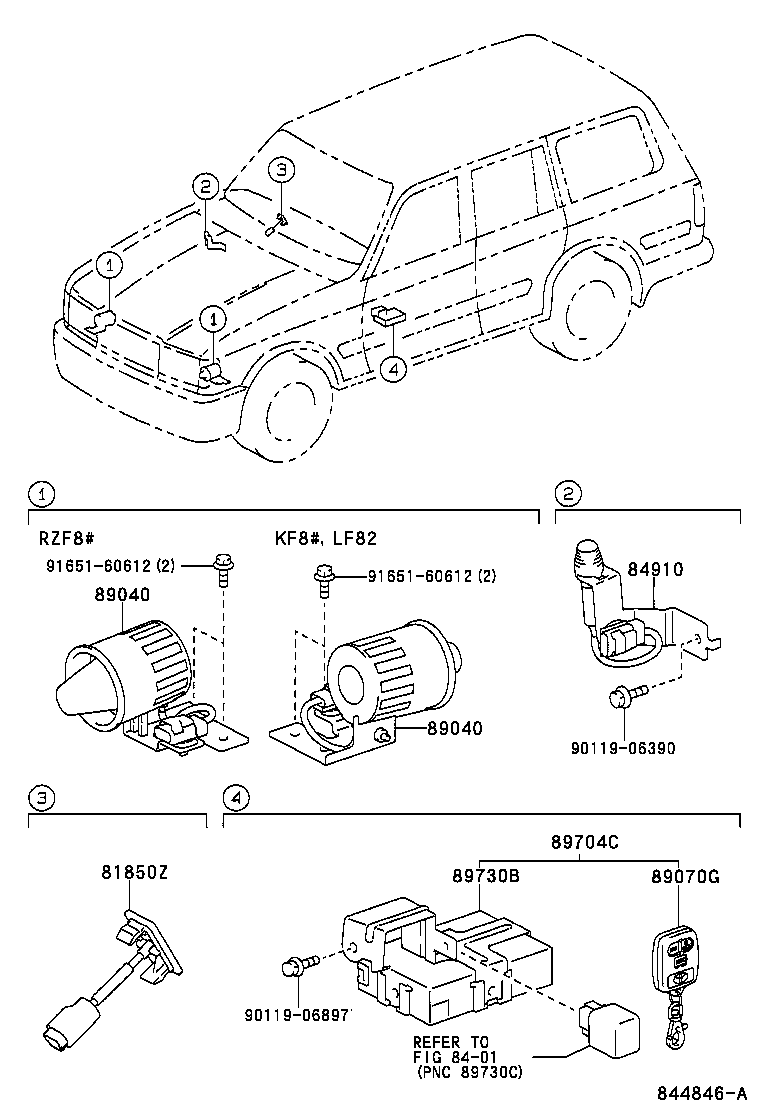

Anti-theft Device
15 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 81850Z | Lamp Assy, Theft Warning Indicator |
| 84910 | Switch Assy, Theft Warning Courtesy |
| 89040 | Siren Assy, Theft Warning |
| 89070G | Transmitter Assy, Door Control |
| 89702A | Computer Set, Transponder W/Valve Control |
| 89703 | Cylinder & Key Set, Ignition W/Transponder |
| 89704C | Wireless Door Lock Control Set |
| 89709 | Computer Set, Transponder Key |
| 89730B | Computer Assy, Theft Warning |
| 89780 | Computer Assy, Transponder Key |
| 89782 | Coil, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89785 | Transmitter, Transponder Key Master |
| 89786 | Transmitter, Transponder Key Sub |
| 89801 | Computer Set, Transponder Key Diesel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
