Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01

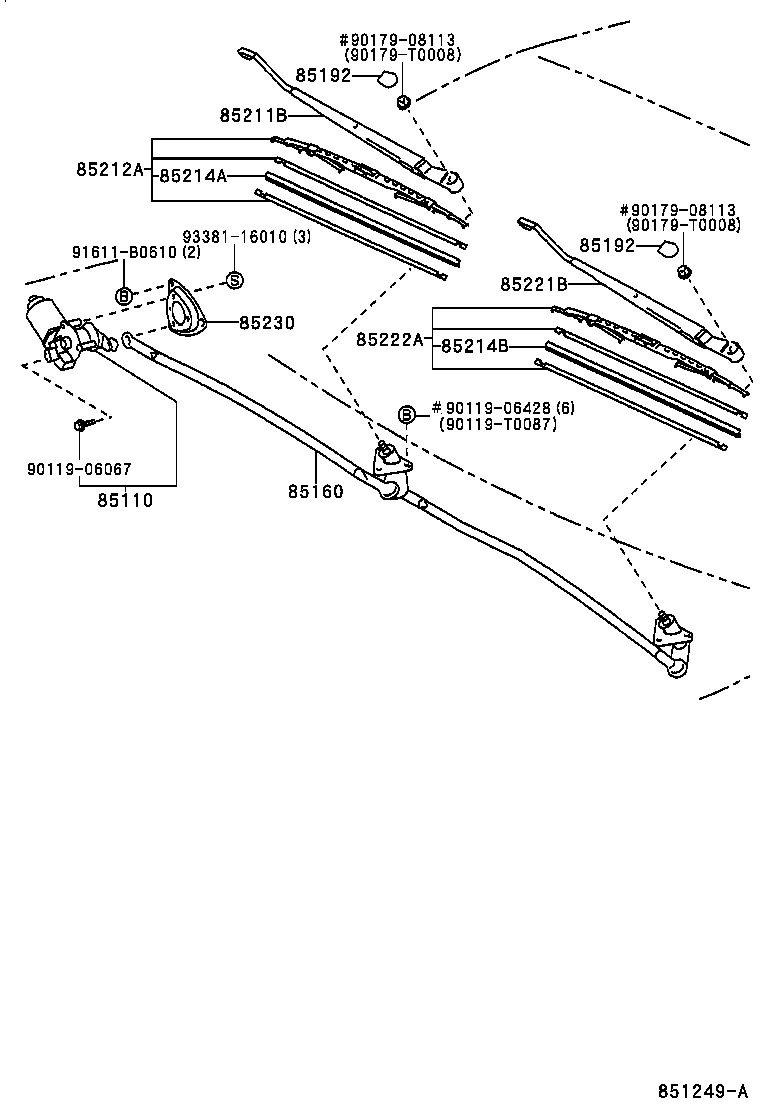

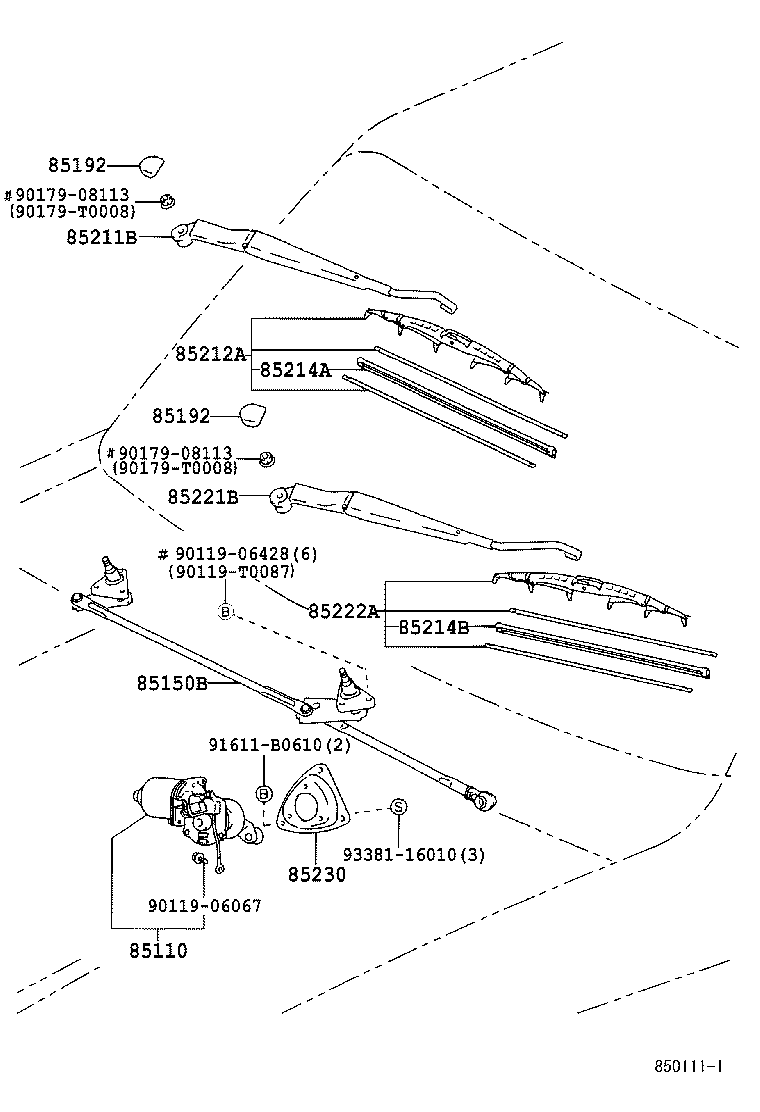

Windshield Wiper
11 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110 | Motor Assy, Windshield Wiper |
| 85150B | Link Assy, Wiper |
| 85160 | Link Assy, Windshield Wiper |
| 85192 | Cover, Windshield Wiper Arm |
| 85211B | Arm, Front Wiper, RH |
| 85212A | Blade, FR Wiper, RH |
| 85214A | Rubber, Wiper, RH |
| 85214B | Rubber, Wiper, LH |
| 85221B | Arm, Front Wiper, LH |
| 85222A | Blade, FR Wiper, LH |
| 85230 | Bracket Assy, Windshield Wiper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
