Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

15 part groups · 6 illustrations

Illustrations

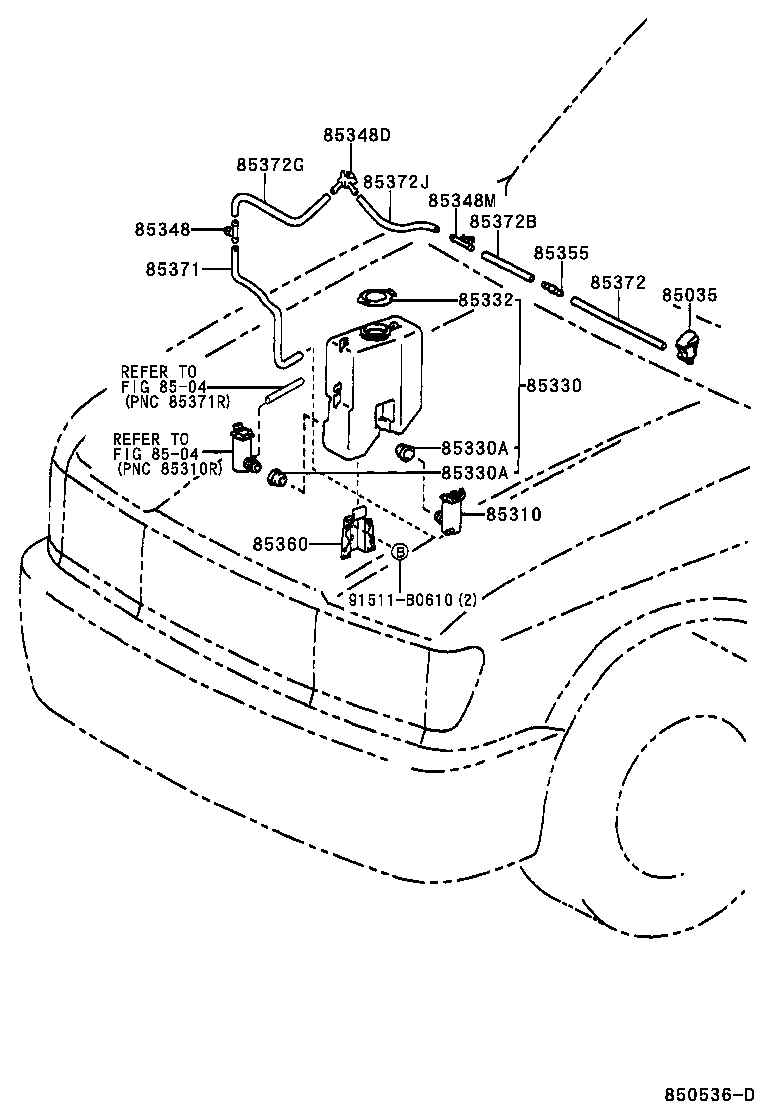

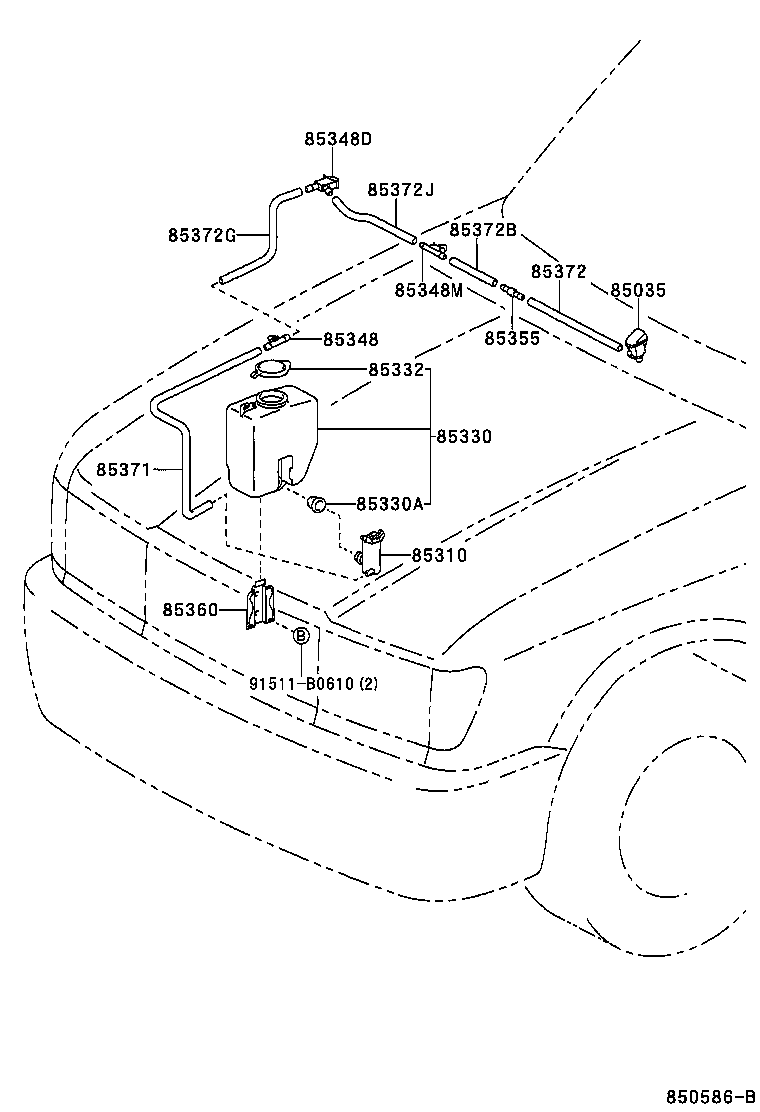

Figure 850112E 850112E 1996-12 → — Figure 850112E 850112E 1998-04 → — Figure 850112E 850112E 2000-04 → — Figure 850536D 850536D 1998-10 → — Figure 850536D 850536D 1999-02 → — Figure 850586B 850586B 1999-02 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85348M Joint, Windshield Washer Hose, NO.3
85355 Valve, Windshield Washer Hose
85360 Bracket Assy, Windshield Washer
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372G Tube, Rubber
85372J Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
