Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01

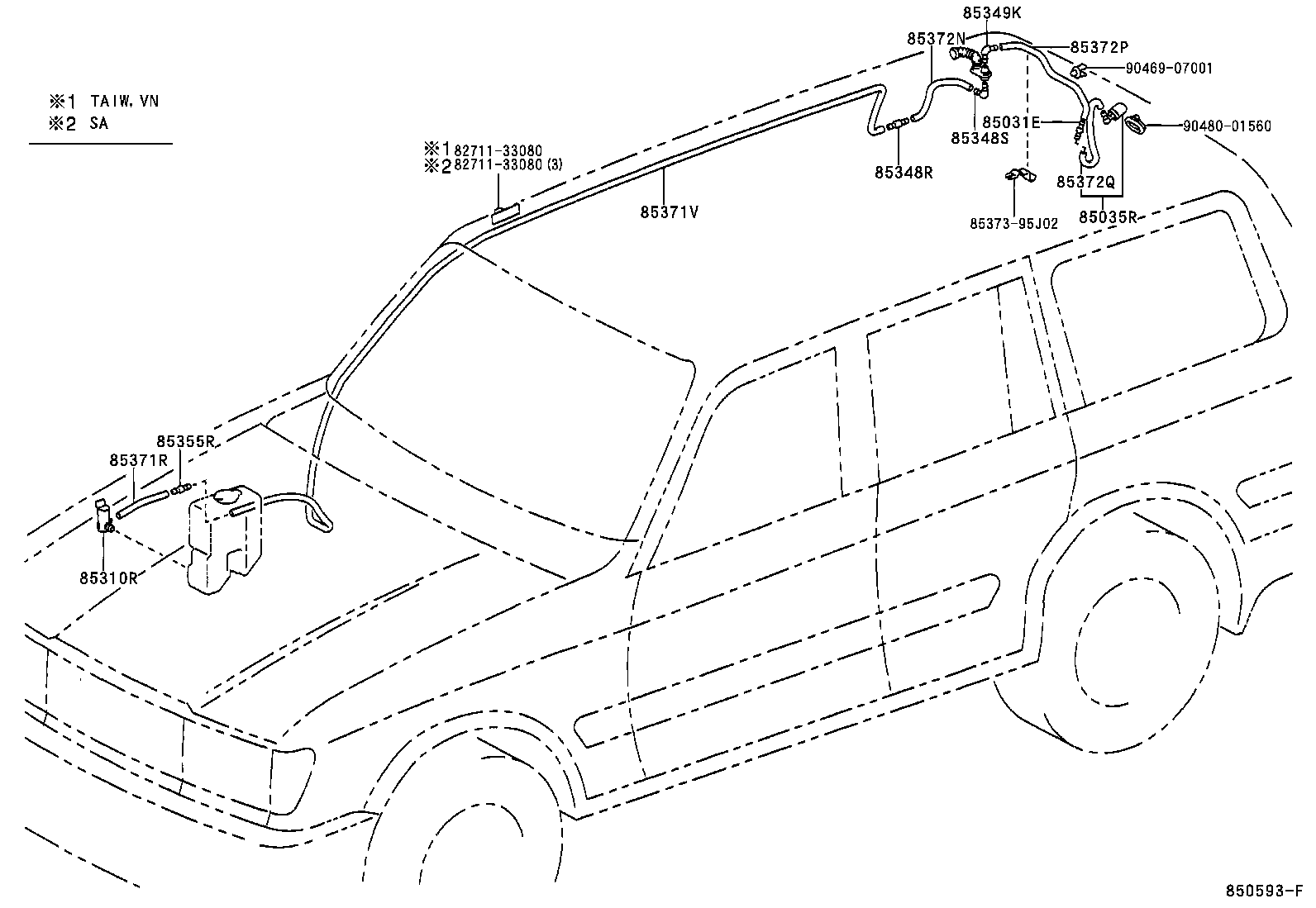

Rear Washer
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031E | Valve Sub-assy Rear Washer, NO.2 |
| 85035R | Nozzle Sub-assy, Rear Washer |
| 85310R | Motor Assy, Rear Washer |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348S | Joint, Rear Washer Elbow, NO.1 |
| 85349K | Joint, Rear Washer Elbow, NO.2 |
| 85355R | Valve, Rear Washer Hose |
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 85371V | Hose, Rear Washer (FROM JOINT TO JOINT) |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372P | Hose, Rear Washer (FROM JOINT TO JOINT), NO.2 |
| 85372Q | Hose, Rear Washer (FROM JOINT TO JOINT), NO.3 |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
| 85374B | Hose,Windshield Washer (FROM JOINT TO JOINT NO.1) |
| 85374C | Hose,Windshield Washer (FROM JOINT TO JOINT NO.2) |
| 85374R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
