Heating & Air Conditioning - Heater Unit & Blower

18 part groups · 9 illustrations

Illustrations

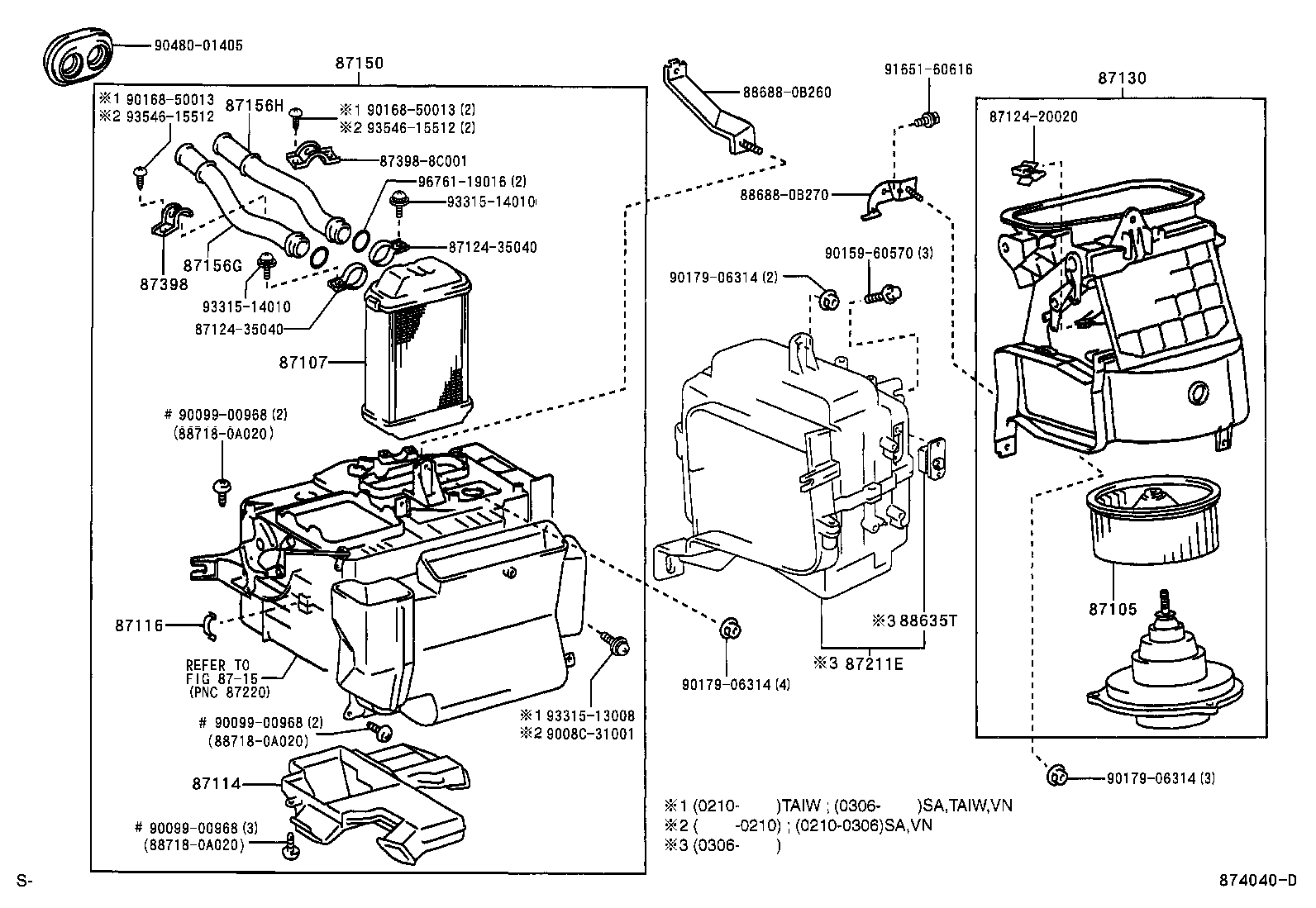

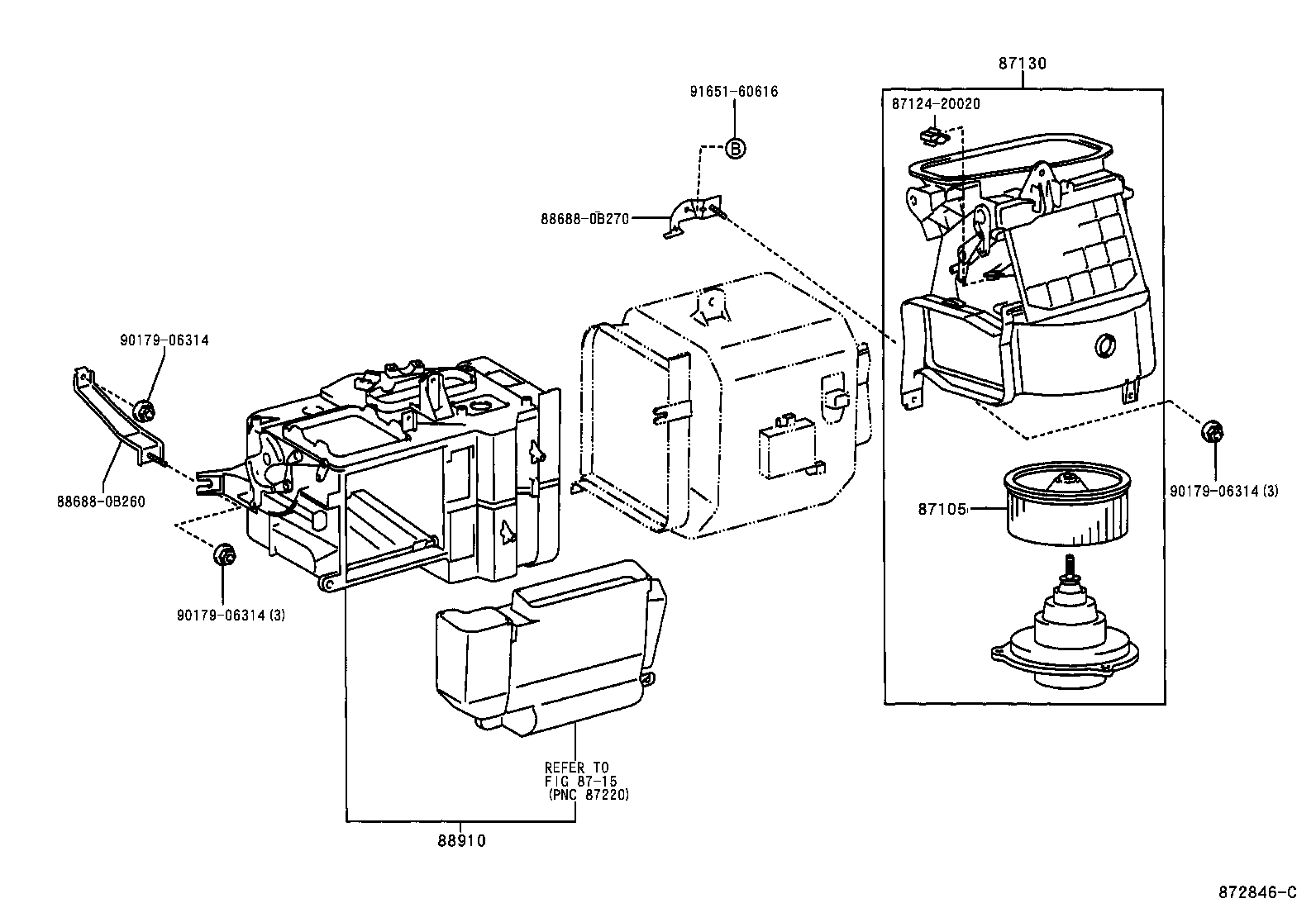

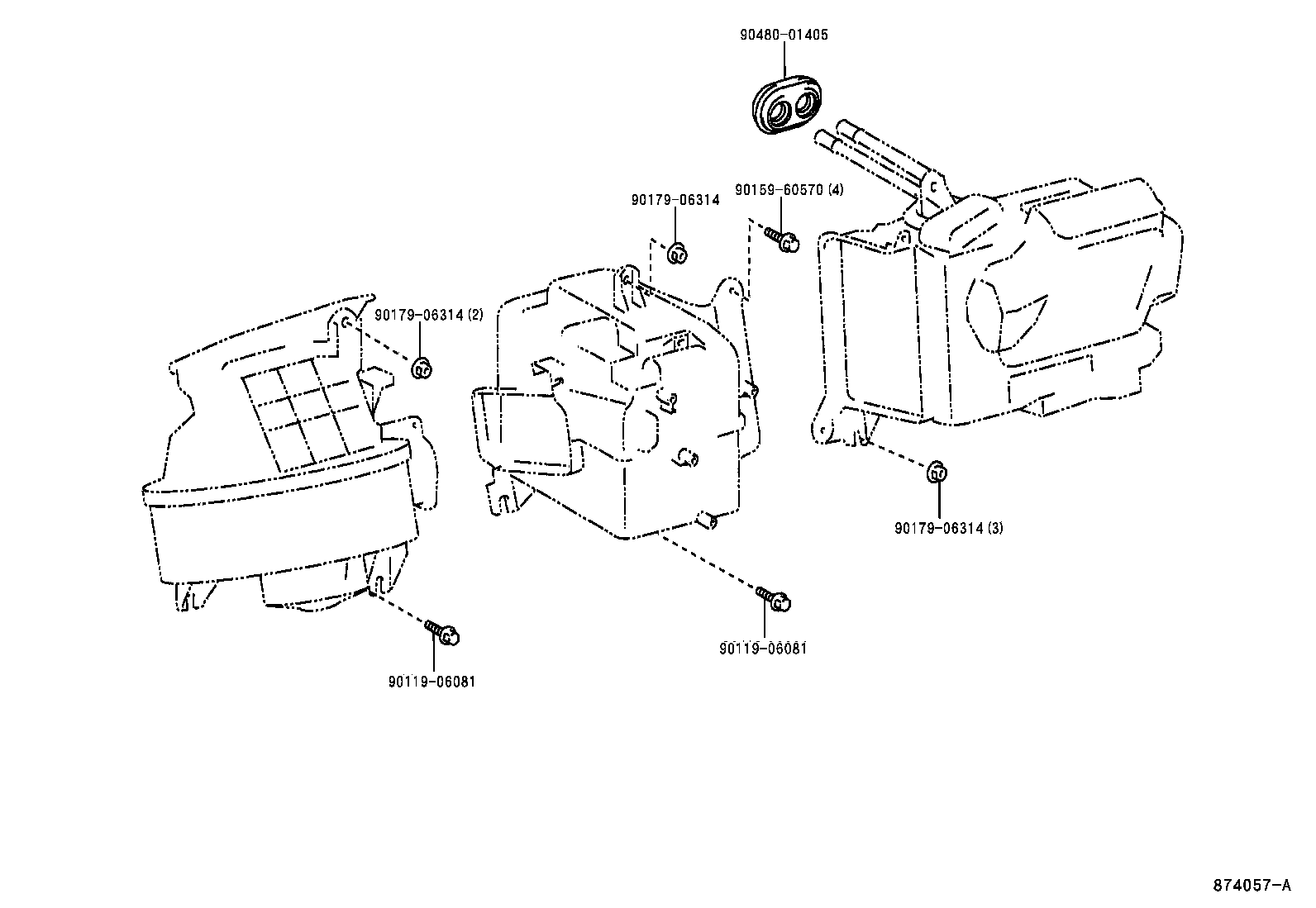

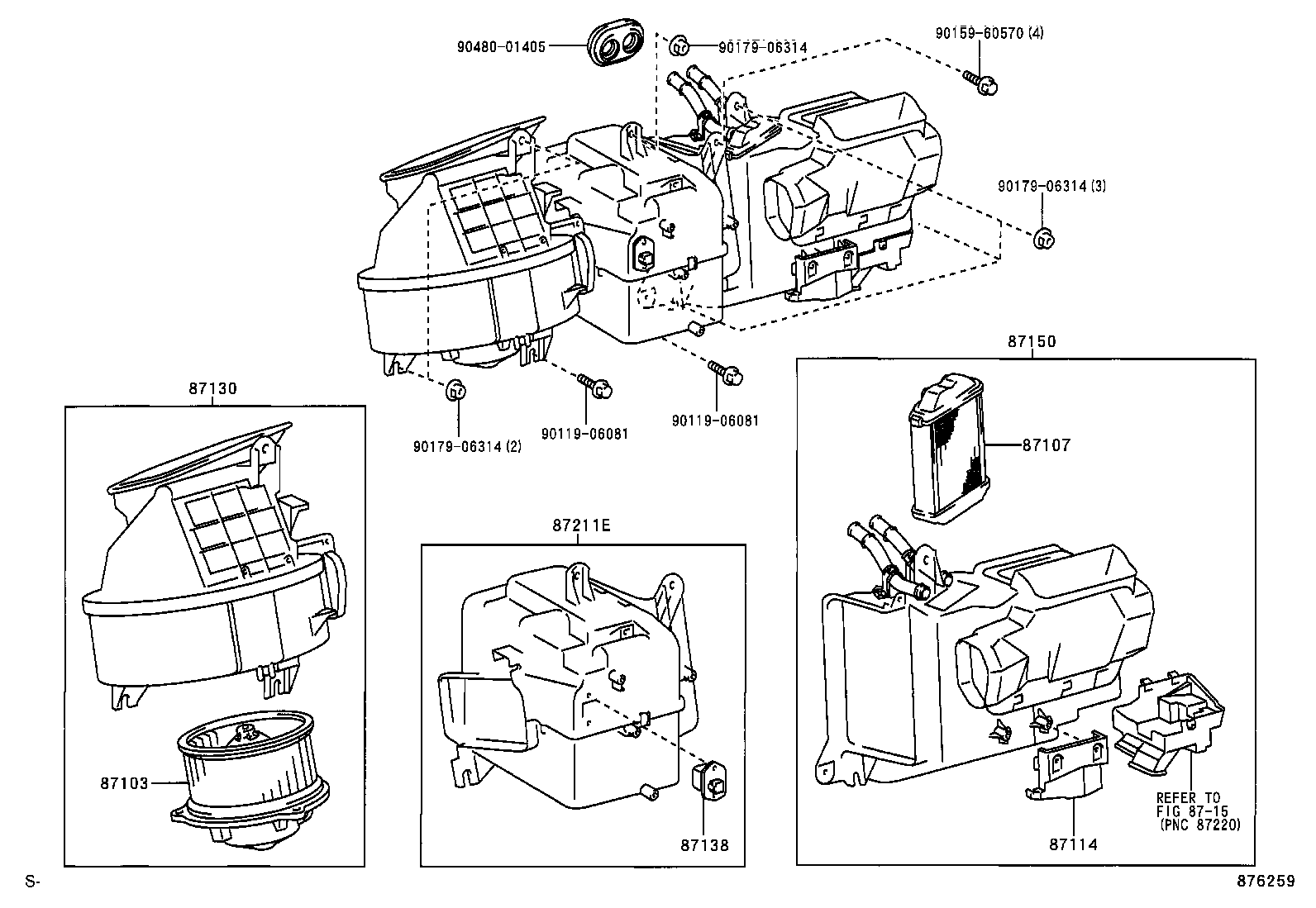

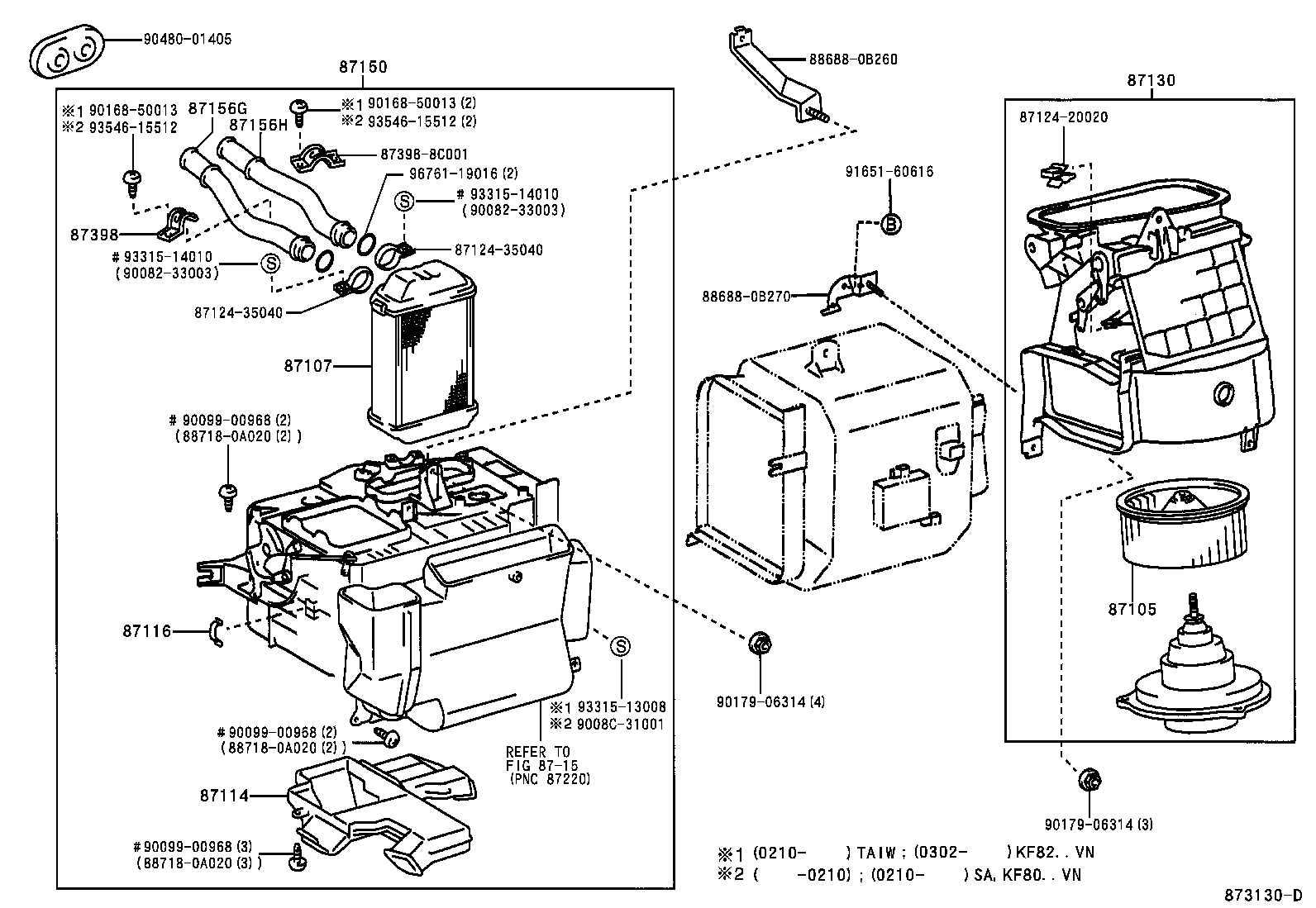

Figure 870844C 870844C 1996-12 → 1998-04 Figure 870844C 870844C 1998-04 → — Figure 872846C 872846C 1998-10 → — Figure 873130D 873130D 1999-02 → — Figure 873130D 873130D 2001-04 → — Figure 873130D 873130D 2003-06 → — Figure 874040D 874040D 2000-04 → — Figure 874057A 874057A 2000-04 → 2003-06 Figure 876259 876259 2003-06 → —

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87114 Cover, Heater
87116 Spring, Heater Case Fastening
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87156G Pipe, Heater Water, NO.1
87156H Pipe, Heater Water, NO.2
87211E Duct, Air
87398 Band Assy (FOR COMBUSTION HEATER)
88502B Case Sub-assy, Cooling Unit
88504B Case Sub-assy, Blower
88504C Case Sub-assy, Blower
88550J Motor Assy, Blower
88635T Resistor, Blower
88910 Ventilator Assy, Boost
