Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

43 part groups · 13 illustrations

Illustrations

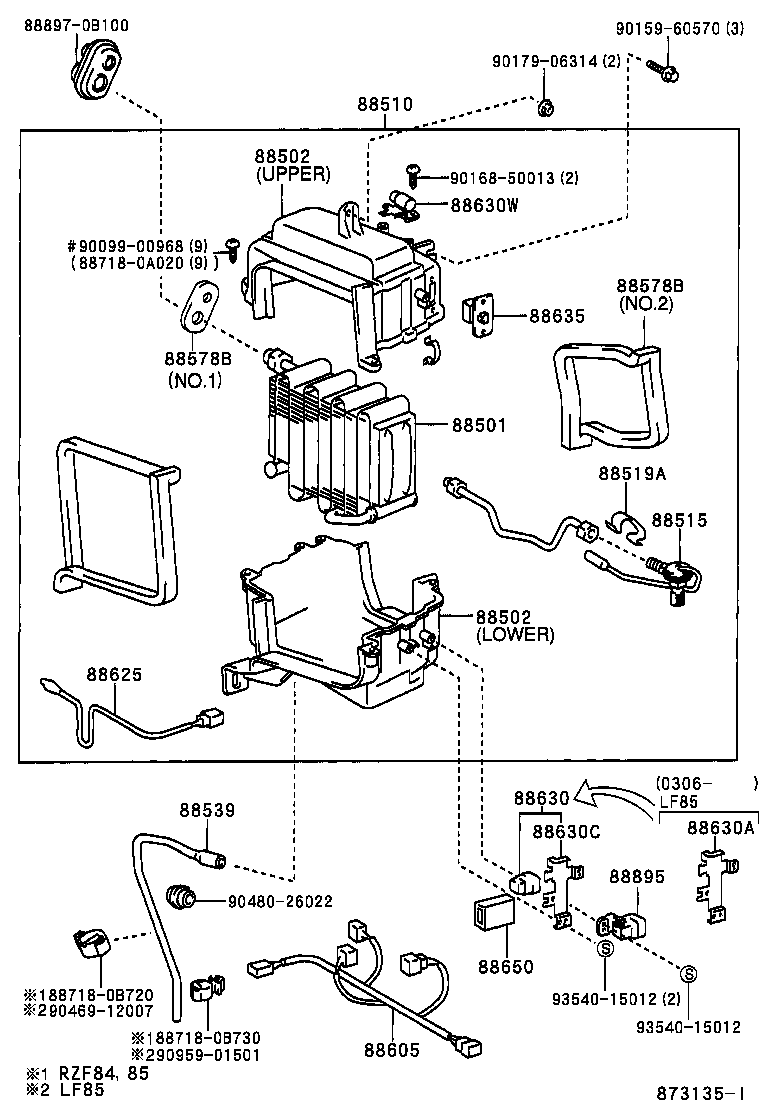

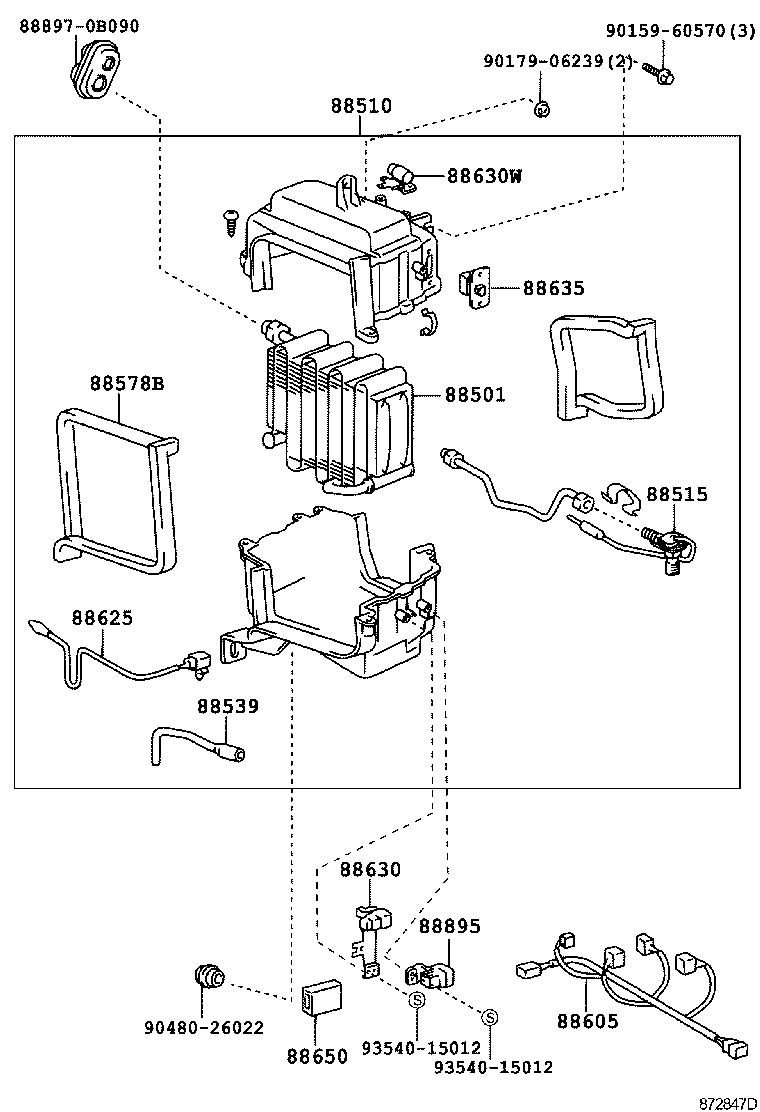

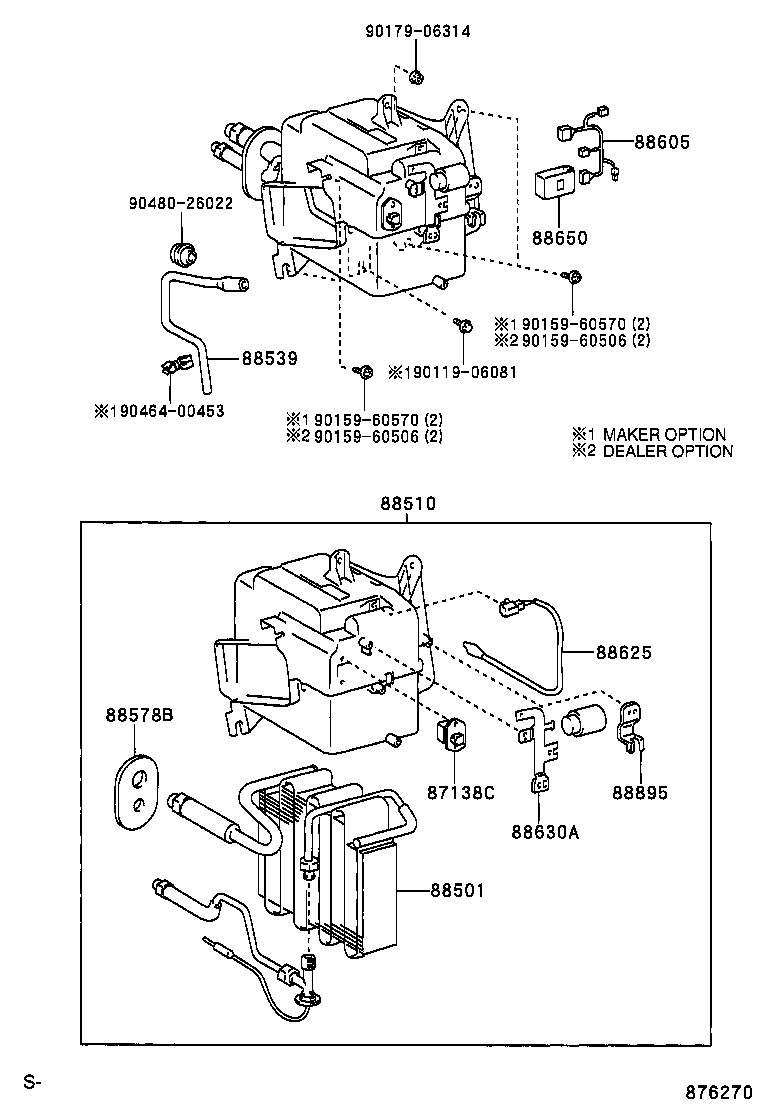

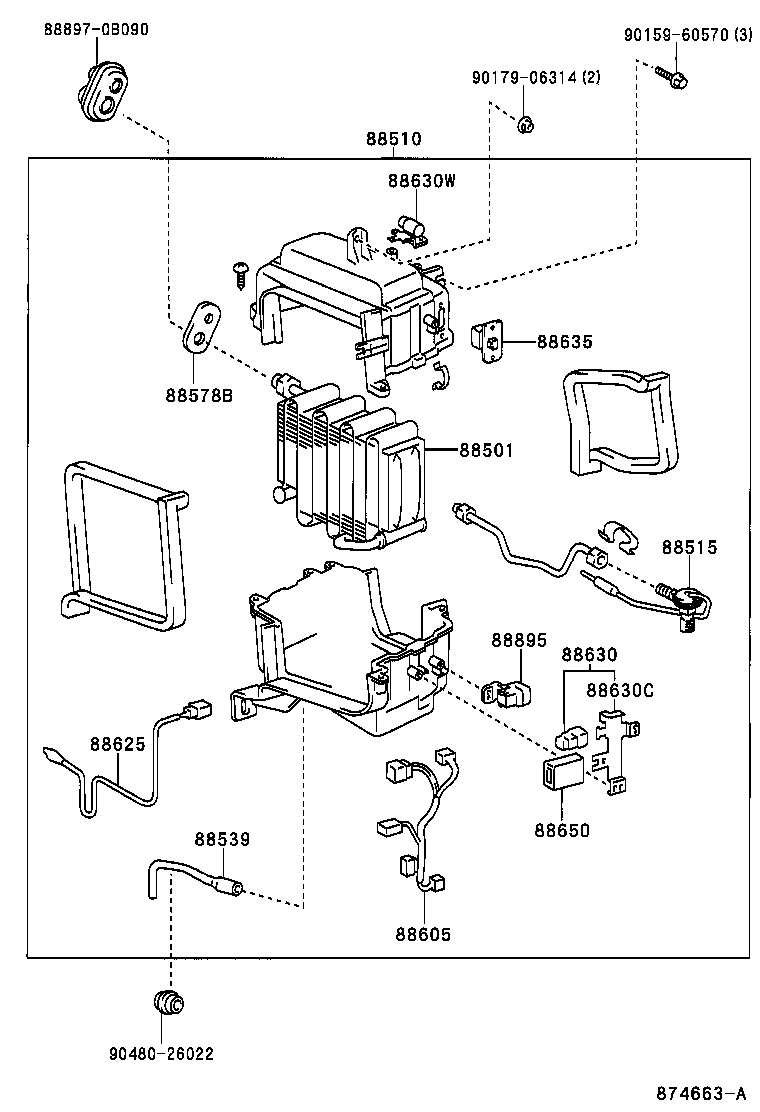

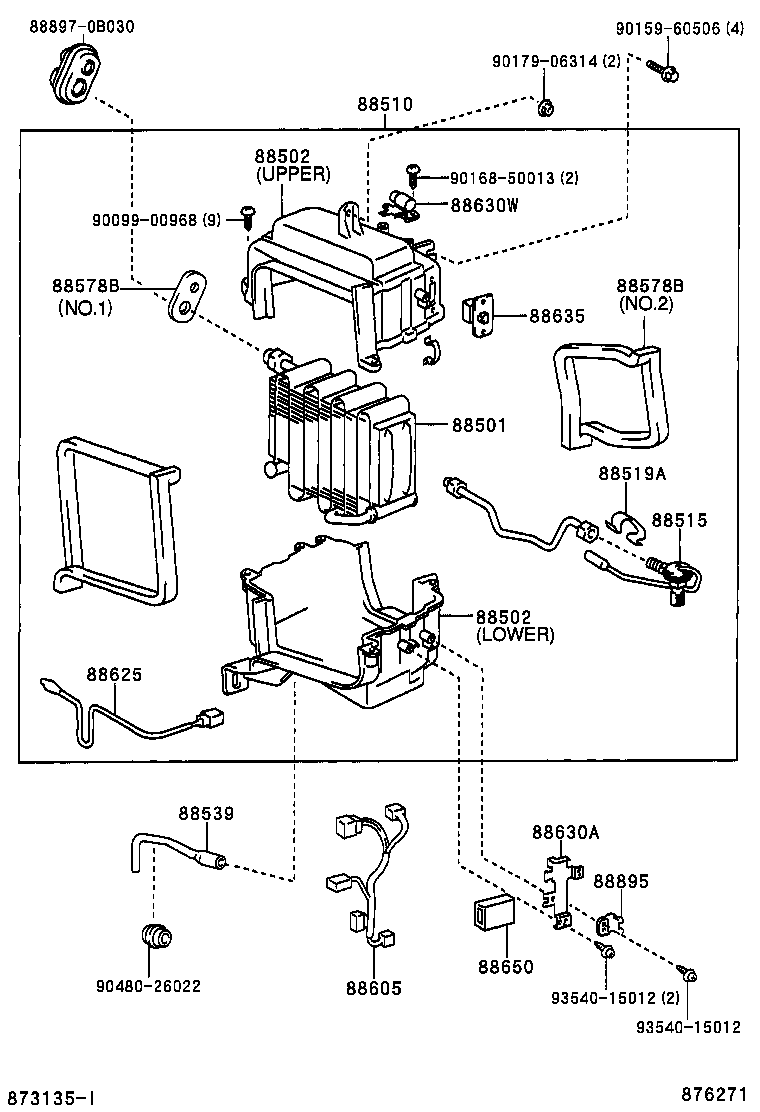

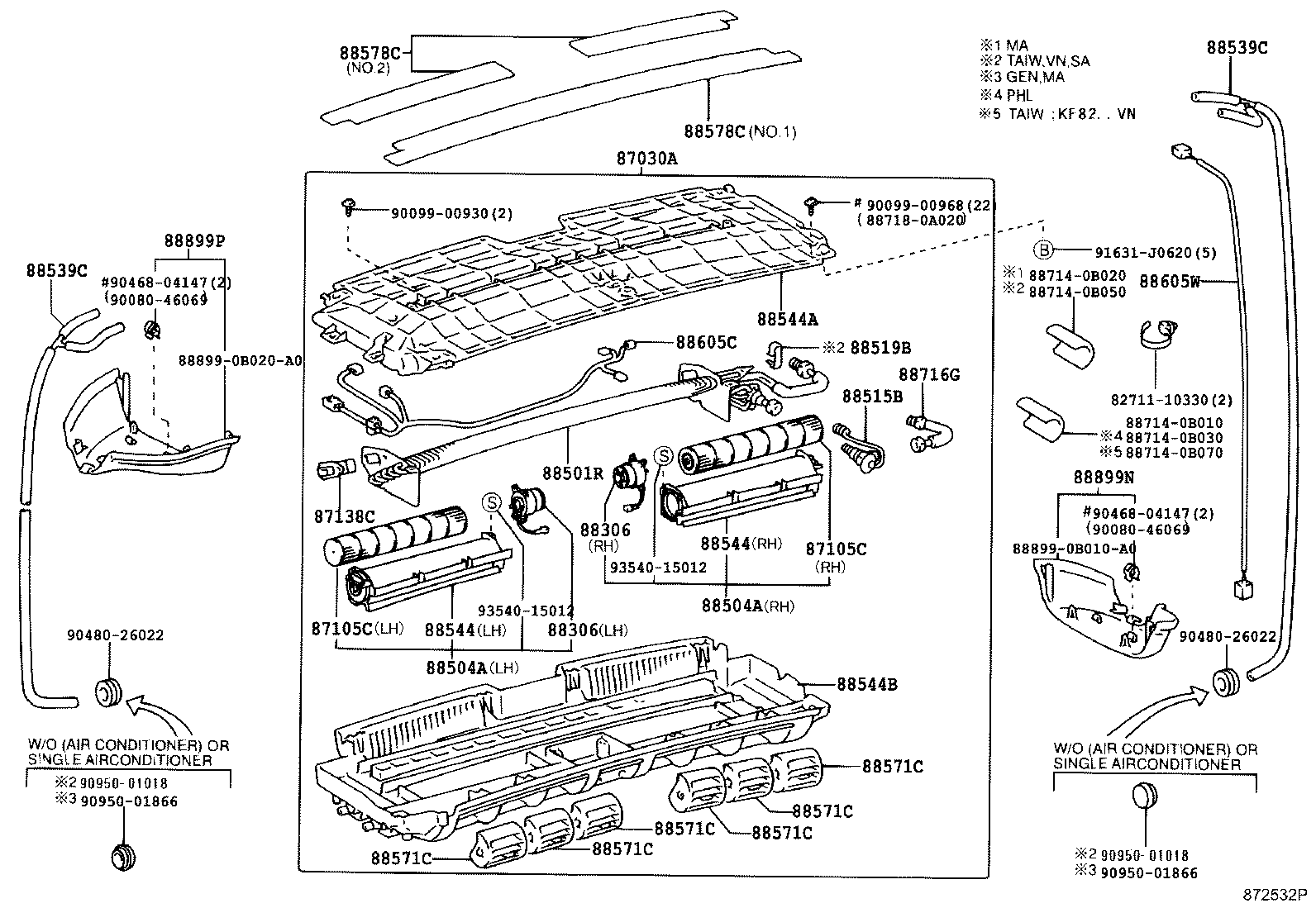

Figure 872531G 872531G 1996-12 → 2003-06 Figure 872531G 872531G 1996-12 → — Figure 872531G 872531G 2003-06 → — Figure 872847D 872847D 1998-10 → 2001-02 Figure 873135I 873135I 1999-02 → — Figure 873135I 873135I 2001-04 → — Figure 874045 874045 2000-04 → 2003-06 Figure 874663A 874663A 2001-02 → 2002-11 Figure 874663A 874663A 2002-11 → — Figure 876271 876271 2003-06 → — Figure 876270 876270 2003-06 → — Figure 872532P 872532P 1996-12 → — Figure 871103B 871103B 1996-12 → —

Part groups

PNCDescription
87030A Unit Assy, Cooling, Rear
87105C Fan Sub-assy, Blower, Rear
87138C Resistor, Blower
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88371 Fan, Cooler Blower, NO.2
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88502 Case Sub-assy, Cooling Unit
88504 Case Sub-assy, Cooler Blower
88504A Case Sub-assy, Blower
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88519A Holder, Remote Bulb, Parts
88519B Holder, Remote Bulb, Parts
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88544 Case, Cooler Blower
88544A Case, Cooler Blower, Upper
88544B Case, Cooler Blower, Lower
88550B Motor Assy, Blower
88571C Grille, Cooler Air Outlet
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88605W Harness Sub-assy, Wiring Air Conditioner
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88630C Bracket, Cooler Relay
88630V Relay Assy
88630W Relay Assy
88635 Resistor, Cooler Unit Blower
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
88716G Pipe, Cooler Refrigerant Liquid, G
88717F Pipe, Cooler Refrigerant Suction, F
88895 Holder, Fuse
88899N Plate, Cover
88899P Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
