Heating & Air Conditioning - Control & Air Duct

22 part groups · 11 illustrations

Illustrations

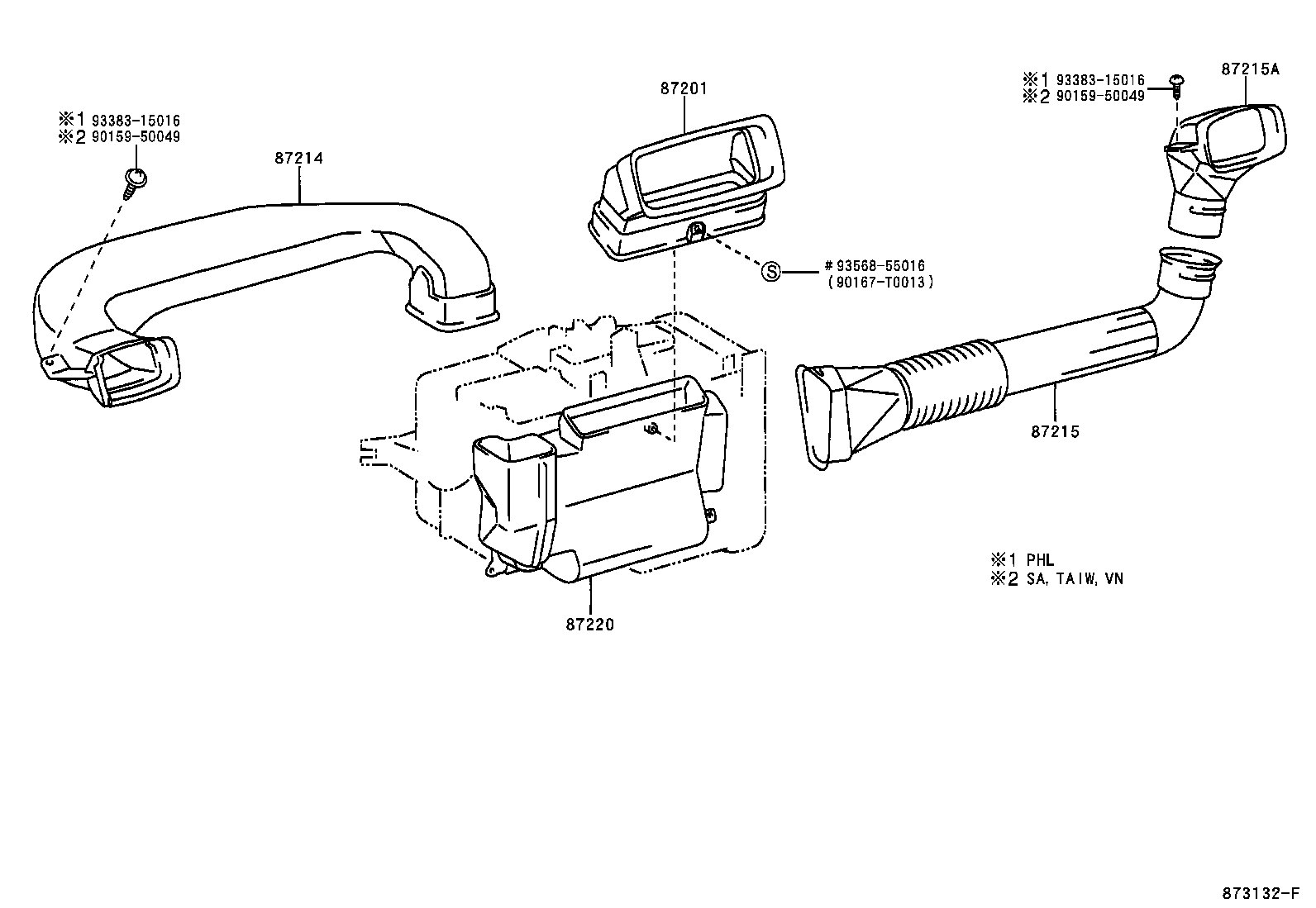

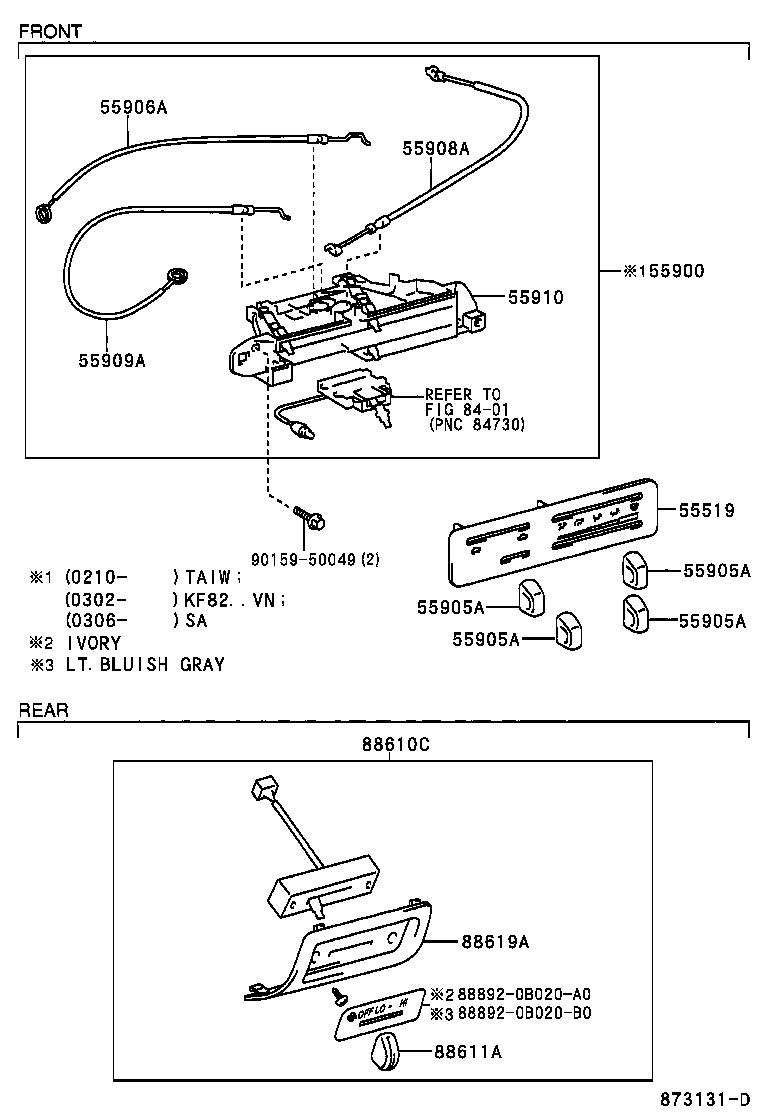

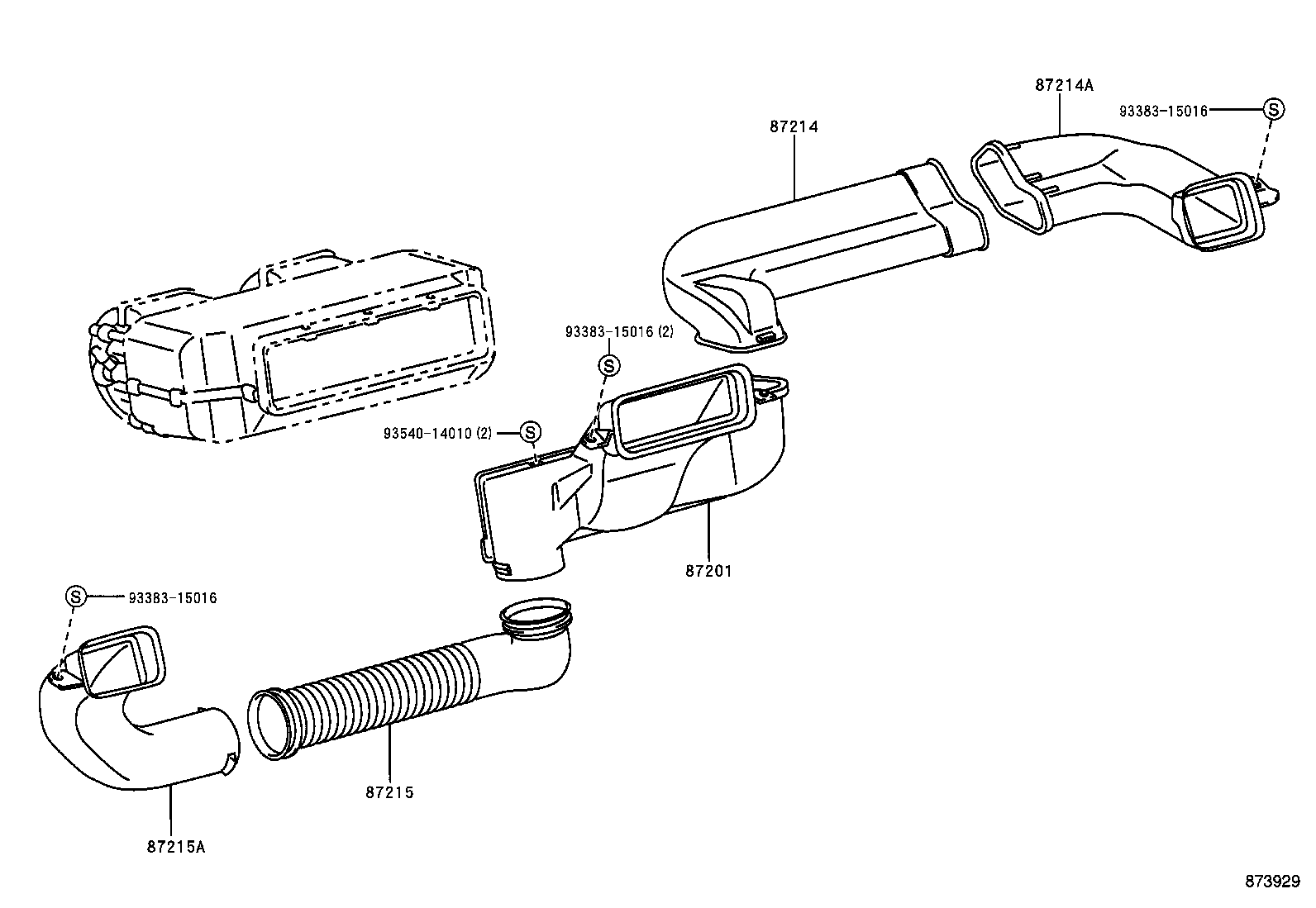

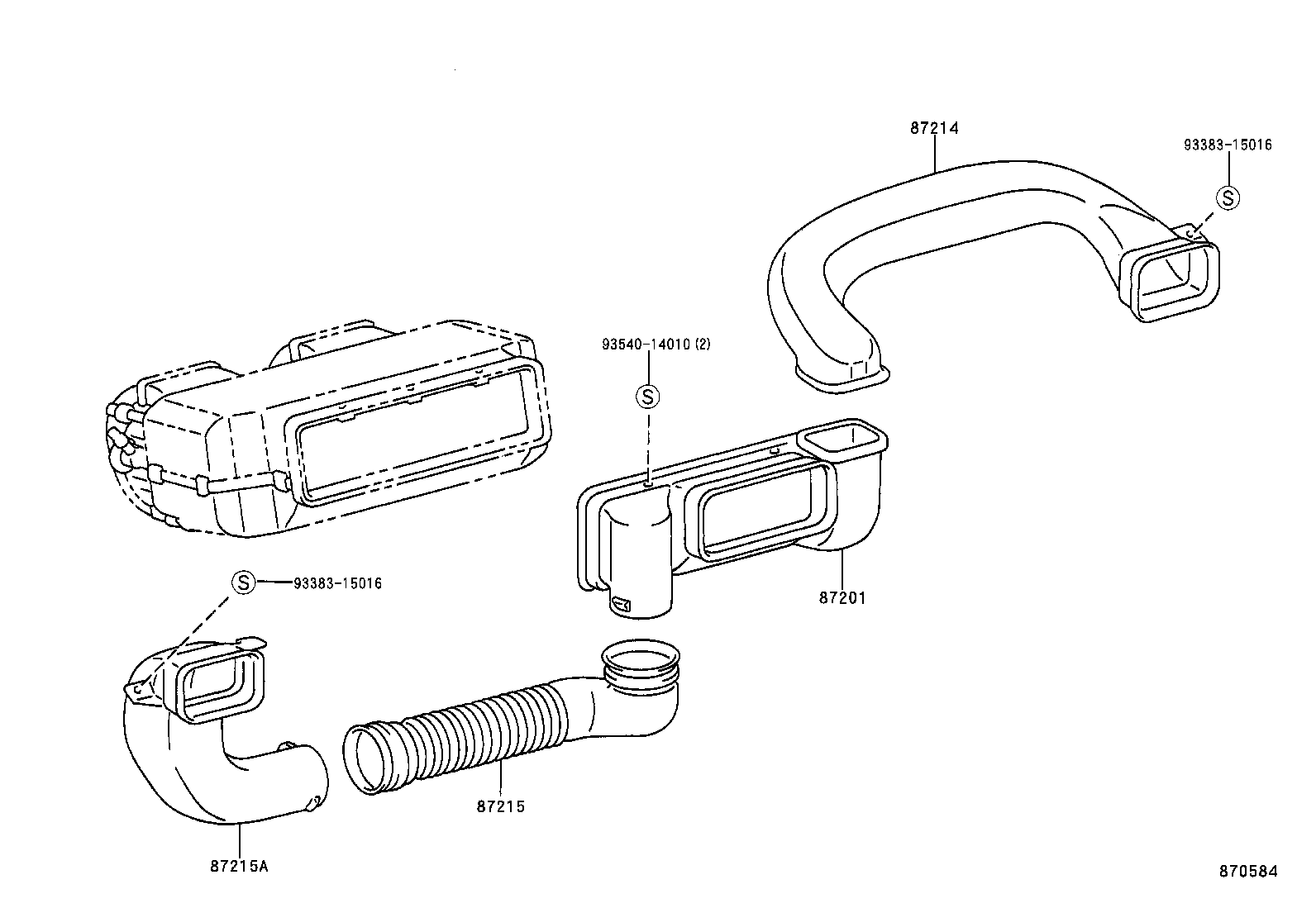

Figure 870760J 870760J 1996-12 → — Figure 872848D 872848D 1998-10 → — Figure 873131D 873131D 1999-02 → — Figure 873131D 873131D 2000-04 → — Figure 874051 874051 2000-04 → — Figure 870584 870584 1996-12 → 2000-01 Figure 870584 870584 2000-01 → 2001-03 Figure 873132F 873132F 1998-10 → — Figure 873929 873929 2000-01 → — Figure 873929 873929 2001-03 → — Figure 874050A 874050A 2000-04 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55845A Duct, Heater TO Register, NO.3
55846B Duct, Heater TO Register, NO.4
55900 Control Assy, Air Conditioner
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55916A Lever, Cooler Control
87201 Duct Sub-assy, Air, NO.1
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87220 Duct Assy, Air
87284 Resistor Sub-assy, Variable
88600B Panel Assy, Control
88604F Panel Sub-assy, Cooler Control
88610C Switch Assy, Cooler Control
88611A Knob, Cooler Control Switch
88619A Panel, Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
