Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 6 illustrations

Illustrations

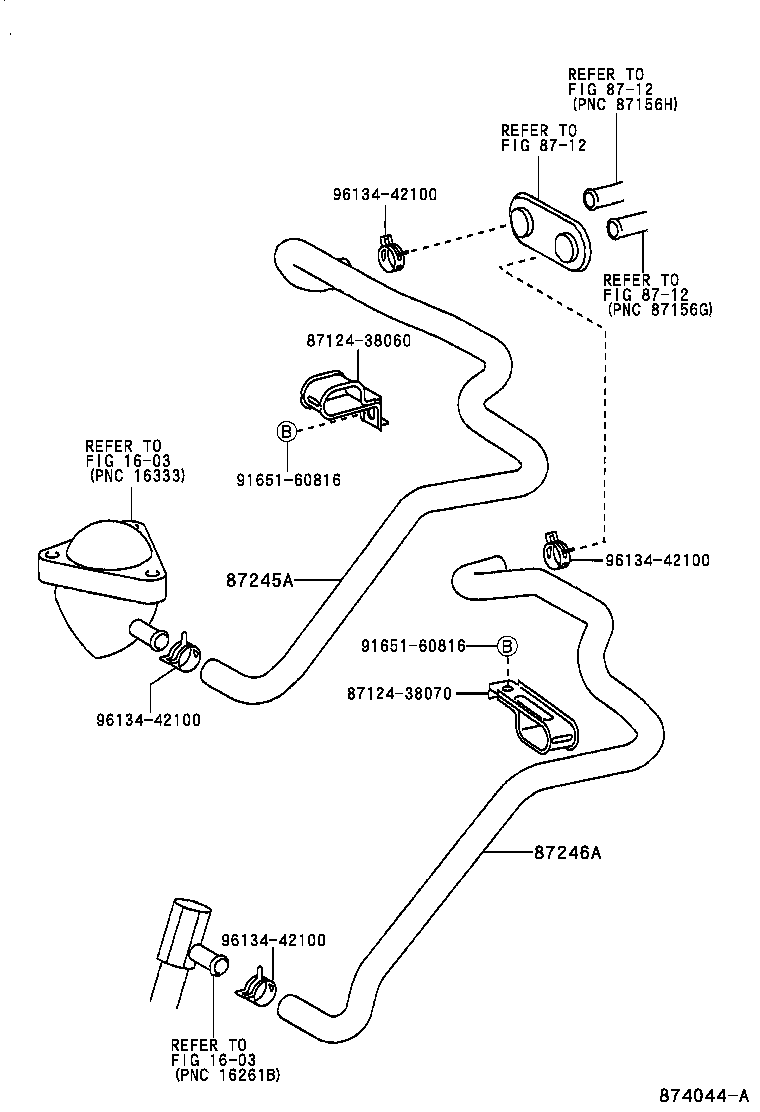

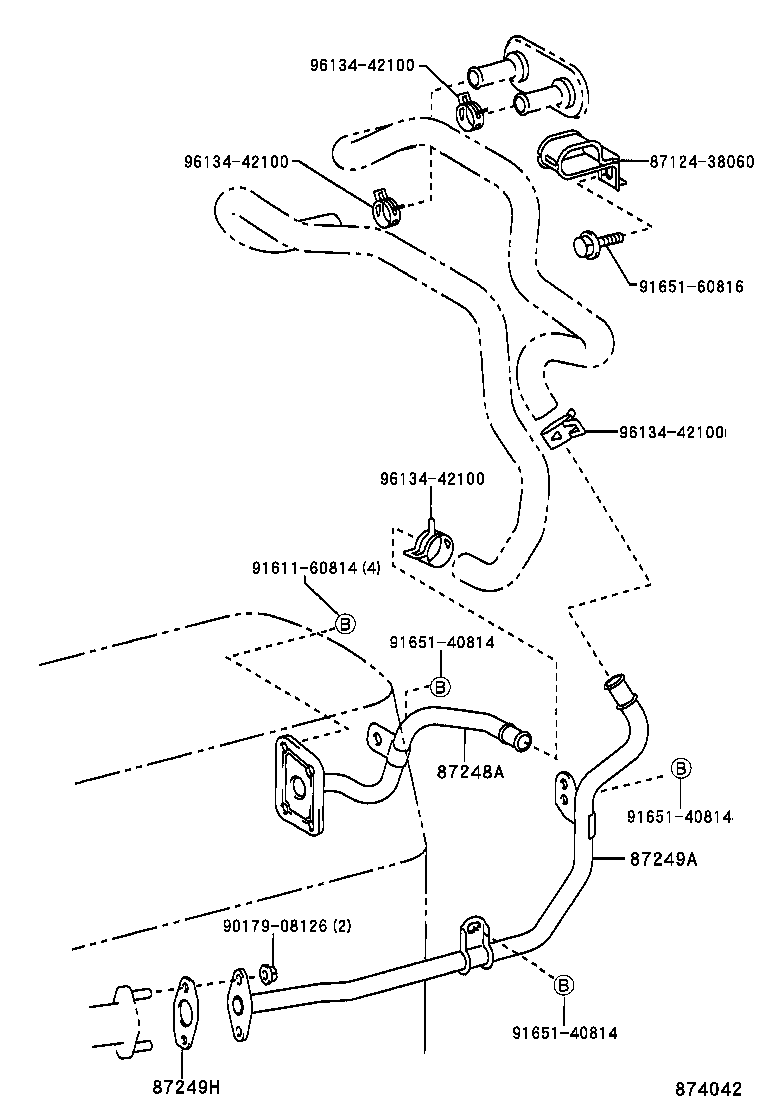

Figure 873133A 873133A 1999-02 → — Figure 873702A 873702A 1999-11 → — Figure 874041 874041 2000-04 → — Figure 874042 874042 2000-04 → — Figure 874043A 874043A 2000-04 → — Figure 874044A 874044A 2000-04 → —

Part groups

PNCDescription
87245A Hose, Heater Water, Inlet A
87246A Hose, Heater Water, Outlet A
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87249H Gasket, Water Outlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
