1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

26 part groups · 8 illustrations

Illustrations

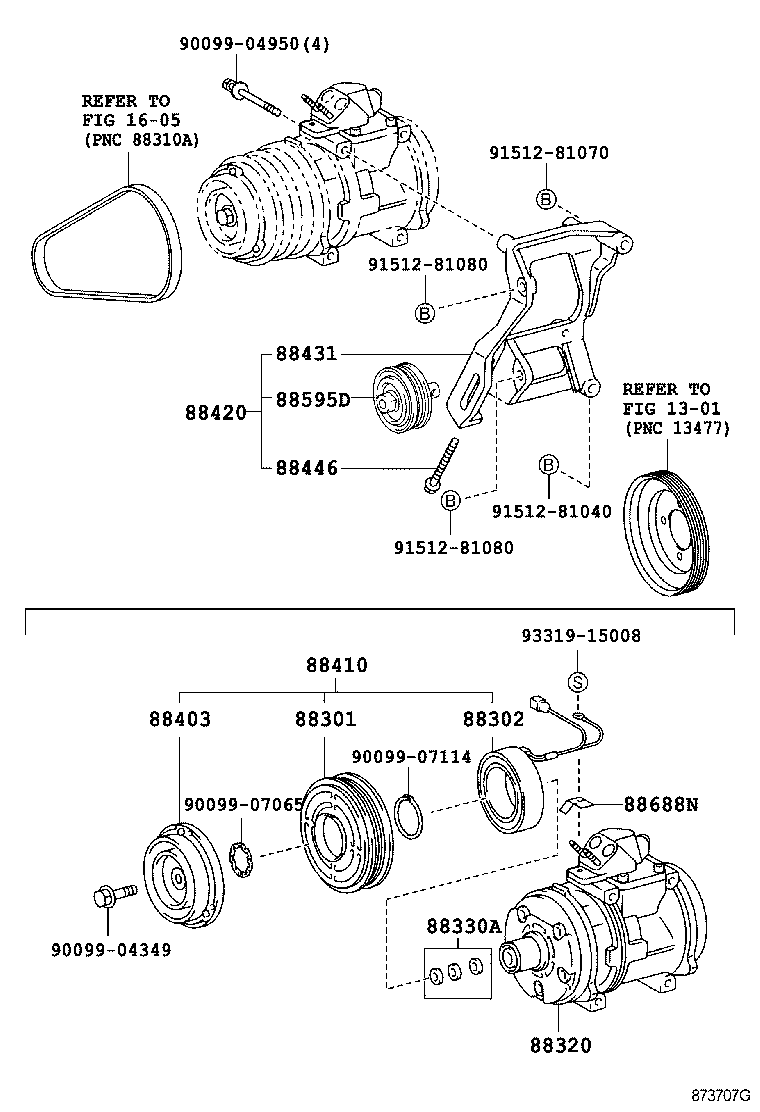

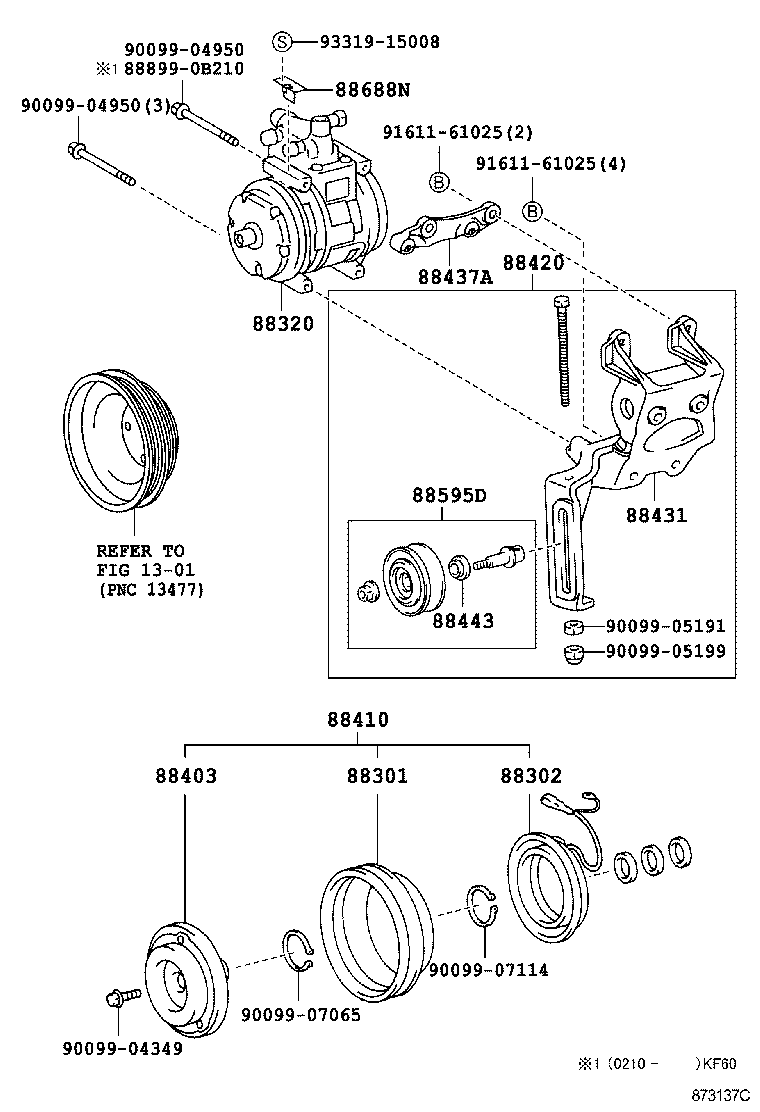

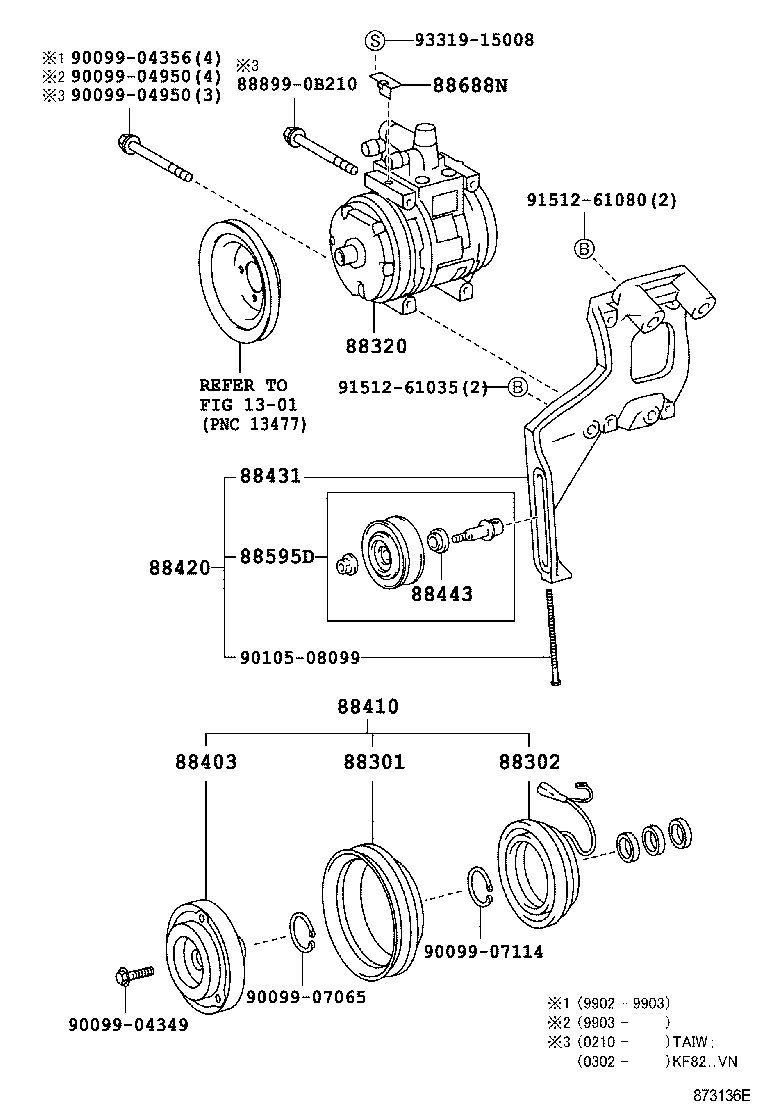

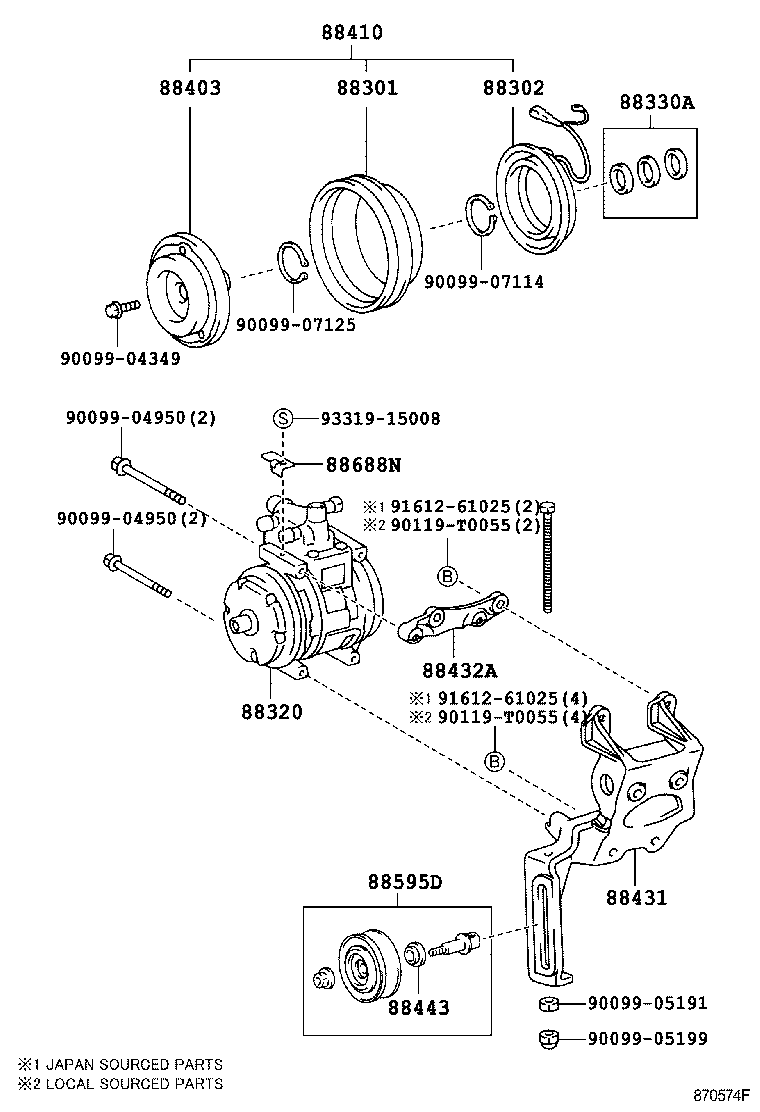

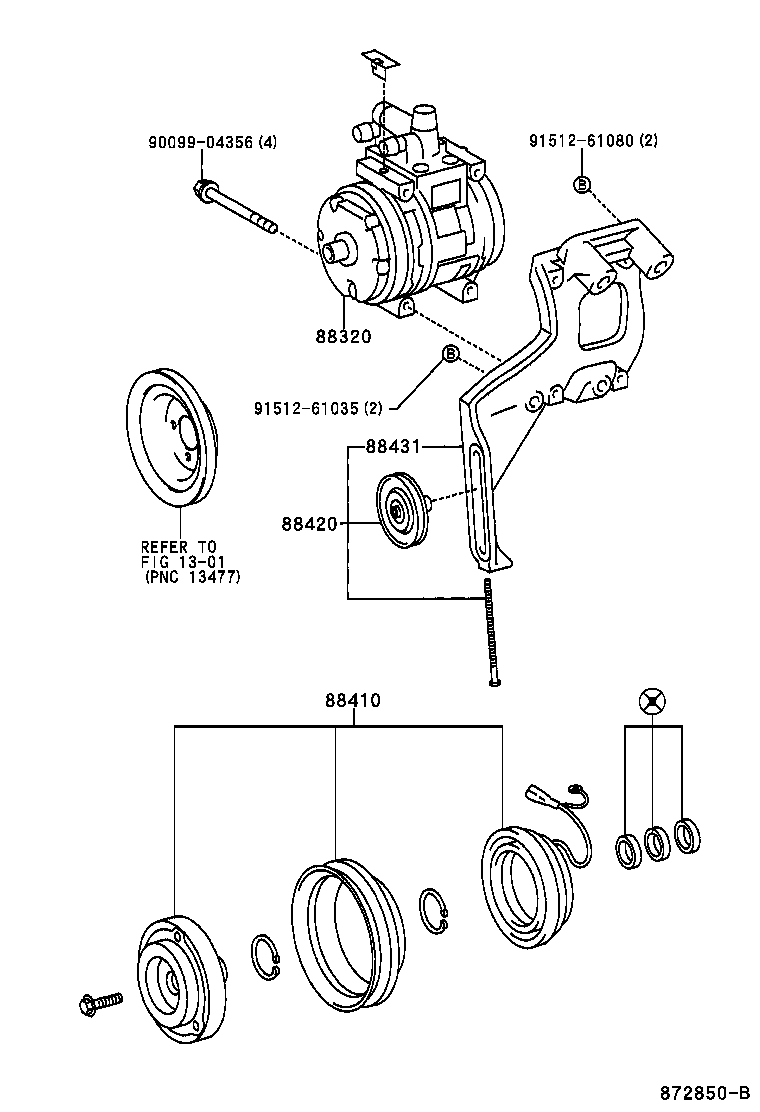

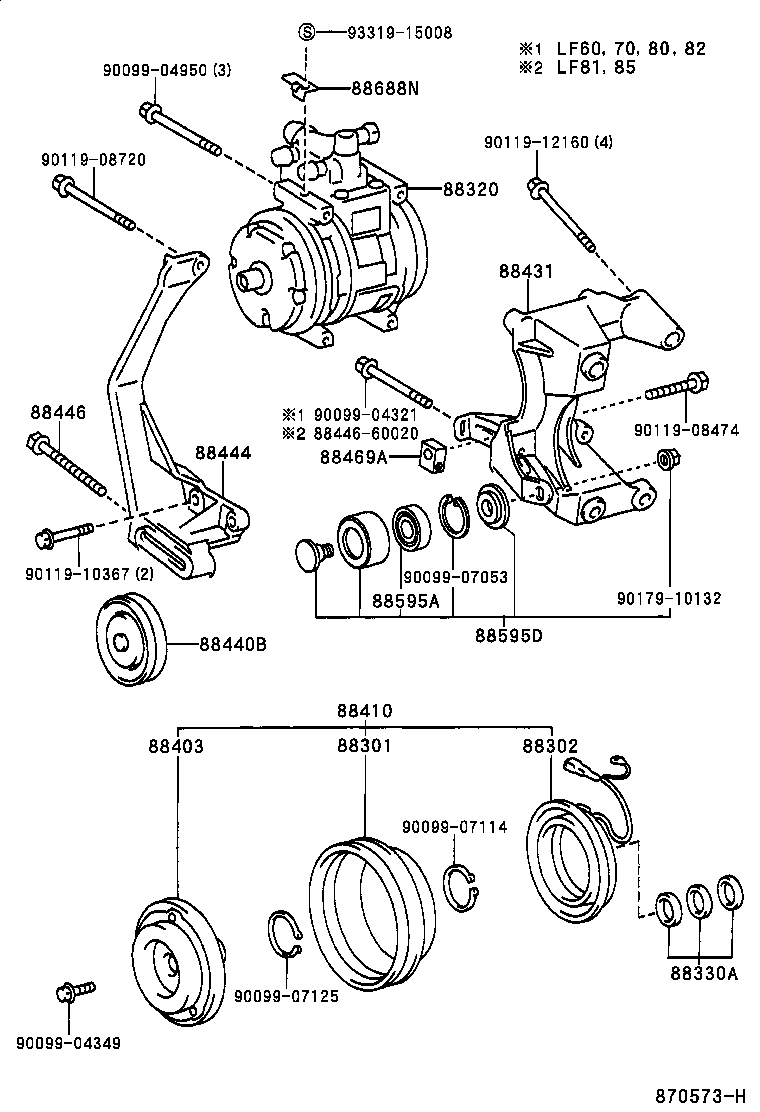

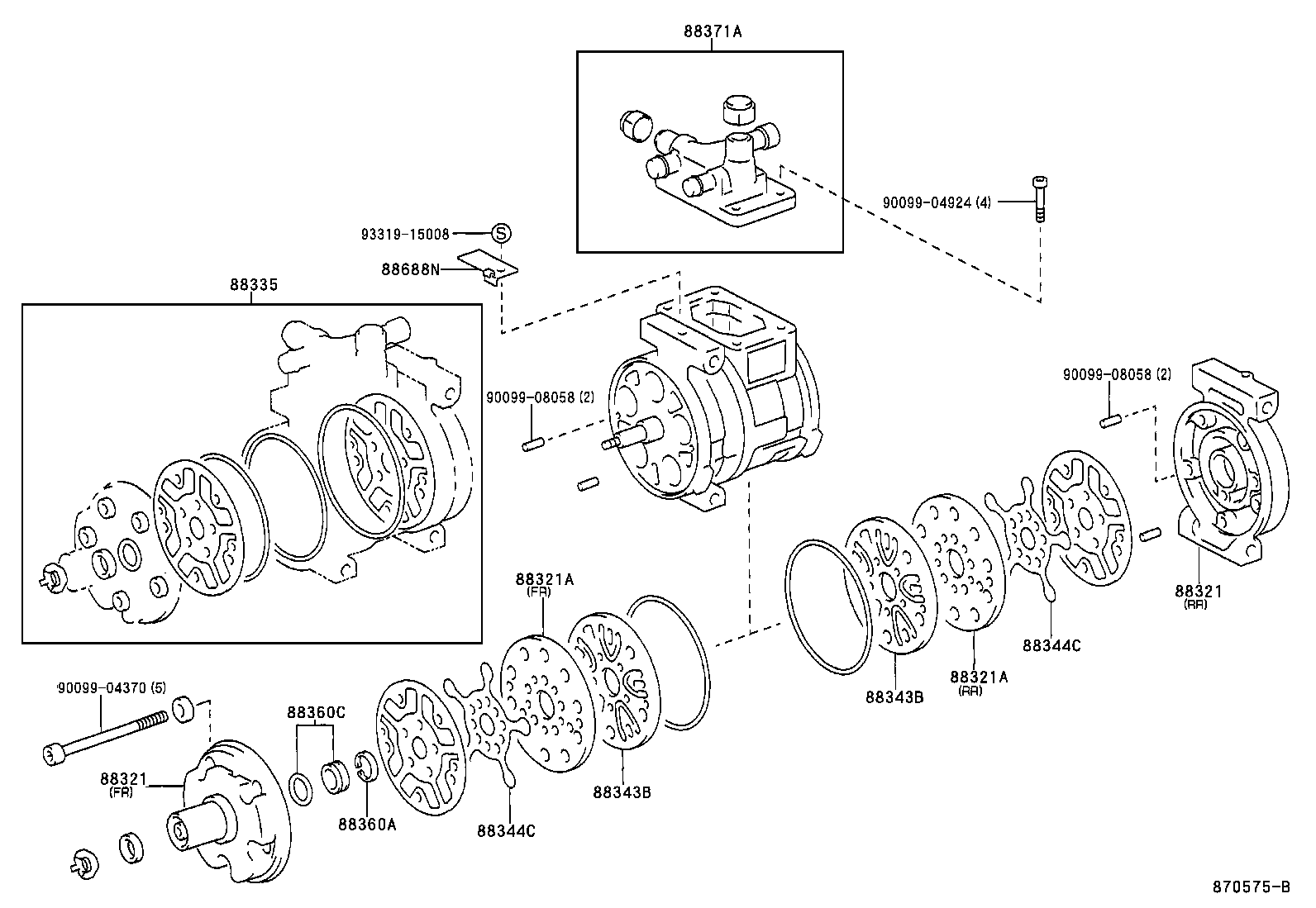

Figure 870572G 870572G 1996-12 → — Figure 870574F 870574F 1996-12 → — Figure 870573H 870573H 1996-12 → — Figure 872850B 872850B 1998-10 → — Figure 873136E 873136E 1999-02 → — Figure 873137C 873137C 1999-02 → — Figure 873707G 873707G 1999-11 → — Figure 870575B 870575B 1996-12 → 2002-08

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88321 Head, Cooler Compressor Cylinder
88321A Plate Sub-assy, Valve
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88343B Reed, Suction Valve
88344C Reed, Discharge Valve
88360A Ring, Compressor Seal Plate Snap
88360C Seal Assy, Shaft
88371A Valve, Suction
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88432A Attachment, Compressor
88437A Attachment, Compressor
88440B Pulley Assy, Idle
88443 Collar, Idle Pulley
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88469A Collar, Adjusting
88595A Bearing (FOR COOLER IDLE PULLEY)
88595D Pulley Assy, Idle
88688N Bracket, Cooler
