Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 10 illustrations

Illustrations

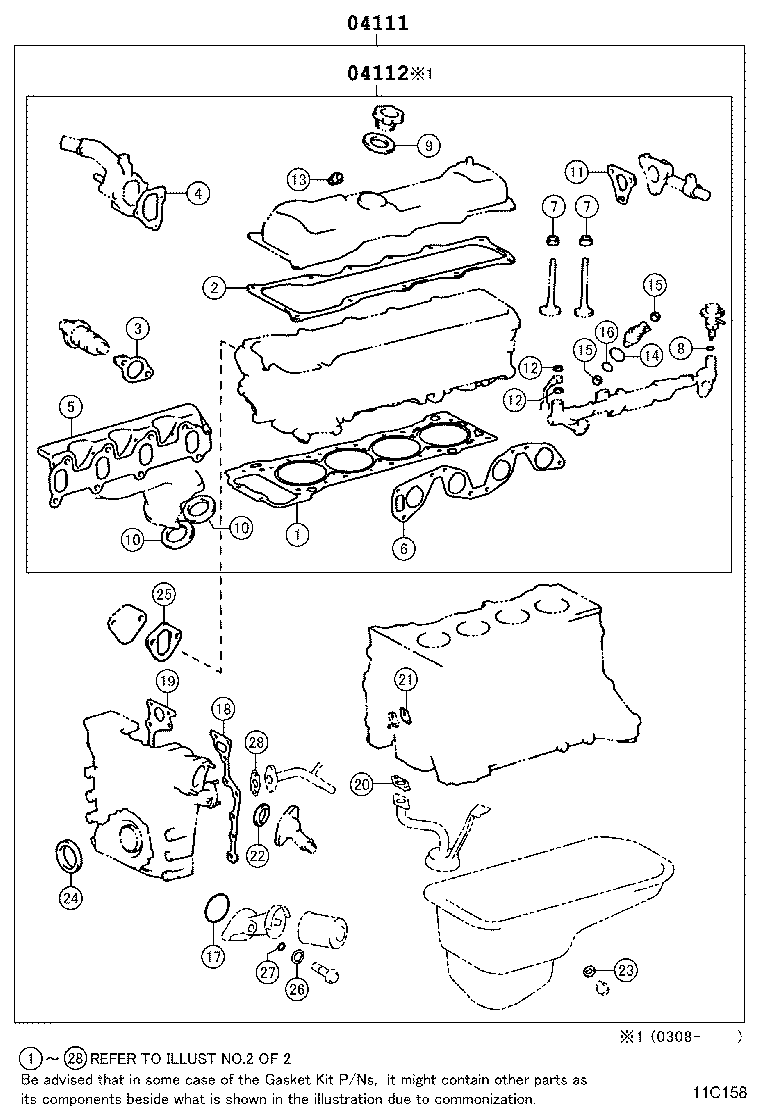

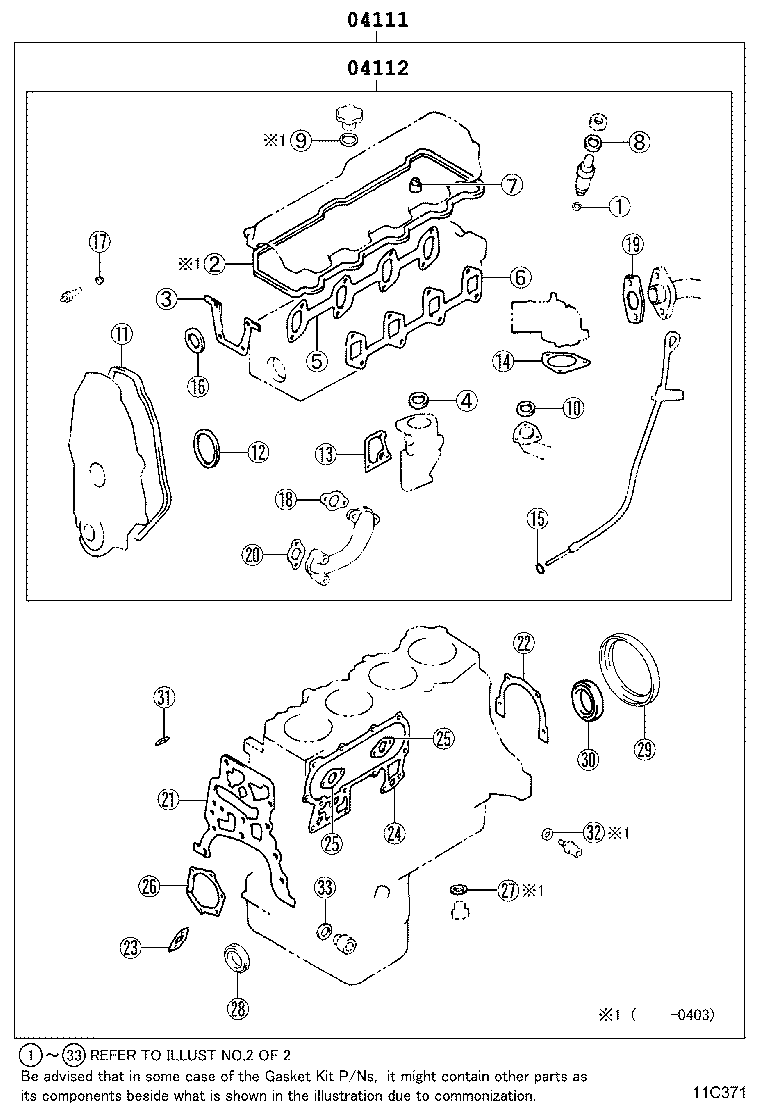

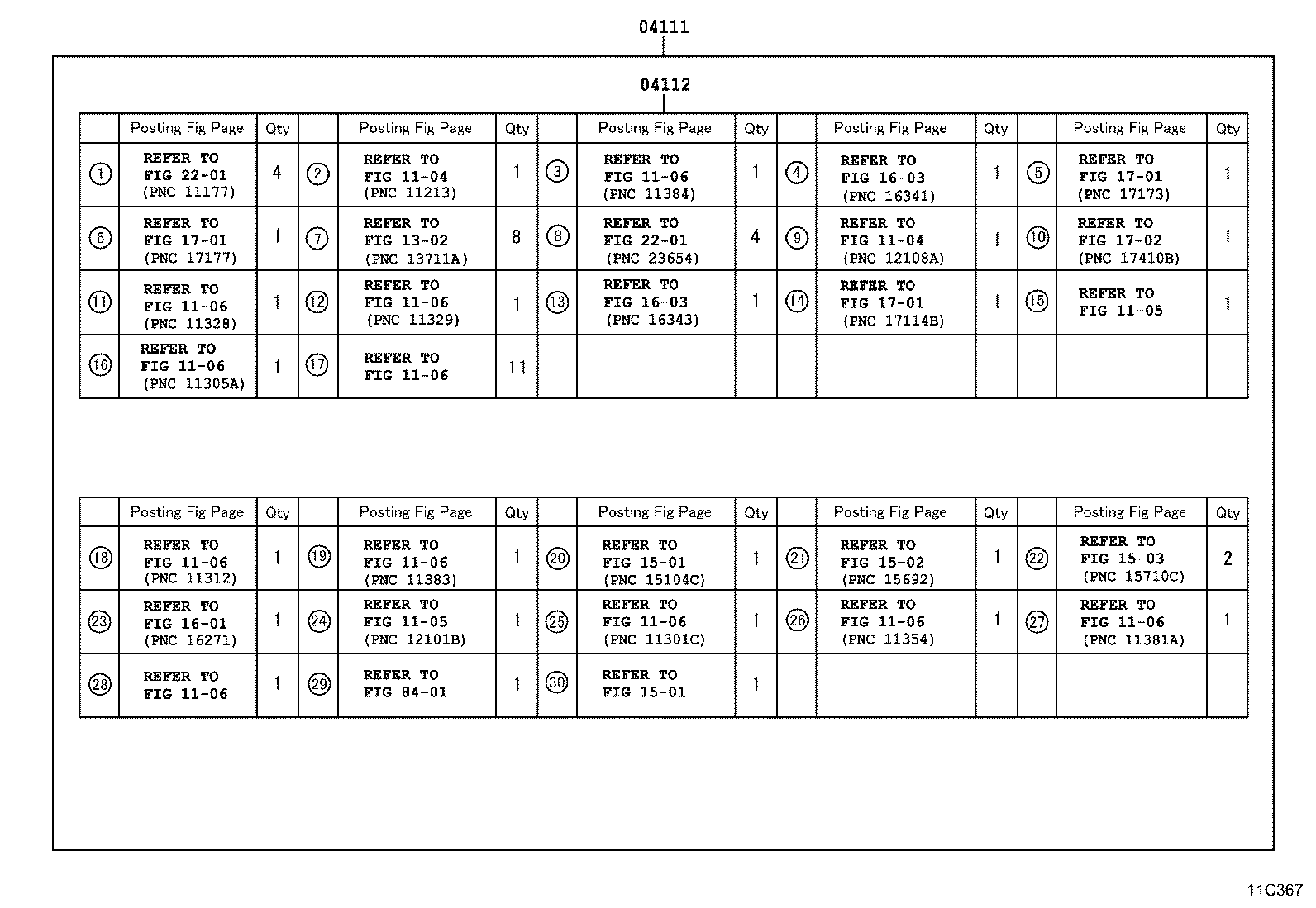

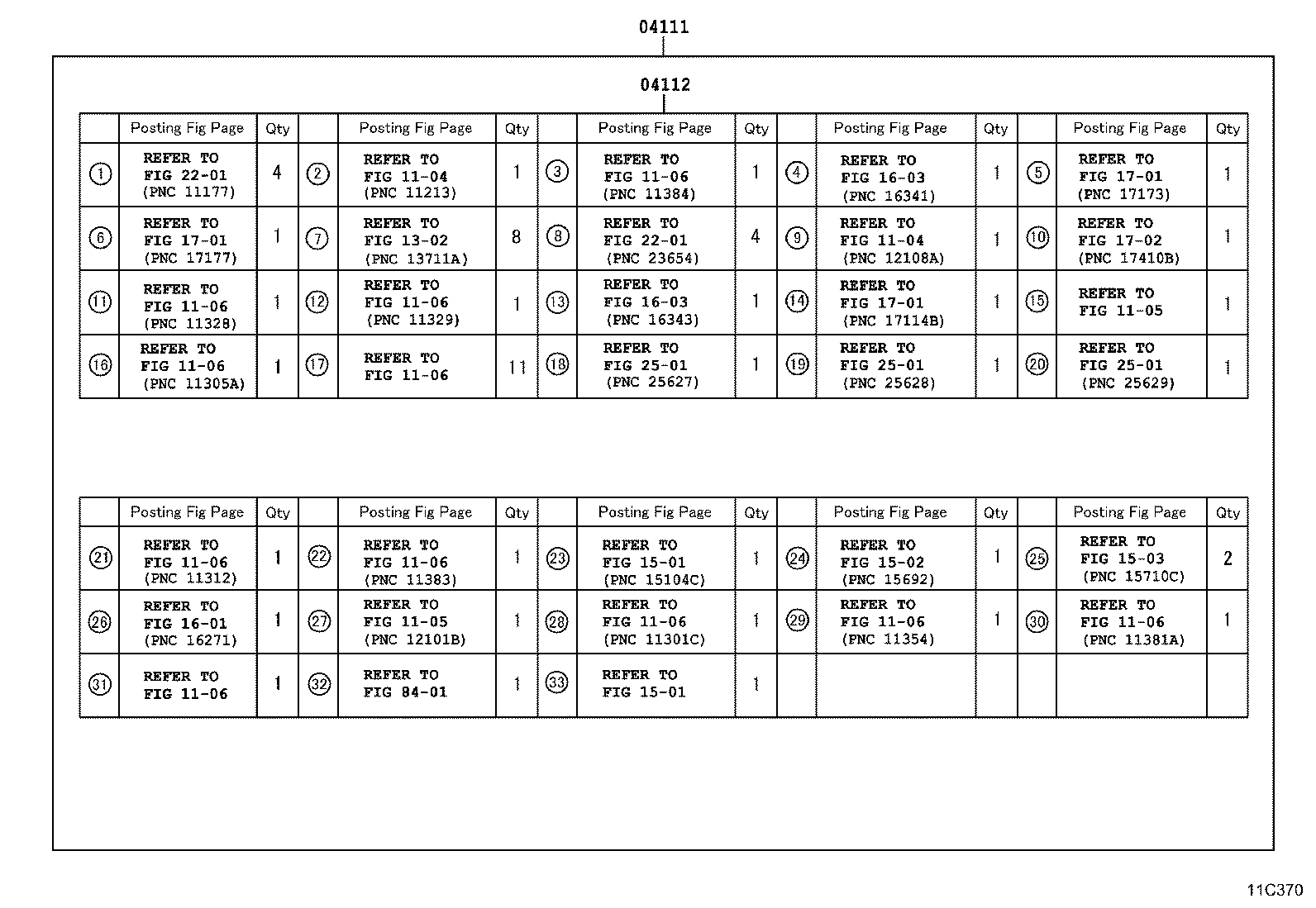

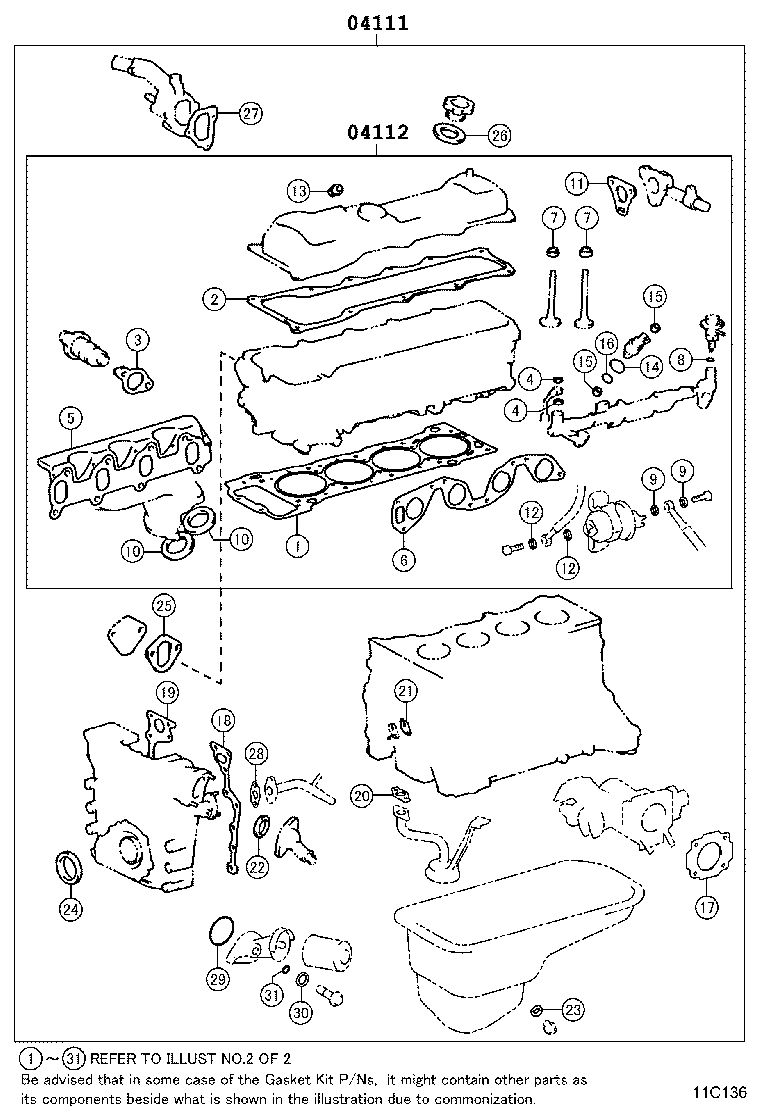

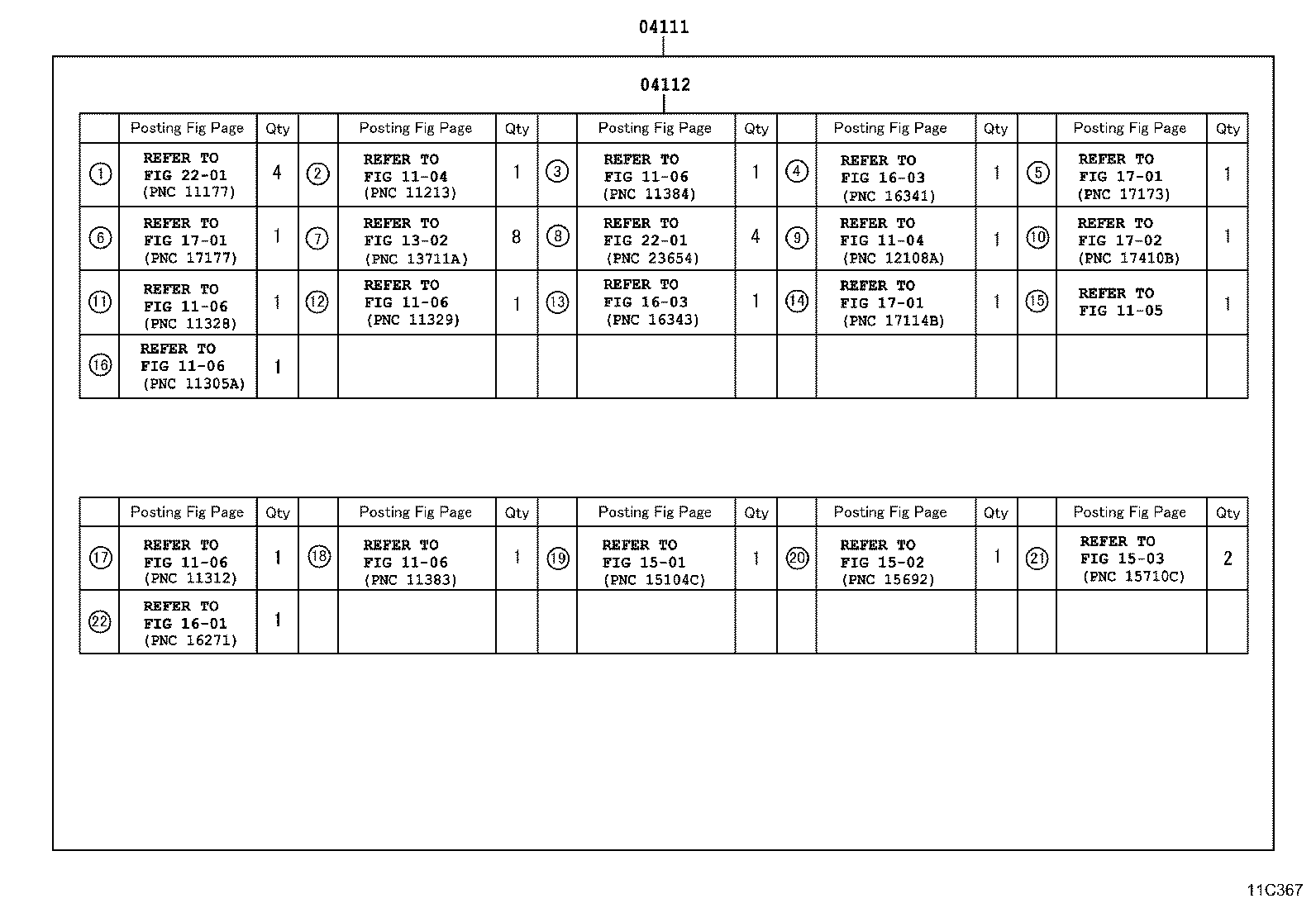

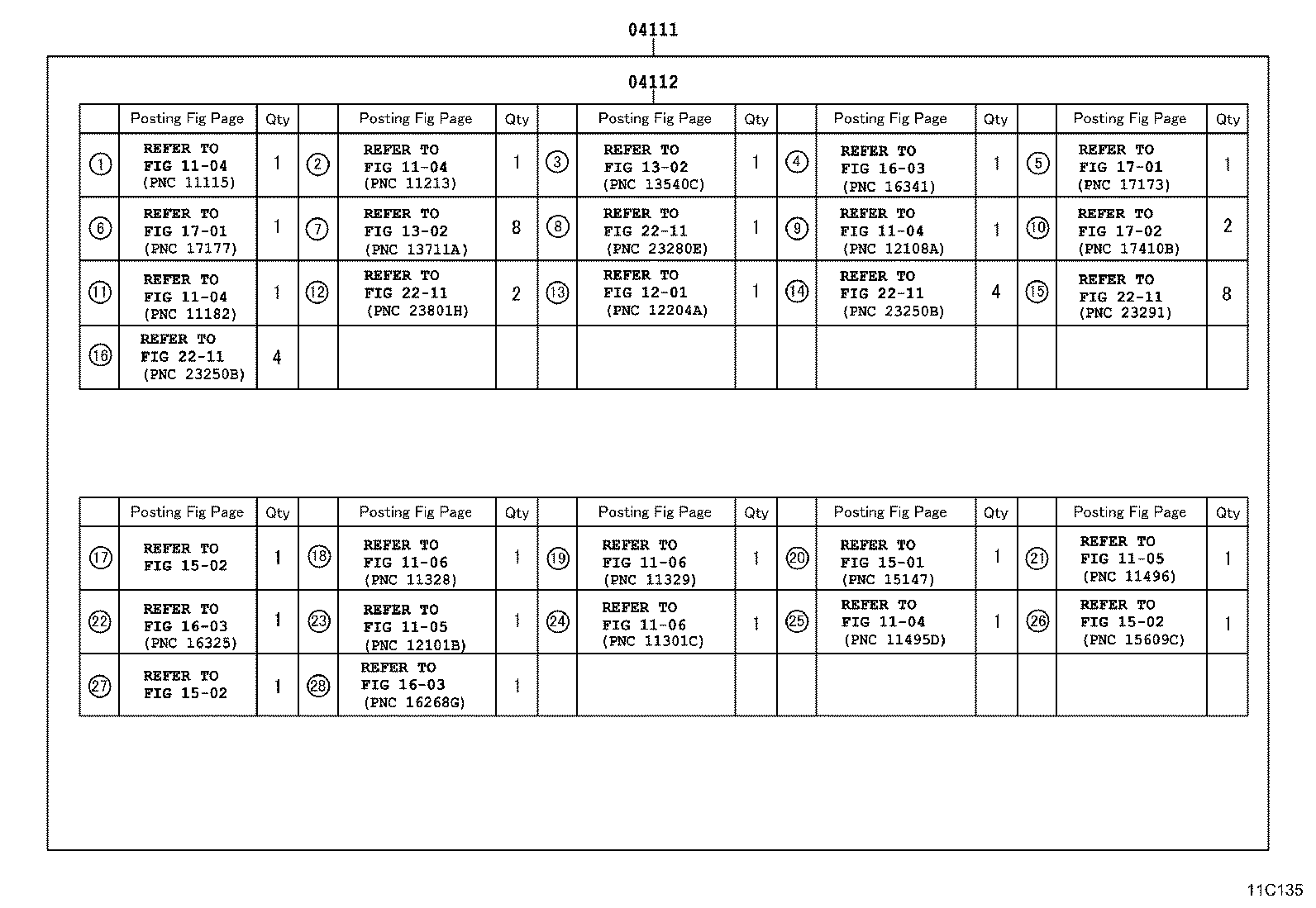

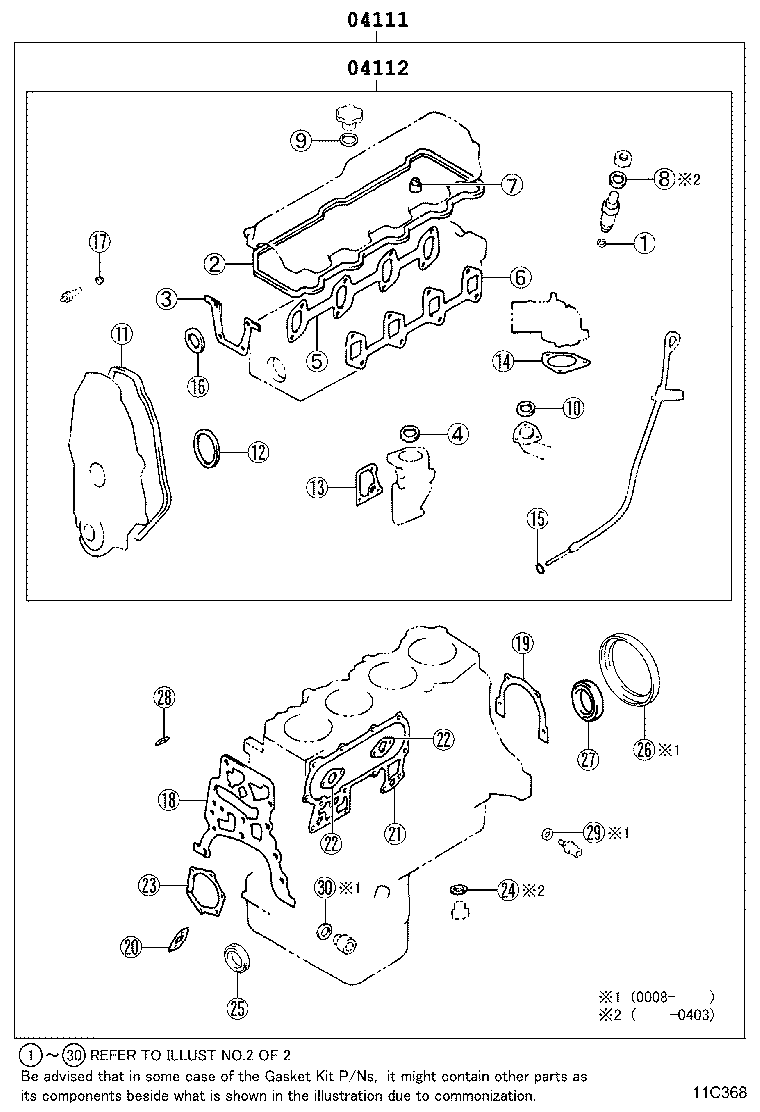

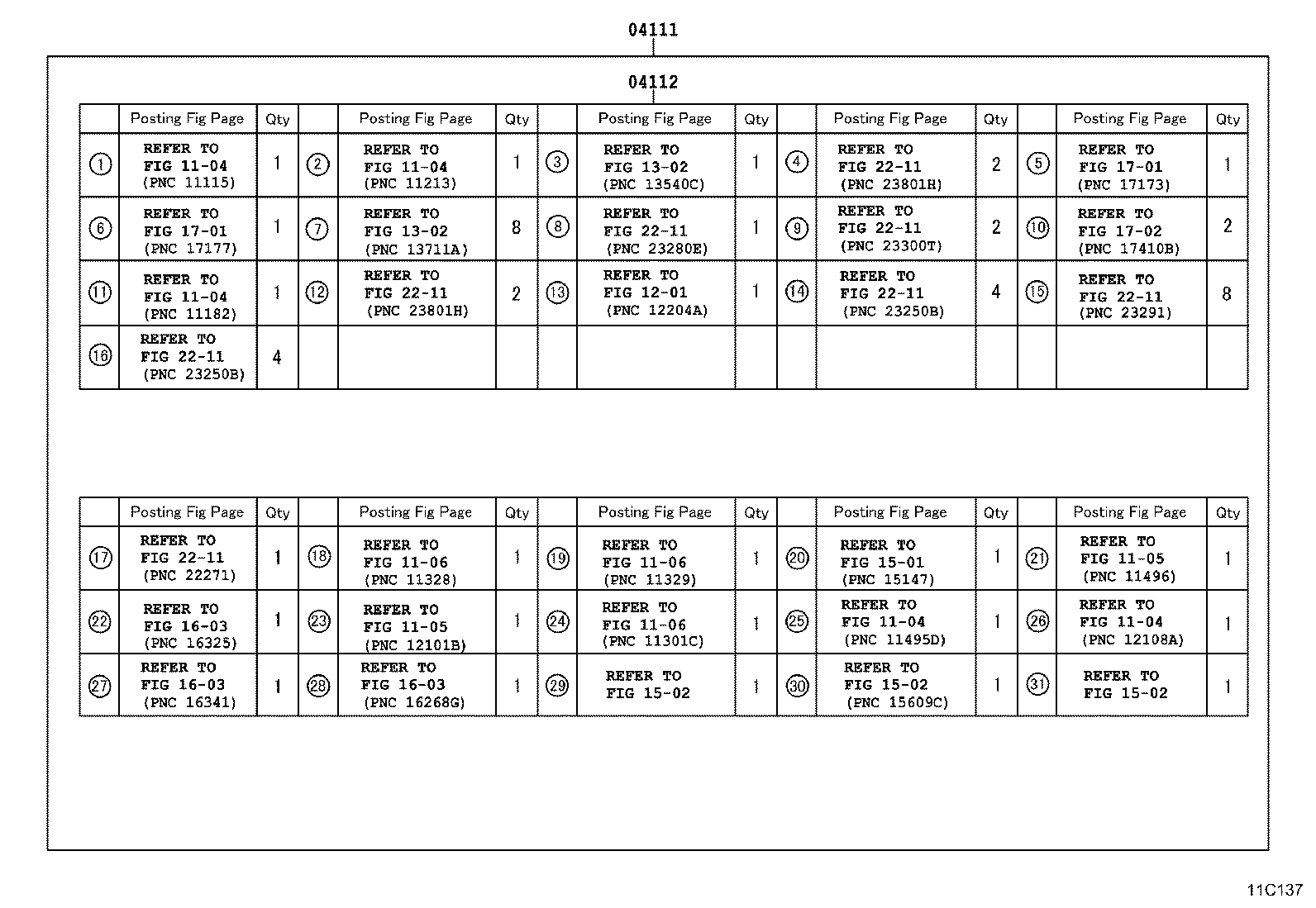

Figure 111638B 111638B 1999-12 → 2004-03 Figure 11C367 11C367 1999-12 → 2004-03 Figure 11C368 11C368 1999-12 → — Figure 11C369 11C369 1999-12 → — Figure 11C371 11C371 1999-12 → — Figure 11C370 11C370 1999-12 → — Figure 11C158 11C158 2002-01 → 2004-03 Figure 11C135 11C135 2002-01 → 2004-03 Figure 11C136 11C136 2004-03 → — Figure 11C137 11C137 2004-03 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
