Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

22 part groups · 2 illustrations

Illustrations

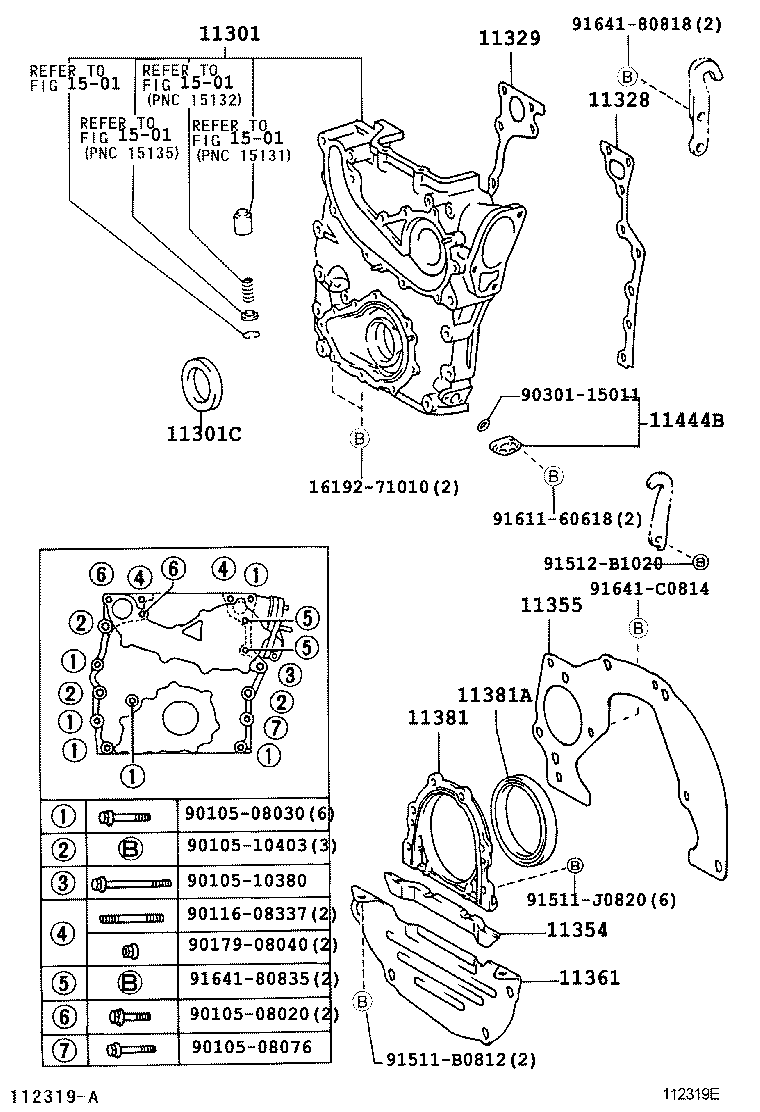

Figure 111627I 111627I 1999-12 → — Figure 112319E 112319E 2002-01 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301B Bolt,Stud(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302 Cover Sub-assy, Timing Chain OR Belt
11302E Plug, Straight(FOR TIMING GEAR COVER)
11305A Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11312 Gasket, Front End Plate
11319 Gasket, Timing Belt Cover, NO.3
11322B Cover, Timing Belt, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11361 Cover, Flywheel Housing Under
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11384 Gasket, Oil Seal Retainer, NO.2
11385 Retainer, Camshaft Oil Seal
11391 Pointer, Timing
11444B Plug, Hole(FOR WATER INLET HOUSING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
