Toyota Qualis
1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General
Discontinued model
Data version 2005-07
Camshaft & Valve

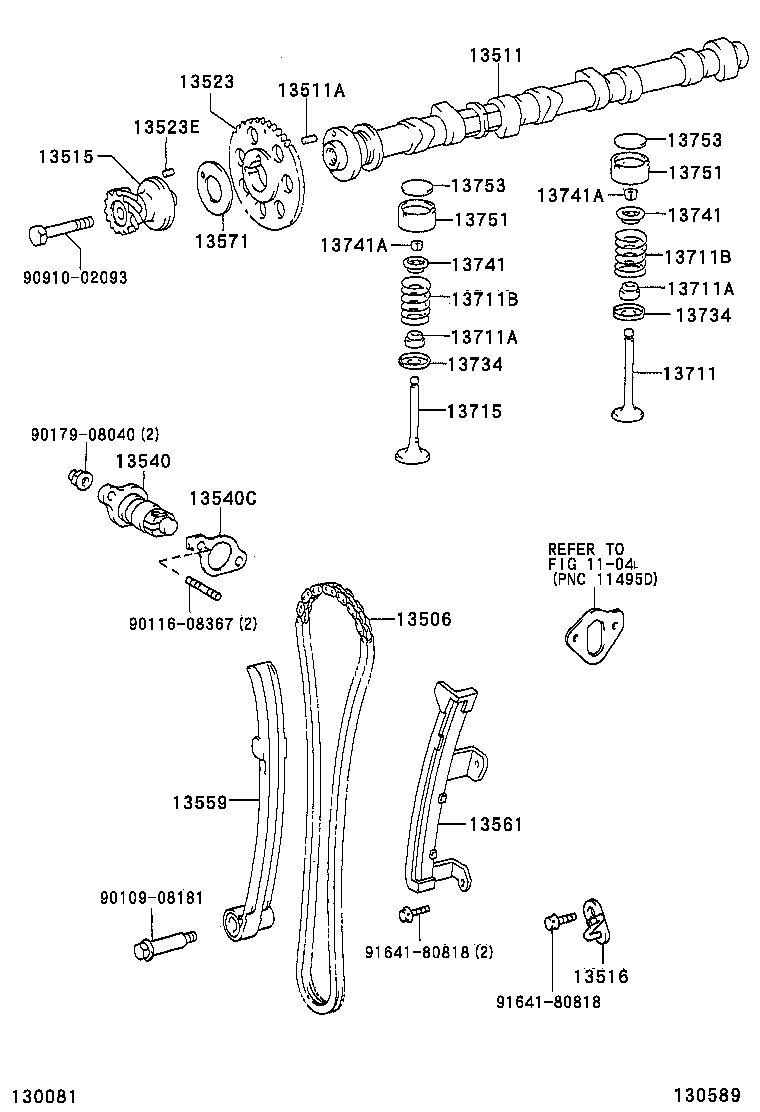

31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11802 | Bearing Set, Camshaft |
| 13502 | Idler Sub-assy, Timing Belt, NO.2 |
| 13505 | Idler Sub-assy, Timing Belt, NO.1 |
| 13505A | Spring, Tension(FOR IDLER) |
| 13506 | Chain Sub-assy |
| 13511 | Camshaft |
| 13511A | Pin, Straight(FOR CAMSHAFT KNOCK) |
| 13515 | Gear, Distributor Drive |
| 13516 | Jet, Oil |
| 13523 | Gear OR Sprocket, Camshaft Timing |
| 13523A | Key, Woodruff(FOR TIMING GEAR) |
| 13523E | Pin, Straight(FOR TIMING GEAR) |
| 13523P | Pulley, Camshaft Timing |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13540C | Gasket(FOR CHAIN TENSIONER) |
| 13558 | Bracket, Spring(FOR IDLER) |
| 13559 | Slipper, Chain Tensioner |
| 13561 | Damper, Chain Vibration, NO.1 |
| 13568 | Belt, Timing |
| 13571 | Plate, Camshaft Thrust |
| 13613P | Pulley, Injection Pump Drive |
| 13711 | Valve, Intake |
| 13711A | Seal OR Ring, O(FOR VALVE STEM OIL) |
| 13711B | Spring, Compression(FOR INNER) |
| 13711D | Washer, Plate(FOR VALVE SPRING SEAT) |
| 13715 | Valve, Exhaust |
| 13734 | Seat, Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13751 | Lifter, Valve |
| 13753 | Shim, Valve Adjusting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
