Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

11 part groups · 3 illustrations

Illustrations

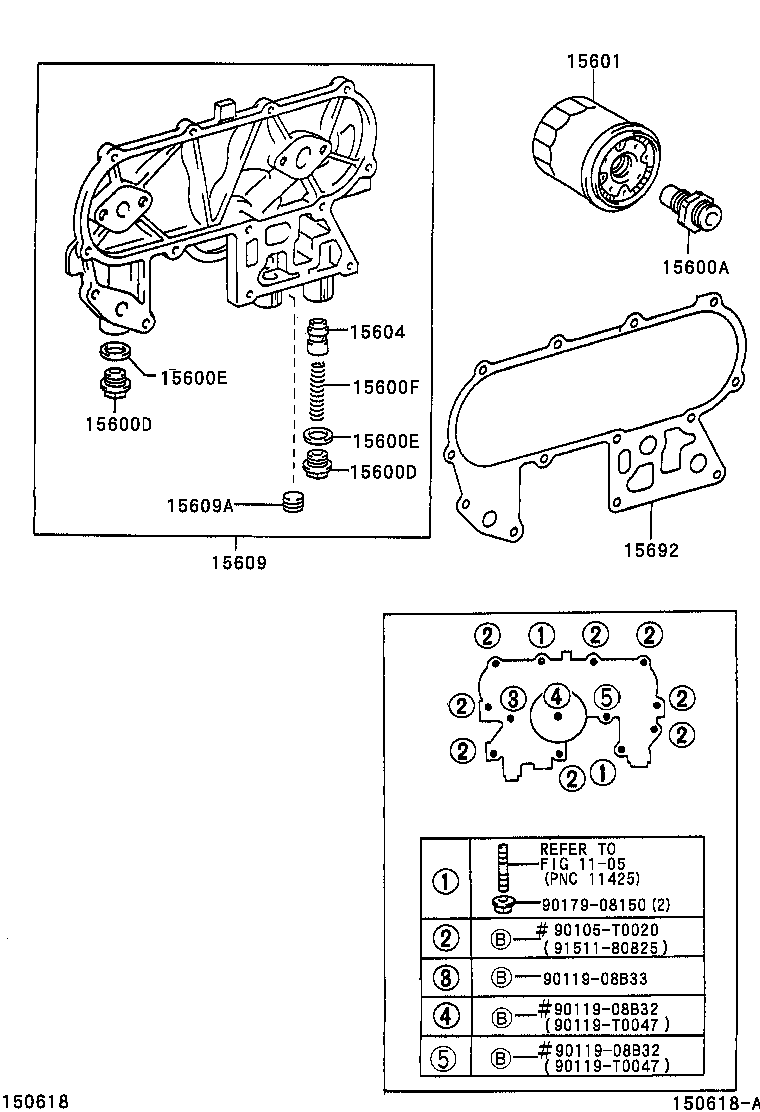

Figure 150386B 150386B 1999-12 → — Figure 150618A 150618A 1999-12 → — Figure 150363 150363 2002-01 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15609A Plug, Taper Screw(FOR OIL FILTER BRACKET)
15609C Gasket(FOR OIL FILTER BRACKET UNION)
15609G Bolt, Union(FOR OIL FILTER BRACKET)
15692 Gasket, Oil Filter Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
