Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

12 part groups · 2 illustrations

Illustrations

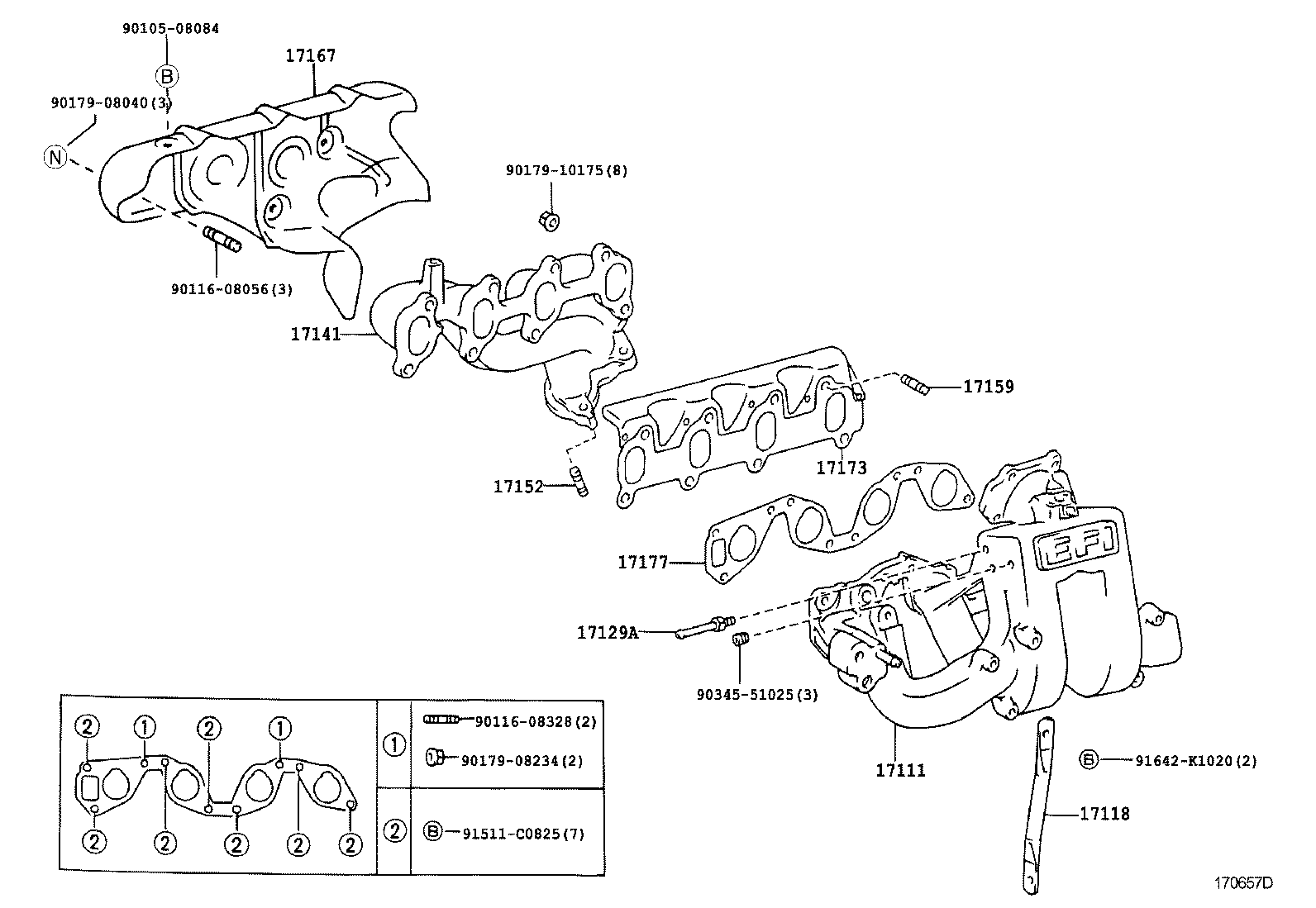

Figure 172410B 172410B 1999-12 → — Figure 170657D 170657D 2002-01 → —

Part groups

PNCDescription
17111 Manifold, Intake
17114A Flange, Intake
17114B Gasket, Intake Flange
17118 Stay, Manifold
17129A Union, NO.1
17141 Manifold, Exhaust
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
