Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

19 part groups · 3 illustrations

Illustrations

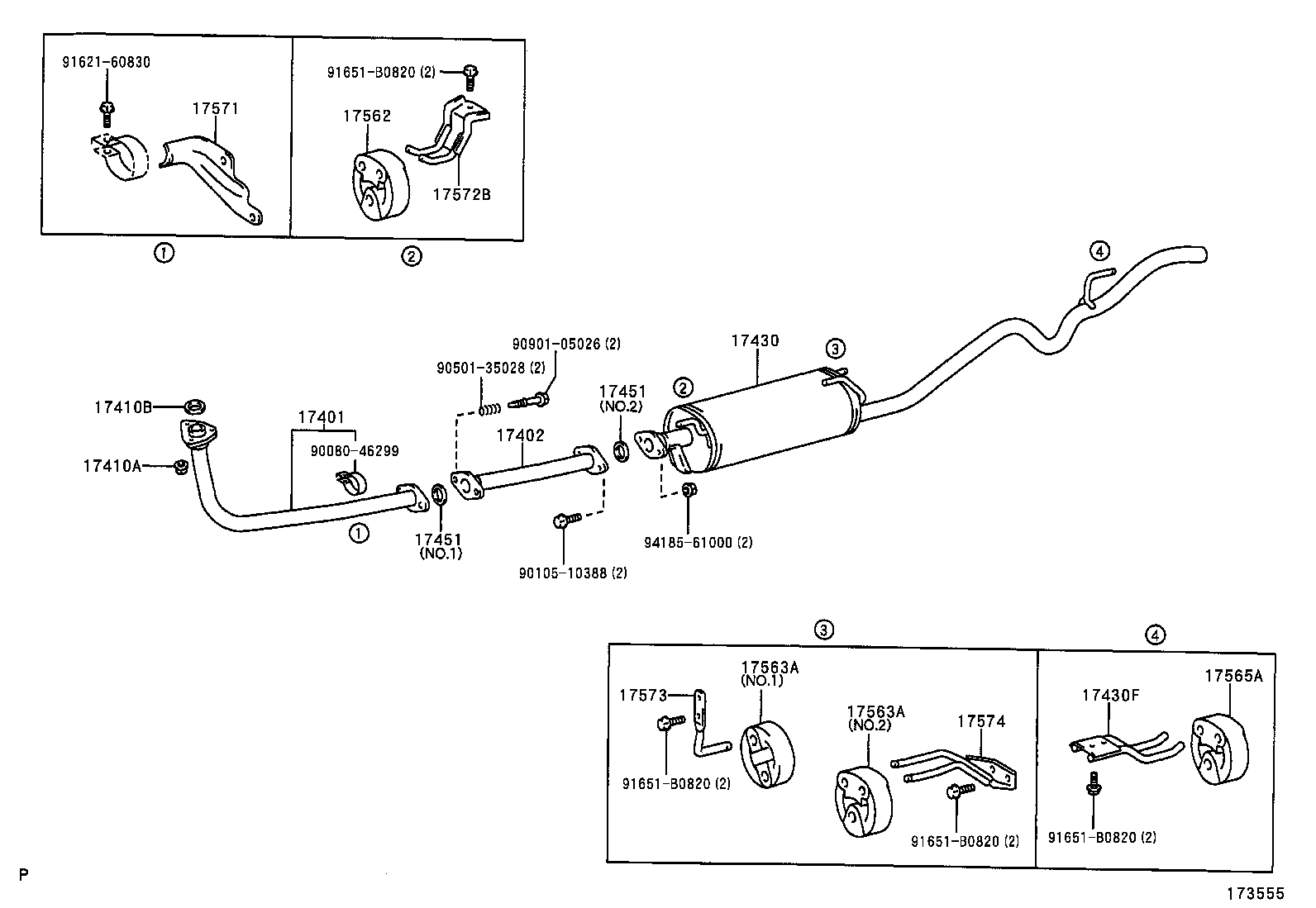

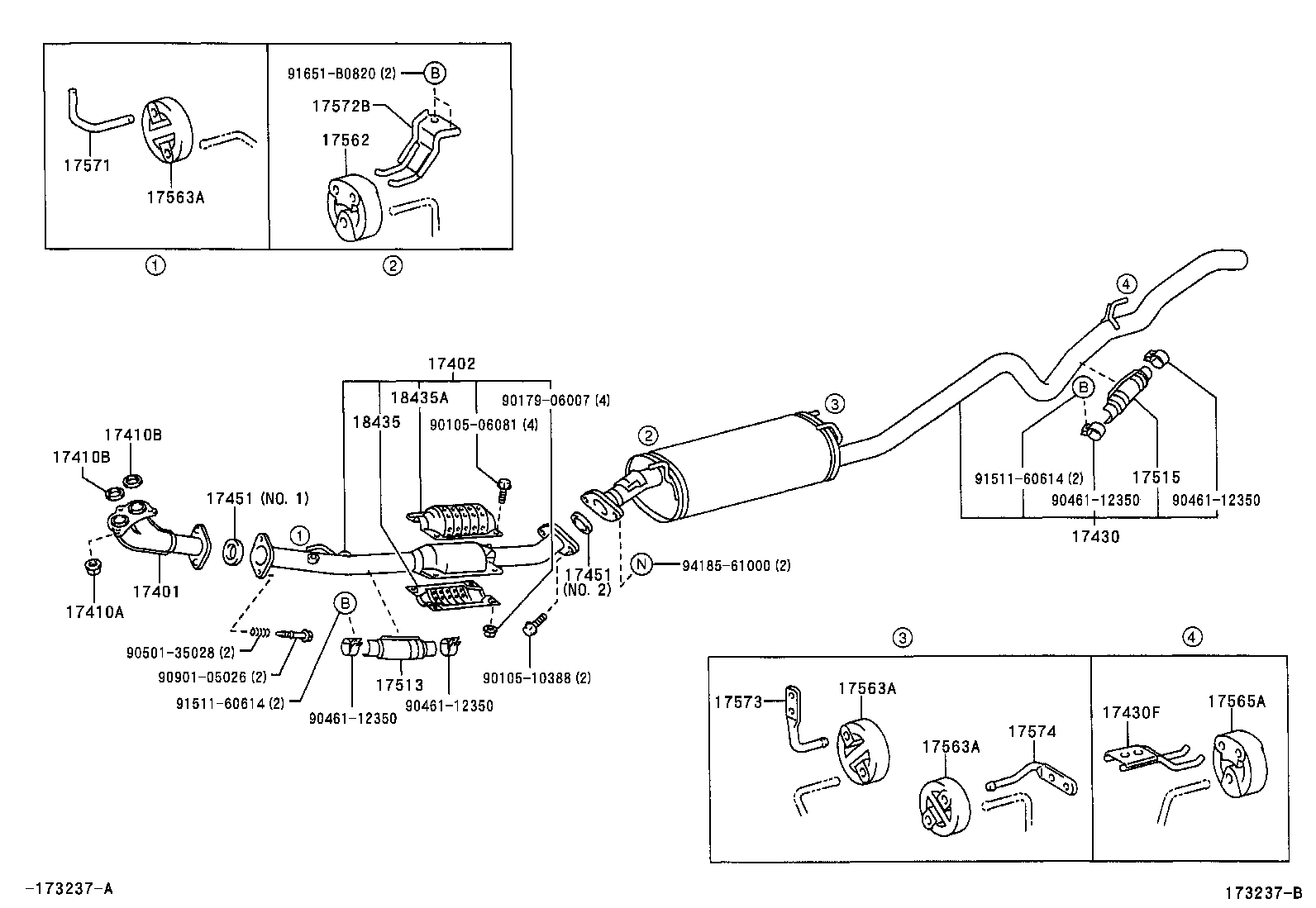

Figure 172409B 172409B 1999-12 → 2002-06 Figure 173555 173555 2002-06 → — Figure 173237B 173237B 2002-01 → —

Part groups

PNCDescription
17401 Pipe Sub-assy, Exhaust, Front
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17451 Gasket, Exhaust Pipe
17513 Insulator, Exhaust Pipe, Lower NO.1
17515 Retainer, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17574 Bracket, Exhaust Pipe Support, NO.4
18435 Protector, Catalytic Converter
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
