Toyota Qualis
1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General
Discontinued model
Data version 2005-07

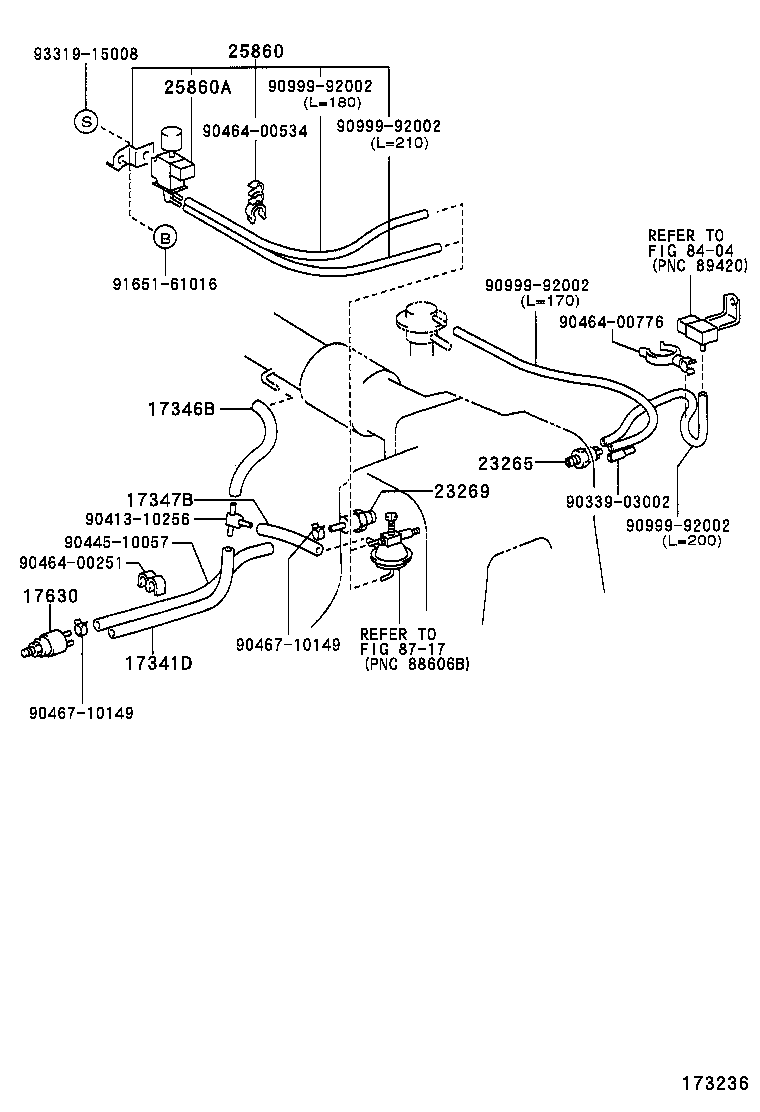

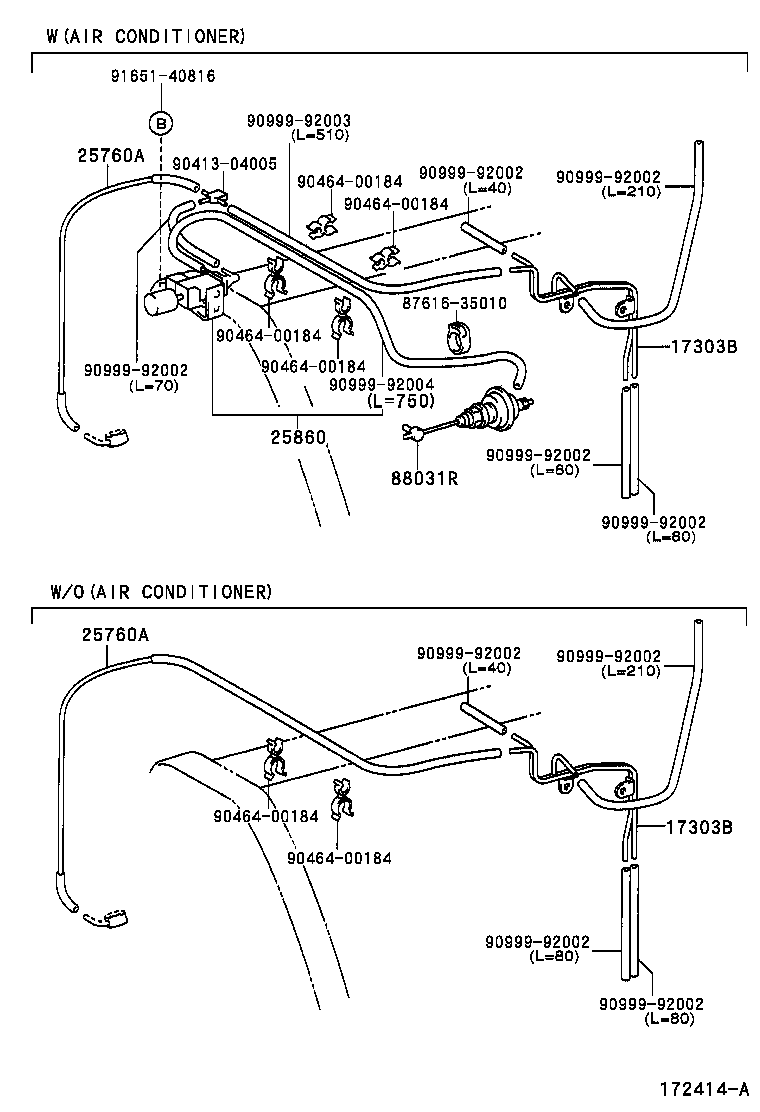

Vacuum Piping
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17346B | Hose, Air, NO.6 |
| 17347B | Hose, Air, NO.7 |
| 17630 | Valve Assy, Air Control |
| 23265 | Filter, Gas, NO.1 |
| 23269 | Union(FOR GAS FILTER) |
| 25760A | Hose Assy, Vacuum Transmitting |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860A | Valve, Vacuum Switching, NO.1 |
| 88031R | Actuator Set, Idle-up |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
