Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

32 part groups · 2 illustrations

Illustrations

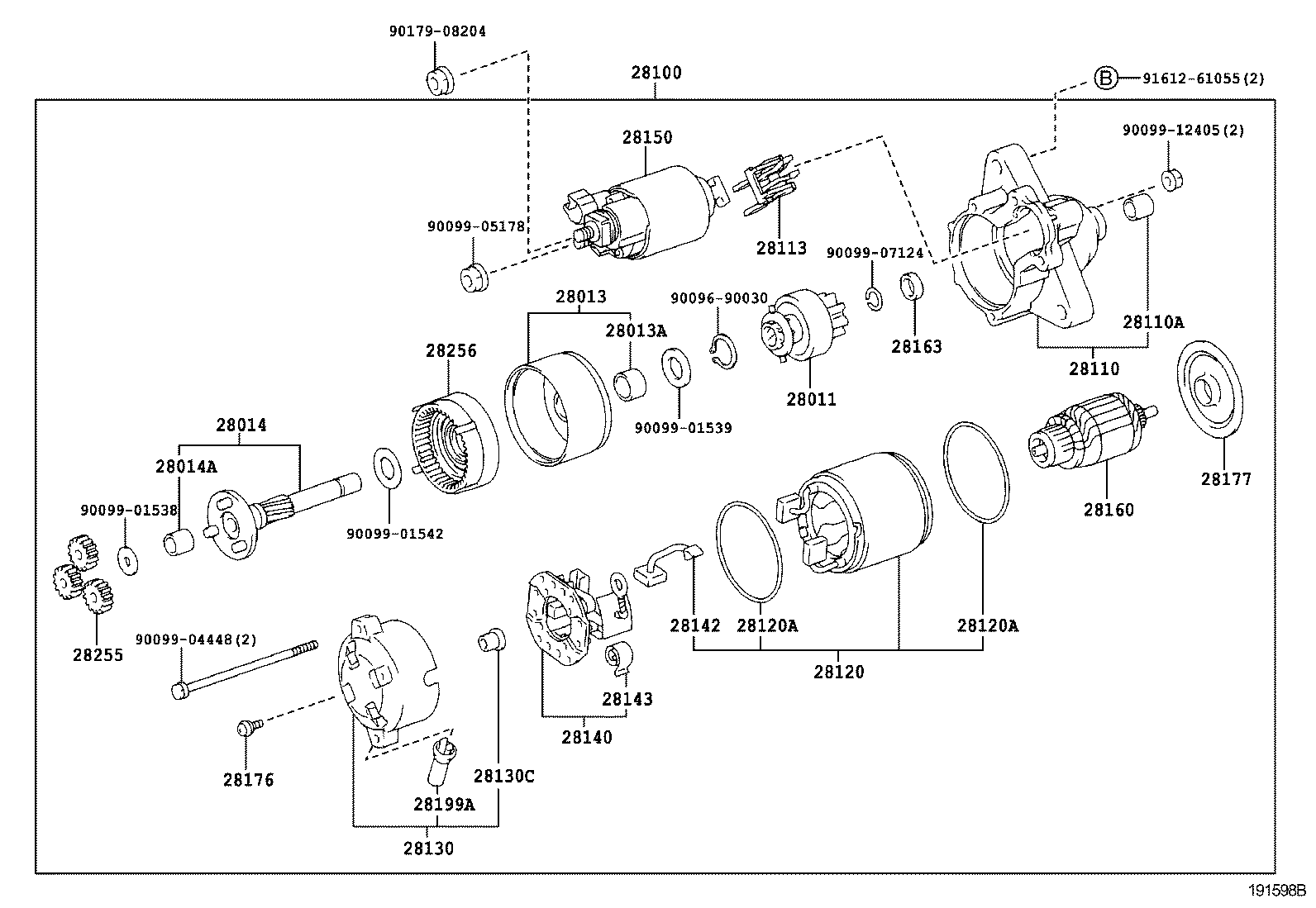

Figure 191145C 191145C 1999-12 → — Figure 191598B 191598B 2002-01 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28011A Ball, Starter Clutch
28013 Bearing, Starter Center & Shock Absorber, NO.1
28013A Bearing, Starter Center & Shock Absorber, NO.2
28014 Shaft Sub-assy, Planet Carrier
28014A Bush OR Bearing, Planet Carrier Shaft
28100 Starter Assy
28110 Housing Assy, Starter Drive
28110A Bearing(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28130C Bearing, Starter Flange
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28160B Bearing, Starter Armature, NO.2
28163 Nut OR Collar, Pinion Stop, Starter
28165 Spring, Starter Magnet Switch Return
28176 Screw, Starter
28177 Plate(FOR STARTER ARMATURE)
28199A Protector, Dust Starter
28228A Roller, Starter Clutch
28229A Retainer, Starter Idle Gear
28251 Pinion, Starter Drive
28252 Gear, Starter Idle
28255 Gear, Planet
28256 Gear, Starter Internal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
