Toyota Qualis
1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General
Discontinued model
Data version 2005-07

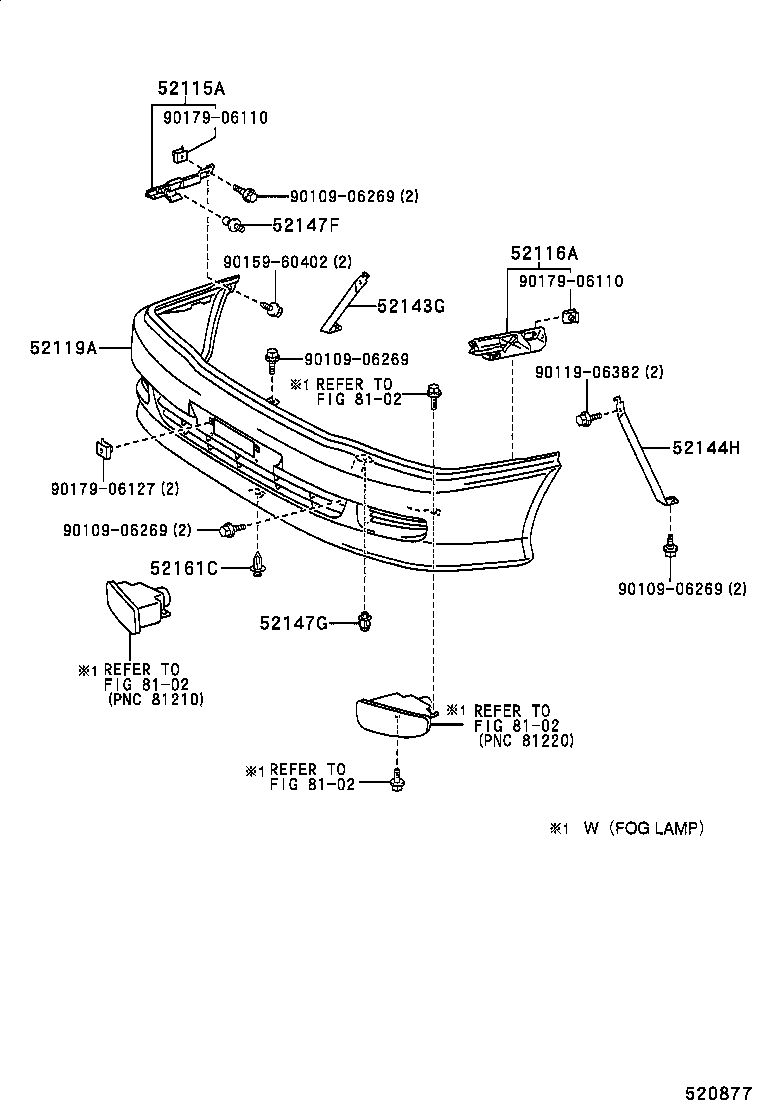

Front Bumper & Bumper Stay
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51963G | Hook, Transport, Front RH |
| 51964G | Hook, Transport, Front LH |
| 52111C | Bolt, Round Head Square Neck(FOR FRONT BUMPER) |
| 52111E | Bar, Front Bumper |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52141B | Stay, Front Bumper |
| 52142C | Stay, Front Bumper, LH |
| 52143A | Arm, Front Bumper, Inner RH |
| 52143G | Arm, Front Bumper, Lower RH |
| 52144A | Arm, Front Bumper, Inner LH |
| 52144H | Arm, Front Bumper, Lower LH |
| 52147F | Guide, Front Bumper Locating |
| 52147G | Guide, Front Bumper Locating |
| 52161C | Piece, Front Bumper |
| 52401A | Guard Sub-assy, Front Bumper, RH |
| 52402A | Guard Sub-assy, Front Bumper, LH |
| 52406A | Garnish Sub-assy, Front Bumper Guard |
| 52407 | Guard Sub-assy, Front Bumper, NO.2 |
| 52433B | Support, Front Bumper Guard |
| 52445A | Bracket, Front Bumper Guard Base, NO.1 |
| 52467 | Cover, Front Bumper Guard, NO.2 RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
