Toyota Qualis
1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General
Discontinued model
Data version 2005-07

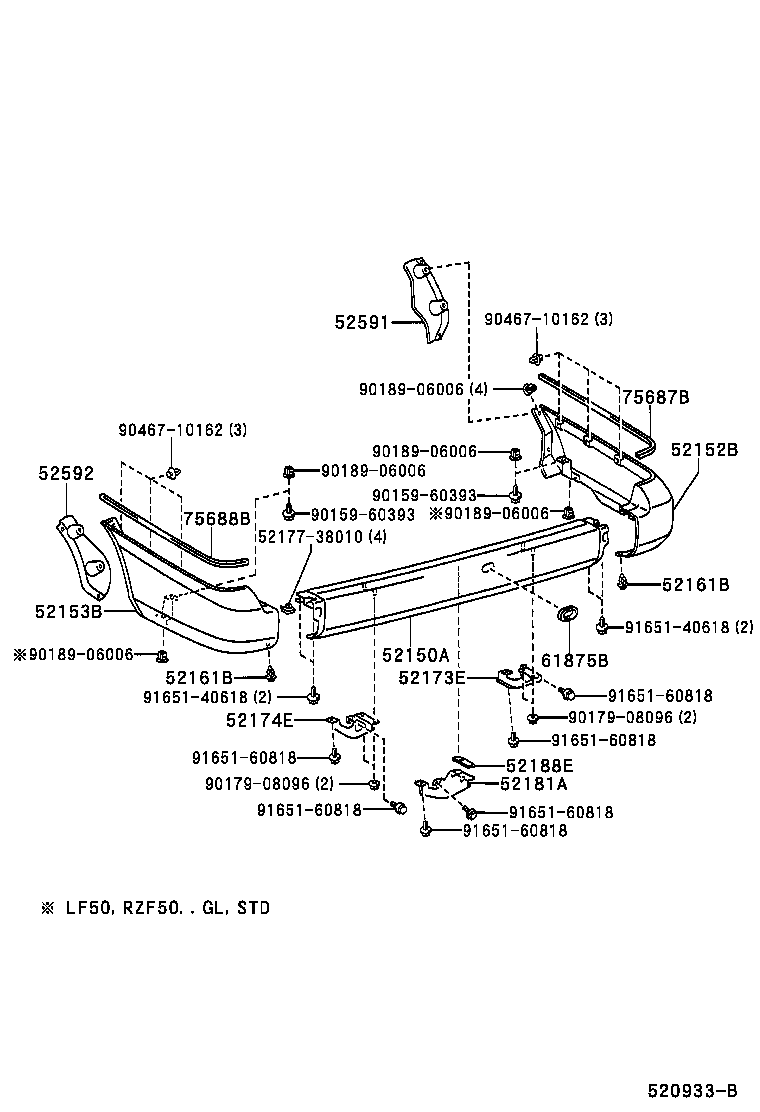

Rear Bumper & Bumper Stay
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52150A | Bumper Assy, Rear |
| 52151C | Bolt, Round Head Square Neck(FOR REAR BUMPER) |
| 52152B | Extension, Rear Bumper, RH |
| 52153B | Extension, Rear Bumper, LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52173E | Bracket, Rear Bumper Bar, RH |
| 52174E | Bracket, Rear Bumper Bar, LH |
| 52181A | Arm, Rear Bumper |
| 52188E | Spacer, Rear Bumper Mounting |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 61875B | Lid, Spare Wheel Carrier, NO.1 |
| 75687B | Protector, Quarter Moulding, Lower Rear RH |
| 75688B | Protector, Quarter Moulding, Lower Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
