Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

24 part groups · 3 illustrations

Illustrations

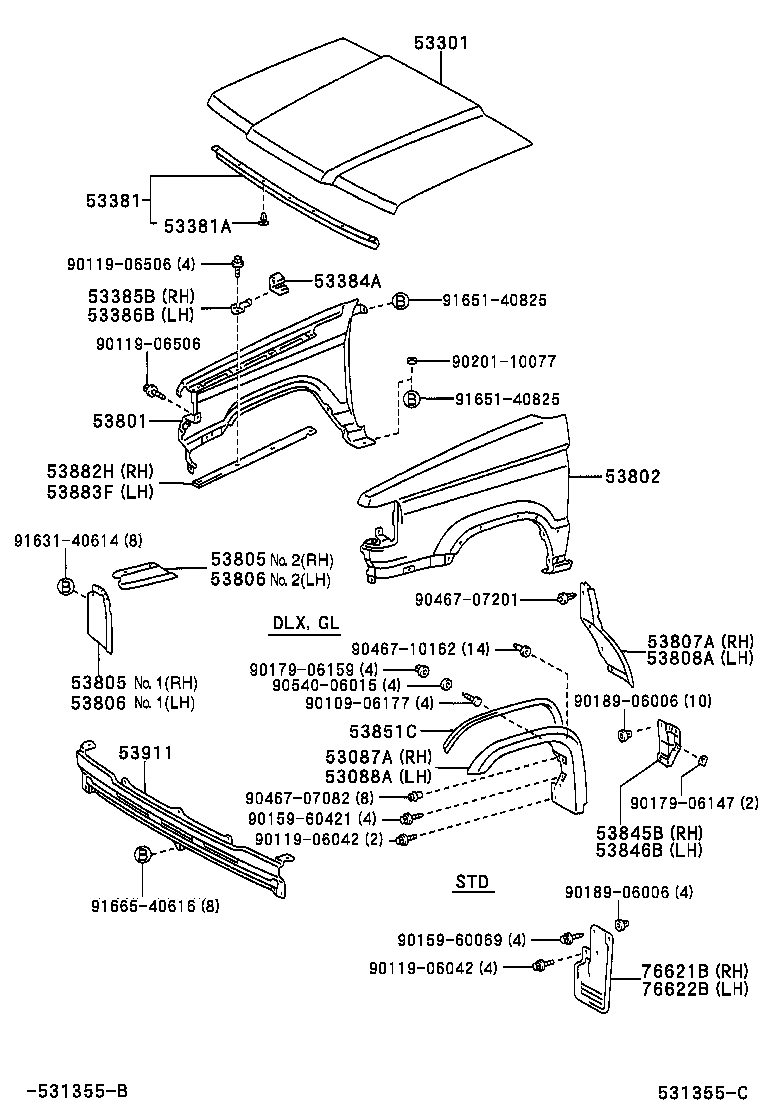

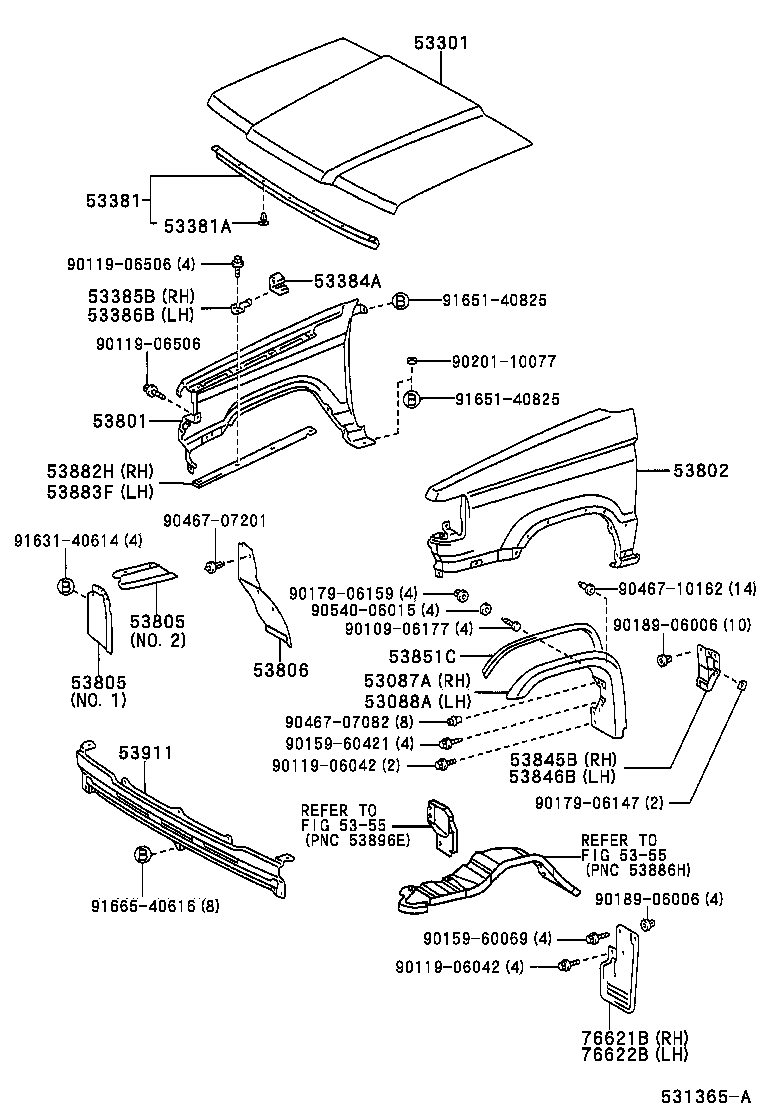

Figure 530883D 530883D 1999-12 → 2002-09 Figure 531365A 531365A 2002-09 → — Figure 531355C 531355C 2002-09 → —

Part groups

PNCDescription
53087A Extension Sub-assy, Front Wheel Opening, RH
53088A Extension Sub-assy, Front Wheel Opening, LH
53301 Hood Sub-assy
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384A Bumper, Fender TO Hood
53385B Bracket, Fender TO Hood Bumper, RH
53386B Bracket, Fender TO Hood Bumper, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53807A Shield Sub-assy, Fender Splash, Rear RH
53808A Shield Sub-assy, Fender Splash, Rear LH
53845B Extension, Front Wheel Opening, NO.1 RH
53846B Extension, Front Wheel Opening, NO.1 LH
53851C Pad, Front Wheel Opening Extension, NO.1
53873C Stay, Front Wheel Opening, Front RH
53874B Stay, Front Wheel Opening, Front LH
53882H Seal, Front Fender Main, RH
53883F Seal, Front Fender Main, LH
53911 Panel, Front Valance
76621B Mudguard, Front Body, RH
76622B Mudguard, Front Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
