Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07

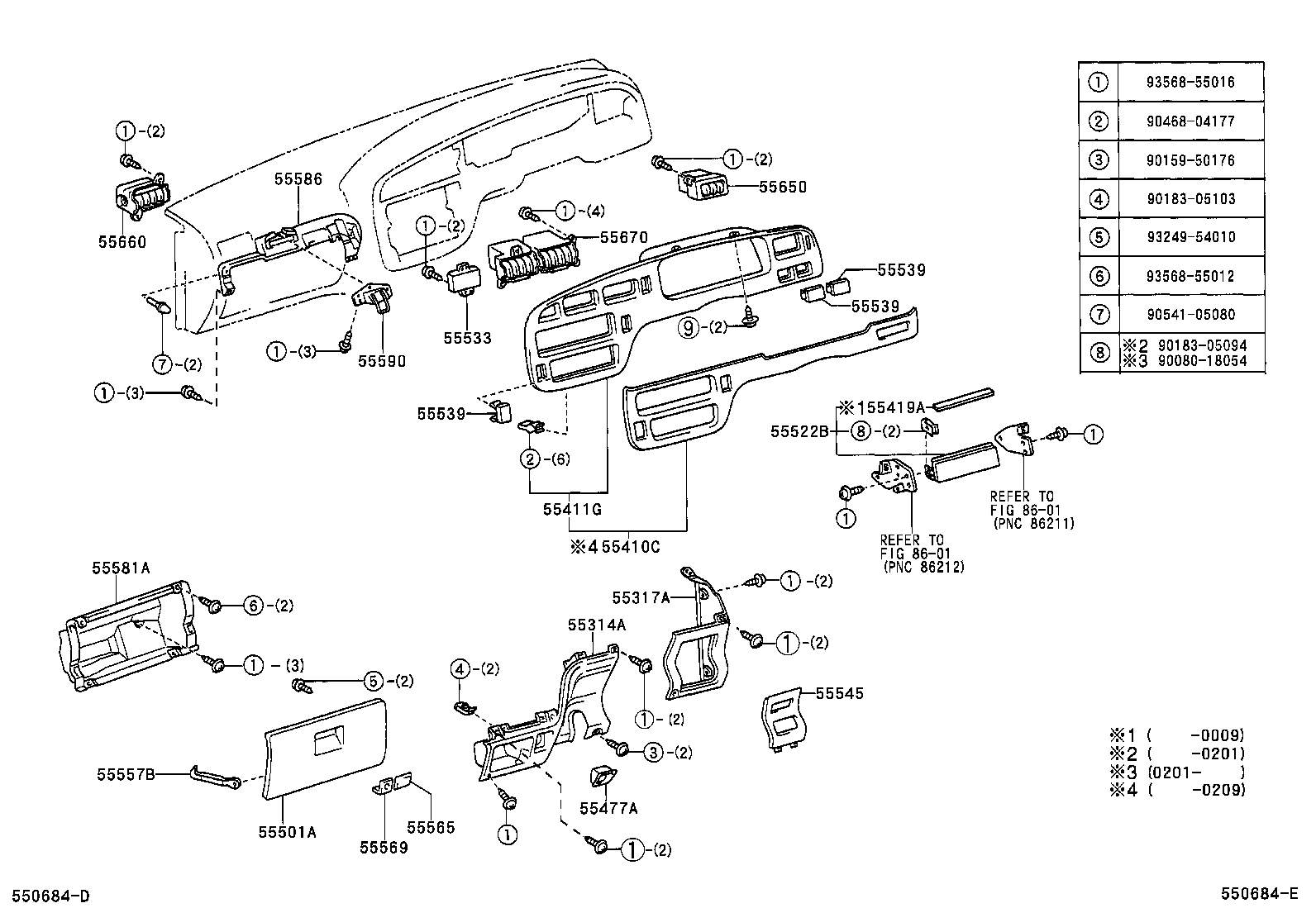

Instrument Panel & Glove Compartment

34 part groups · 2 illustrations

PNC	Description
55301	Panel Sub-assy, Instrument
55303A	Stay Sub-assy, Instrument Panel
55314A	Panel, Instrument, Lower Center
55317A	Panel, Instrument Side, RH
55326A	Stay, Instrument Panel, NO.1
55328A	Stay, Instrument Panel, NO.3
55330B	Reinforcement Assy, Instrument Panel
55339	Extension, Instrument Panel Reinforcement, NO.2
55368C	Bracket, Meter Mounting
55410C	Panel Assy, Instrument Cluster Finish
55411G	Panel, Instrument Cluster Finish, NO.1
55419A	Cushion, Instrument Cluster Finish Panel
55445B	Plate, Instrument Panel Finish
55477A	Bezel, Cigarette Lighter Hole
55501A	Door Sub-assy, Glove Compartment
55522B	Cover, Radio Tuner Opening
55533	Cover, Auto Clock Hole
55539	Cover, Spare Switch Hole
55545	Cover, Fuse Box Opening
55548A	Cover, Instrument Panel Hole
55549B	Cover, Instrument Panel Hole, NO.2
55557B	Stopper, Glove Compertment Door Check
55565	Handle, Glove Compartment Door Lock
55569	Cover, Glove Compartment Door Lock
55581A	Compartment, Glove
55586	Support, Shell Box, NO.1
55590	Plate Assy, Grove Compartment Door Lock Striker
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55950	Nozzle Assy, Defroster
55951	Nozzle, Defroster, Front
55953B	Nozzle, Defroster, Rear
55990A	Nozzle Assy, Defroster, Lower

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
