Toyota Qualis
1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General
Discontinued model
Data version 2005-07

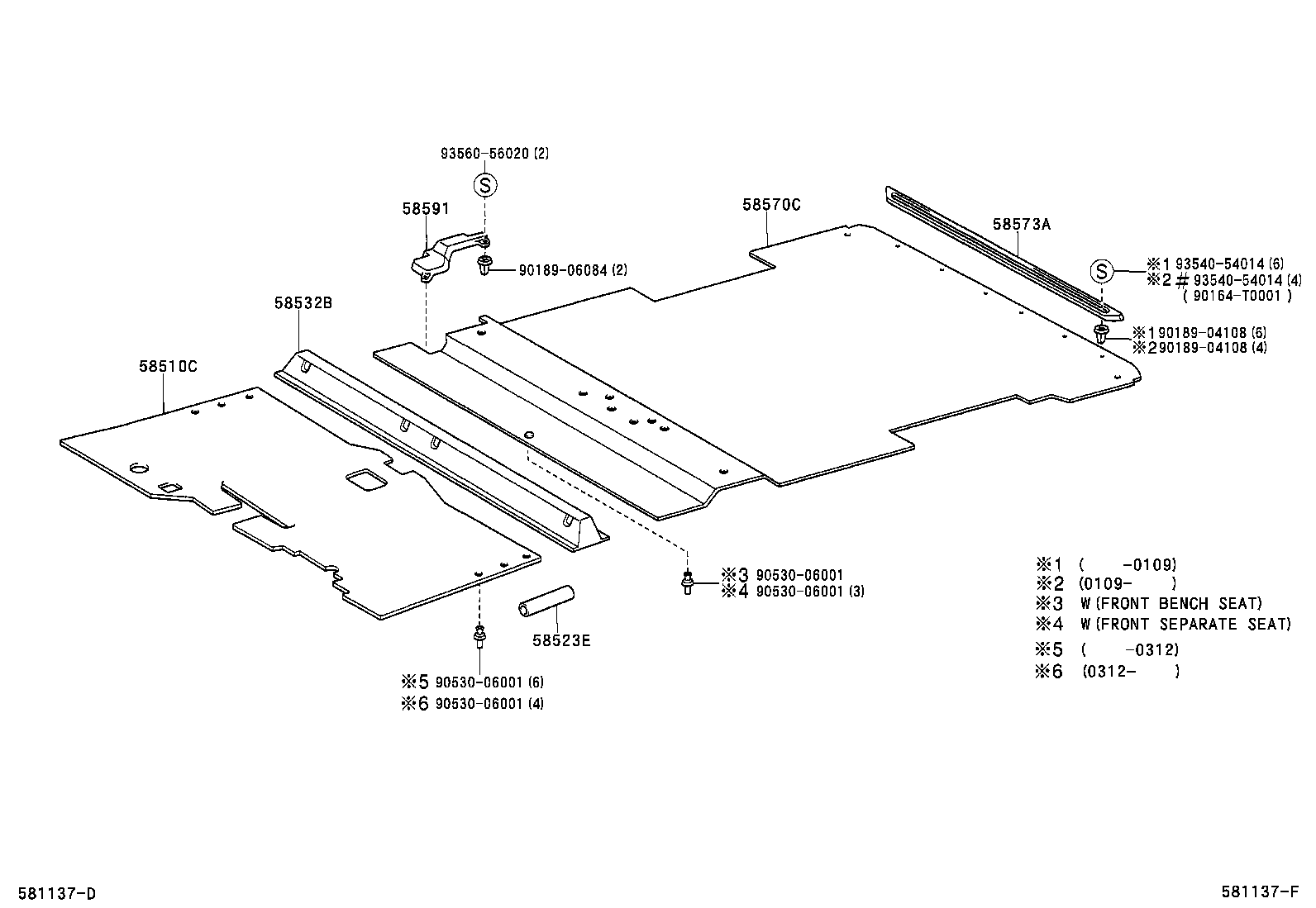

Floor Mat & Silencer Pad
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58510C | Carpet Assy, Front Floor, Front |
| 58511 | Mat, Floor, Front |
| 58523E | Bracket, Floor Carpet Set |
| 58532A | Mat, Center Floor Crosmmber |
| 58532B | Carpet, Center Floor Crosmmber |
| 58570C | Carpet Assy, Rear Floor |
| 58573A | Plate, Rear Floor Mat Support |
| 58581A | Mat, Rear Floor |
| 58591 | Cover, Floor Carpet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
