Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

86 part groups · 3 illustrations

Illustrations

611114B 1999-12 → —

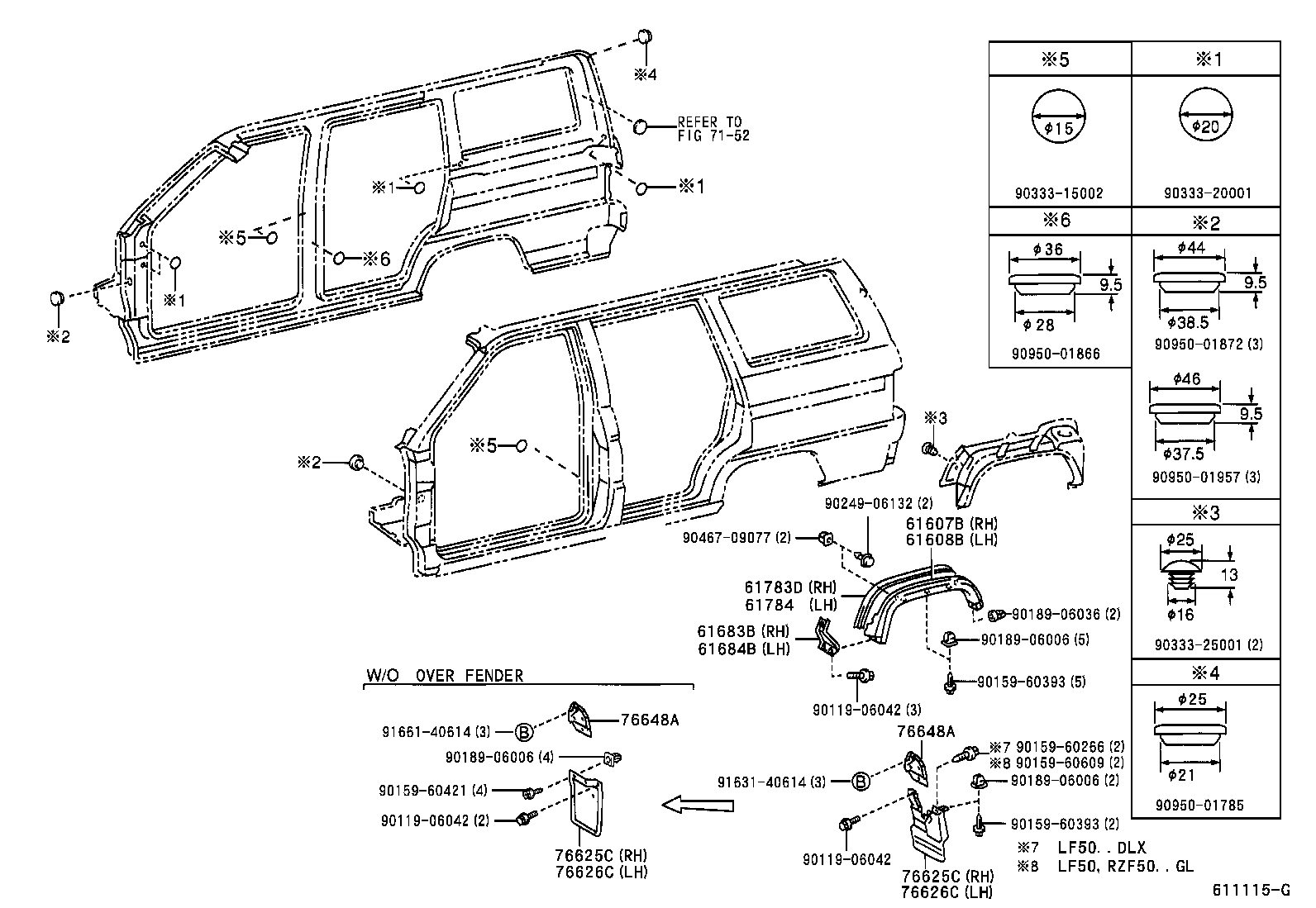

611115G 1999-12 → 2002-09

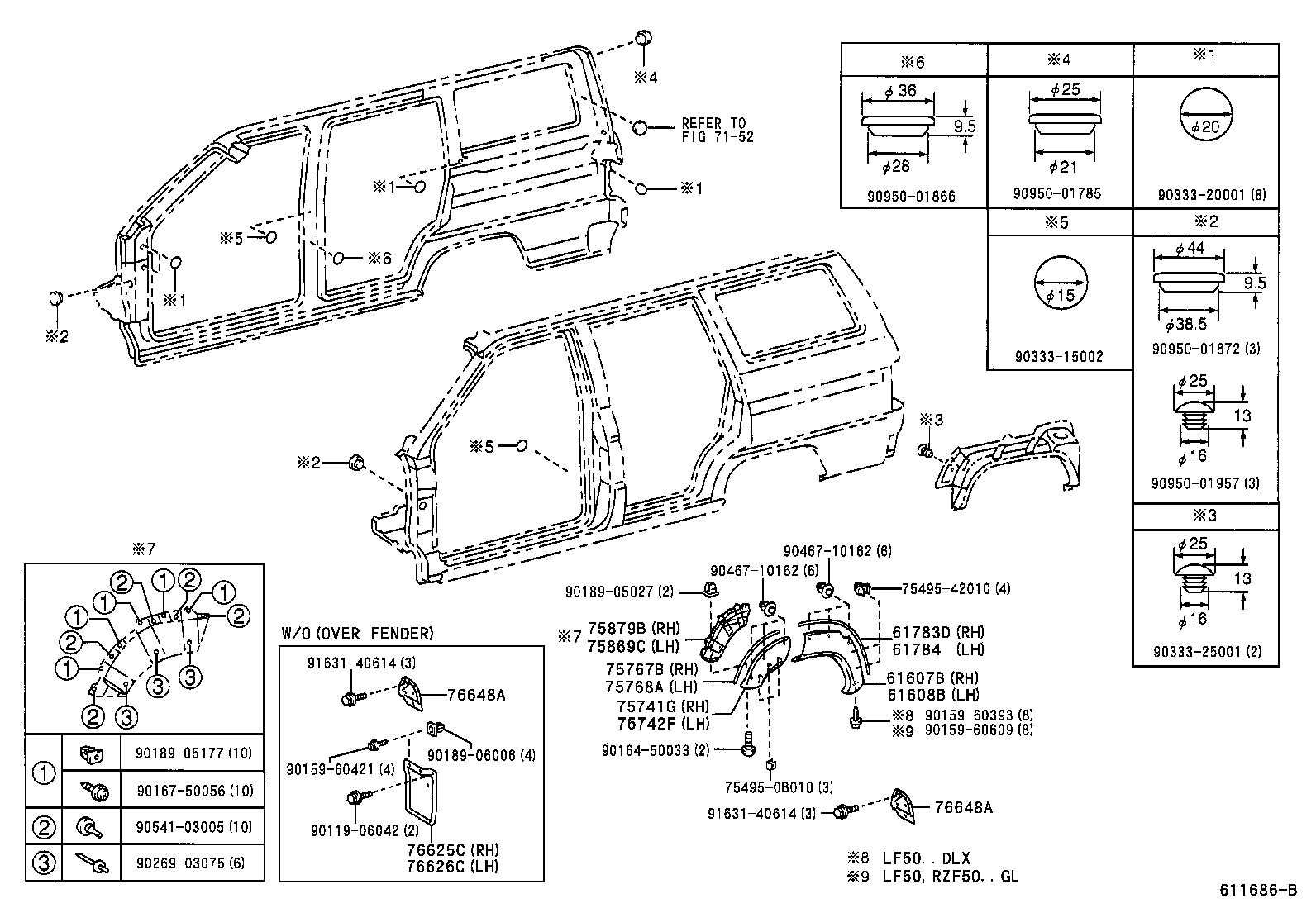

611686B 2002-09 → —

Part groups

PNC	Description
55713D	Reinforcement, Cowl Top Side, RH
55714D	Reinforcement, Cowl Top Side, LH
61013A	Pillar Sub-assy, NO.3 RH
61014A	Pillar Sub-assy, NO.4 RH
61021C	Pillar Sub-assy, Front Body, RH
61022C	Pillar Sub-assy, Front Body, LH
61024A	Pillar Sub-assy, NO.4 LH
61101	Panel Sub-assy, Cowl Side, RH
61102	Panel Sub-assy, Cowl Side, LH
61106A	Reinforce Sub-assy, Front Body Pillar, Upper RH
61107B	Reinforce Sub-assy, Front Body Pillar, Upper LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61111B	Panel, NO.1 Side, RH
61112B	Panel, NO.2 Side, RH
61171A	Bracket, Antenna Pole Mounting
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61233A	Rail, Roof Side, Inner NO.2 RH
61234A	Rail, Roof Side, Inner NO.2 LH
61261A	Channel, Roof Drip Side, Front RH
61264A	Channel, Roof Drip Side, Front LH
61267A	Channel, Roof Drip Side, Rear RH
61268	Channel, Roof Drip Side, Rear LH
61277C	Joint, Roof Drip Channel, RH
61278A	Joint, Roof Drip Channel, LH
61301	Pillar Sub-assy, Center Body, RH
61302	Pillar Sub-assy, Center Body, LH
61308B	Retainer Sub-assy, Door Lock Striker, RH
61309B	Retainer Sub-assy, Door Lock Striker, LH
61315C	Retainer, Door Lock Striker, RH
61315D	Retainer, Door Lock Striker, LH
61315E	Retainer, Rear Door Lock Striker, RH
61315F	Retainer, Rear Door Lock Striker, LH
61323A	Reinforcement, Center Body Pillar, Lower RH
61324A	Reinforcement, Center Body Pillar, Lower LH
61372B	Reinforce, Center Pillar Upper Hinge, NO.2 RH
61382B	Reinforce, Center Pillar Upper Hinge, NO.2 LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61501D	Pillar Sub-assy, Cab Rear, RH
61502D	Pillar Sub-assy, Cab Rear, LH
61503B	Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B	Reinforcement Sub-assy, Quarter Lock Pillar, LH
61605E	Panel, Quarter, RH
61606	Frame Sub-assy, Back Door Opening Side, RH
61606E	Panel, Quarter, LH
61607	Frame Sub-assy, Back Door Opening Side, LH
61607B	Extension Sub-assy, Rear Wheel Opening, RH
61608B	Extension Sub-assy, Rear Wheel Opening, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61683B	Bracket, Rear Wheel Opening, NO.1 RH
61684B	Bracket, Rear Wheel Opening, NO.1 LH
61697D	Housing, Quarter Panel End, RH
61698D	Housing, Quarter Panel End, LH
61703G	Panel Sub-assy, Quarter, Inner RH
61704H	Panel Sub-assy, Quarter, Inner LH
61707L	Panel Sub-assy, Roof Side, Inner Front RH
61708G	Panel Sub-assy, Roof Side, Inner Front LH
61709	Box Sub-assy, Fuel Inlet
61713A	Extension, Roof Side, Outer RH
61714A	Extension, Roof Side, Outer LH
61737B	Panel, Roof Side, Inner Lower RH
61738B	Panel, Roof Side, Inner Lower LH
61783D	Pad, Rear Wheel Opening Extension, NO.1
61784	Pad, Rear Wheel Opening Extension, NO.2
63147E	Bracket, Roof Panel Reinforcement
63147G	Bracket, Roof Panel Reinforcement
63147H	Bracket, Roof Panel Reinforcement, NO.3
63147J	Bracket, Roof Panel Reinforcement, NO.4
63149G	Bracket, Roof Panel Reinforcement, Rear RH
63149H	Bracket, Roof Panel Reinforcement, Rear LH
75741G	Moulding, Rear Door, Outside RH
75742F	Moulding, Rear Door, Outside LH
75767B	Pad, Rear Door Moulding, RH
75768A	Pad, Rear Door Moulding, LH
75869C	Retainer, Quarter Opening, LH
75879B	Retainer, Quarter Opening, RH
76625C	Mudguad, Quarter Panel, Rear RH
76626C	Mudguad, Quarter Panel, Rear LH
76648A	Support, Rear Body Mudguard, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
