Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

25 part groups · 3 illustrations

Illustrations

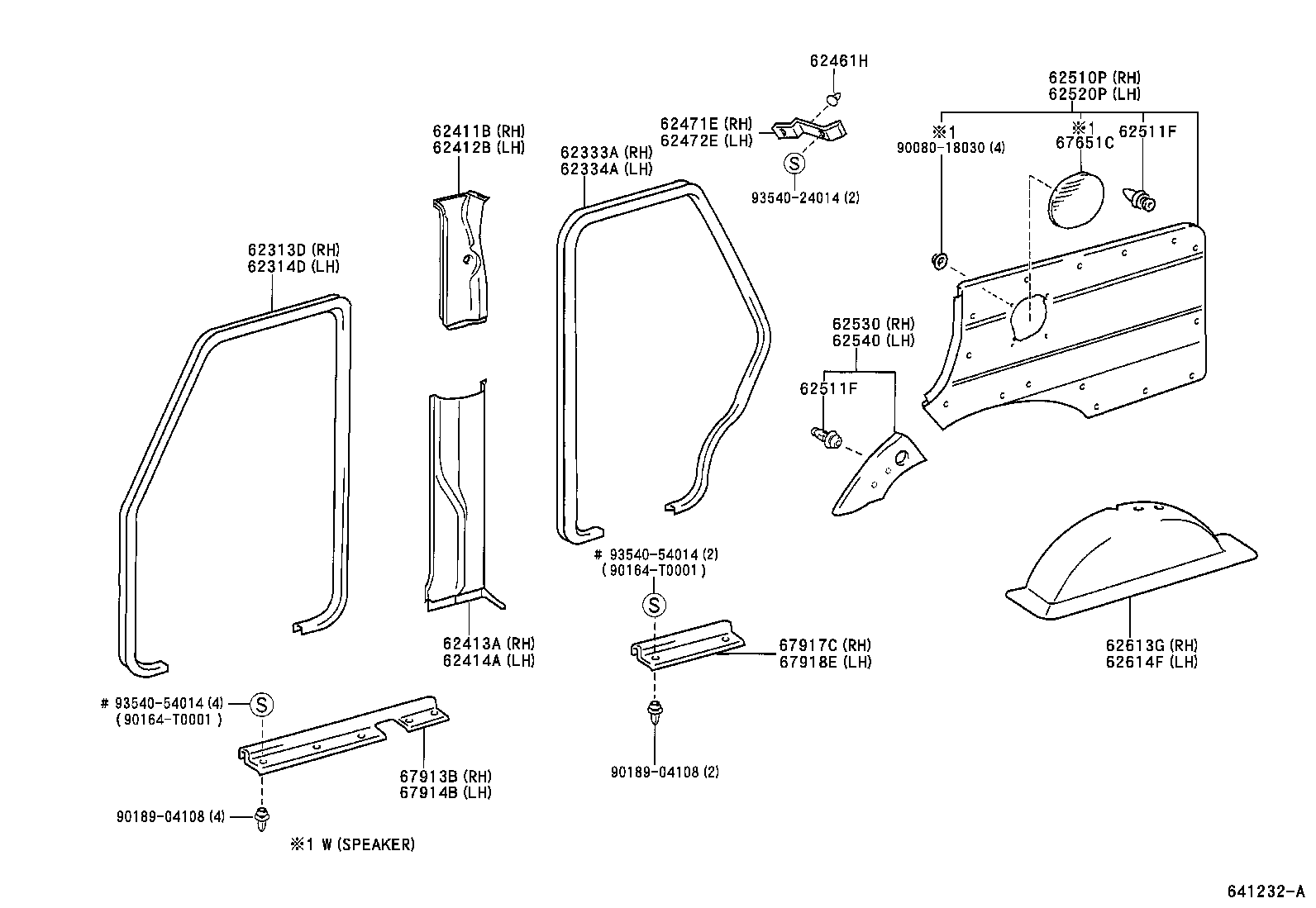

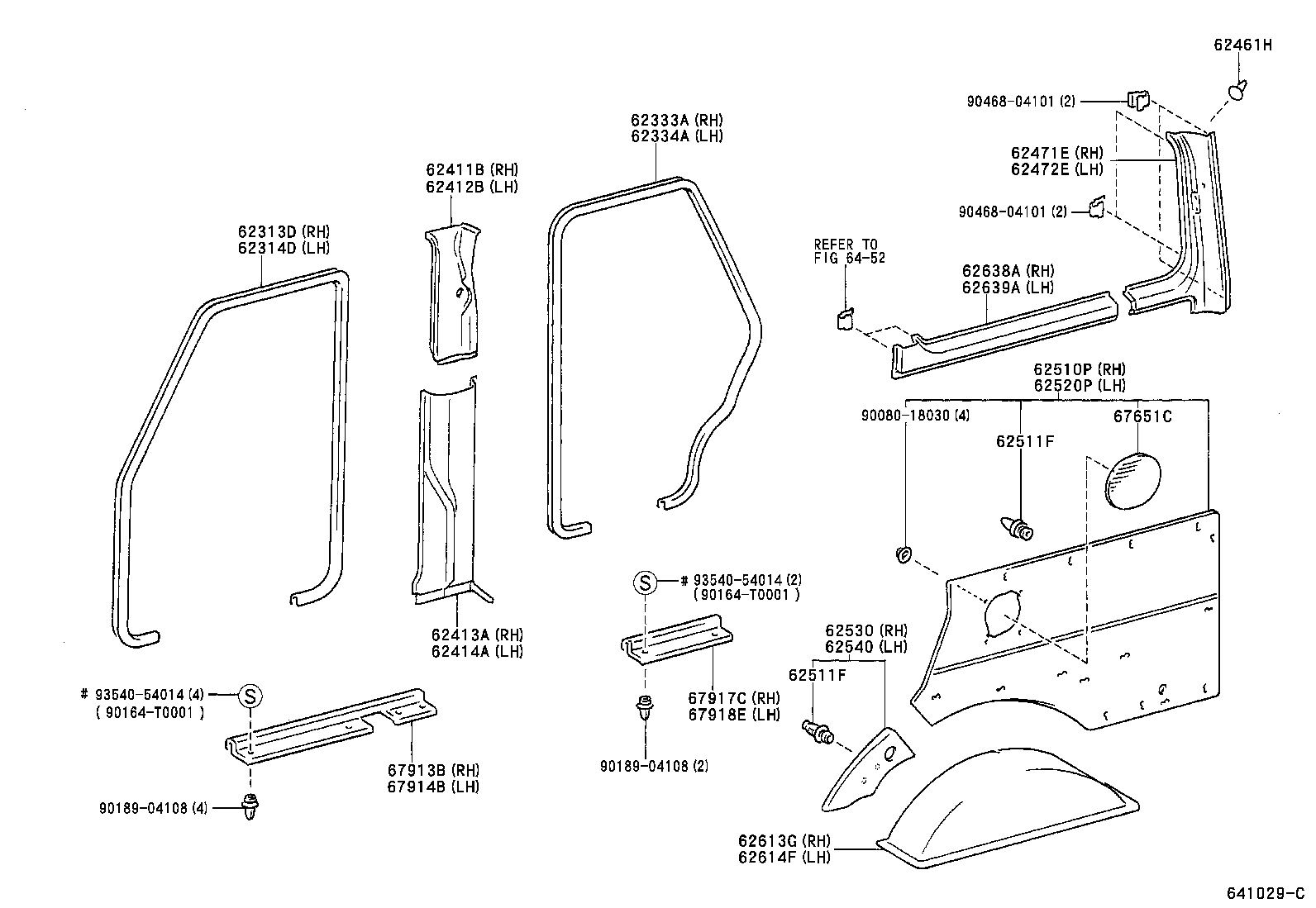

Figure 640734G 640734G 1999-12 → 2001-09 Figure 641232A 641232A 2001-09 → — Figure 641029C 641029C 2002-01 → —

Part groups

PNCDescription
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62333A Trim, Rear Door Opening, RH
62334A Trim, Rear Door Opening, LH
62411B Garnish, Center Pillar, Upper RH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62461H Clip (FOR ROOF SIDE INNER GARNISH)
62471E Garnish, Roof Side, Inner Upper RH
62472E Garnish, Roof Side, Inner Upper LH
62510P Panel Assy, Quarter Trim, Front RH
62511F Retainer (FOR QUARTER INSIDE TRIM BOARD)
62520P Panel Assy, Quarter Trim, Front LH
62530 Panel Assy, Quarter Trim, Lower RH
62540 Panel Assy, Quarter Trim, Lower LH
62613G Cover Assy, Quarter Wheel House, RH
62614F Cover Assy, Quarter Wheel House, LH
62638A Garnish, Quarter Pillar, RH
62639A Garnish, Quarter Pillar, LH
67651C Grille, Quarter Trim Speaker
67913B Plate, Front Door Scuff, RH
67914B Plate, Front Door Scuff, LH
67917C Plate, Rear Door Scuff, RH
67918E Plate, Rear Door Scuff, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
