Toyota Qualis
1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General
Discontinued model
Data version 2005-07

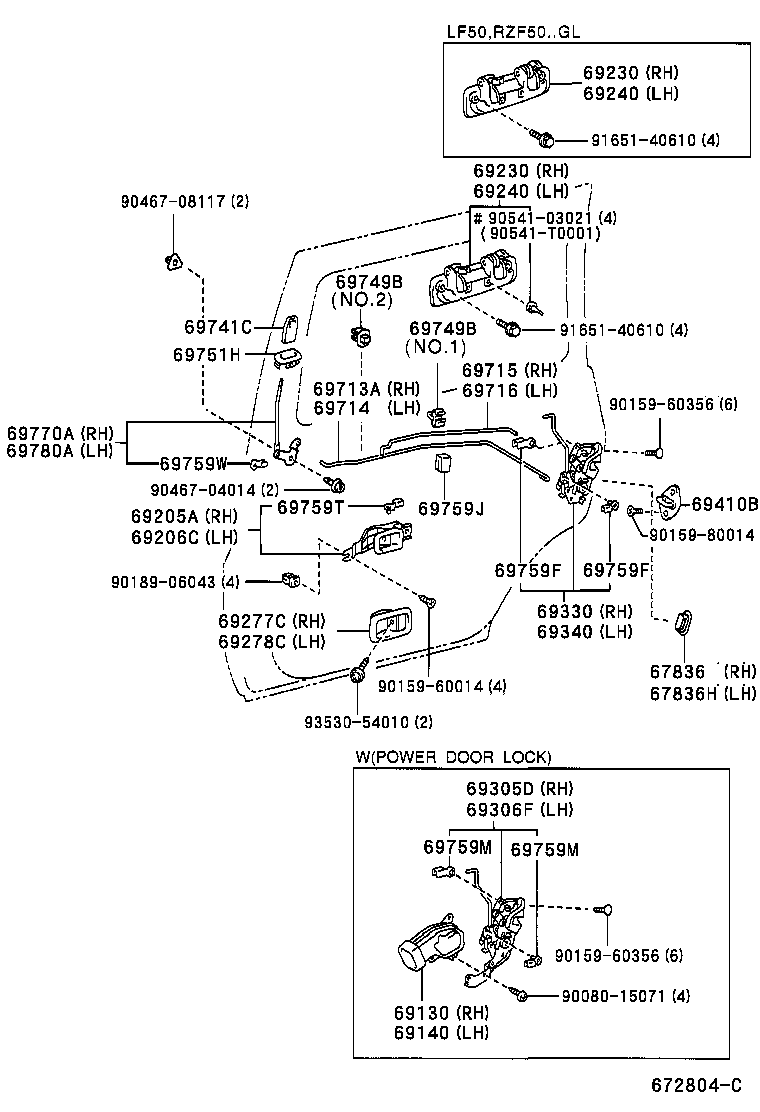

Rear Door Lock & Handle
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67836H | Cover, Rear Door Lock Child Protection, LH |
| 69130 | Actuator Assy, Rear Door Lock, RH |
| 69140 | Actuator Assy, Rear Door Lock, LH |
| 69205A | Handle Sub-assy, Rear Door Inside, RH |
| 69206C | Handle Sub-assy, Rear Door Inside, LH |
| 69230 | Handle Assy, Rear Door Outside, RH |
| 69240 | Handle Assy, Rear Door Outside, LH |
| 69277C | Bezel, Rear Door Inside Handle, RH |
| 69278C | Bezel, Rear Door Inside Handle, LH |
| 69305D | Lock Sub-assy, Rear Door, RH |
| 69306F | Lock Sub-assy, Rear Door, LH |
| 69330 | Lock Assy, Rear Door, RH |
| 69340 | Lock Assy, Rear Door, LH |
| 69410B | Plate Assy, Rear Door Lock Striker |
| 69713A | Link, Rear Door Lock Remote Control, RH |
| 69714 | Link, Rear Door Lock Remote Control, LH |
| 69715 | Link, Rear Door Locking Control, NO.2 RH |
| 69716 | Link, Rear Door Locking Control, NO.2 LH |
| 69736D | Guide, Rear Door Locking Link |
| 69741C | Knob, Rear Door Lock Control |
| 69749B | Clamp, Rear Door Lock Link |
| 69751H | Holder, Rear Door Lock Contral Knob |
| 69759F | Snap, Rear Door Lock Control Link |
| 69759J | Silencer, Door Lock Link |
| 69759M | Snap, Door Lock Control Link |
| 69759T | Snap, Rear Door Inside Handle |
| 69759W | Snap, Rear Door Lock Control Link |
| 69770A | Link Assy, Rear Door Inside Locking, RH |
| 69780A | Link Assy, Rear Door Inside Locking, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
