Toyota Qualis
1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General
Discontinued model
Data version 2005-07

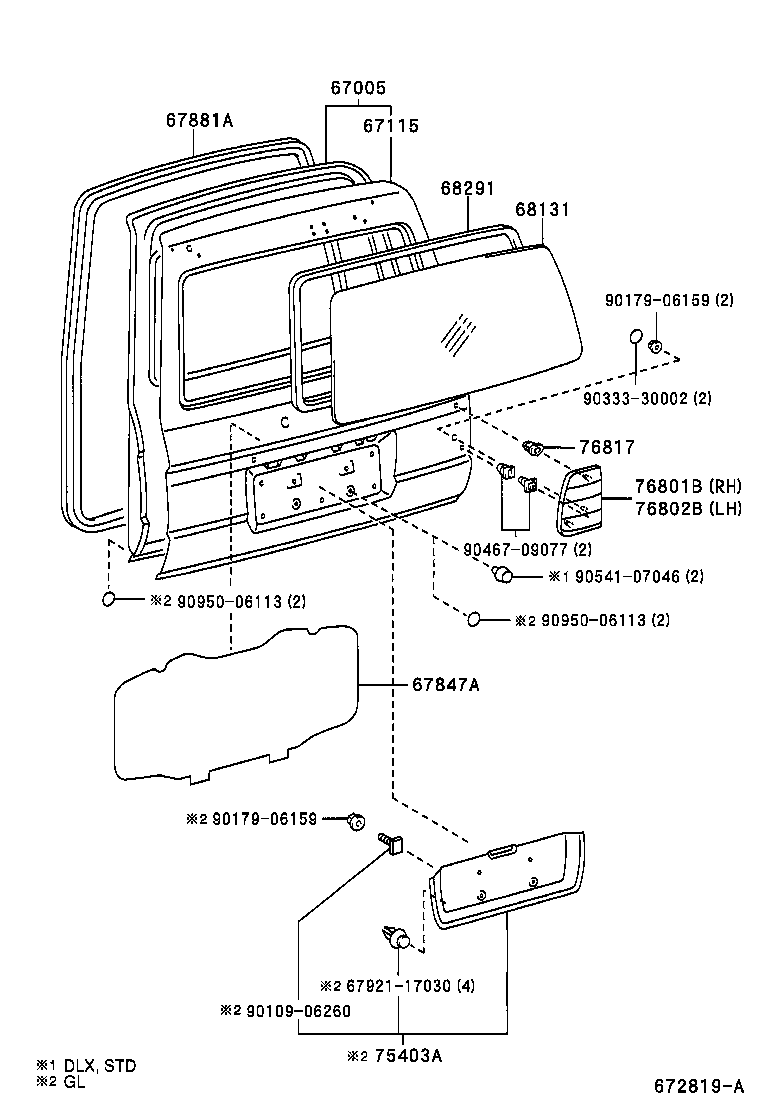

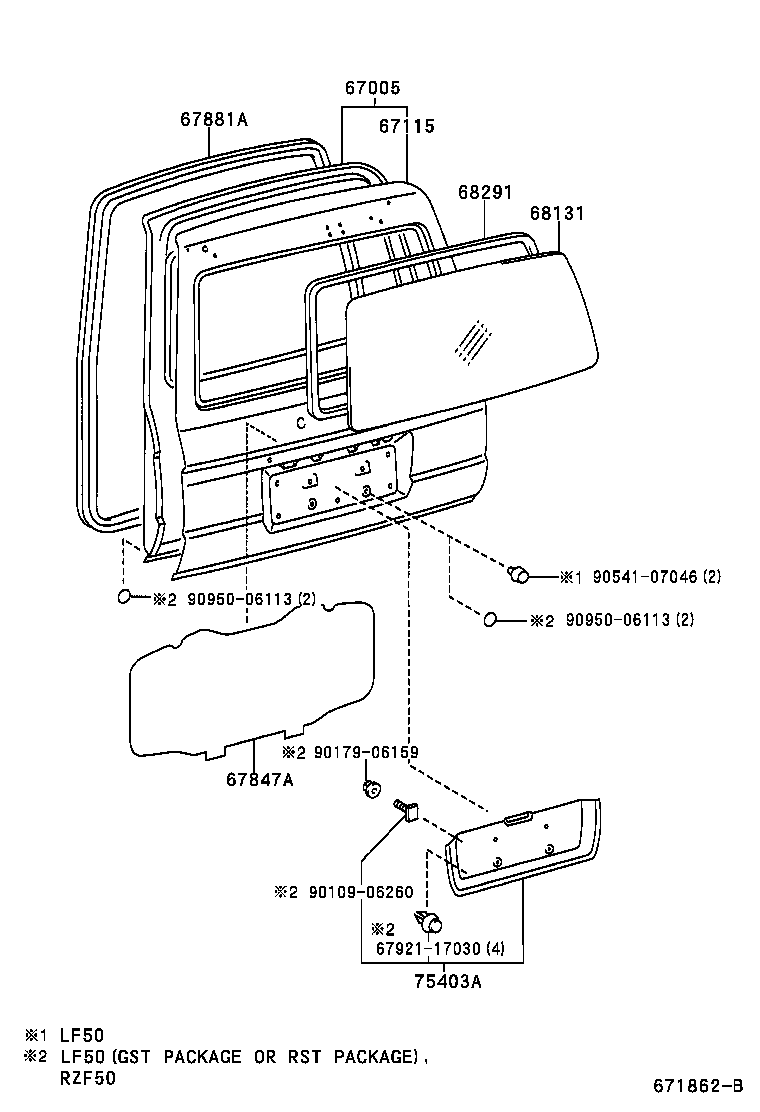

Back Door Panel & Glass
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 64780A | Panel Assy, Back Door Trim |
| 64780D | Retainer(FOR BACK DOOR TRIM BOARD) |
| 67005 | Panel Sub-assy, Back Door |
| 67115 | Panel, Back Door, Outer |
| 67847A | Cover, Back Door Service Hole |
| 67881A | Weatherstrip, Back Door |
| 68131 | Glass, Back Door |
| 68291 | Weatherstrip, Back Door Glass |
| 75403A | Ornament Sub-assy, Back Door |
| 76801B | Garnish Sub-assy, Back Door, Outside RH |
| 76802B | Garnish Sub-assy, Back Door, Outside LH |
| 76817 | Clip, Back Door Outside Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
