Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

184 part groups · 12 illustrations

Illustrations

711533B 1999-12 → 2002-09

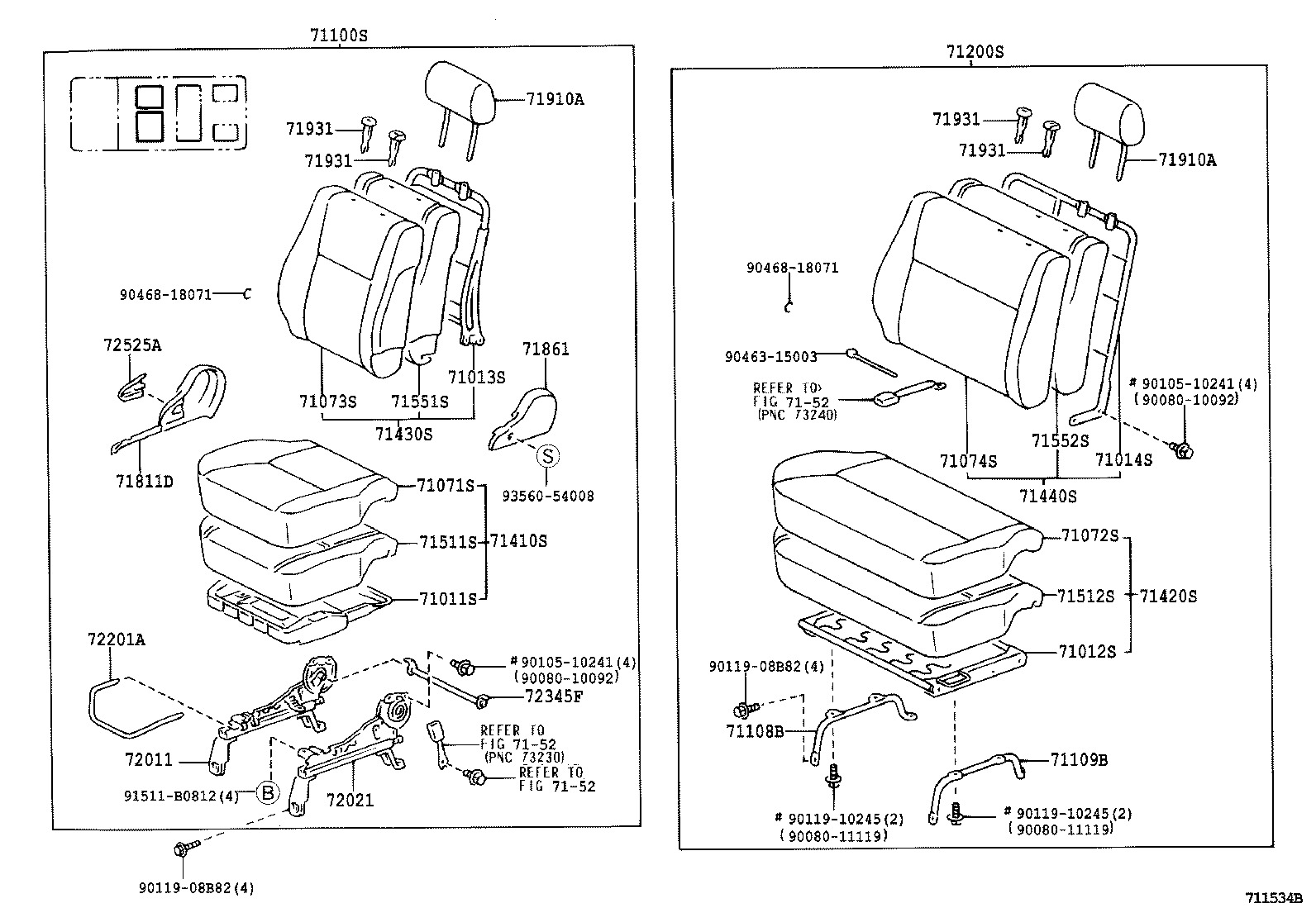

711534B 1999-12 → 2002-09

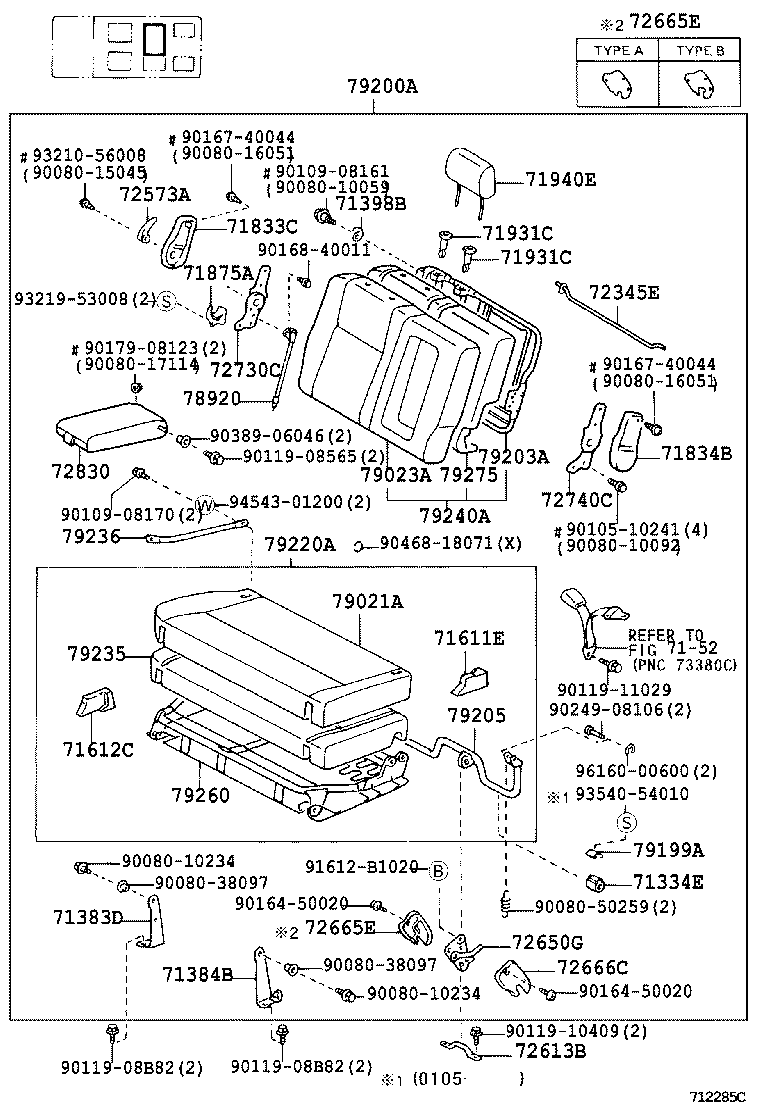

712285C 2002-01 → 2002-09

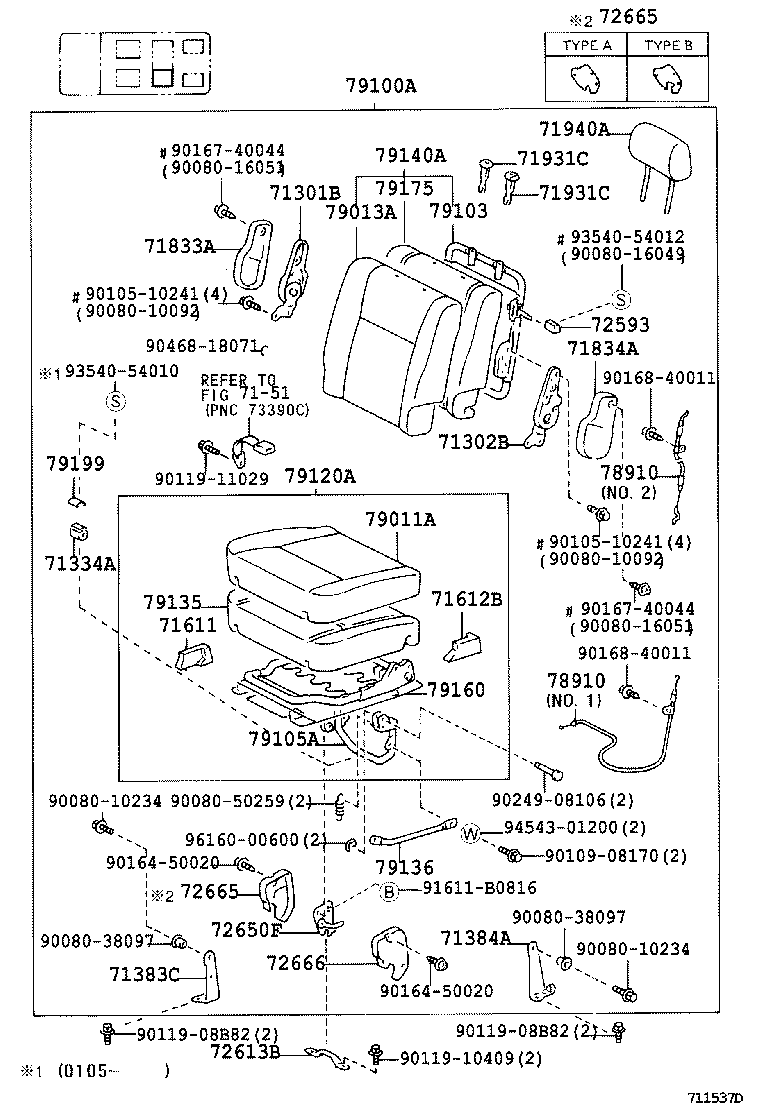

711537D 1999-12 → —

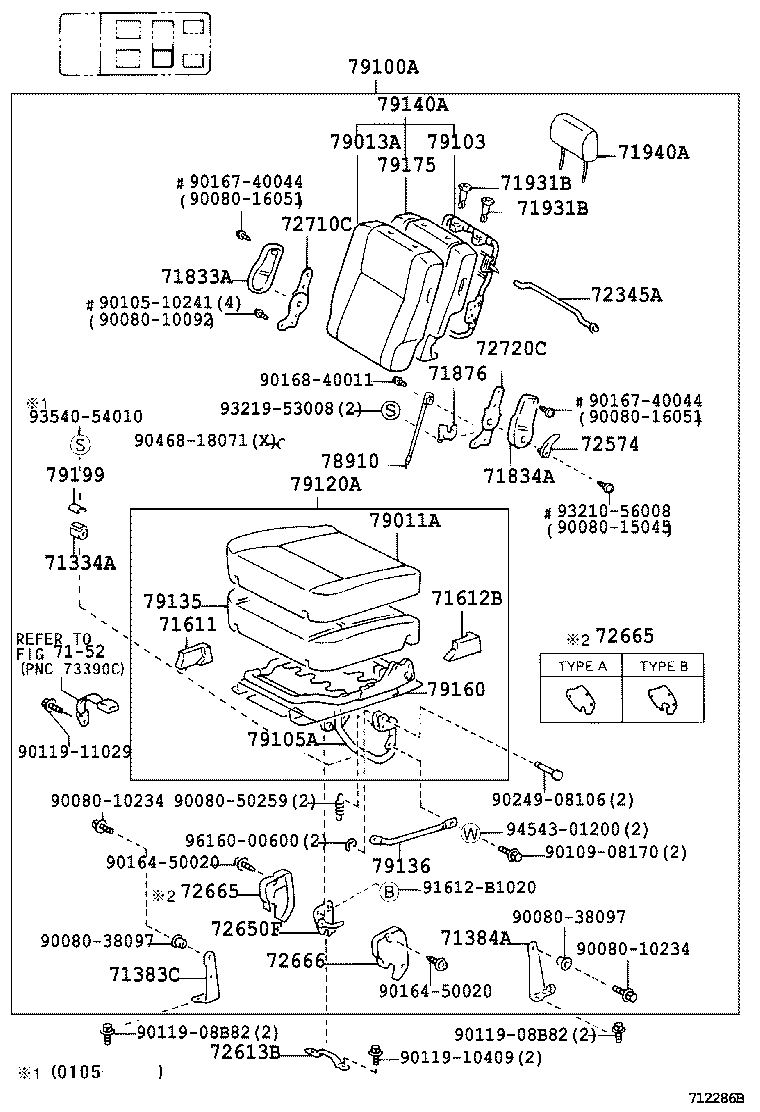

712286B 2002-01 → 2002-09

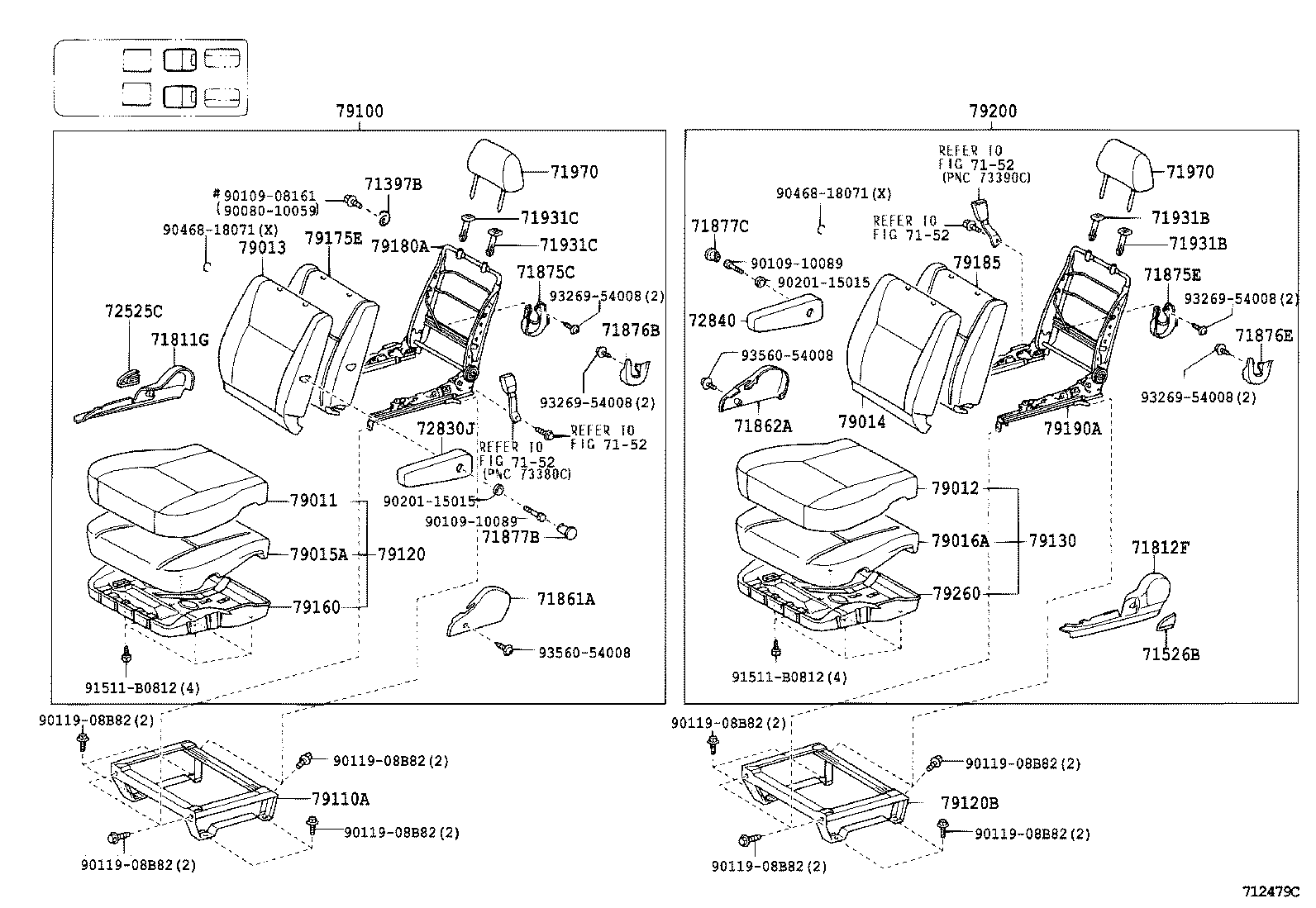

712479C 2002-09 → —

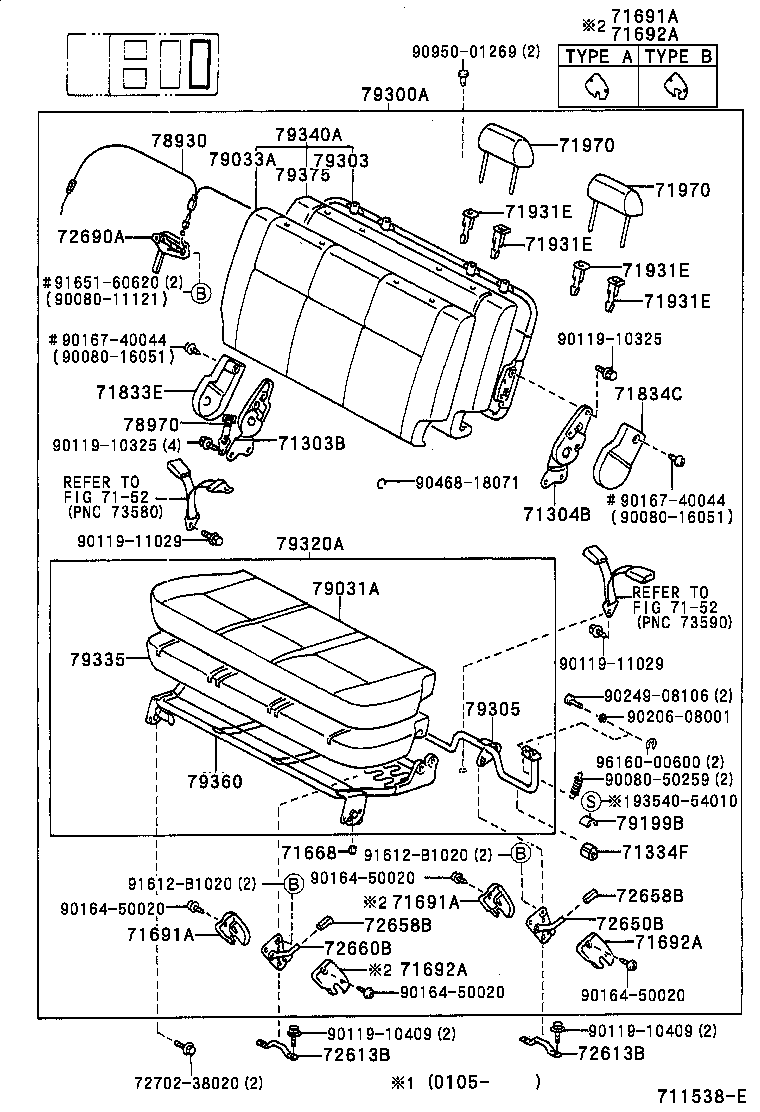

711538E 1999-12 → —

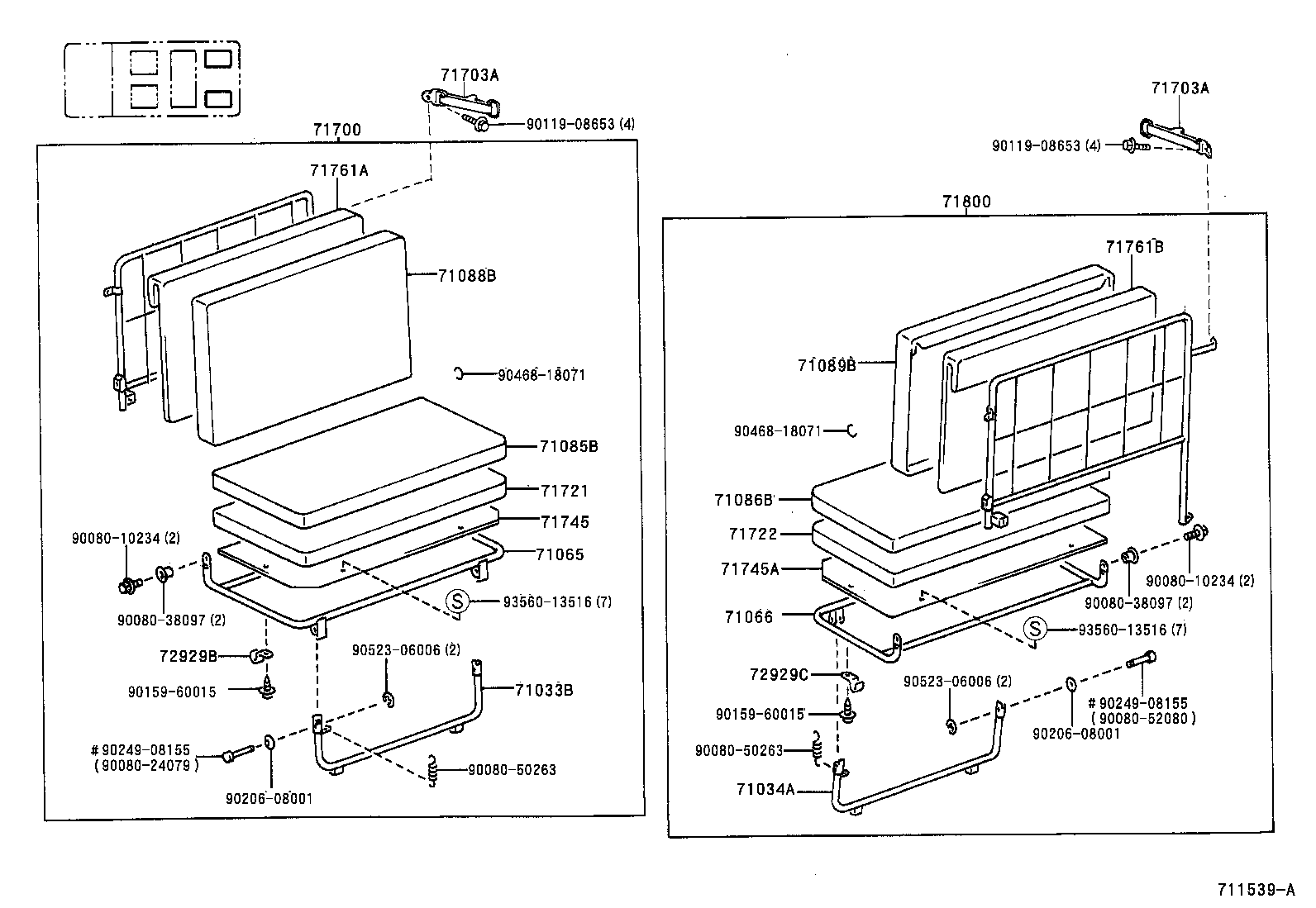

711539A 1999-12 → —

Part groups

PNC	Description
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71033B	Leg Sub-assy, Rear Side Seat Cushion, NO.1 RH
71034A	Leg Sub-assy, Rear Side Seat Cushion, NO.1 LH
71065	Frame Sub-assy, Rear Side Seat Cushion, RH
71066	Frame Sub-assy, Rear Side Seat Cushion, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71085B	Cover Sub-assy, Rear Side Seat Cushion, RH
71086B	Cover Sub-assy, Rear Side Seat Cushion, LH
71088B	Cover Sub-assy, Rear Side Seatback, RH
71089B	Cover Sub-assy, Rear Side Seatback, LH
71100S	Seat Assy, Front RH
71108B	Leg Sub-assy, Front Seat, RH
71109B	Leg Sub-assy, Front Seat, LH
71200S	Seat Assy, Front LH
71301B	Hinge Sub-assy, Rear NO.1 Seat, RH
71302B	Hinge Sub-assy, Rear NO.1 Seat, LH
71303B	Hinge Sub-assy, Rear NO.2 Seat, RH
71304B	Hinge Sub-assy, Rear NO.2 Seat, LH
71334A	Stopper, Rear Seat Leg
71334E	Stopper, Rear Seat Leg, NO.2
71334F	Stopper, Rear Seat Leg, NO.3
71383C	Bracket, Rear Seat Cushion Set, Rear RH
71383D	Bracket, Rear NO.2 Seat Cushion Set, Rear RH
71384A	Bracket, Rear Seat Cushion Set, Rear LH
71384B	Bracket, Rear NO.2 Seat Cushion Set, Rear LH
71397B	Holder, Rear Seatback, RH
71398B	Holder, Rear Seatback, LH
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71526B	Handle, Reclining Adjuster Release, LH
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611	Pad, Rear Seat Cushion
71611E	Pad, Rear NO.2 Seat Cushion, A
71612B	Pad, Rear Seat Cushion, B
71612C	Pad, Rear Seat Cushion, C
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71668	Cushion, Rear NO.3 Seat
71691A	Cover, Rear NO.3 Seat Lock, RH
71692A	Cover, Rear NO.3 Seat Lock, LH
71700	Seat Assy, Rear Side, RH
71703A	Band Sub-assy, Rear Side Seat, NO.1
71721	Pad, Rear Side Seat Cushion, RH
71722	Pad, Rear Side Seat Cushion, LH
71745	Board, Side Seat Cushion, RH
71745A	Board, Side Seat Cushion, LH
71761A	Pad, Rear Side Seatback, RH
71761B	Pad, Rear Side Seatback, LH
71800	Seat Assy, Rear Side, LH
71811D	Shield, Front Seat Cushion, RH
71811G	Shield, Rear Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71812F	Shield, Rear Seat Cushion, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833C	Cover, Rear Seat Reclining, NO.2 RH
71833E	Cover, Rear Seat Reclining, NO.3 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71834C	Cover, Rear Seat Reclining, NO.3 LH
71861	Shield, Front Seat Cushion, Inner RH
71861A	Shield, Rear Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71862A	Shield, Rear Seat Cushion, Inner LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875C	Cover, Reclining Adjuster Inside, RH
71875E	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71876B	Cover, Reclining Adjuster Inside, LH
71876E	Cover, Reclining Adjuster Inside, LH
71877B	Cover, Rear Seat Armrest Hole RH
71877C	Cover, Rear Seat Armrest Hole LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931B	Support Assy, Rear NO.1 Seat Headrest
71931C	Support Assy, Rear NO.2 Seat Headrest
71931E	Support Assy, Rear NO.3 Seat Headrest
71940A	Headrest Assy, Rear Seat
71940E	Headrest Assy, NO.2 Seat
71970	Headrest Assy, Rear Seat
72011	Adjuster Sub-assy, Front Seat, Outer RH
72012	Adjuster Sub-assy, Front Seat, Outer LH
72021	Adjuster Sub-assy, Front Seat, Inner RH
72022	Adjuster Sub-assy, Front Seat, Inner LH
72201A	Handle Sub-assy, Seat Track RH
72201B	Handle Sub-assy, Seat Track LH
72345A	Pipe, Reclining Connecting
72345E	Pipe, Reclining Connecting
72345F	Pipe, Reclining Connecting, RH
72345G	Pipe, Reclining Connecting, LH
72525A	Handle, Reclining Adjuster Release, RH
72525C	Handle, Reclining Adjuster Release, NO.1 RH
72526	Handle, Reclining Adjuster Release, LH
72573A	Lever, Reclining Control, NO.2 RH
72574	Lever, Reclining Control, LH
72593	Knob, Reclining Remote Control Lever
72593C	Knob, Reclining Remote Control Lever, NO.2
72613B	Striker, Rear Seat Lock
72650B	Lock Assy, Rear NO.3 Seat, RH
72650F	Lock Assy, Rear Seat, RH
72650G	Lock Assy, Rear NO.2 Seat, RH
72658B	Knob, Rear Seat Lock Handle
72660B	Lock Assy, Rear NO.3 Seat, LH
72665	Cover, Rear Seatback Lock, RH
72665E	Cover, Rear Seat Lock, NO.2 RH
72666	Cover, Rear Seatback Lock, LH
72666C	Cover, Rear Seat Lock, NO.2 LH
72690A	Strap Assy, Rear Seat Lock Release
72710C	Adjuster Assy, NO.1 Seat Reclining, RH
72720C	Adjuster Assy, NO.1 Seat Reclining, LH
72730C	Adjuster Assy, NO.2 Seat Reclining, RH
72740C	Adjuster Assy, NO.2 Seat Reclining, LH
72830	Armrest Assy, Rear Seat, Center
72830J	Armrest Assy, Rear NO.1 Seat, RH
72840	Armrest Assy, Rear NO.1 Seat, LH
72929B	Holder, Rear Seat Cushion Band
72929C	Holder, Rear Seat Cushion Band, NO.2
78910	Cable Assy, Fold Seat Lock Control, NO.1
78920	Cable Assy, Fold Seat Lock Control, NO.2
78930	Cable Assy, Fold Seat Lock Control, NO.3
78970	Band Assy, Seat Lock
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79011A	Cover Sub-assy, NO.1 Seat Cushion
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79013	Cover Sub-assy, NO.1 Seatback, RH
79013A	Cover Sub-assy, NO.1 Seatback
79014	Cover Sub-assy, NO.1 Seatback, LH
79015A	Pad Sub-assy, NO.1 Seat Cushion, RH
79016A	Pad Sub-assy, NO.1 Seat Cushion, LH
79021A	Cover Sub-assy, NO.2 Seat Cushion
79023A	Cover Sub-assy, NO.2 Seatback
79031A	Cover Sub-assy, NO.3 Seat Cushion
79033A	Cover Sub-assy, NO.3 Seatback
79100	Seat Assy, Rear NO.1 RH (FOR SEPARATE TYPE)
79100A	Seat Assy, Rear NO.1 (FOR BENCH TYPE)
79103	Frame Sub-assy, NO.1 Seatback
79105A	Leg Sub-assy, NO.1 Seat
79110A	Leg Assy, NO.1 Seat, RH
79120	Cushion Assy, NO.1 Seat, RH
79120A	Cushion Assy, NO.1 Seat
79120B	Leg Assy, NO.1 Seat, LH
79130	Cushion Assy, NO.1 Seat, LH
79135	Pad, NO.1 Seat Cushion
79136	Link, NO.1 Seat Leg
79140A	Back Assy, NO.1 Seat
79160	Spring Assy, NO.1 Seat Cushion
79175	Pad, NO.1 Seatback
79175E	Pad, NO.1 Seatback, RH
79180A	Spring Assy, NO.1 Seatback, RH
79185	Pad, NO.1 Seatback, LH
79190A	Spring Assy, NO.1 Seatback, LH
79199	Holder, NO.1 Seat Leg Stopper
79199A	Holder, NO.2 Seat Leg Stopper
79199B	Holder, NO.3 Seat Leg Stopper
79200	Seat Assy, Rear NO.1 LH (FOR SEPARATE TYPE)
79200A	Seat Assy, NO.2
79203A	Frame Sub-assy, NO.2 Seatback, RH
79205	Leg Sub-assy, NO.2 Seat
79220A	Cushion Assy, NO.2 Seat
79235	Pad, NO.2 Seat Cushion
79236	Link, NO.2 LH Seat Leg
79240A	Back Assy, NO.2 Seat
79260	Spring Assy, NO.2 Seat Cushion
79275	Pad, NO.2 Seatback
79300A	Seat Assy, NO.3
79303	Frame Sub-assy, NO.3 Seatback
79305	Leg Sub-assy, NO.3 Seat
79320A	Cushion Assy, NO.3 Seat
79335	Pad, NO.3 Seat Cushion
79340A	Back Assy, NO.3 Seat
79360	Spring Assy, NO.3 Seat Cushion
79375	Pad, NO.3 Seatback

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
