Toyota Qualis
1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General
Discontinued model
Data version 2005-07

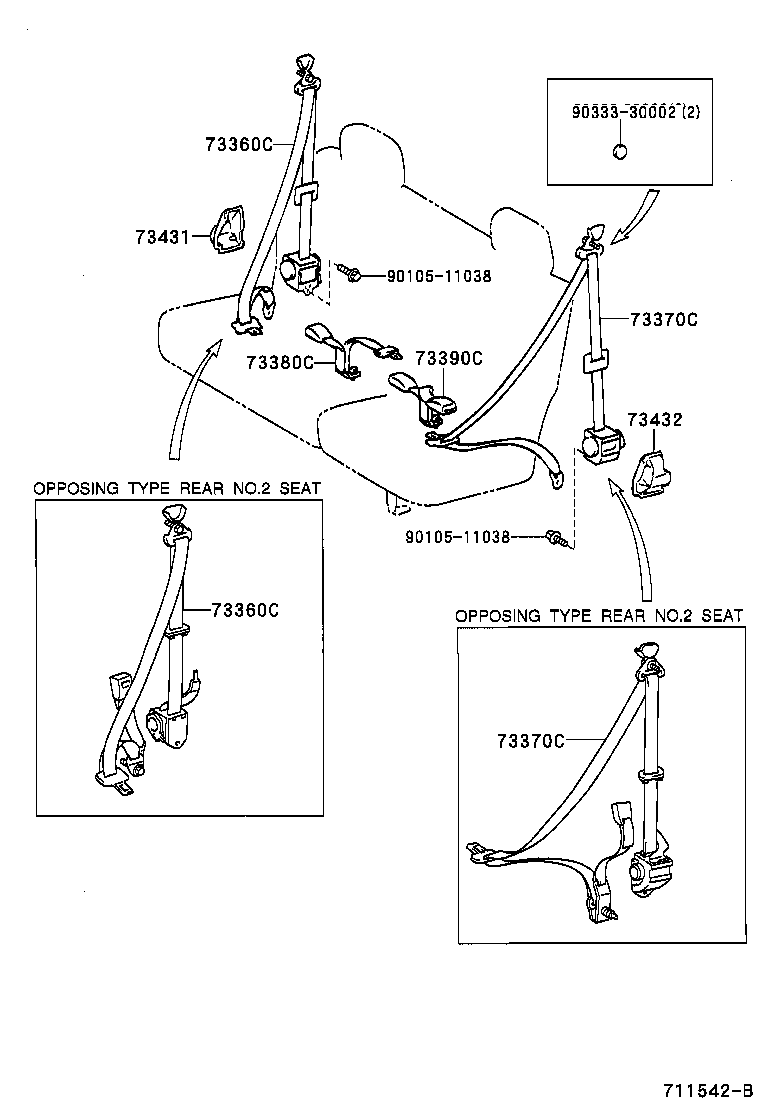

Seat Belt
20 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 73150A | Belt Assy, Front Seat, Center RH |
| 73170 | Belt Assy, Front Center, LH |
| 73173 | Cover, Front Seat Belt Hole, RH |
| 73174 | Cover, Front Seat Belt Hole, LH |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370C | Belt Assy, Rear NO.1 Seat, Outer LH |
| 73380C | Belt Assy, Rear NO.1 Seat, Inner RH |
| 73390C | Belt Assy, Rear NO.1 Seat, Inner LH |
| 73431 | Cover, Rear Seat Belt Retractor, RH |
| 73432 | Cover, Rear Seat Belt Retractor, LH |
| 73550 | Belt Assy, Rear NO.2 Seat Lap Type, Center |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580 | Belt Assy, Rear NO.2 Seat, Inner RH |
| 73580A | Belt Sub Assy, Rear NO.2 Seat, Inner |
| 73590 | Belt Assy, Rear NO.2 Seat, Inner LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
