Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

12 part groups · 3 illustrations

Illustrations

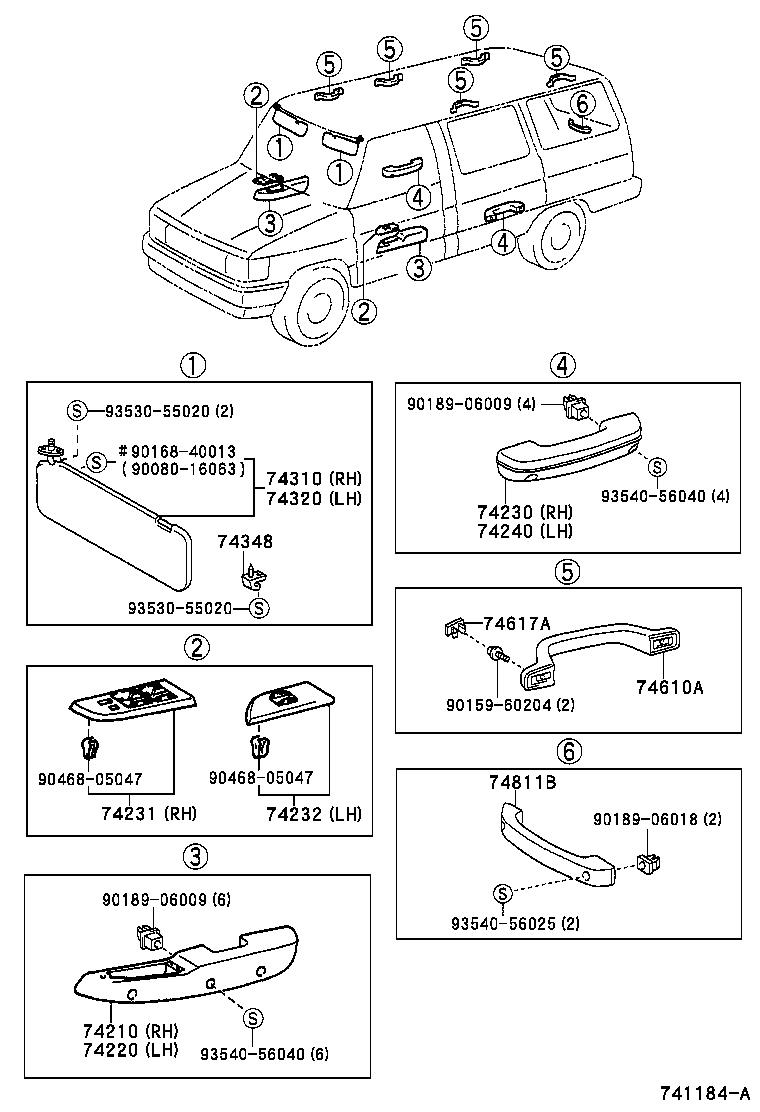

Figure 740718C 740718C 1999-12 → 2002-09 Figure 740718C 740718C 2002-09 → — Figure 741184A 741184A 2002-09 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74230 Armrest Assy, Rear, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74240 Armrest Assy, Rear, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74617A Plug, Assist Grip
74811B Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
