Toyota Qualis
1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General
Discontinued model
Data version 2005-07
Fuel Tank & Tube
48 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |

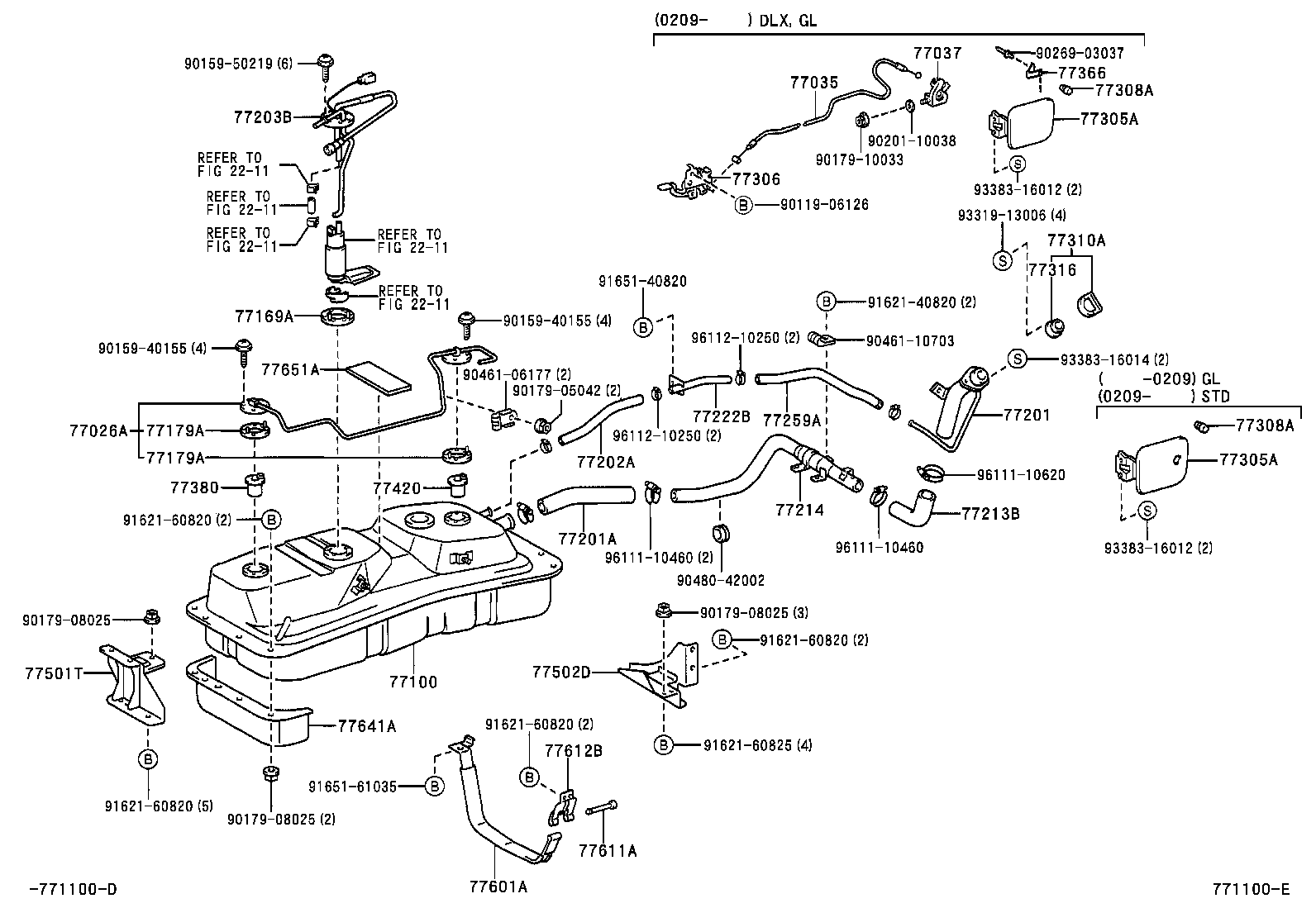

| 77100 | Tank Assy, Fuel |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77202A | Hose, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77203B | Tube Sub-assy, Fuel Suction |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77214 | Pipe, Fuel Tank Filler |
| 77222B | Tube, Fuel Tank Breather, NO.2 |

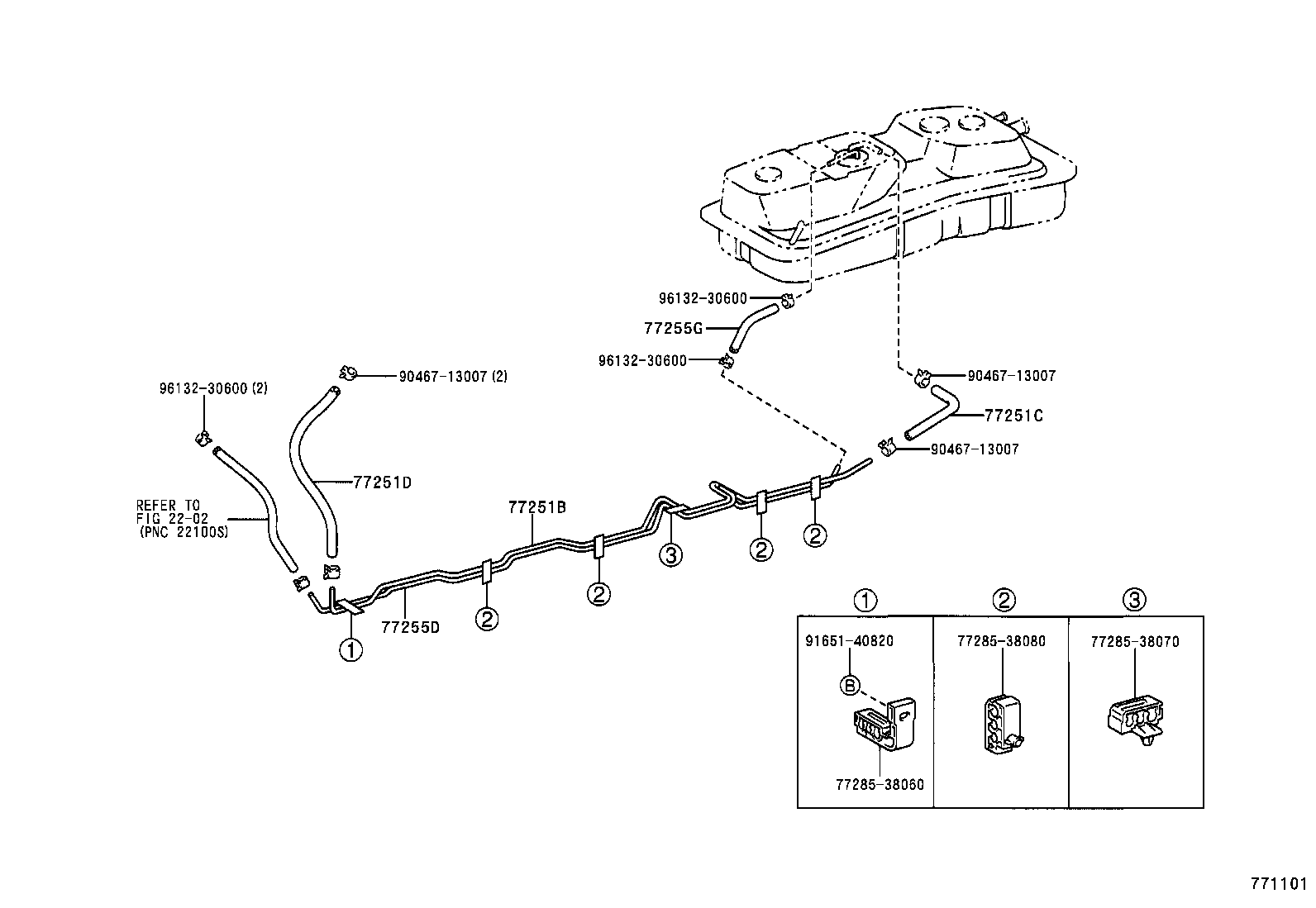

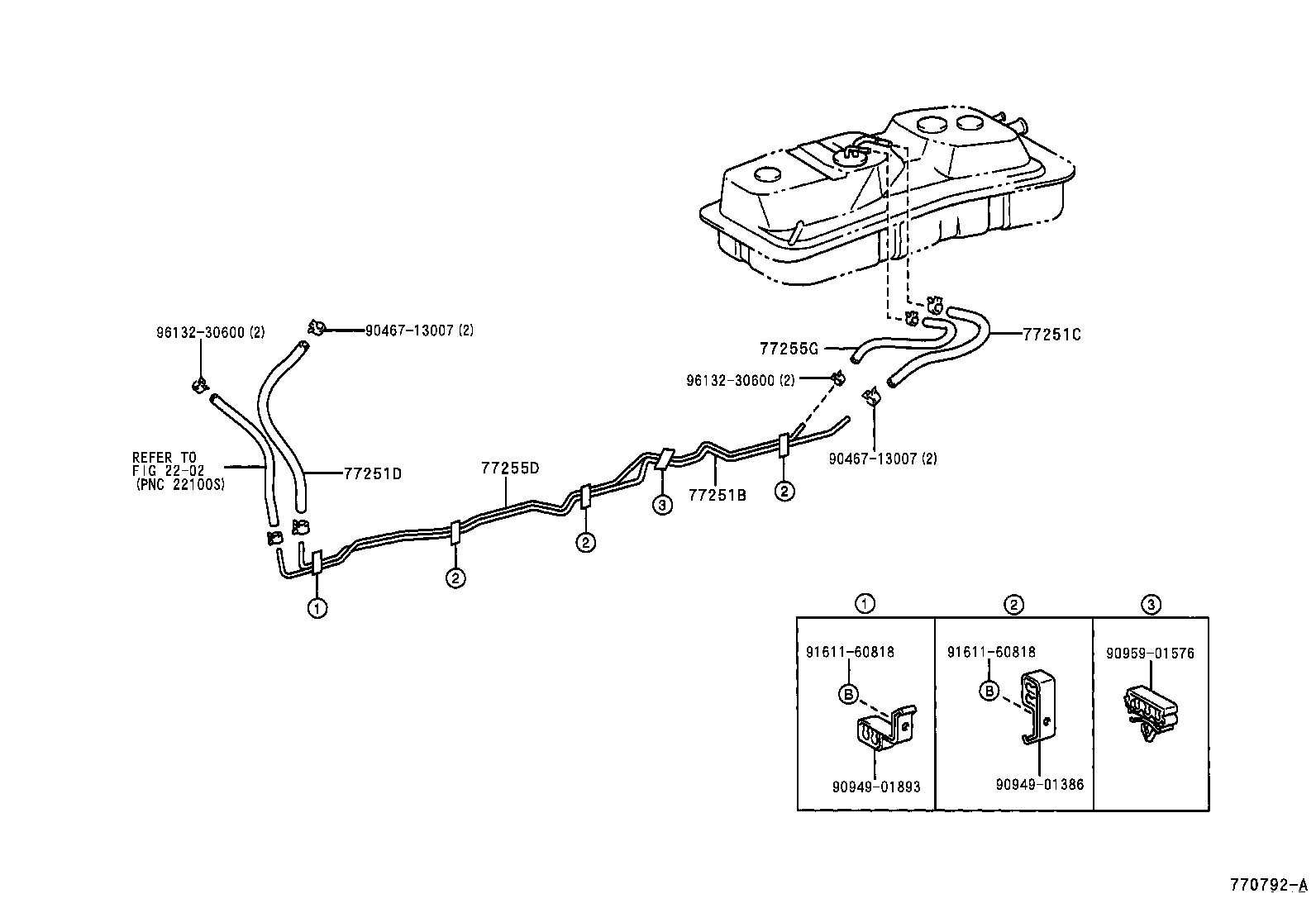

| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77251D | Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) |
| 77255D | Tube, Fuel Return |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77255G | Hose, Fuel Return, NO.1 (FOR FUEL RETURN TUBE) |
| 77256E | Hose, Fuel, NO.2 (FOR FUEL RETURN NO.2 TUBE) |
| 77259A | Hose, Fuel(FOR BREATHER TUBE) |
| 77259C | Hose, Fuel |

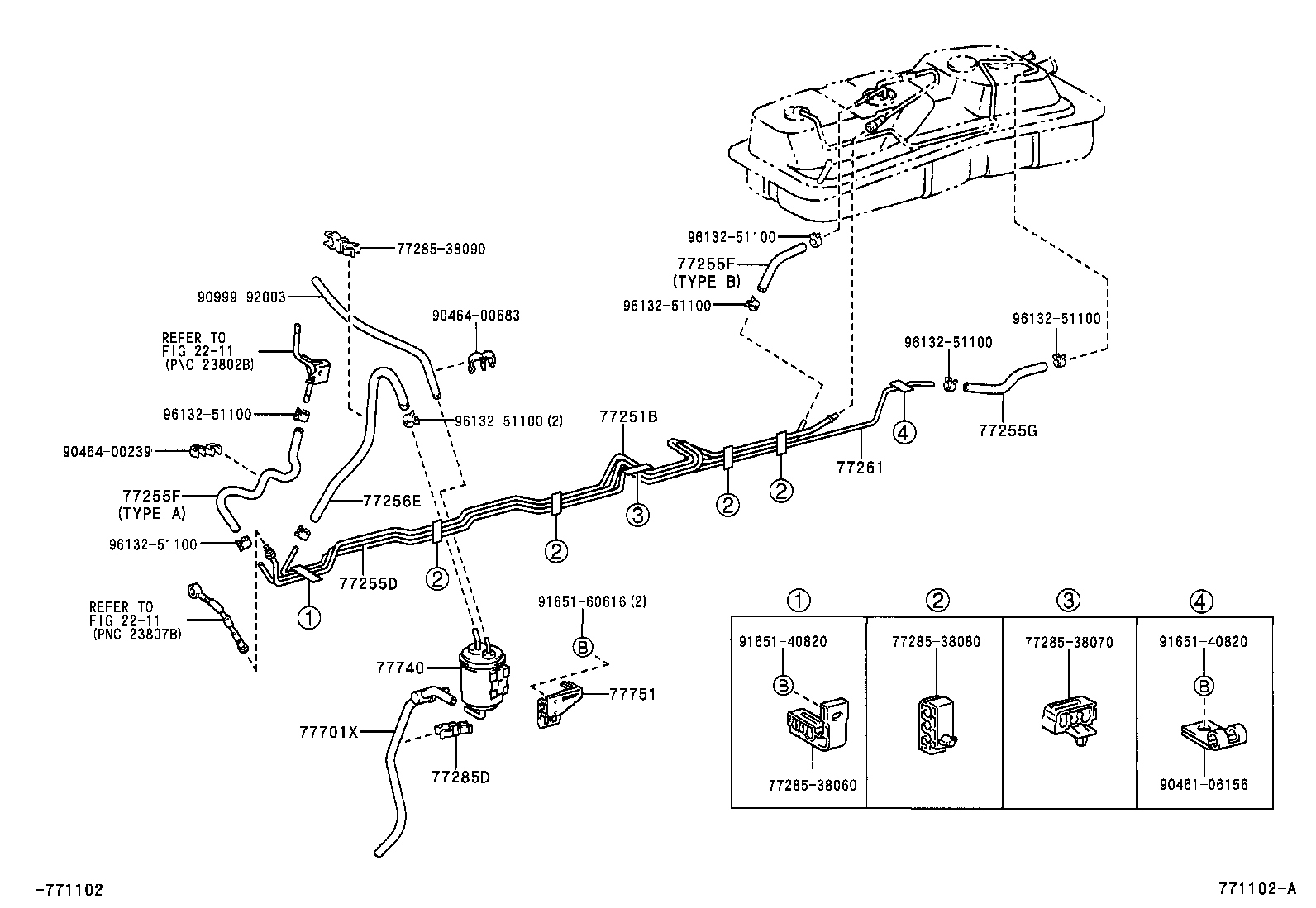

| 77261 | Tube Sub-assy, Fuel Emission |
| 77261B | Hose, Fuel, NO.2 (FOR FUEL EMISSION TUBE) |
| 77277T | Bracket, Check Valve |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77305A | Lid Sub-assy, Fuel Filler Opening |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77380 | Valve Assy, Fuel Cut Off |
| 77420 | Valve Assy, Fuel Cut Off, NO.2 |
| 77501T | Bracket Sub-assy, Fuel Tank |
| 77502D | Bracket Sub-assy, Fuel Tank, Rear |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77612B | Band, Fuel Tank, NO.2 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
| 77701X | Hose Sub-assy, Canister Outlet, NO.1 |
| 77740 | Canister Assy, Charcoal |
| 77751 | Bracket, Charcoal Canister Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
