Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

6 part groups · 2 illustrations

Illustrations

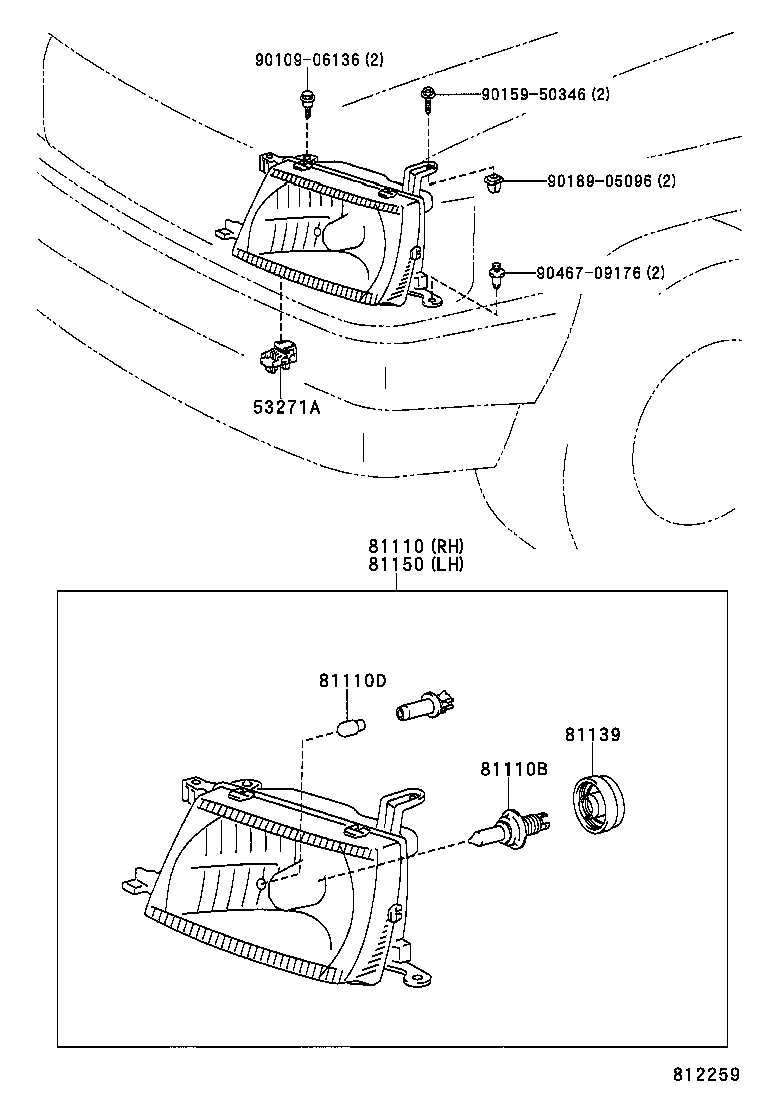

Figure 811336 811336 1999-12 → 2002-09 Figure 812259 812259 2002-09 → —

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81139 Cover, Headlamp Socket
81150 Headlamp Assy, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
