Toyota Qualis
1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General
Discontinued model
Data version 2005-07

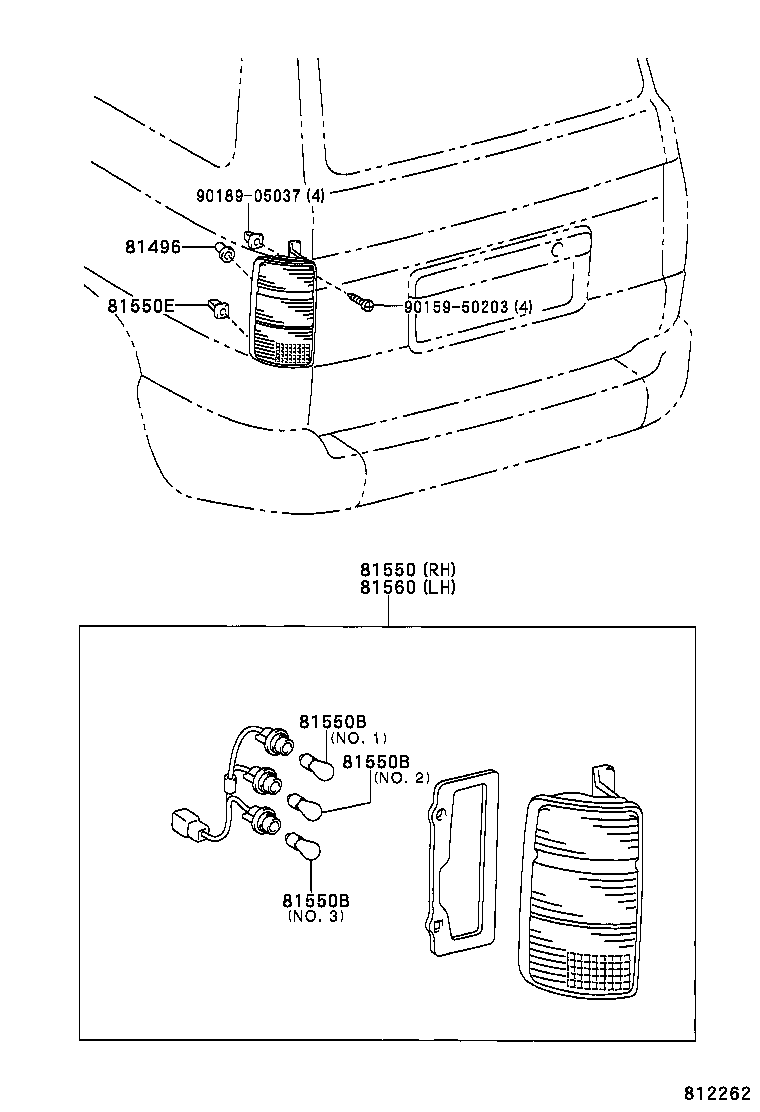

Rear Combination Lamp
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81550E | Clip(FOR REAR COMBINATION LAMP) |
| 81552B | Packing, Rear Combination Lamp Body, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81562B | Packing, Rear Combination Lamp Body, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
