Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

13 part groups · 2 illustrations

Illustrations

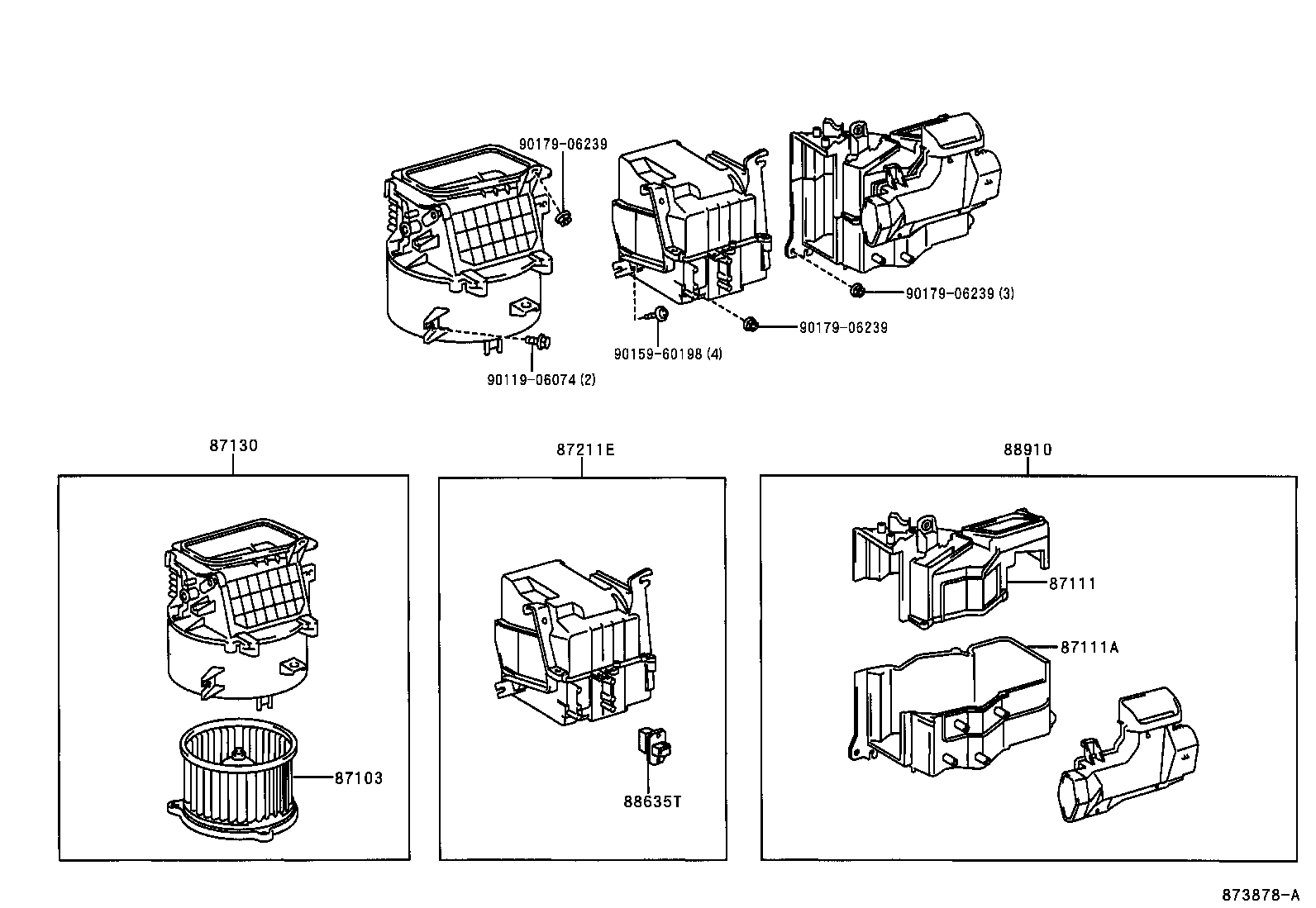

Figure 873877A 873877A 1999-12 → — Figure 873878A 873878A 1999-12 → —

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87107 Unit Sub-assy, Heater Radiator
87111 Case, Heater
87111A Case, Heater
87114 Cover, Heater
87130 Blower Assy, Heater, Front
87150 Radiator Assy, Heater
87156G Pipe, Heater Water, NO.1
87156H Pipe, Heater Water, NO.2
87201D Duct Sub-assy, Air
87211E Duct, Air
88635T Resistor, Blower
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
