Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

34 part groups · 3 illustrations

Illustrations

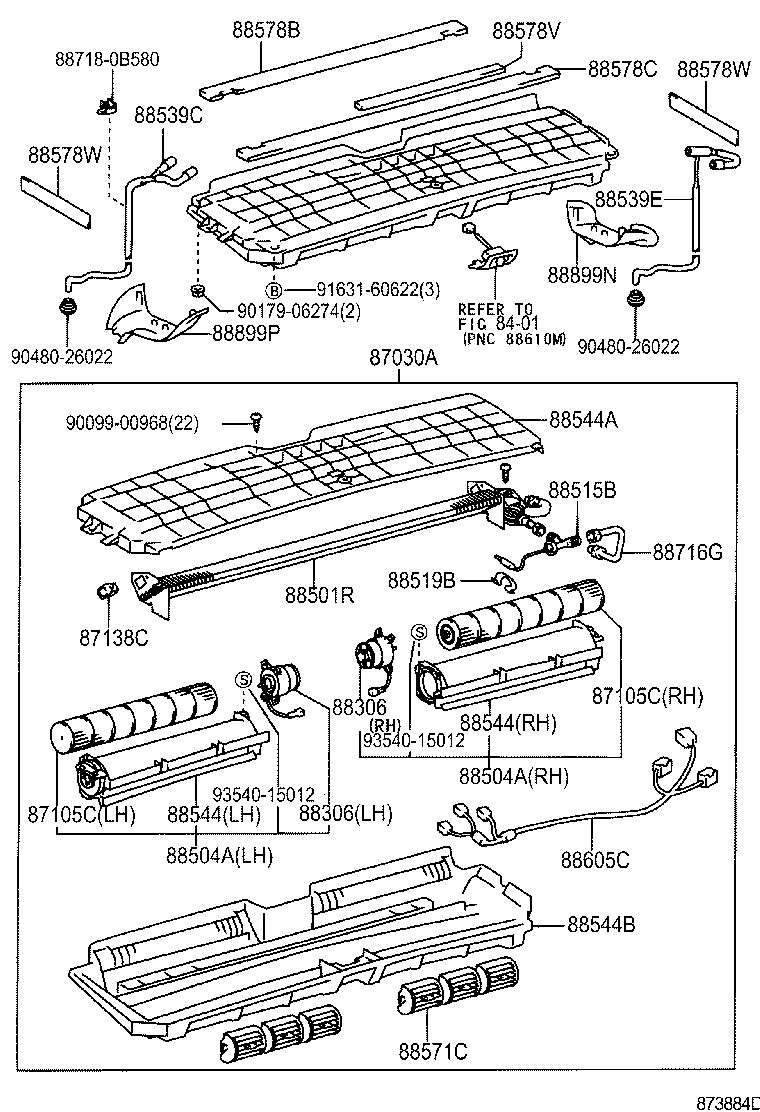

Figure 873883B 873883B 1999-12 → — Figure 873884D 873884D 1999-12 → — Figure 873926 873926 1999-12 → —

Part groups

PNCDescription
87030A Unit Assy, Cooling, Rear
87105C Fan Sub-assy, Blower, Rear
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
88306 Motor Sub-assy, Cooler Blower, NO.1
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88504A Case Sub-assy, Blower
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88519A Holder, Remote Bulb, Parts
88519B Holder, Remote Bulb, Parts
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88539E Hose, Cooler Unit Drain, NO.3
88544 Case, Cooler Blower
88544A Case, Cooler Blower, Upper
88544B Case, Cooler Blower, Lower
88571C Grille, Cooler Air Outlet
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578V Packing, Cooling Unit, NO.3
88578W Packing, Cooling Unit, NO.4
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88625 Thermistor, Cooler, NO.1
88635 Resistor, Cooler Unit Blower
88650 Amplifier Assy, Cooler Stabilizer
88716G Pipe, Cooler Refrigerant Liquid, G
88895 Holder, Fuse
88897K Grommet, (FOR COOLER PIPE)
88899N Plate, Cover
88899P Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
