Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

27 part groups · 9 illustrations

Illustrations

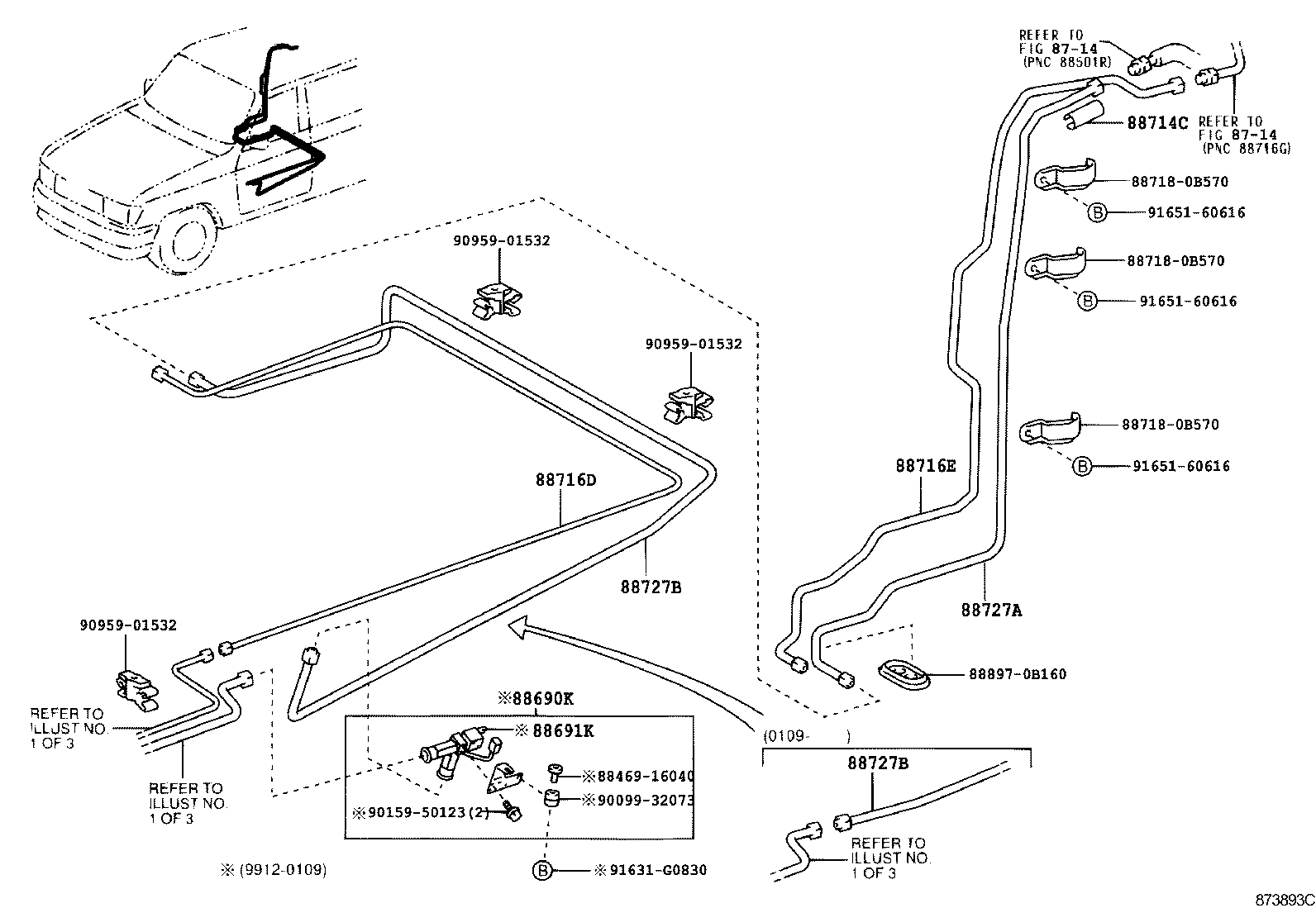

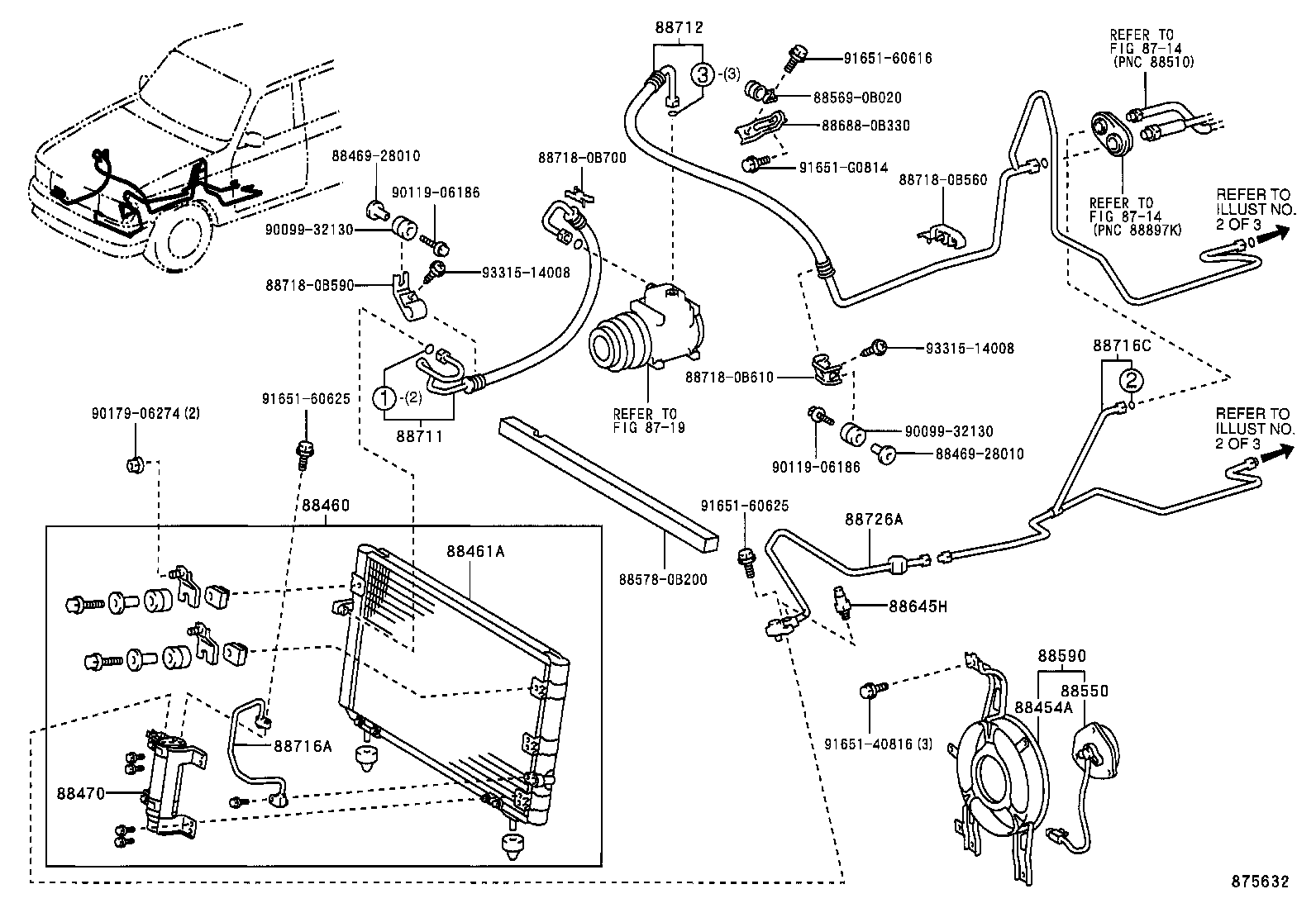

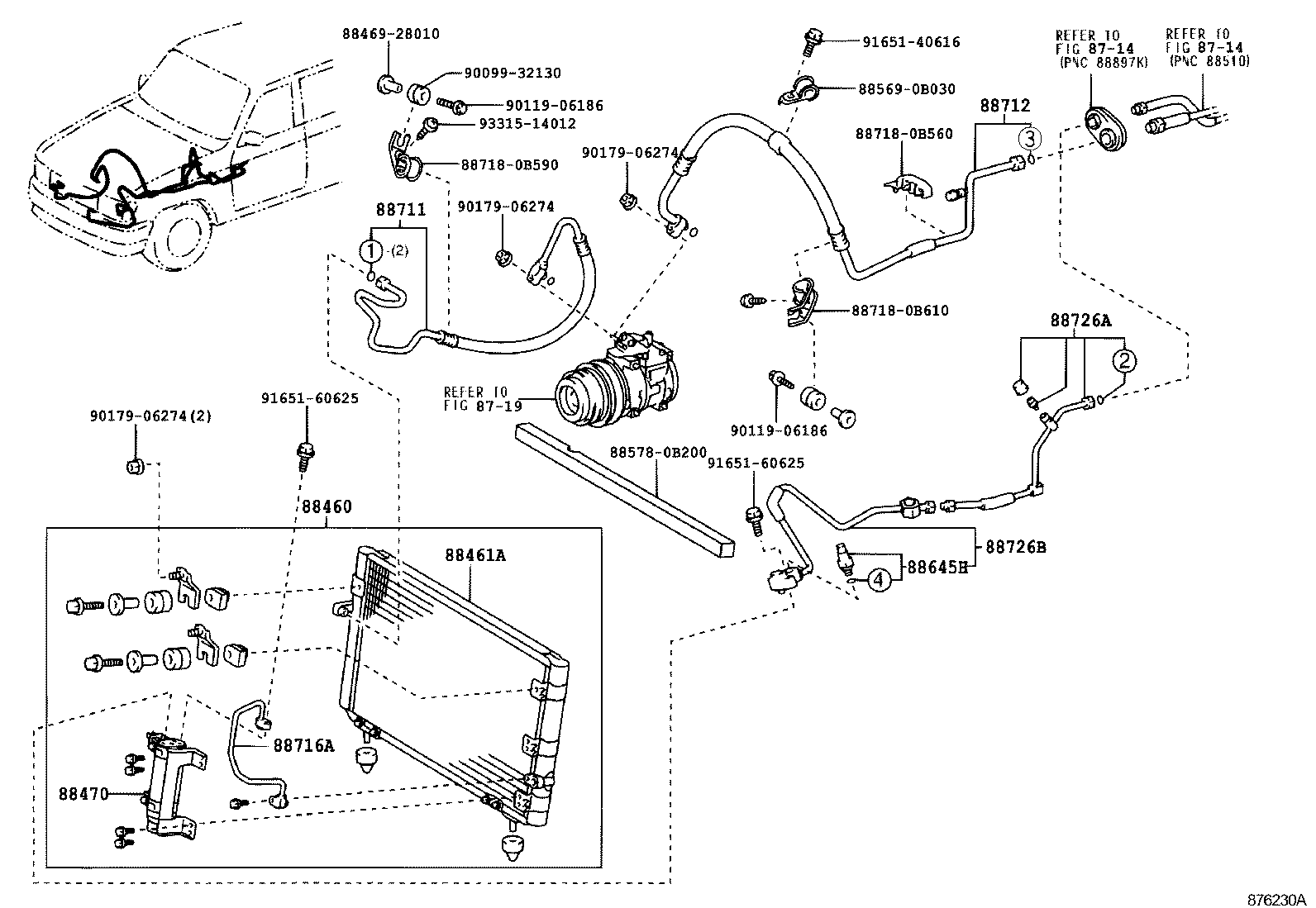

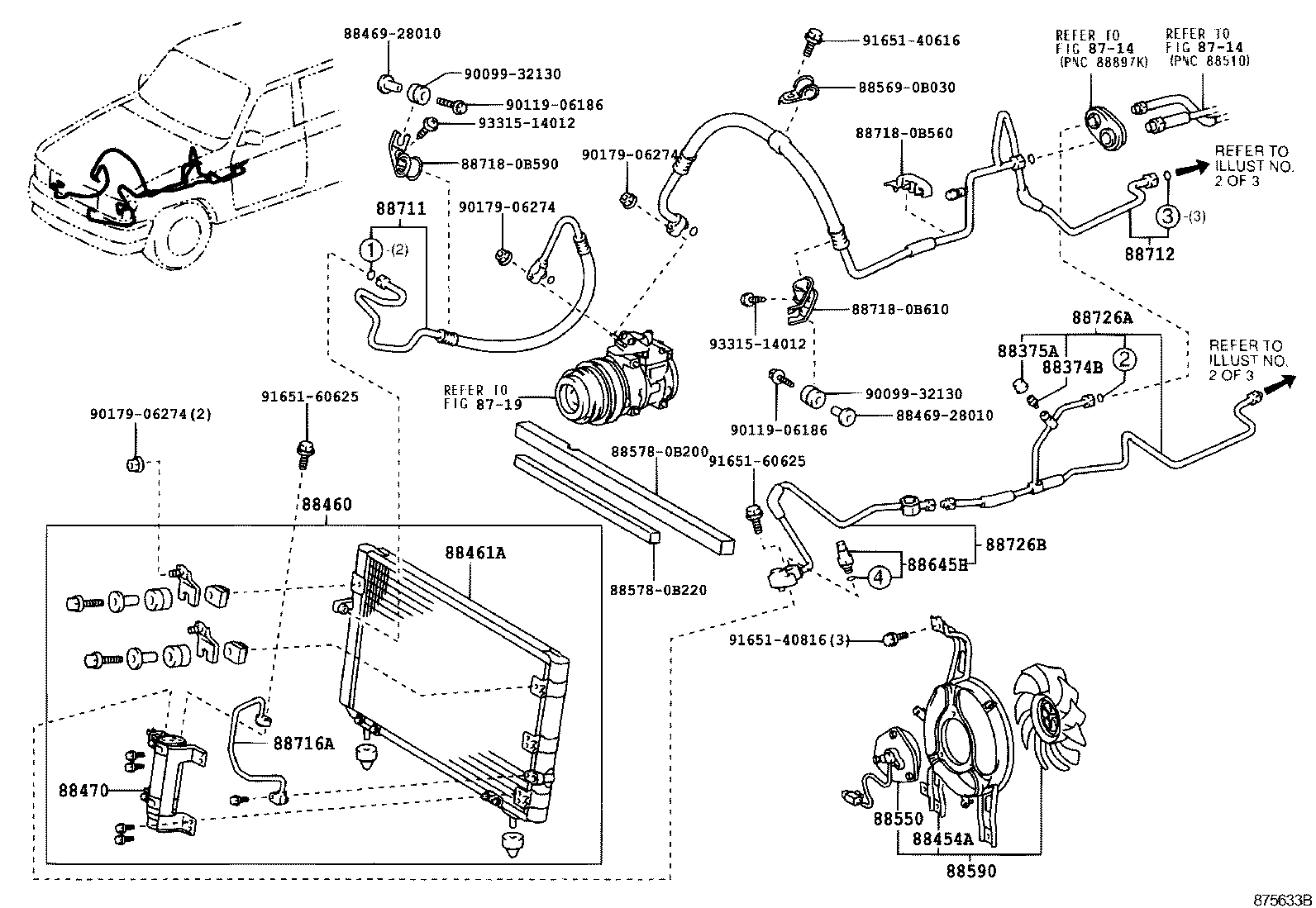

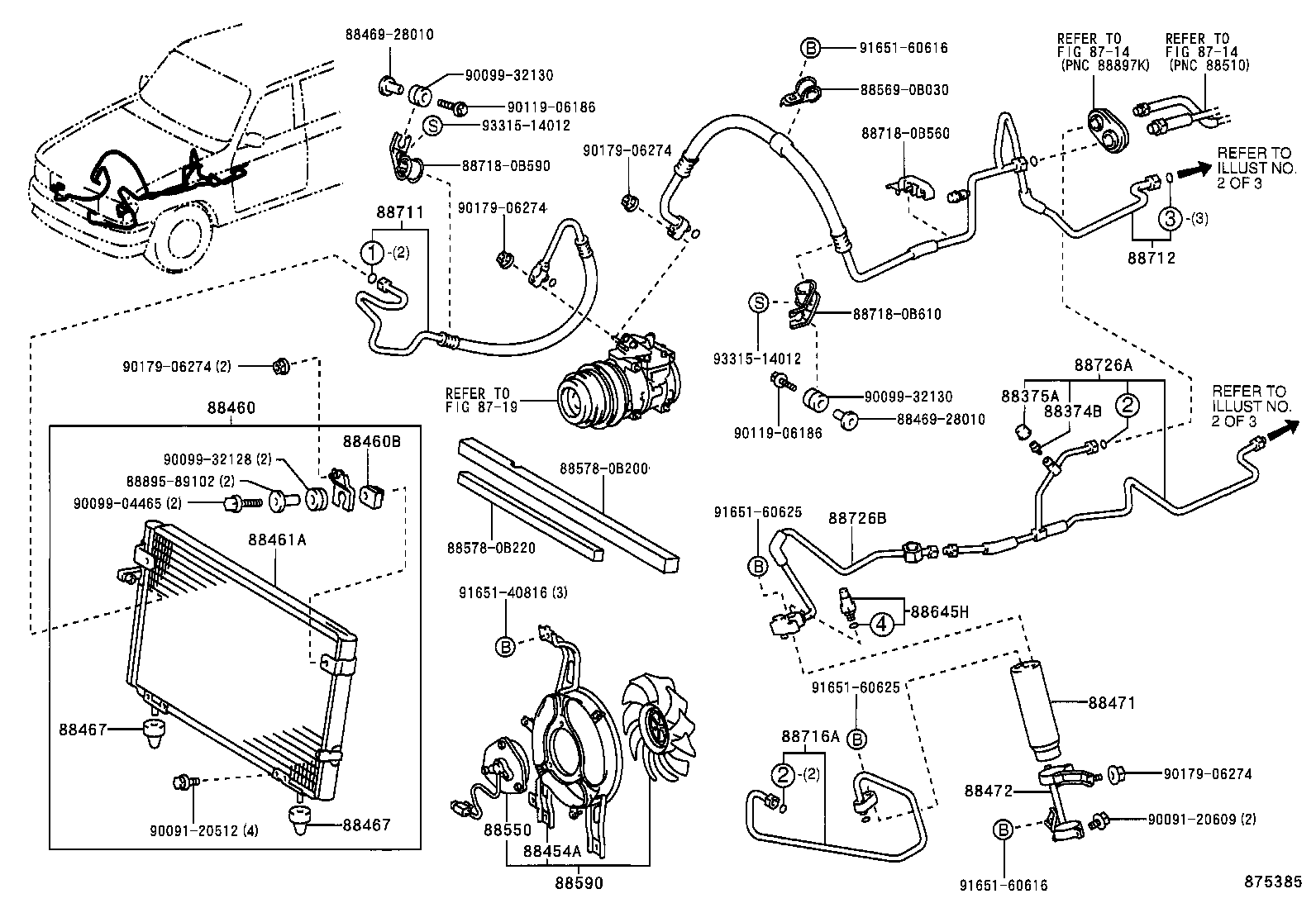

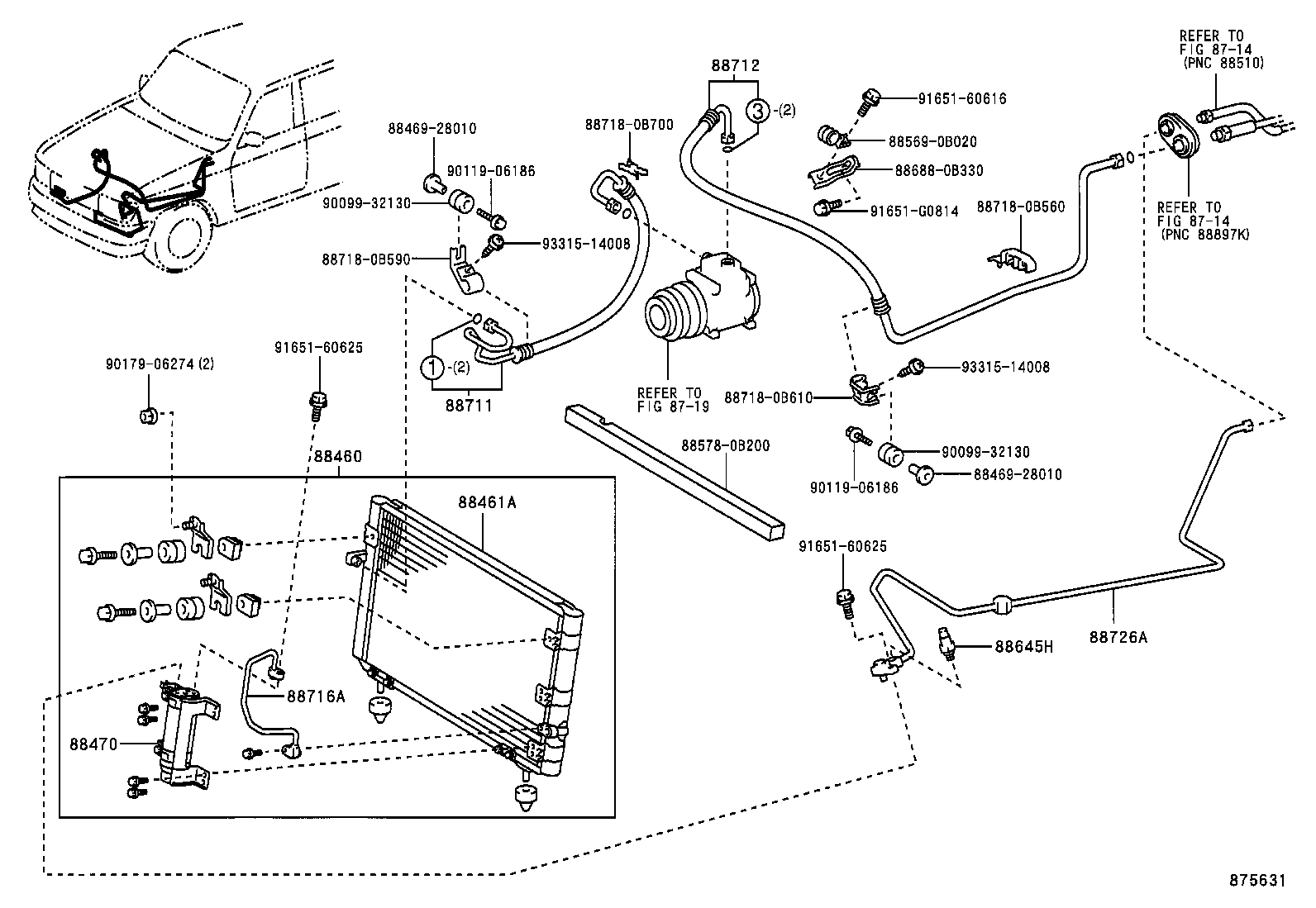

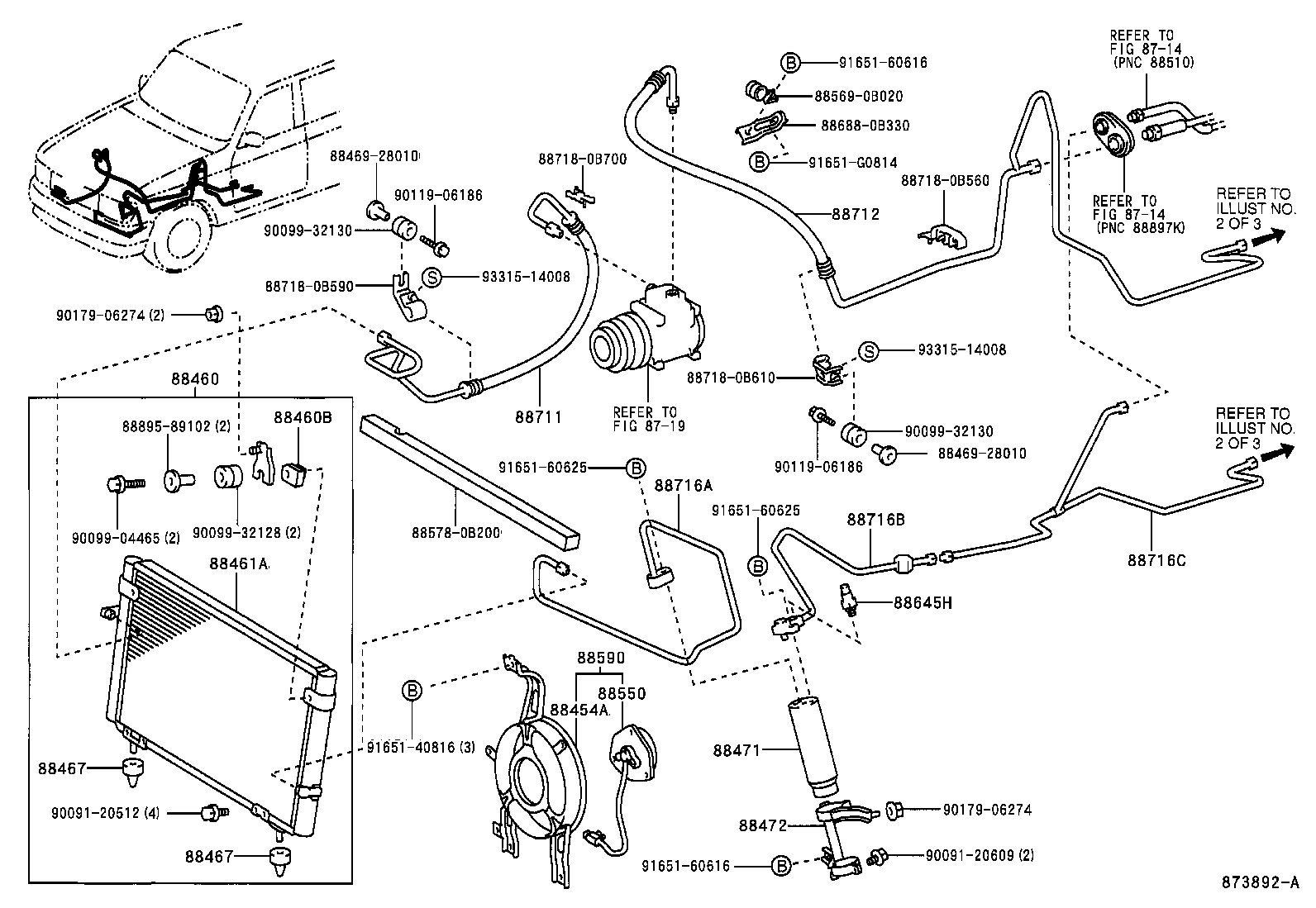

Figure 873890A 873890A 1999-12 → 2002-09 Figure 873892A 873892A 1999-12 → 2002-09 Figure 875385 875385 2002-01 → 2002-09 Figure 875631 875631 2002-09 → — Figure 875632 875632 2002-09 → — Figure 876230A 876230A 2003-04 → — Figure 875633B 875633B 2002-09 → — Figure 873893C 873893C 1999-12 → — Figure 873926 873926 1999-12 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88461A Core, Cooler Condenser
88467 Cushion, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88690K Valve Assy, Magnet
88691K Valve Assy, Magnet
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
