Toyota Qualis

1999-12 → 2004-12 · chassis LF50,RZF50 · catalogue 611250 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

13 part groups · 2 illustrations

Illustrations

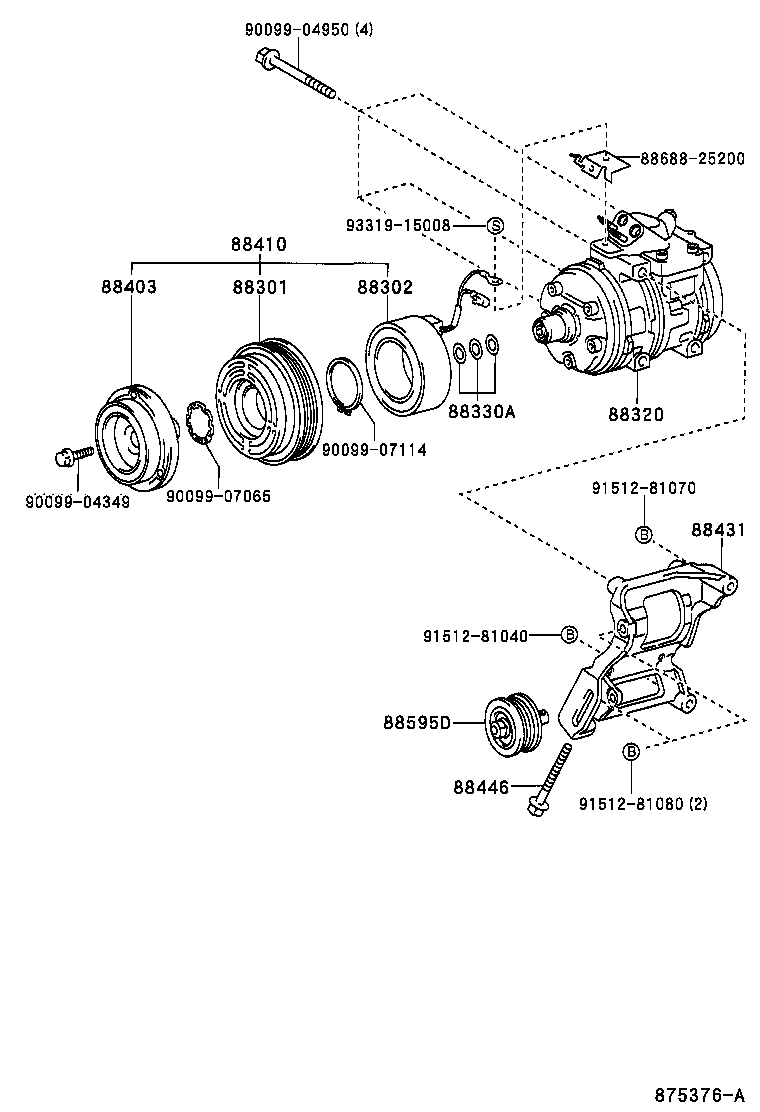

Figure 873876E 873876E 1999-12 → — Figure 875376A 875376A 2002-01 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88336 Sensor, Compressor
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88469B Collar
88595D Pulley Assy, Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
