Toyota Innova/Kijang Innova

2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

12 part groups · 4 illustrations

Illustrations

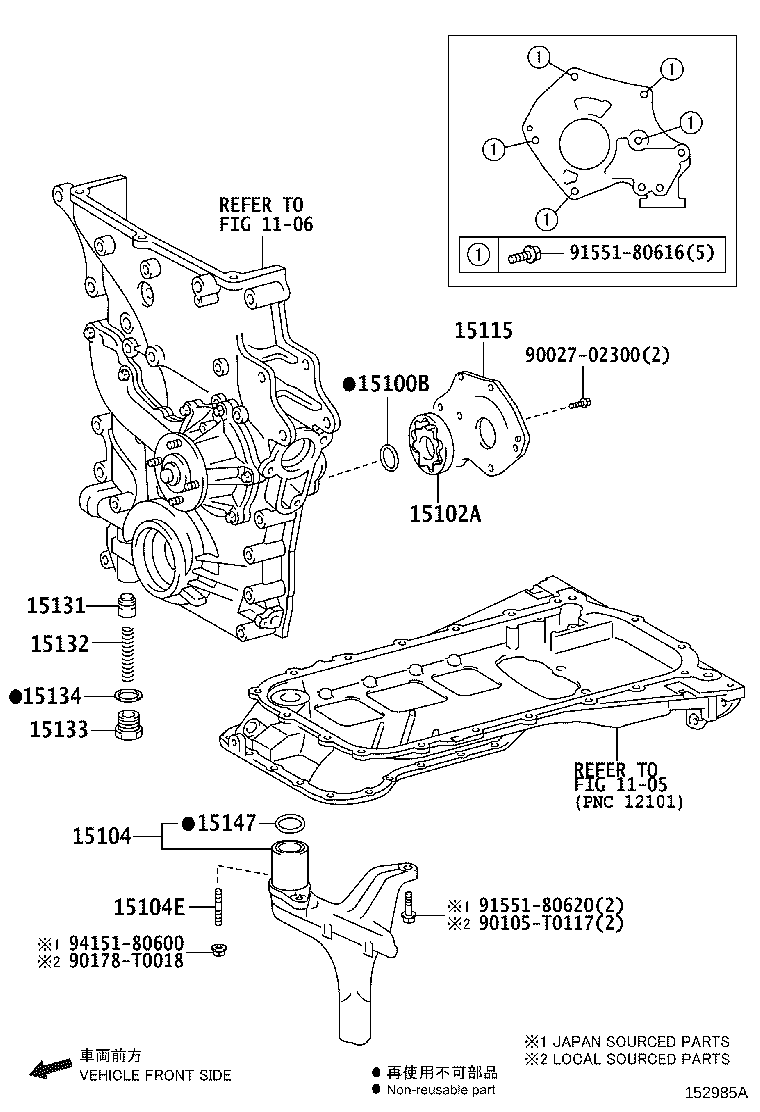

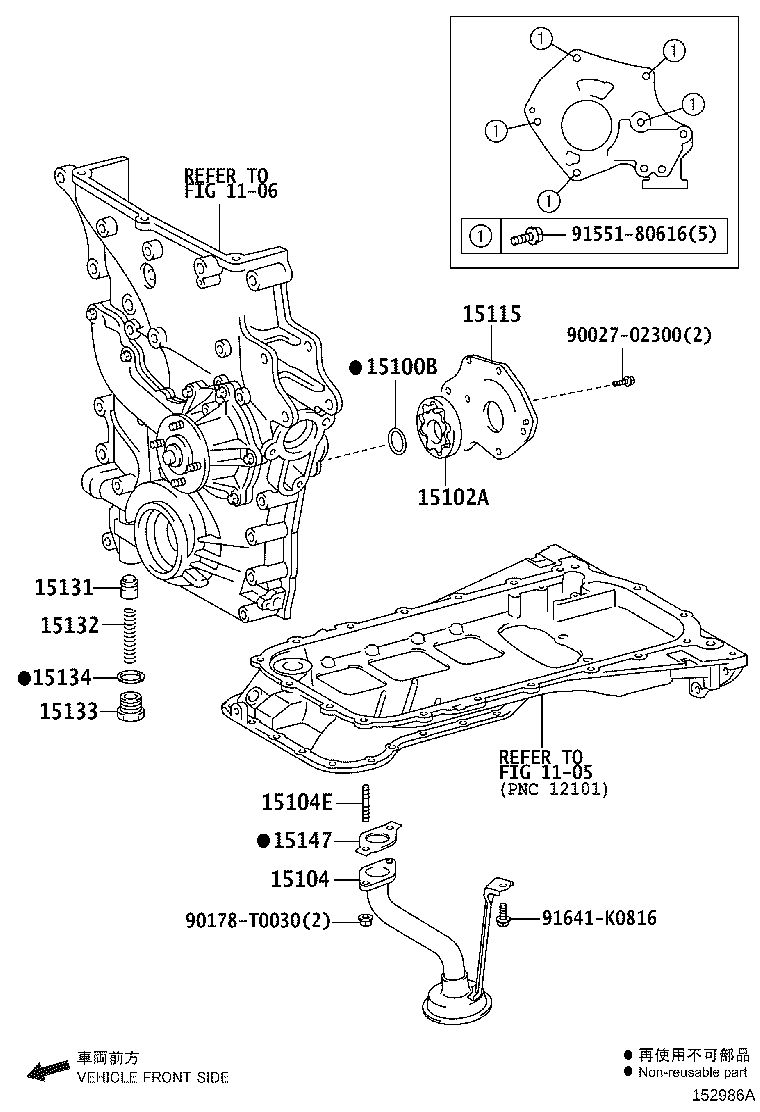

Figure 150996F 150996F 2004-08 → — Figure 152986A 152986A 2004-08 → — Figure 152986A 152986A 2011-11 → 2015-03 Figure 152985A 152985A 2015-03 → —

Part groups

PNCDescription
15100B Ring, O(FOR OIL PUMP)
15102A Rotor, Oil Pump
15104 Strainer Sub-assy, Oil
15104E Bolt, Stud(FOR OIL STRAINER)
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15149 Gasket, Oil Strainer Flange
15193 Gasket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
